Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

122 part groups · 17 illustrations

Illustrations

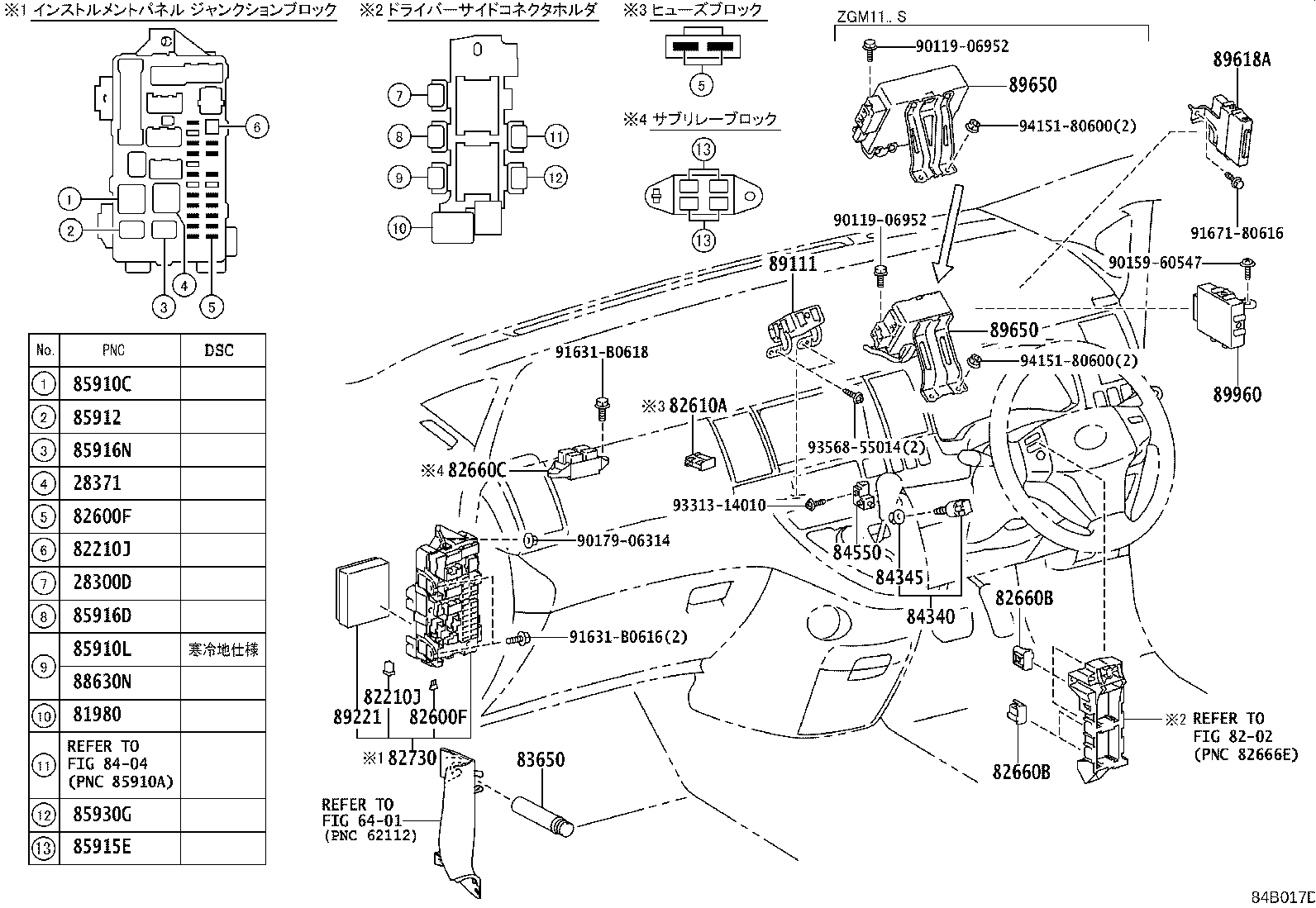

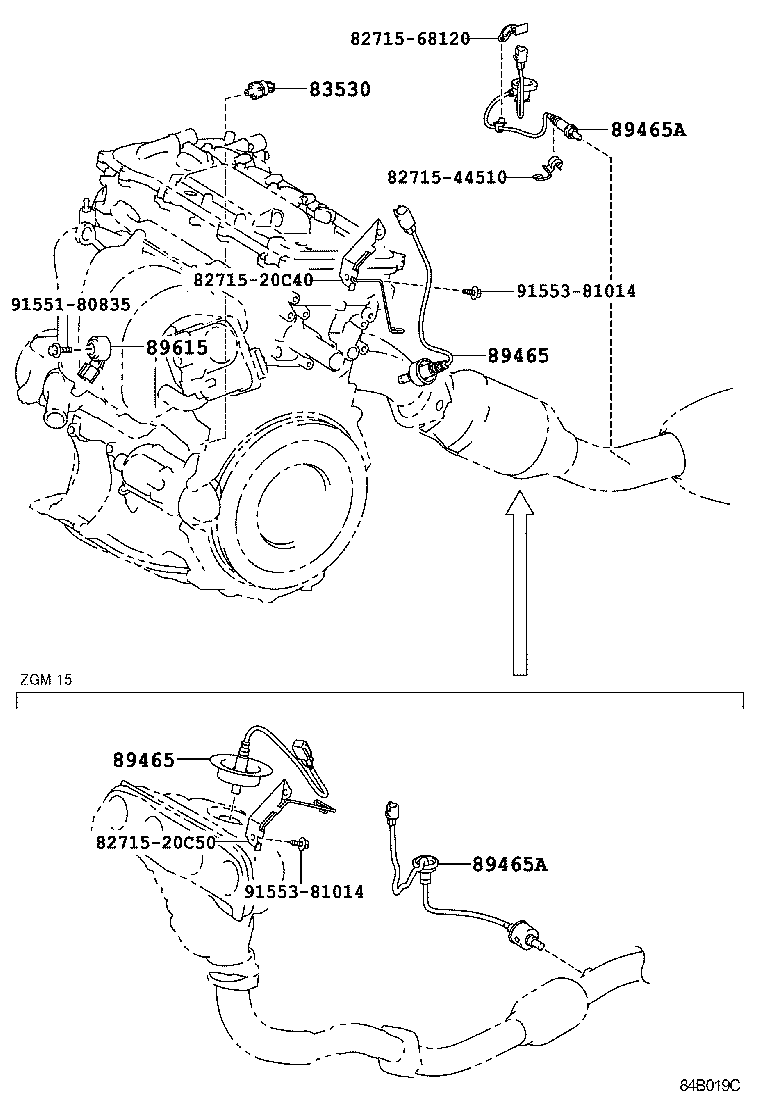

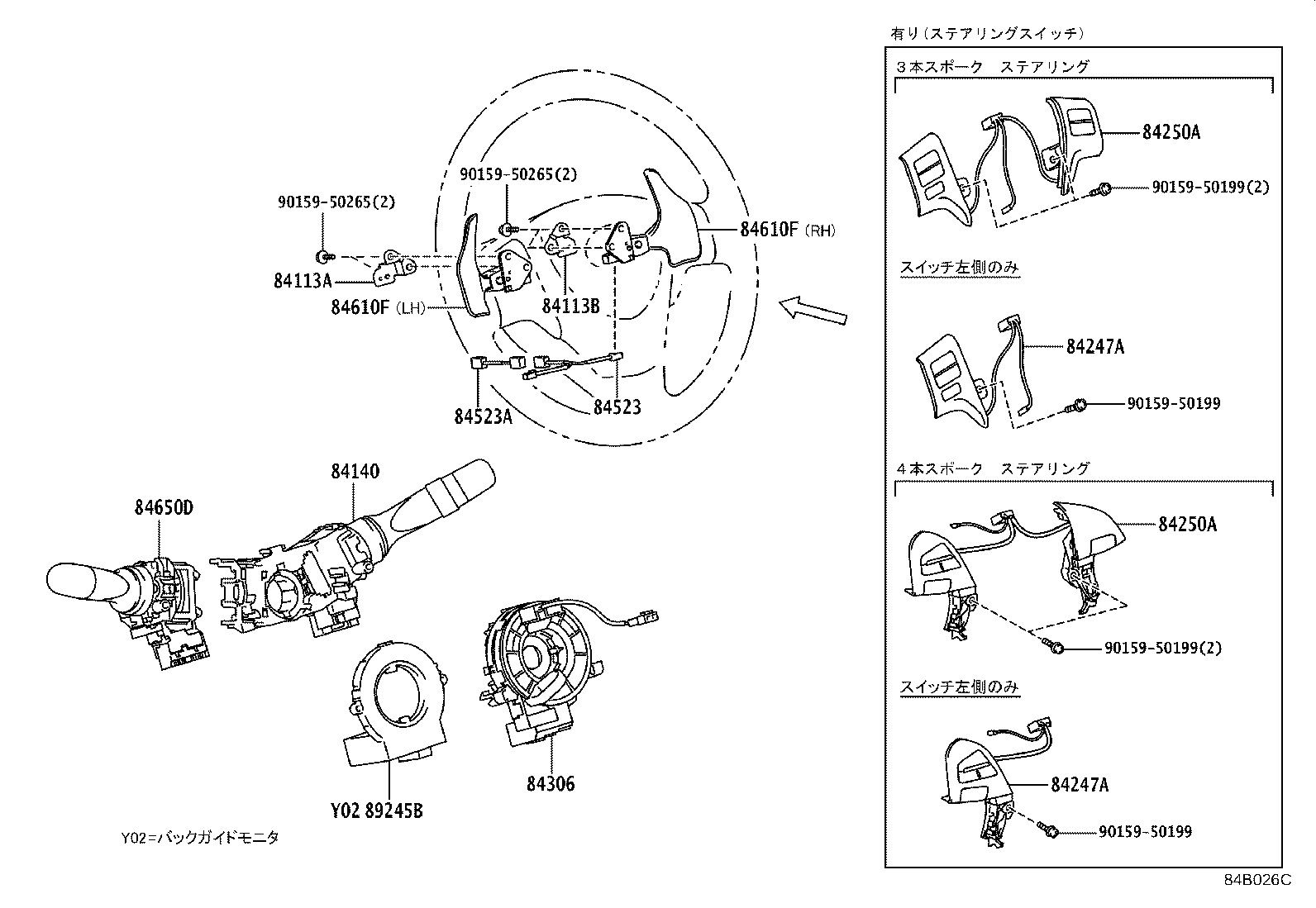

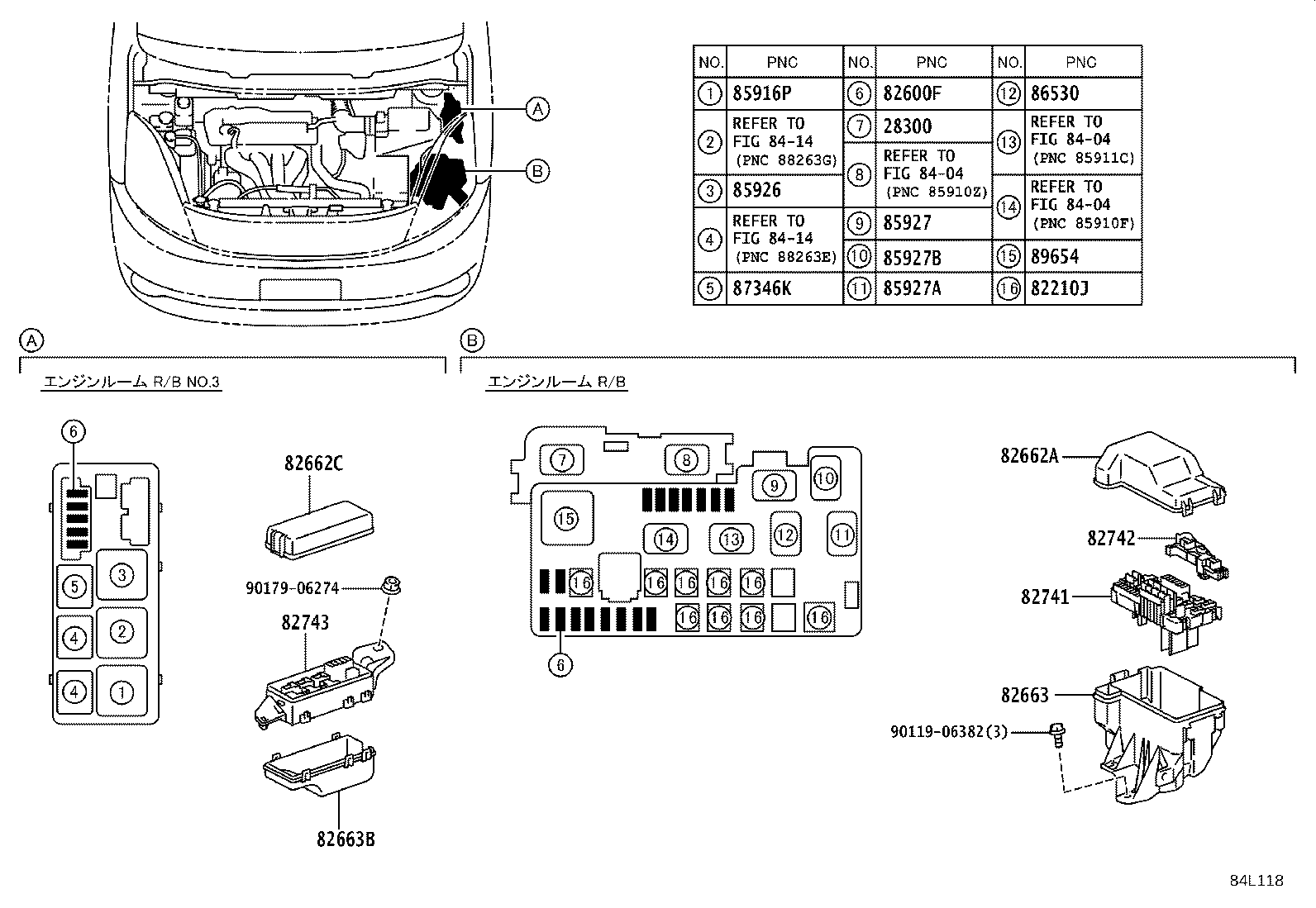

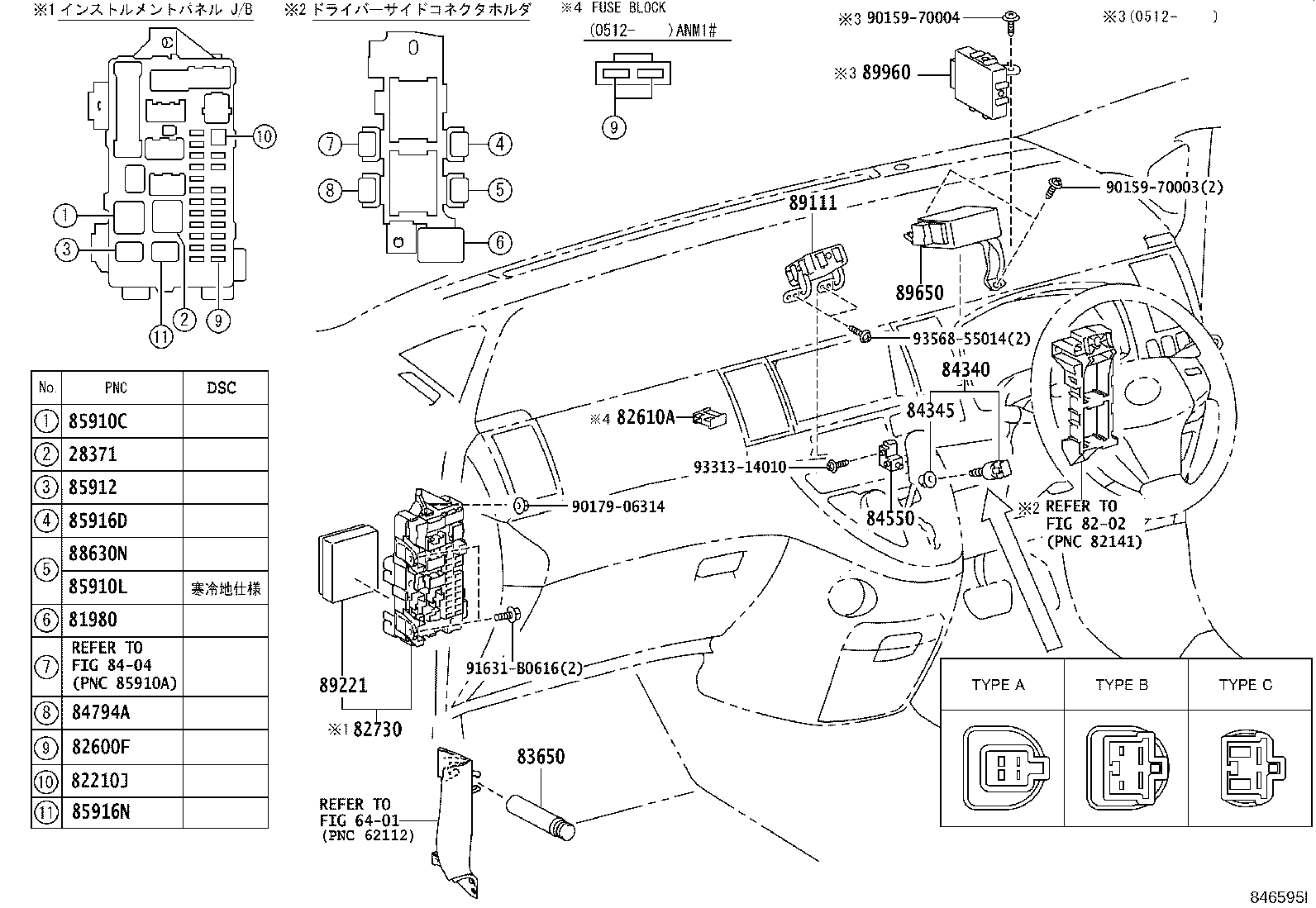

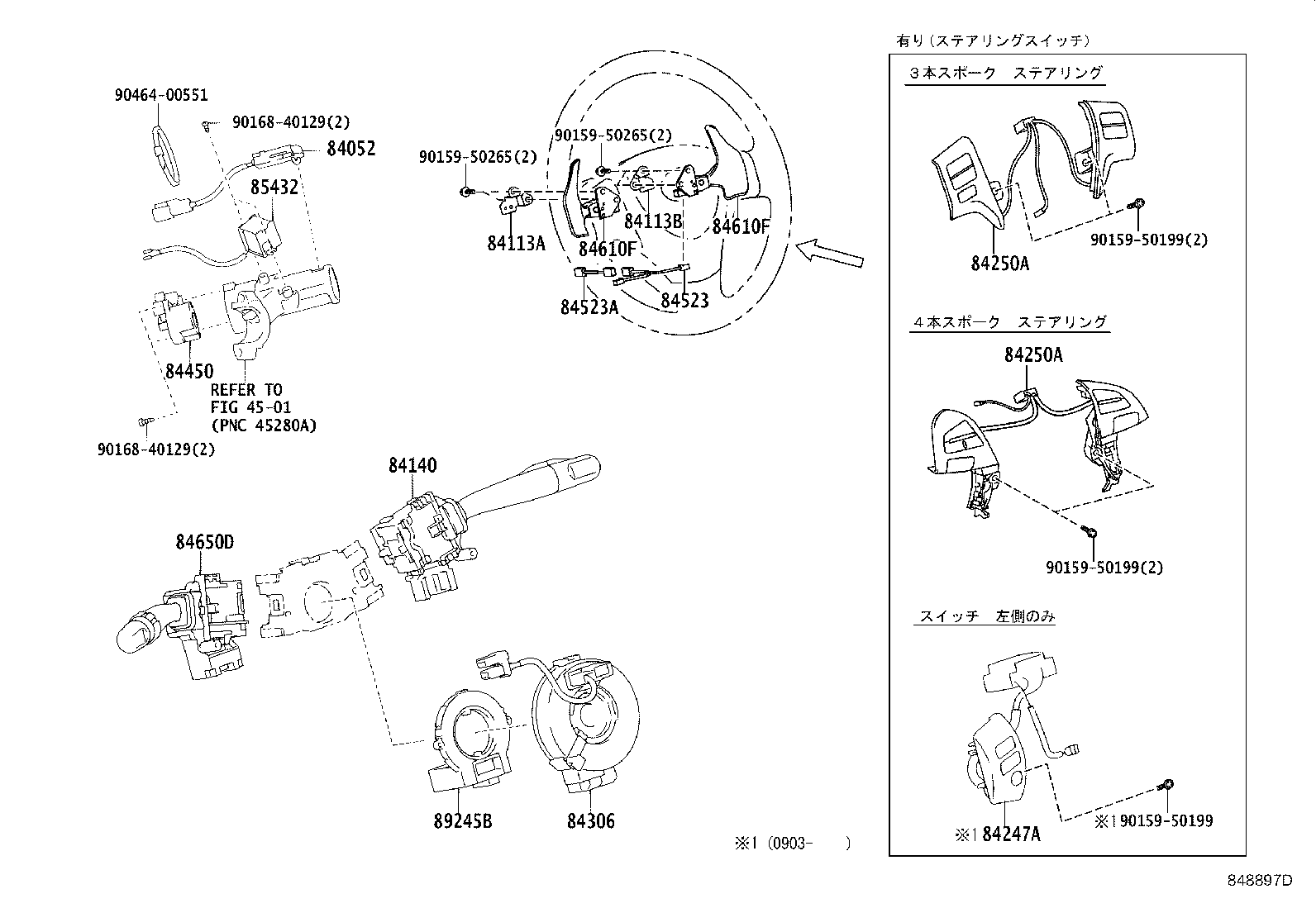

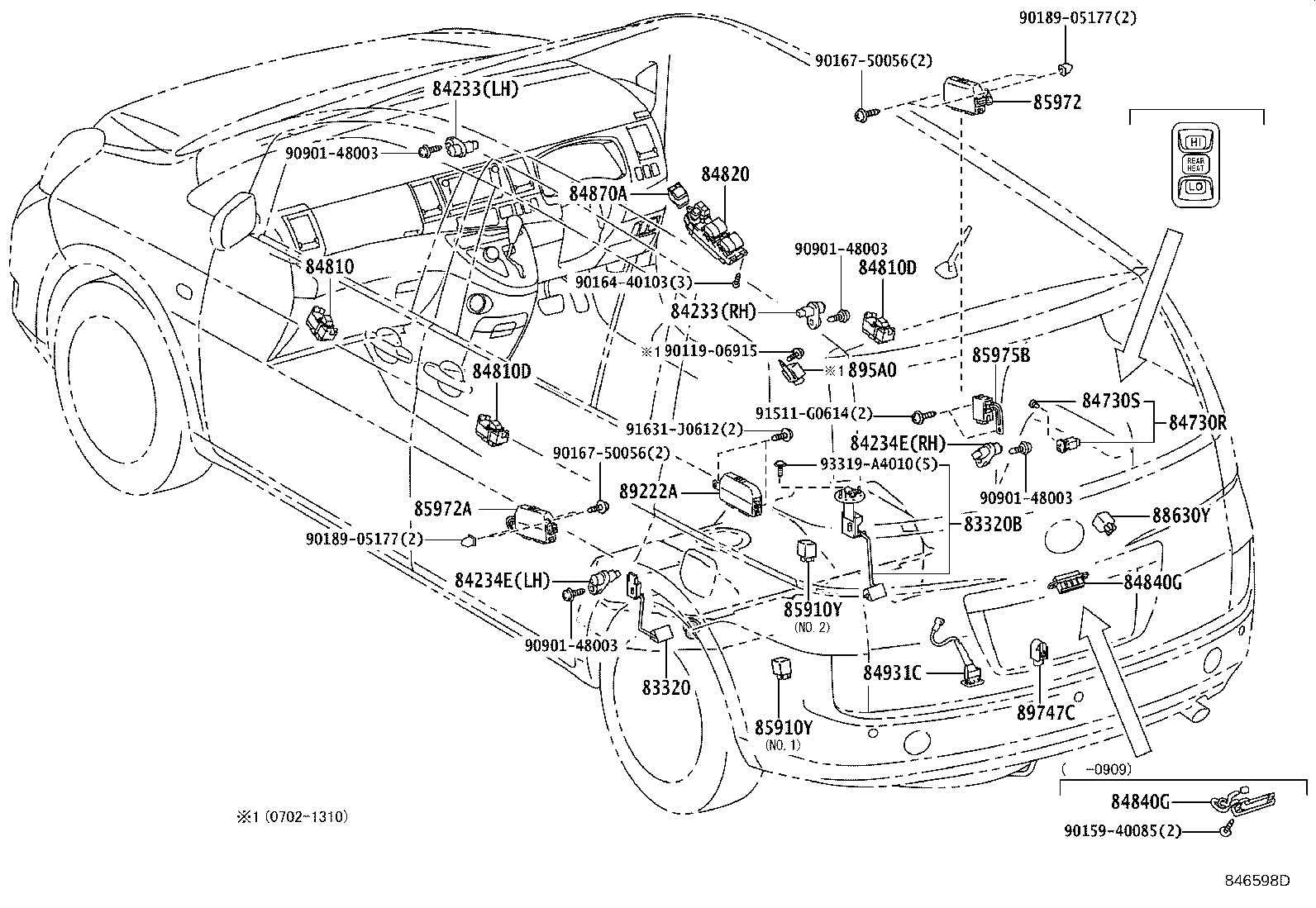

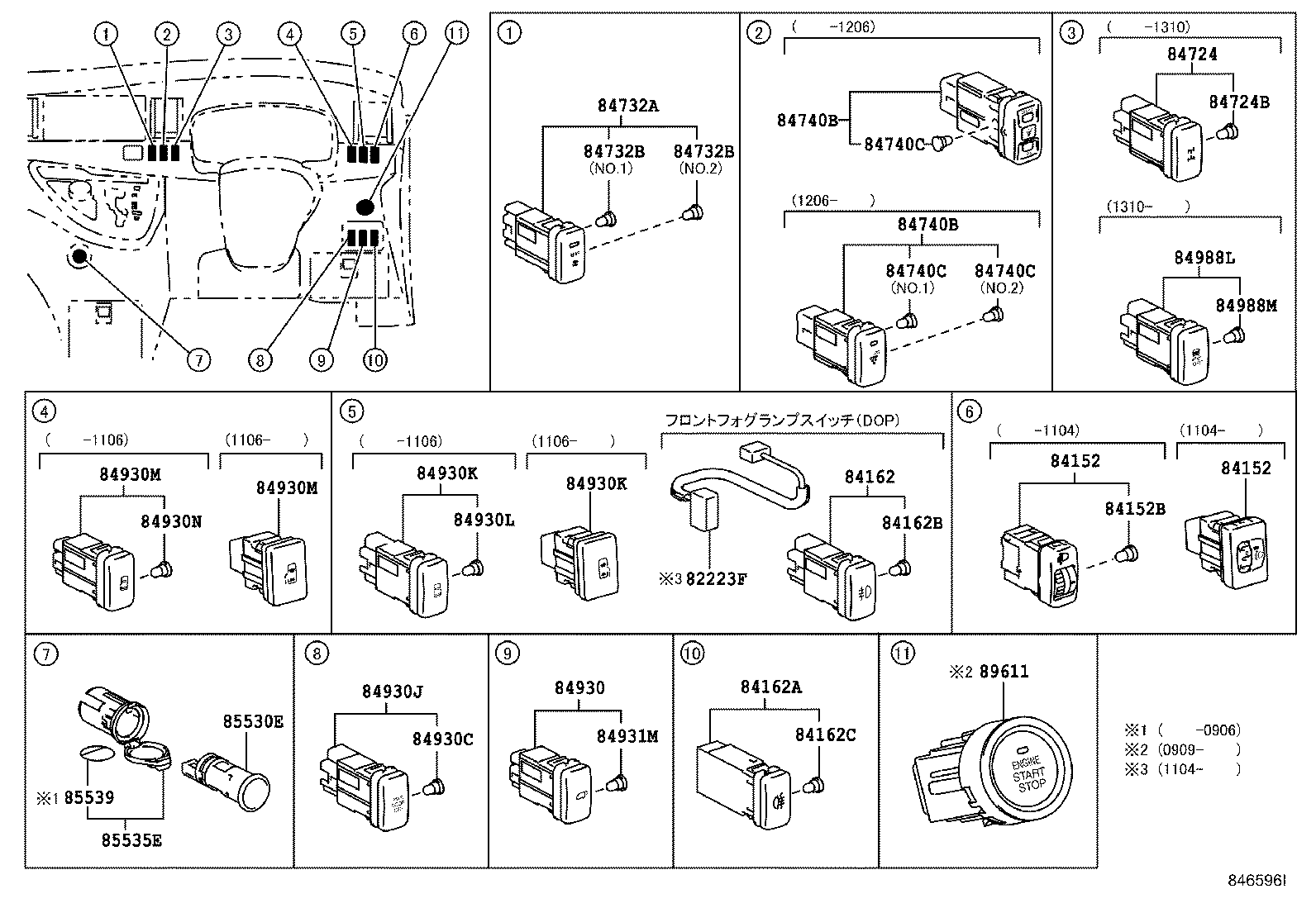

Figure 846592A 846592A 2004-09 → 2009-09 Figure 846593A 846593A 2004-09 → 2009-09 Figure 84B019C 84B019C 2009-09 → 2012-06 Figure 84D607 84D607 2012-06 → — Figure 84B020 84B020 2009-09 → — Figure 846594F 846594F 2004-09 → 2009-09 Figure 84B018D 84B018D 2009-09 → — Figure 84L118 84L118 2004-09 → 2009-09 Figure 84L119 84L119 2009-09 → — Figure 846595I 846595I 2004-09 → 2009-09 Figure 84B017D 84B017D 2009-09 → — Figure 846596I 846596I 2004-09 → — Figure 846597B 846597B 2004-09 → 2007-05 Figure 848897D 848897D 2007-05 → 2009-09 Figure 84B026C 84B026C 2009-09 → 2012-06 Figure 84D717B 84D717B 2012-06 → — Figure 846598E 846598E 2004-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2

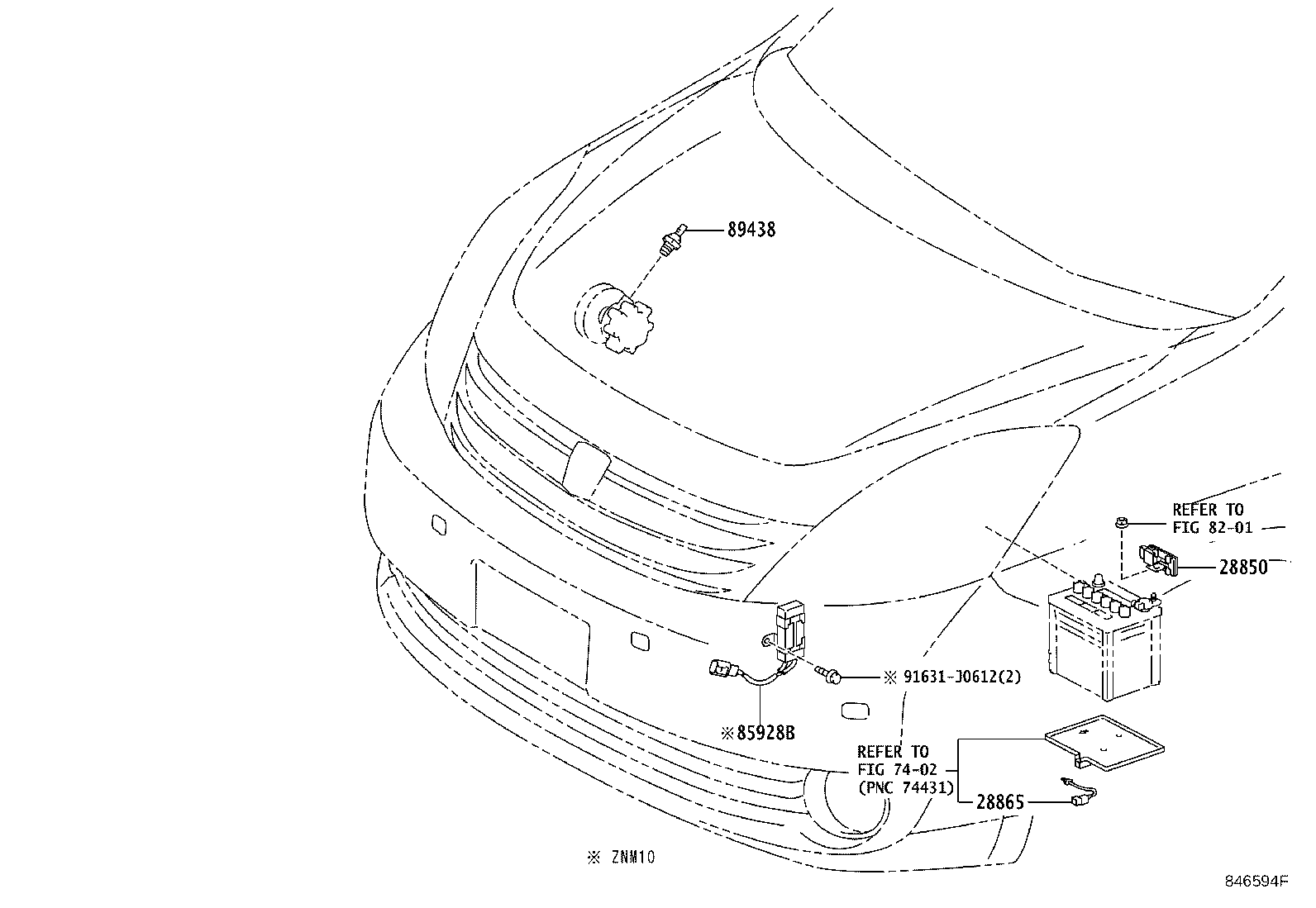

28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82223F Wire, Switch
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link

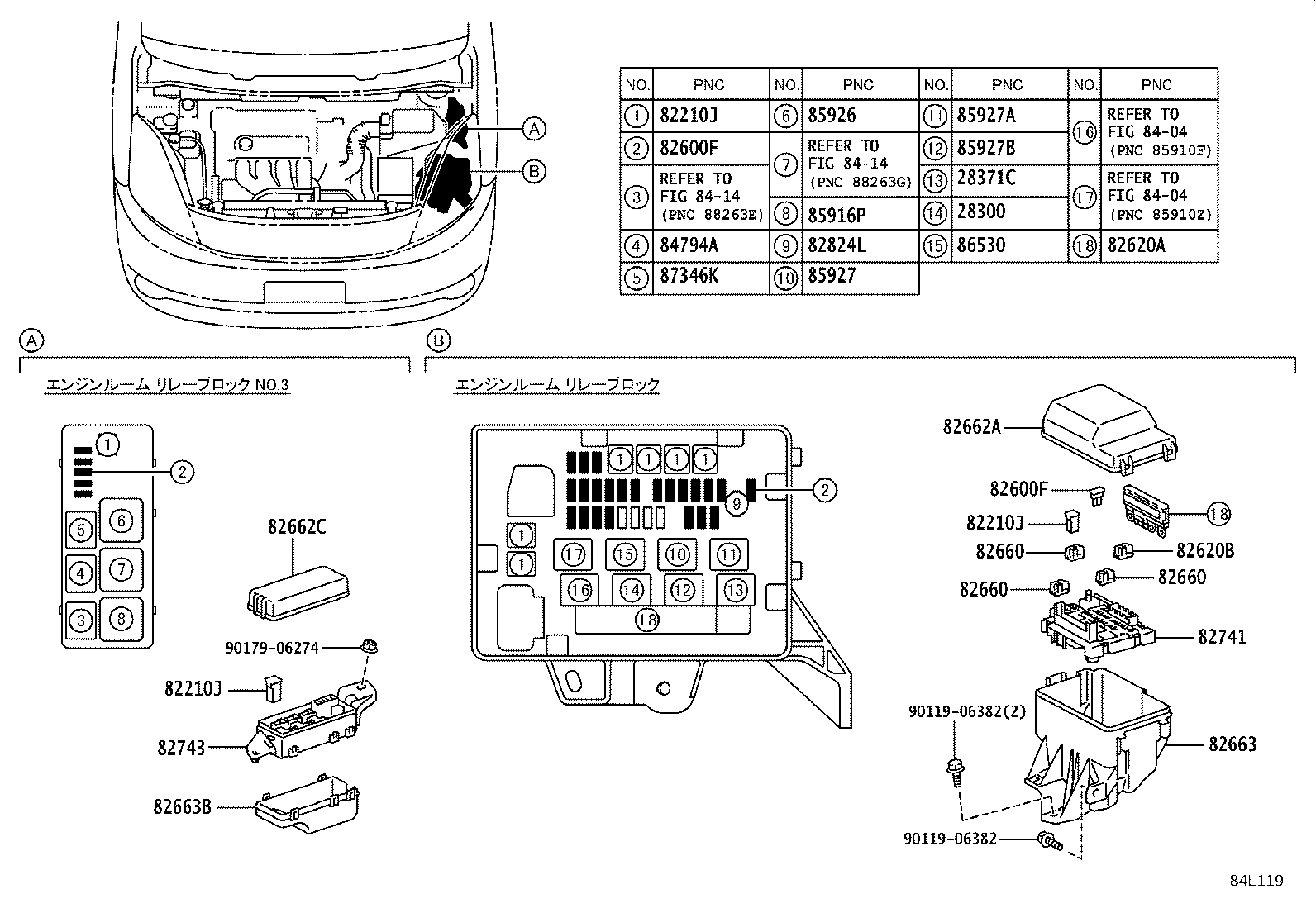

82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663B Cover, Relay Block, Lower, NO.3
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2

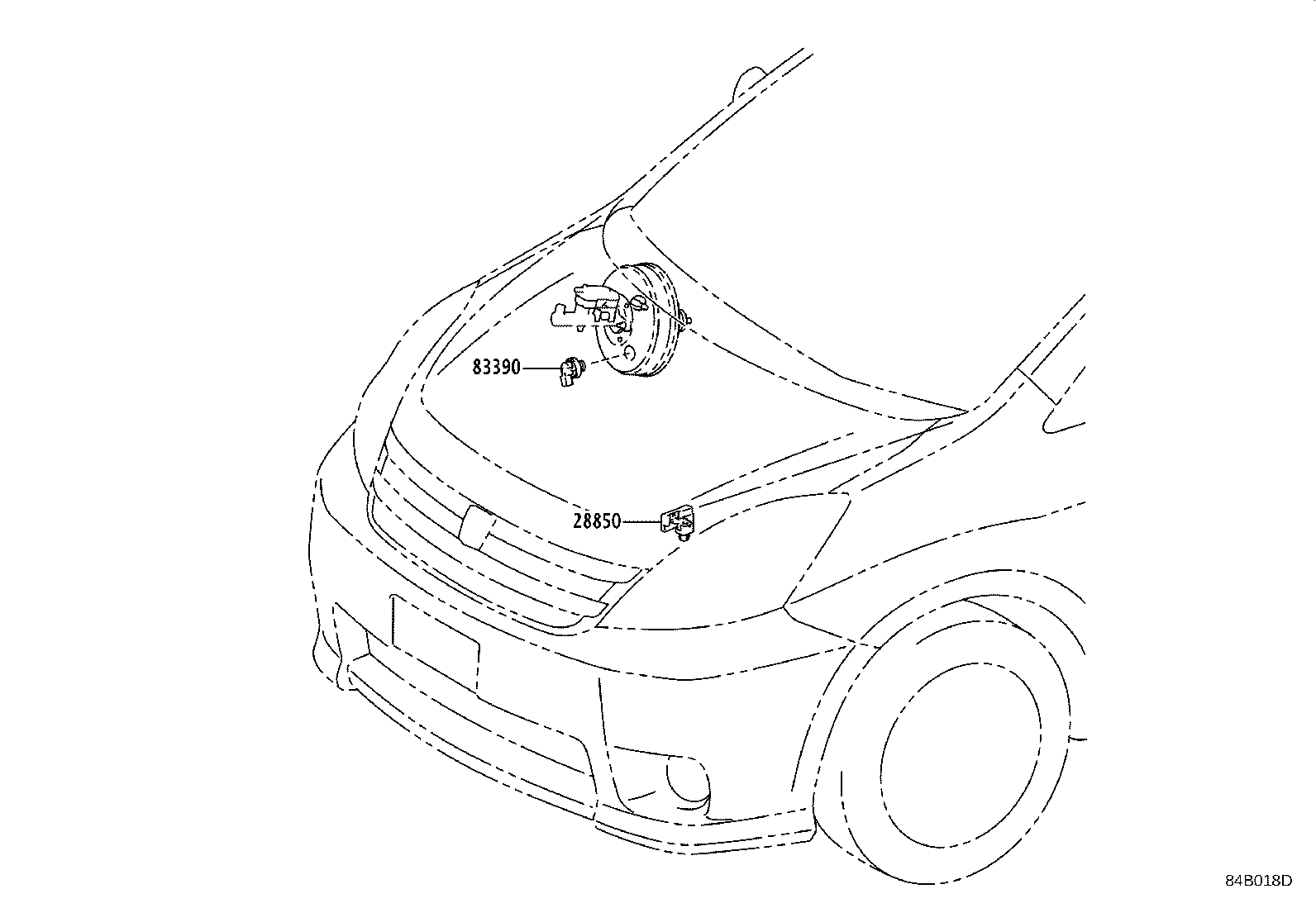

83390 Switch Assy, Vacuum Warning

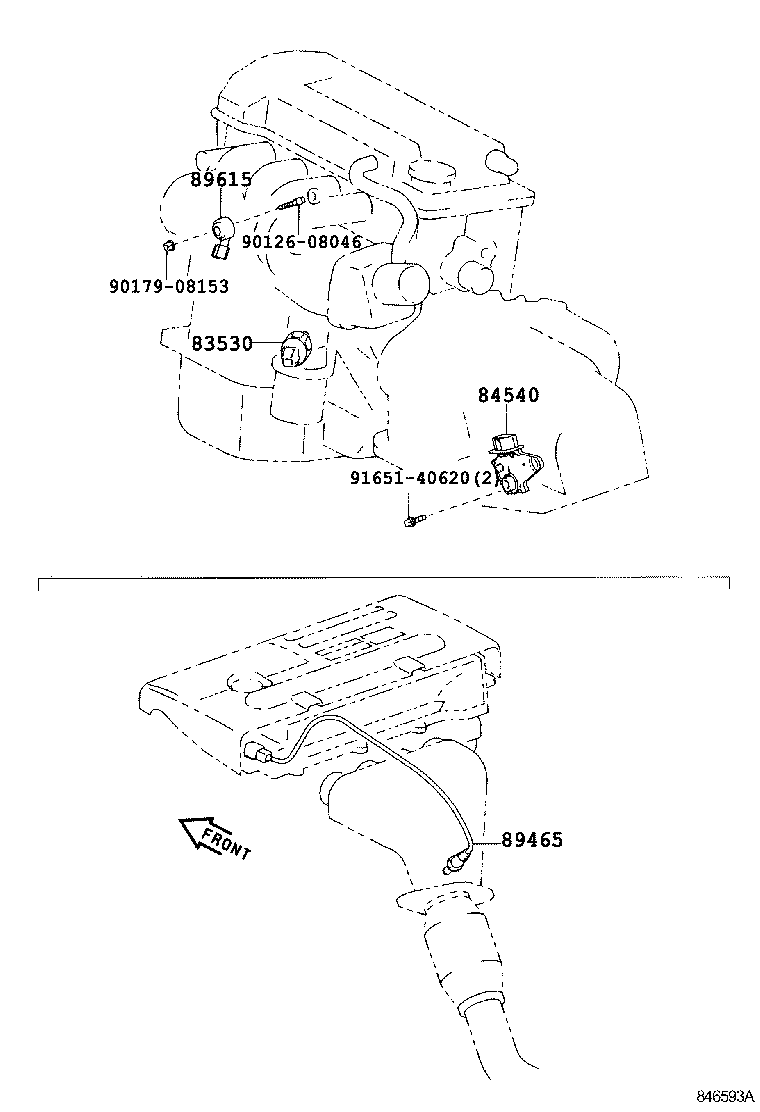

83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84204 Cable Sub-assy, Steering Pad Switch
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234E Switch, Courtesy Lamp (FOR SLIDE DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH

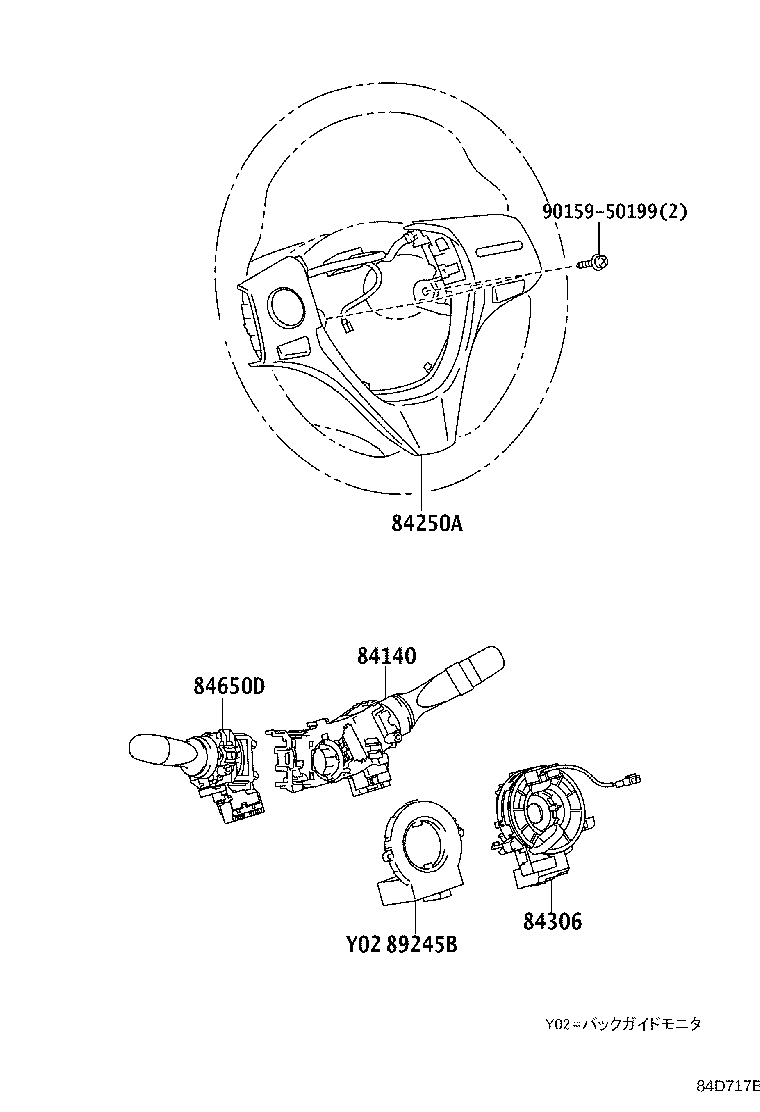

84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting

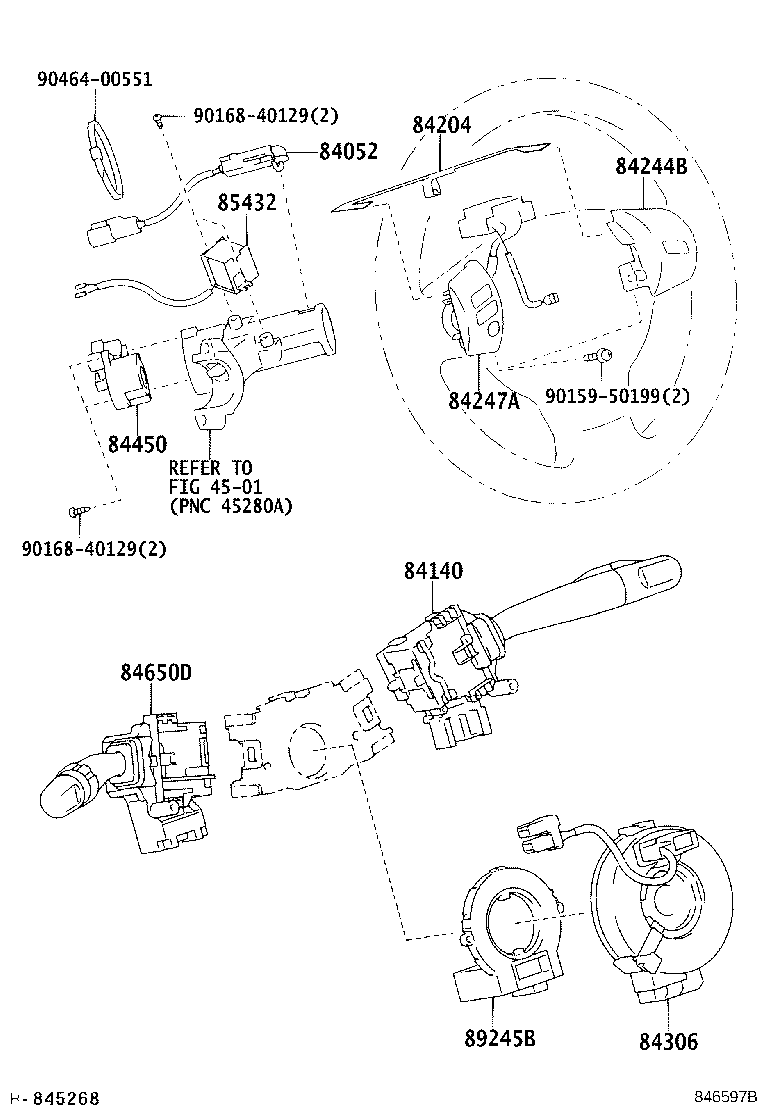

84450 Switch Assy, Ignition OR Starter
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2

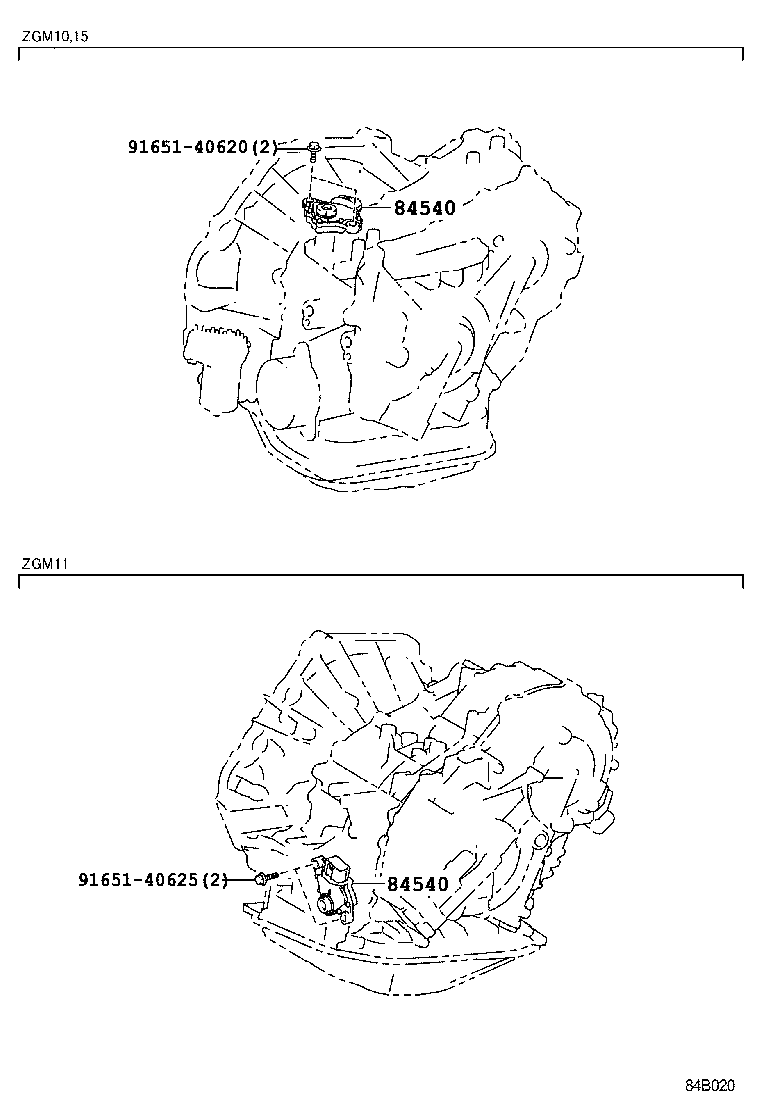

84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84730R Switch Assy, Heater Blower
84730S Bulb, Heater Blower Switch
84732A Switch, Rear Heater Blower
84732B Bulb, Rear Heater Blower Switch
84740B Switch Assy, Air Purifier
84740C Bulb, Air Purifire Switch
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84930J Switch Assy, Auto Slide Door Main
84930K Switch Assy, Auto Slide Door Control
84930L Bulb, Auto Slide Door Control Switch
84930M Switch Assy, Auto Slide Door Control
84930N Bulb, Auto Slide Door Control Switch
84931C Switch, Back Door Control
84931M Bulb, Door Control Switch
84988L Switch, Vsc Off
84988M Bulb, Vsc Off Switch
85432 Solenoid, Key Interlock
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910L Relay, Rear Blower
85910Y Relay, Rear Heater
85912 Relay, Defogger
85915E Relay
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85928B Resistor, Cooling Fan
85930G Relay, Acc
85972 Computer, Slide Door Control, RH
85972A Computer, Slide Door Control
85975B Relay, Slide Door Closer, RH
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
88630N Relay Assy, Cooler
88630Y Relay, Rear Cooler
89111 Computer, Network Gateway
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89429F Sensor, Temperature
89438 Switch, Power Steering Oil Pressure

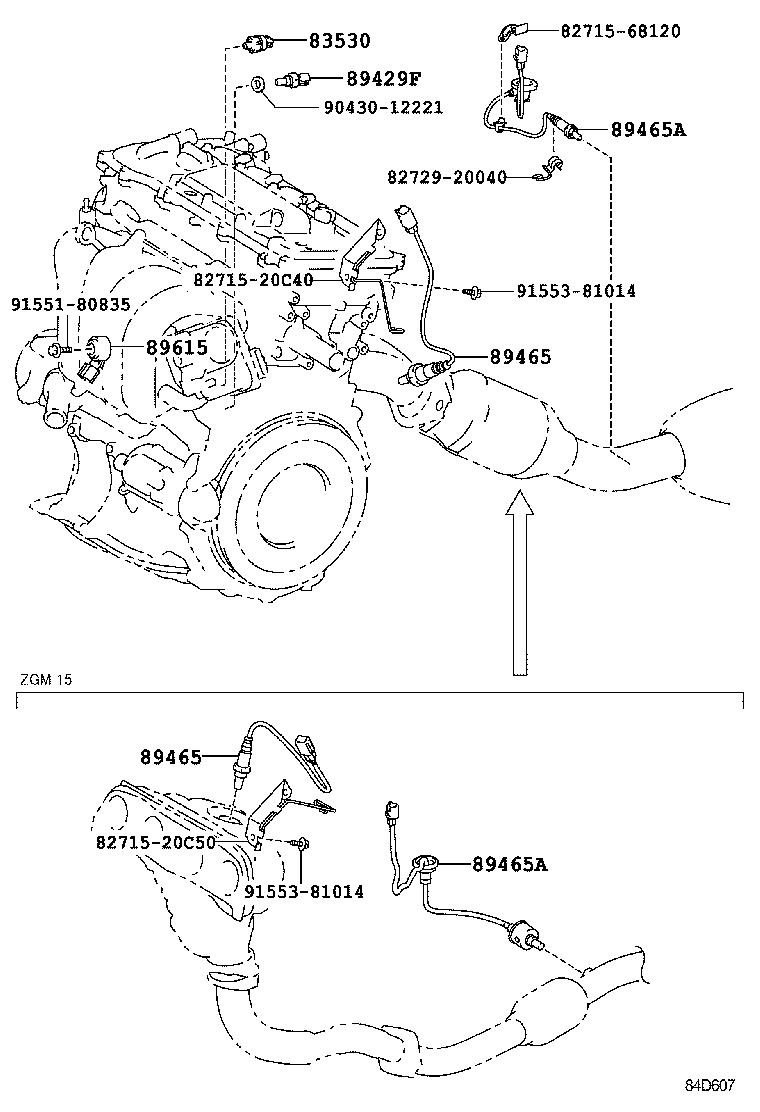

89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89618A Computer, Power Source Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89747C Buzzer, Power Slide Back Door Warning
89960 Computer Assy, Headlamp Leveling
