Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

15 part groups · 4 illustrations

Illustrations

Figure 846590C

846590C 2004-09 → 2009-09

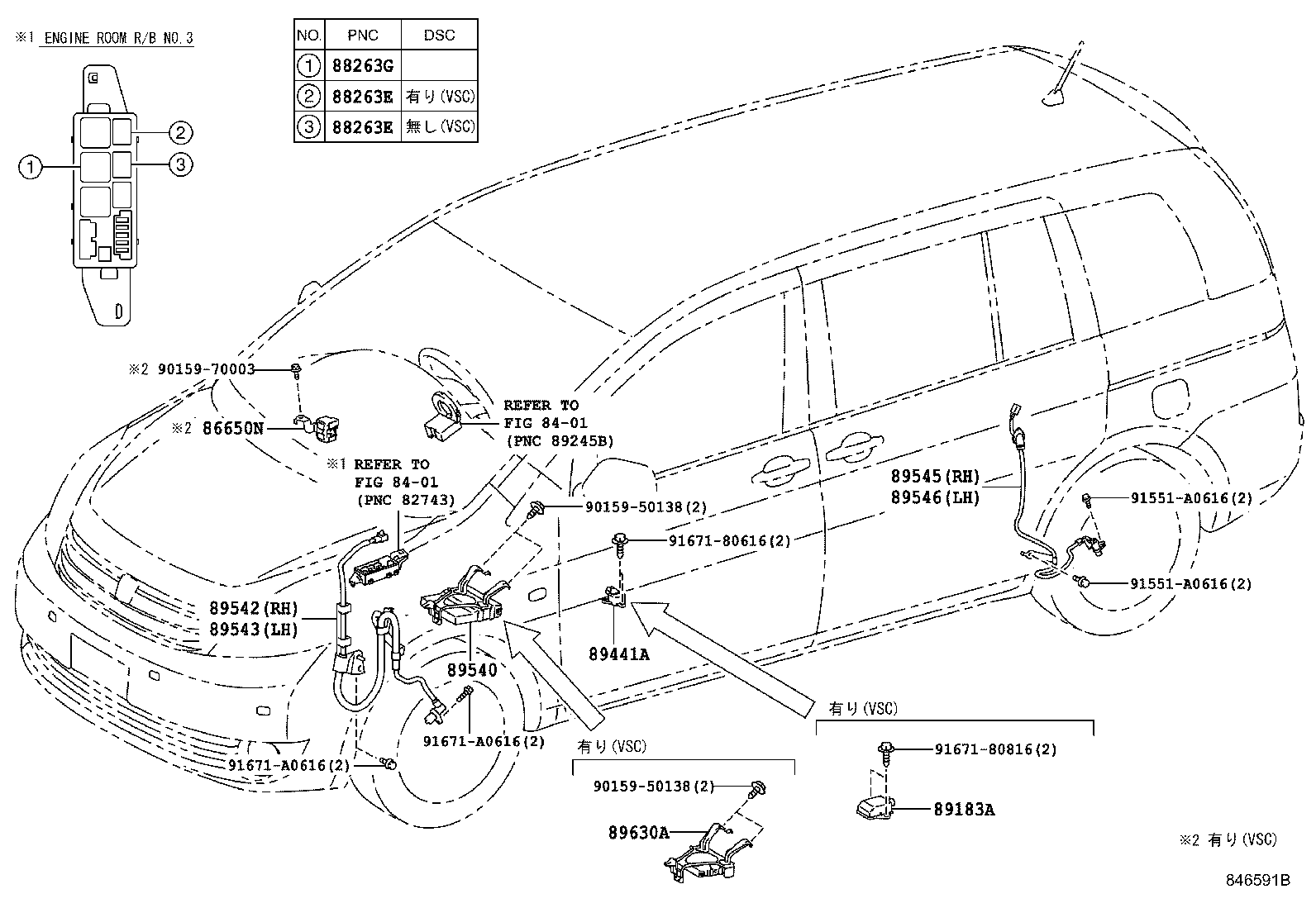

Figure 846591B

846591B 2004-09 → 2009-09

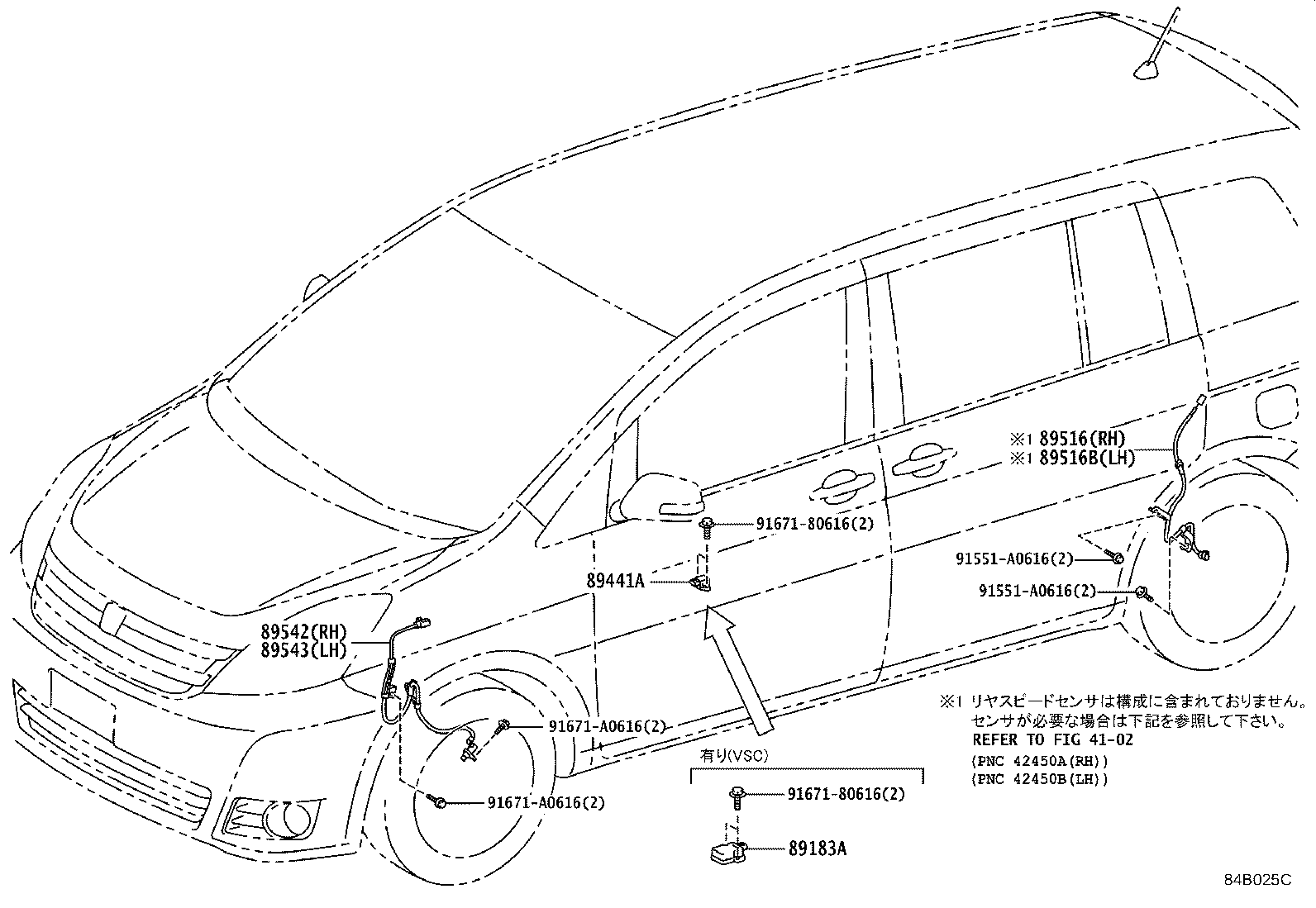

Figure 84B025C

84B025C 2009-09 → —

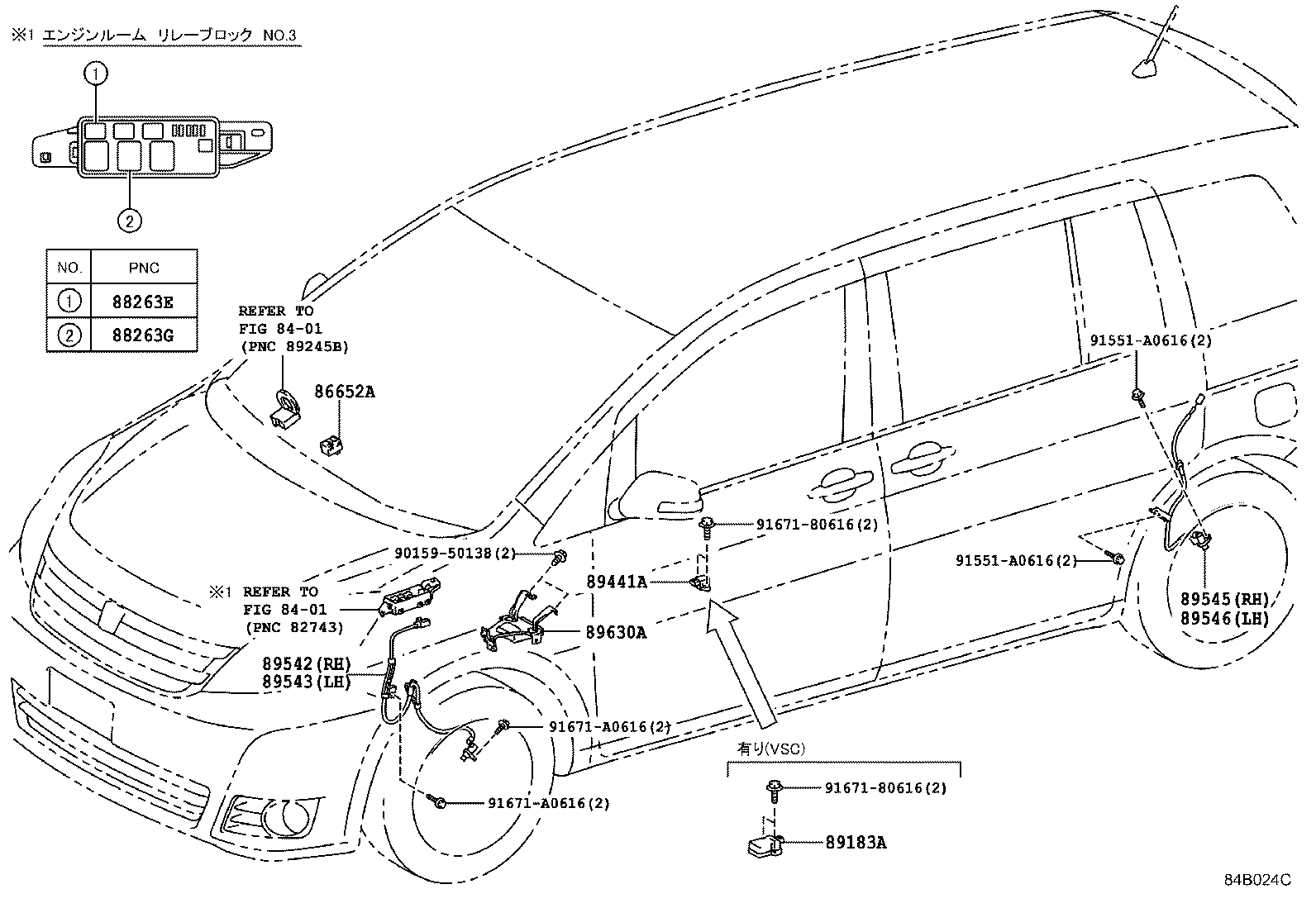

Figure 84B024C

84B024C 2009-09 → —

Part groups

PNC	Description
86650N	Buzzer Assy
86652A	Buzzer Assy, Skid Control
88263E	Relay, Skid Control NO.2
88263G	Relay, Skid Control
89183A	Sensor, Yawrate
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89516B	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
