Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

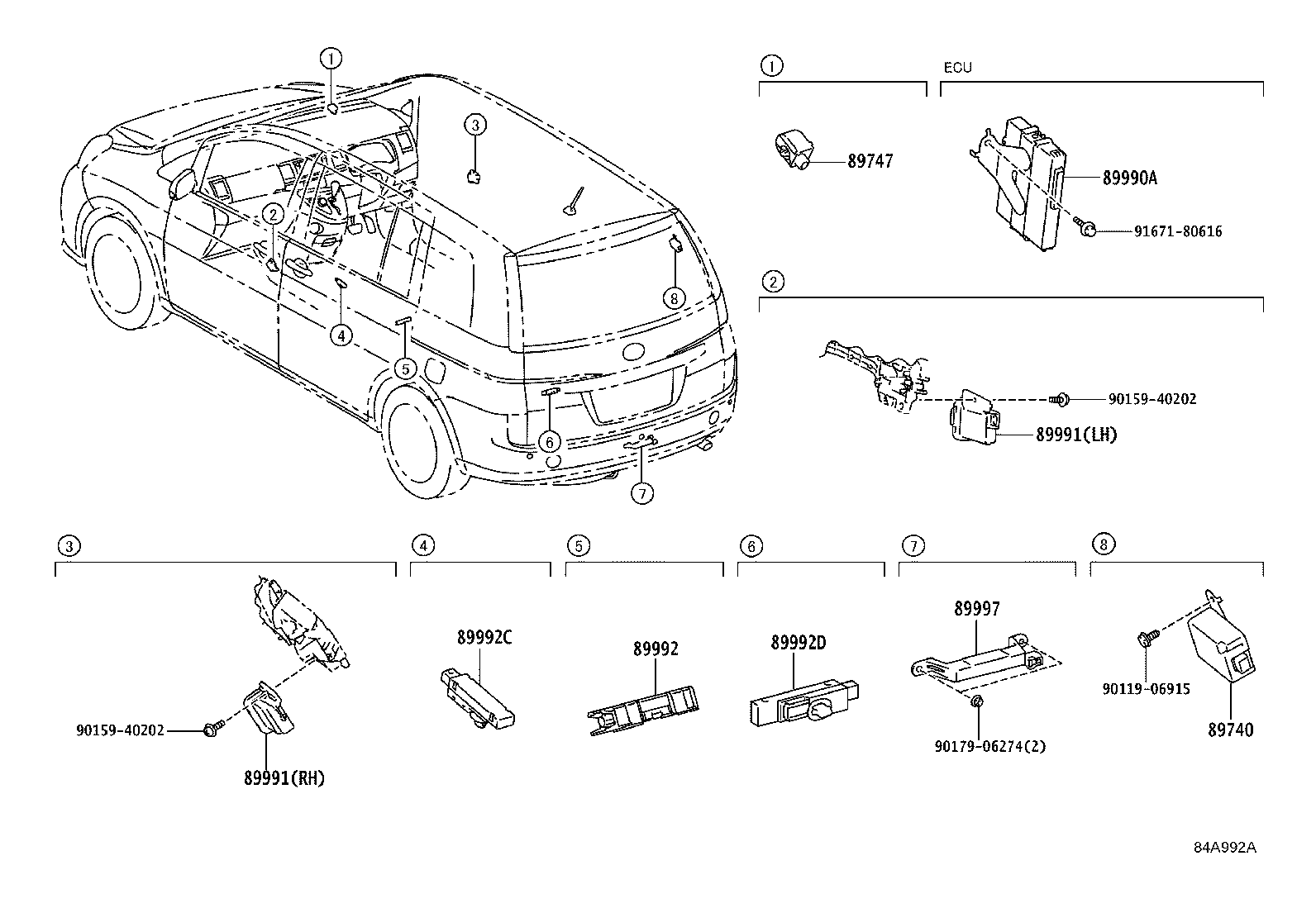

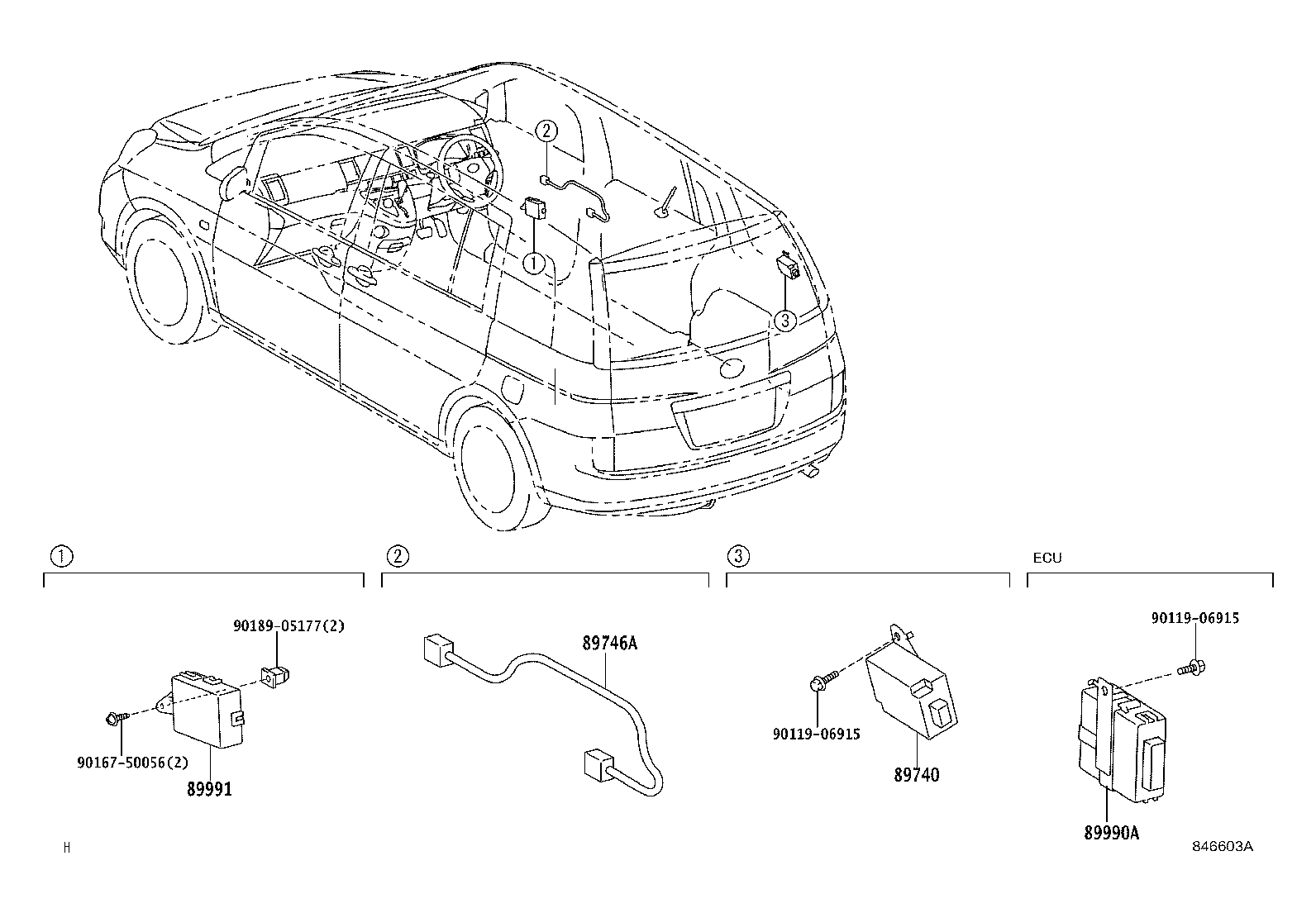

Wireless Door Lock
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89740 | Computer Assy, Door Control W/Receiver |
| 89741 | Receiver, Door Control |
| 89746A | Harness, Electrical Key Wire |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89992 | Oscillator, Indoor Electrical Key |
| 89992C | Oscillator, Indoor Electrical Key, NO.2 |
| 89992D | Oscillator, Indoor Electrical Key, NO.3 |
| 89997 | Antenna, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
