Toyota Isis
2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan
Supported model
Data version 2018-07

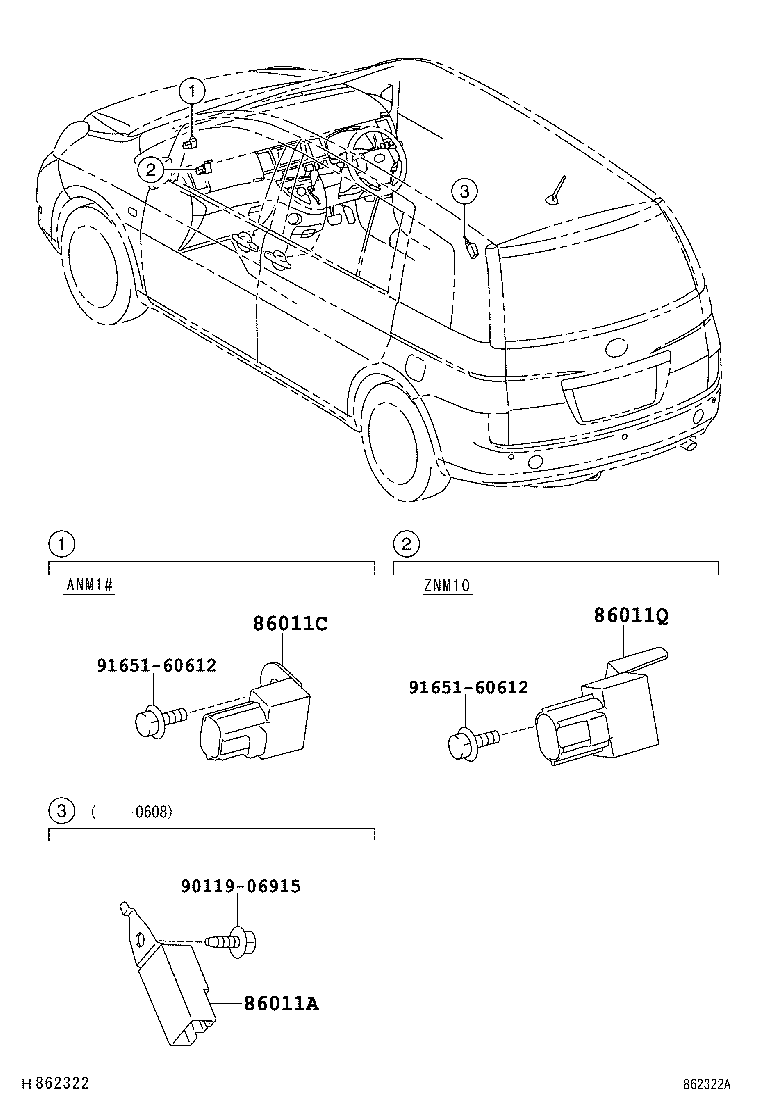

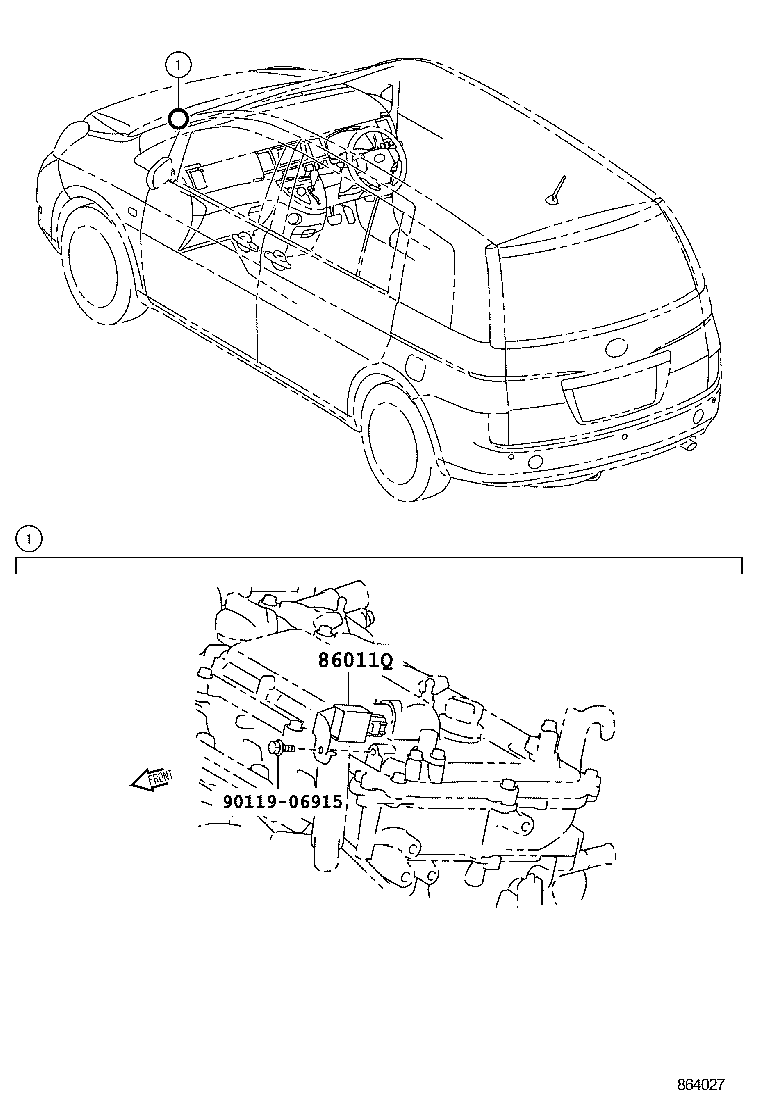

Radio Receiver & Amplifier & Condenser
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
