Toyota Isis

2004-09 → 2018-01 · chassis ANM1#,ZGM1#,ZNM10 · catalogue 513120 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

30 part groups · 11 illustrations

Illustrations

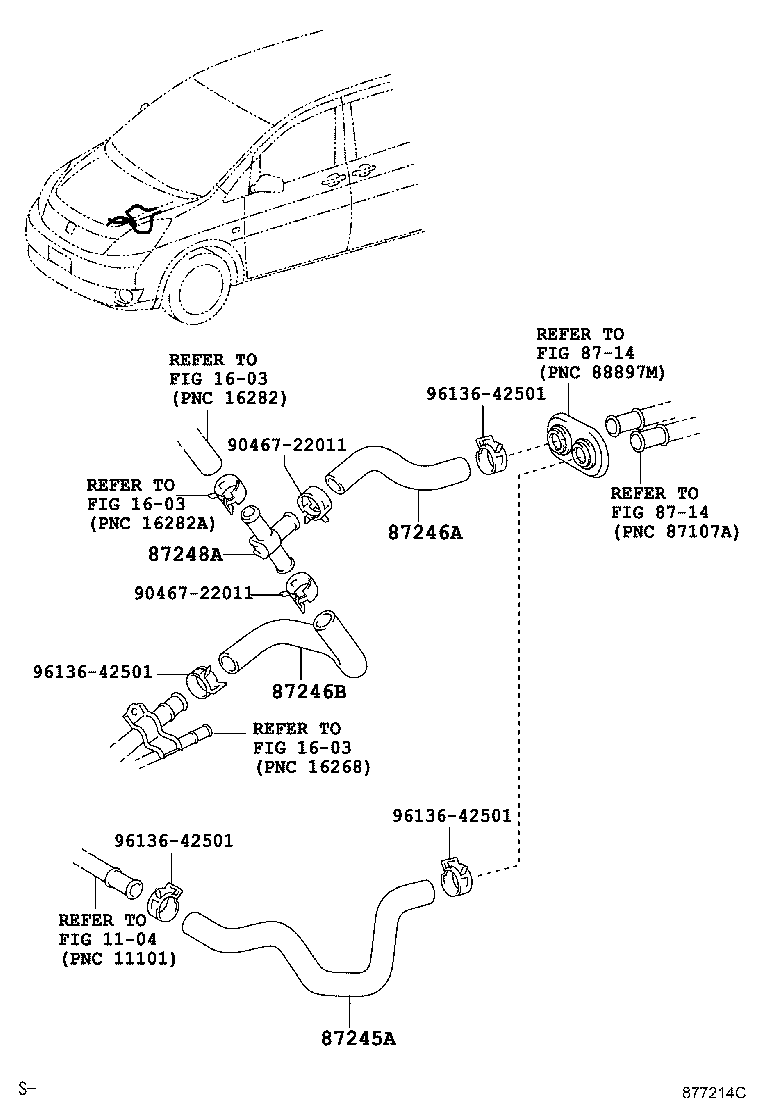

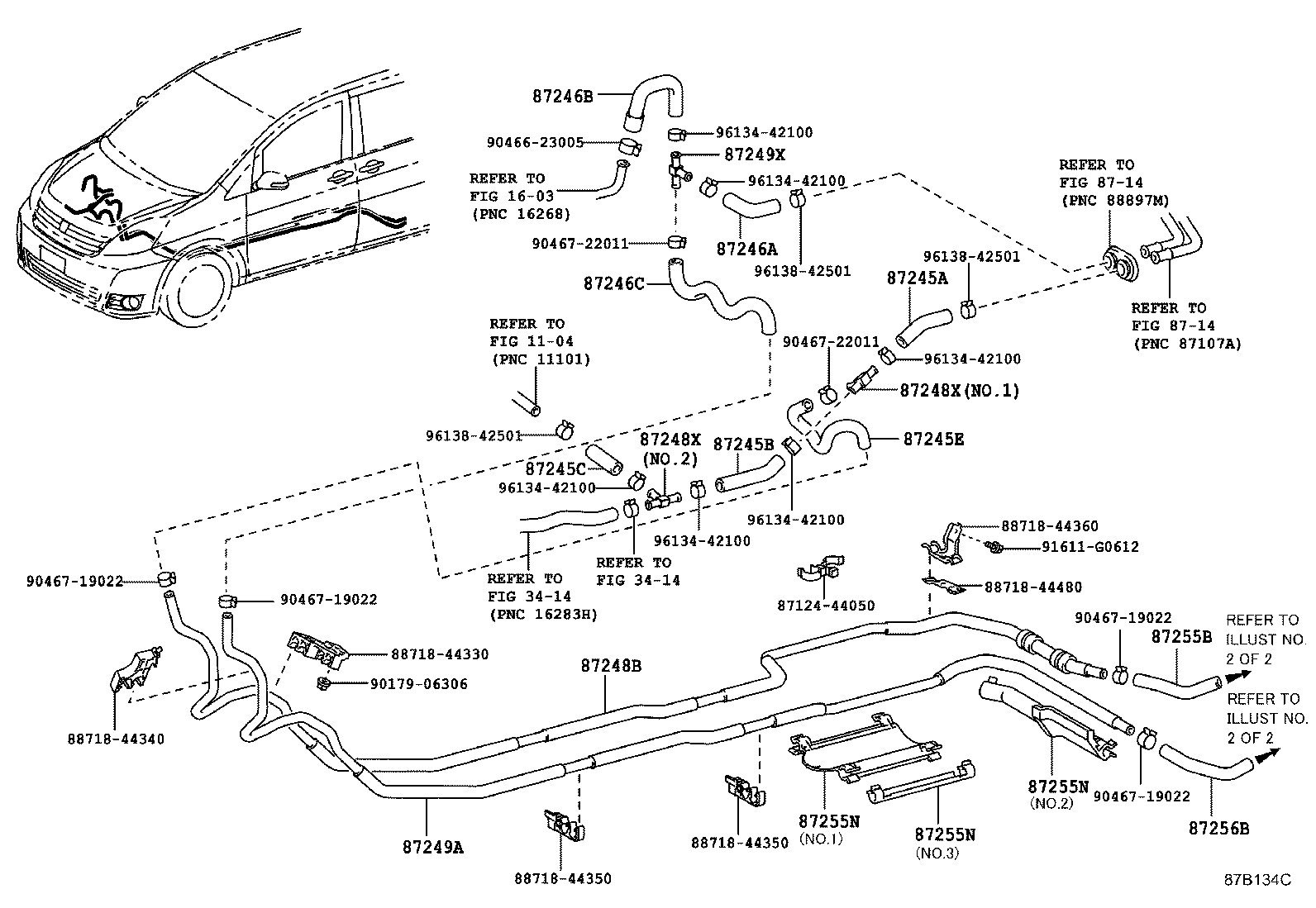

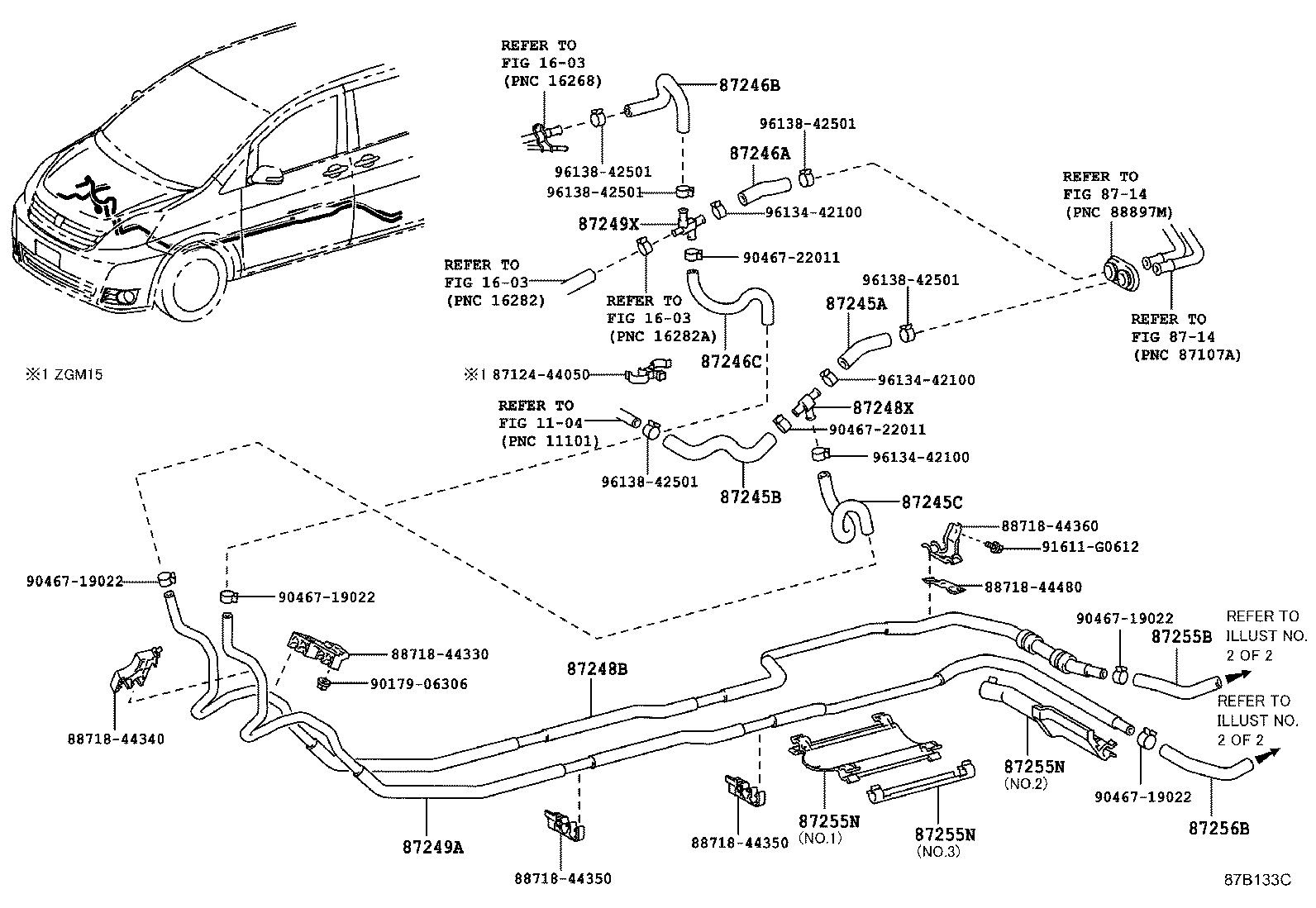

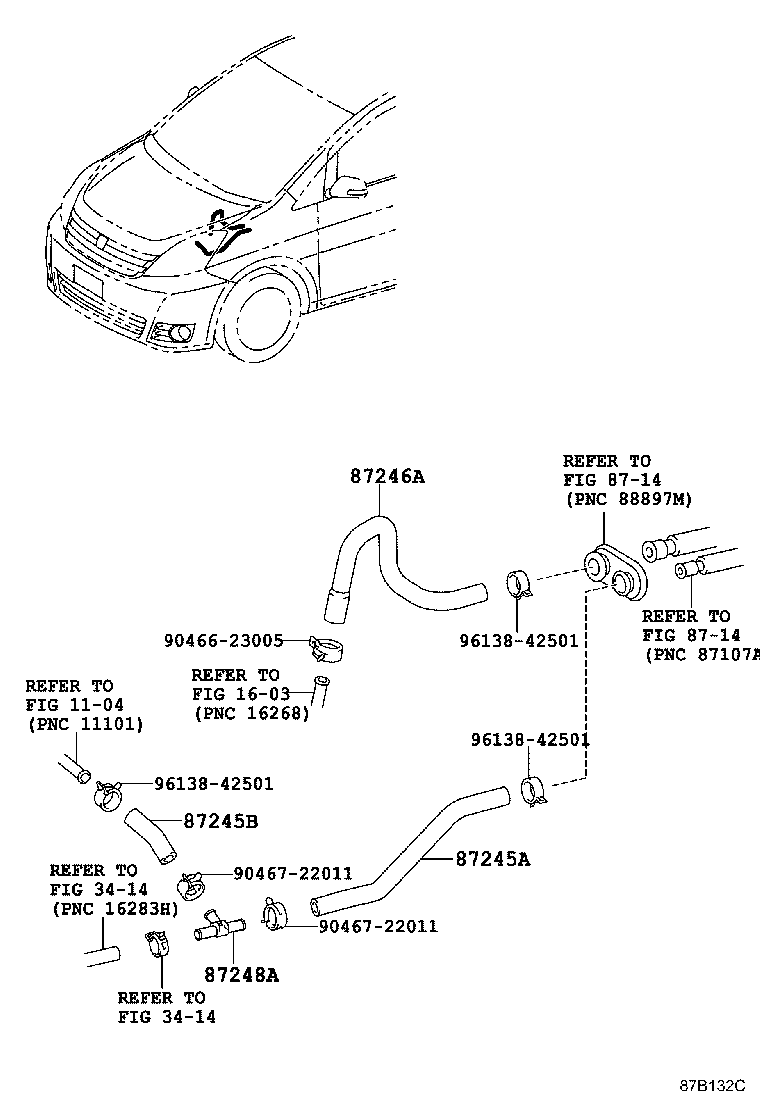

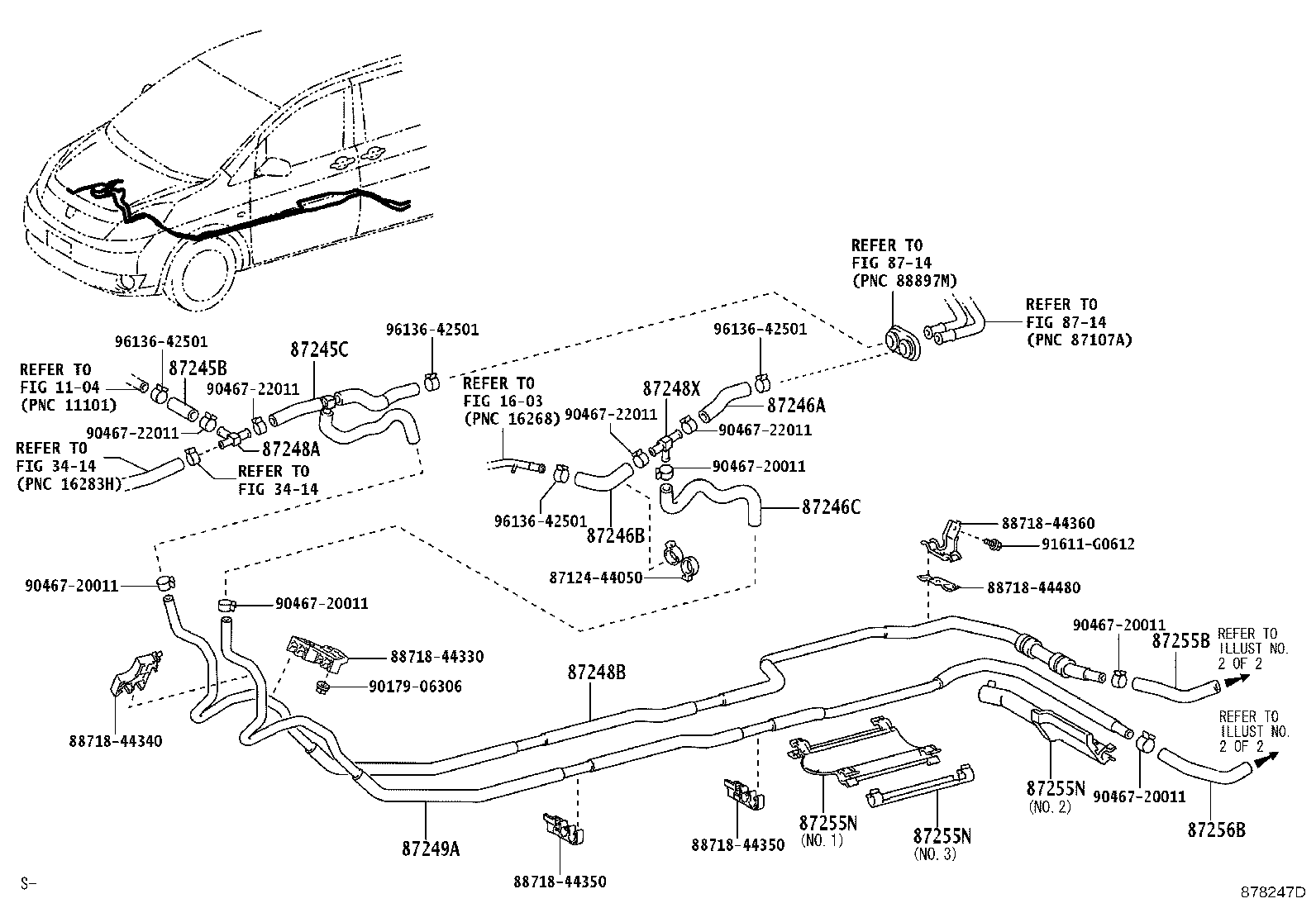

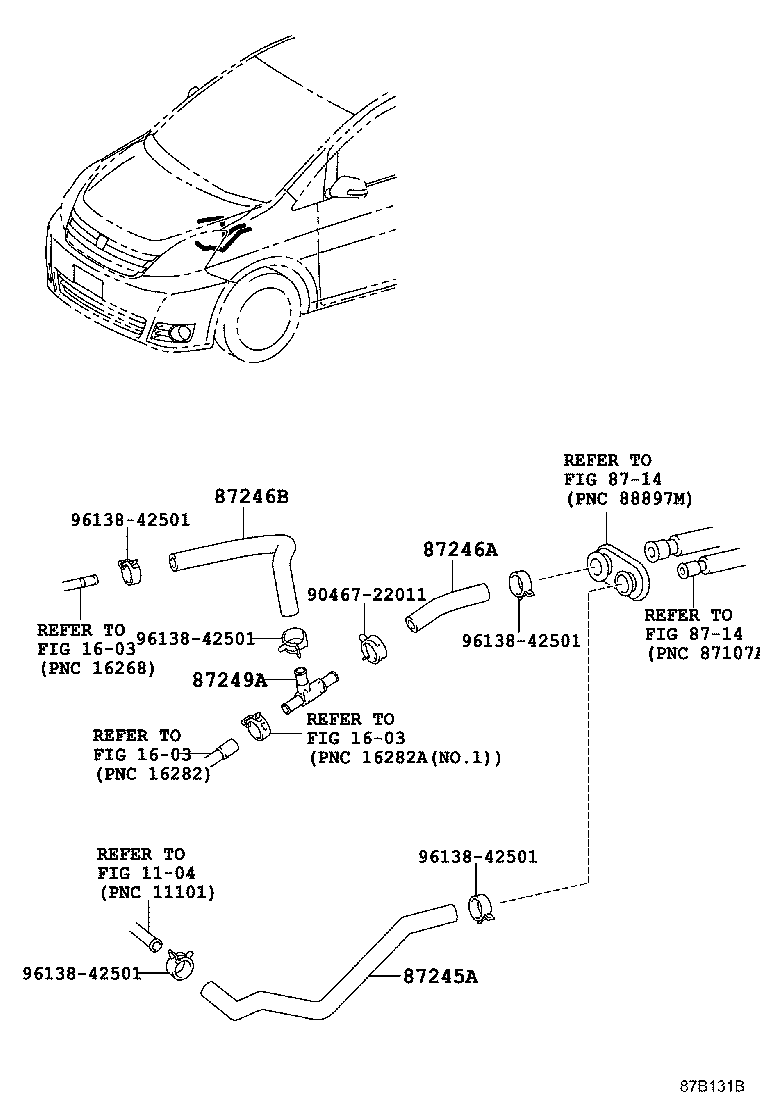

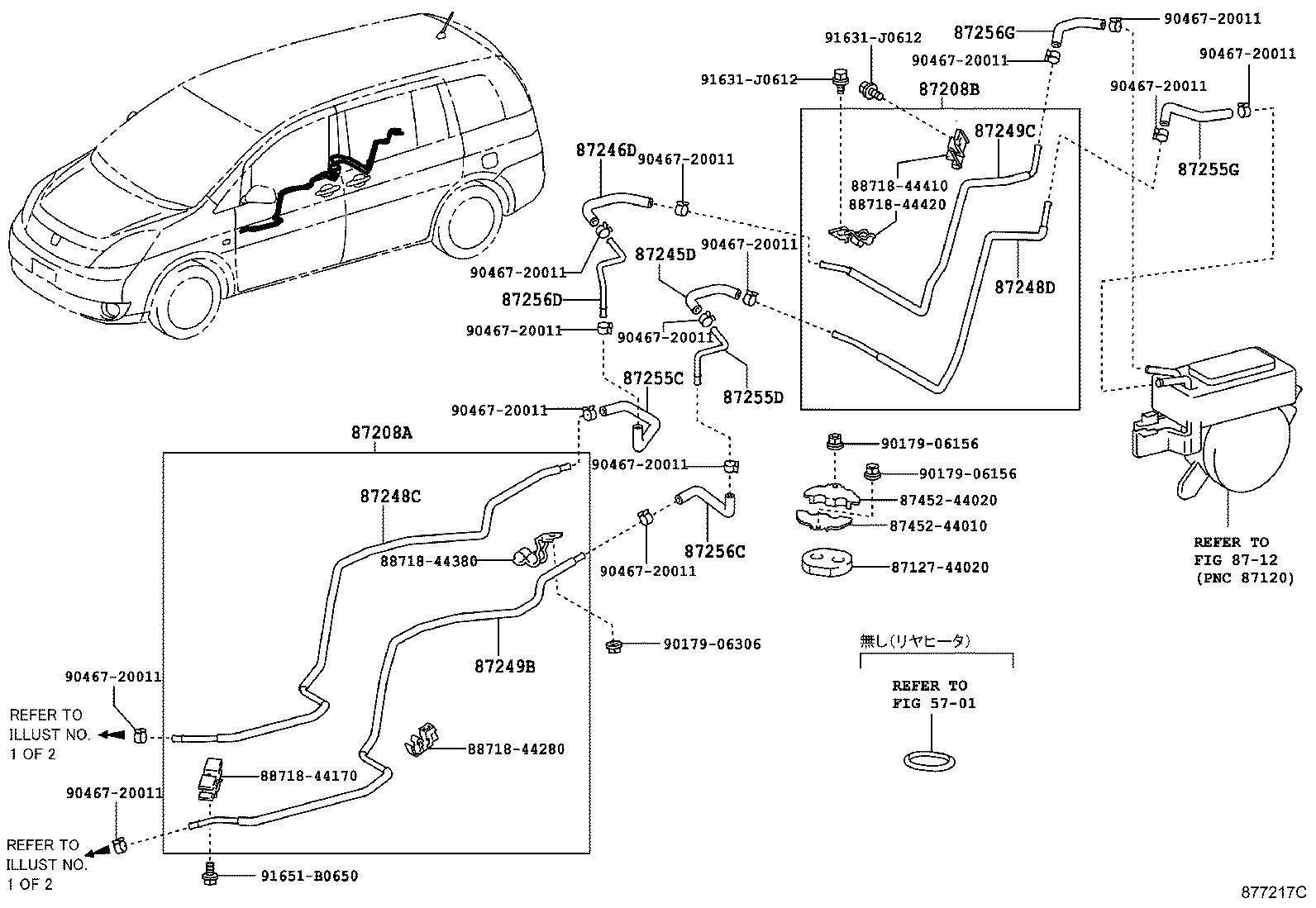

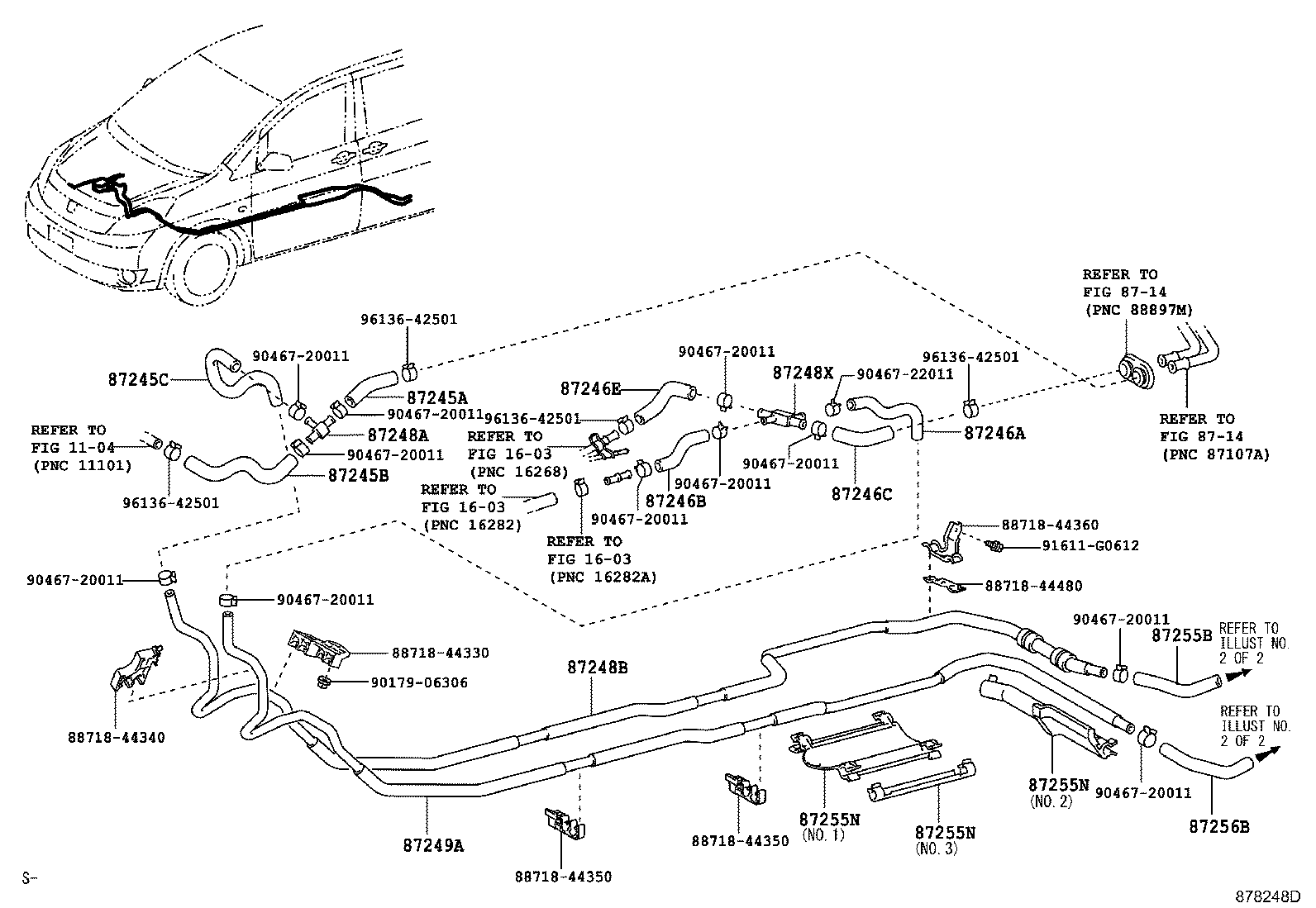

Figure 877213E 877213E 2004-09 → 2009-09 Figure 877214C 877214C 2004-09 → 2009-09 Figure 878247D 878247D 2004-09 → 2009-09 Figure 878248D 878248D 2004-09 → 2009-09 Figure 87B131B 87B131B 2009-09 → — Figure 87B131B 87B131B 2011-08 → — Figure 87B132C 87B132C 2009-09 → — Figure 87B133C 87B133C 2009-09 → — Figure 87B133C 87B133C 2011-08 → — Figure 87B134C 87B134C 2009-09 → — Figure 877217C 877217C 2004-09 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249X Pipe, Water
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255G Hose, Rear Heater Water Inlet, G
87255N Pipe, Heater Protector, NO.1
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
