Toyota Harrier

1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 3 illustrations

Illustrations

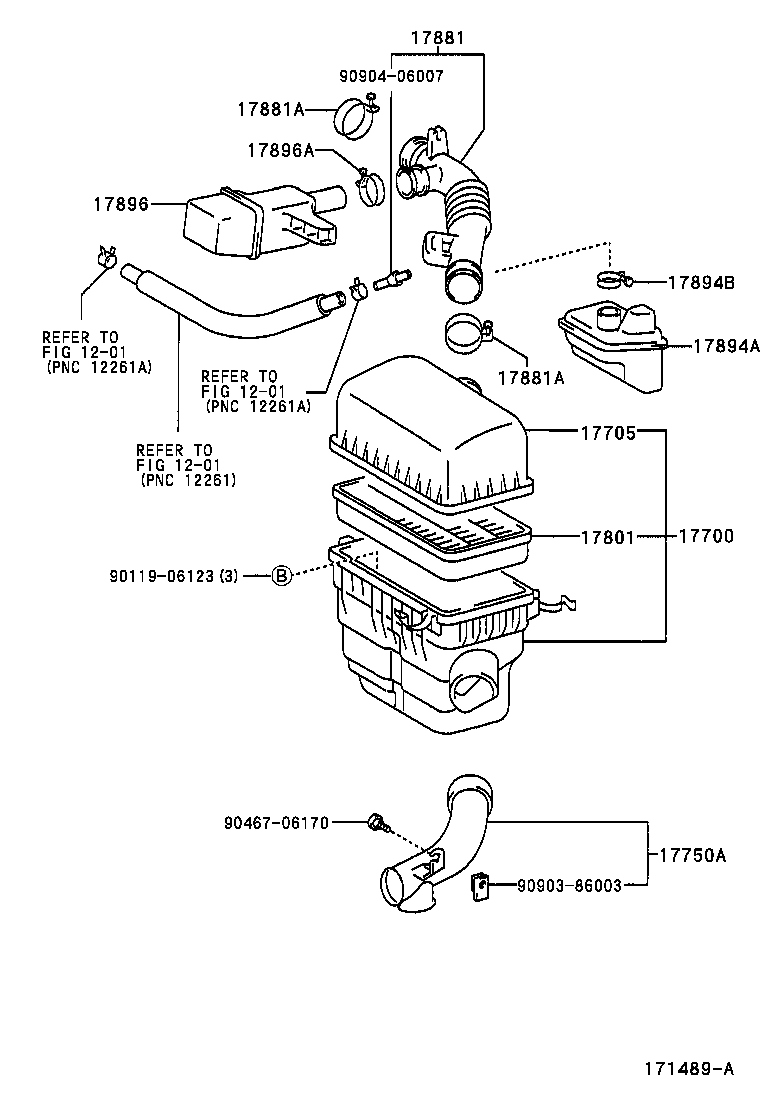

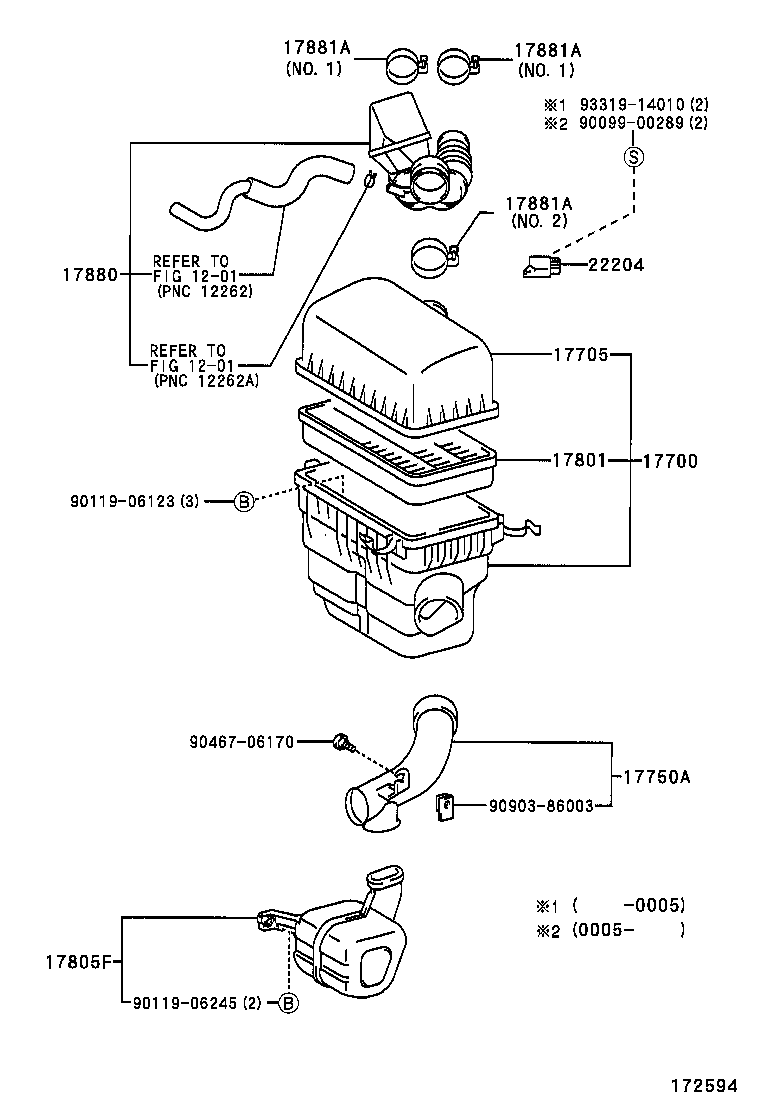

Figure 172757 172757 2000-11 → — Figure 172594 172594 1997-12 → — Figure 171489A 171489A 1997-12 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
