Toyota Harrier
1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan
Discontinued model
Data version 2004-01

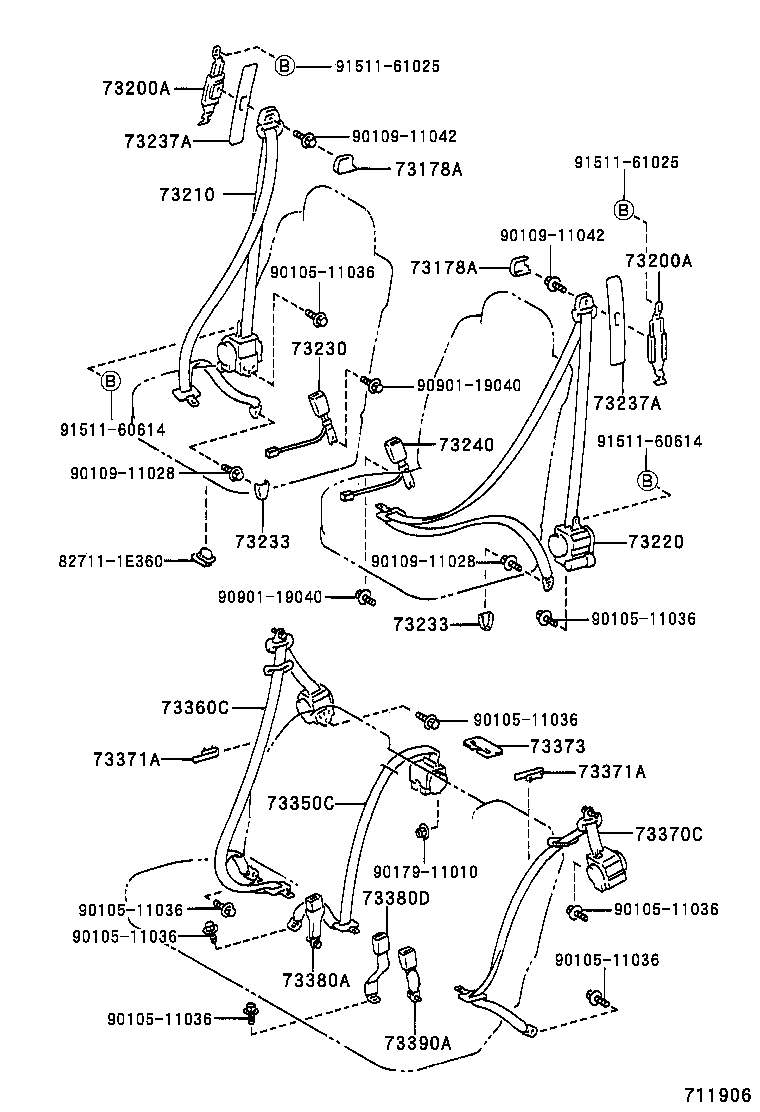

Seat Belt & Child Restraint Seat
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73237A | Cover, Shoulder Belt Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73330C | Belt Assy, Rear Seat Lap Type, Center RH |
| 73340C | Belt Assy, Rear Seat Lap Type, Center LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380D | Belt Assy, Rear Seat, Inner |
| 73390A | Belt Assy, Rear Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
