Toyota Harrier
1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan
Discontinued model
Data version 2004-01

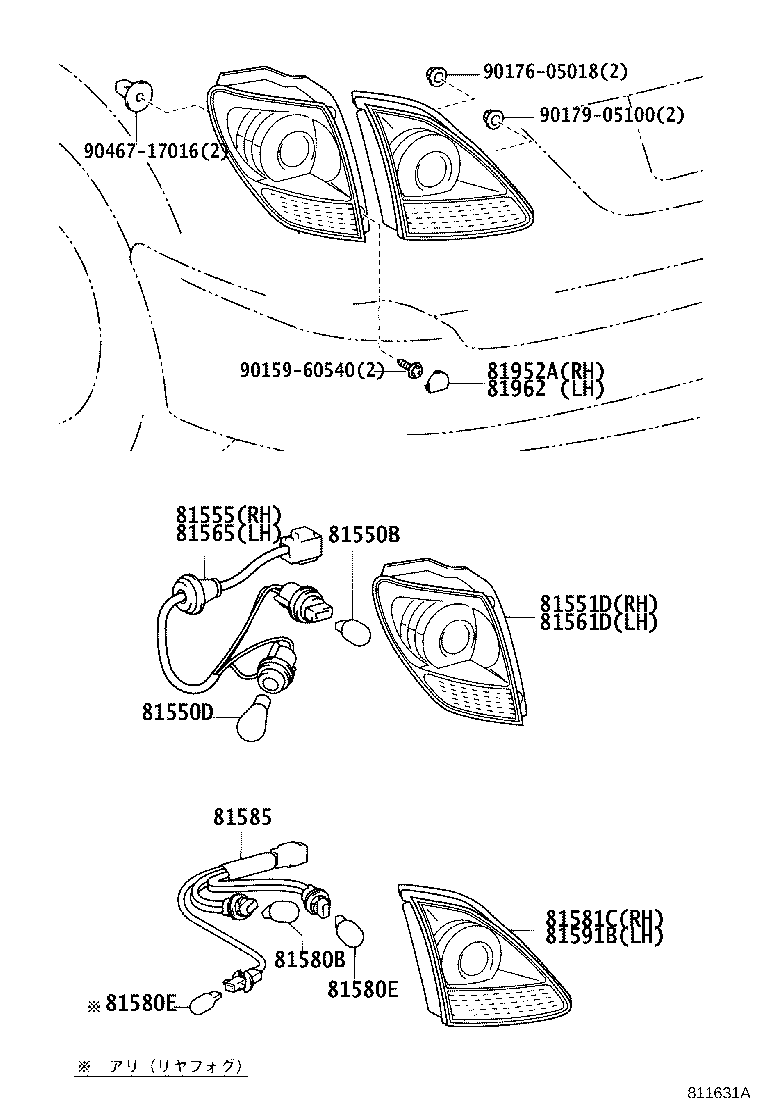

Rear Combination Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555B | Socket Plug, NO.1 |
| 81555C | Socket Plug, NO.2 |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81580E | Bulb |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81952A | Cover, Rear Lamp, RH |
| 81962 | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
