Toyota Harrier
1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan
Discontinued model
Data version 2004-01
Meter

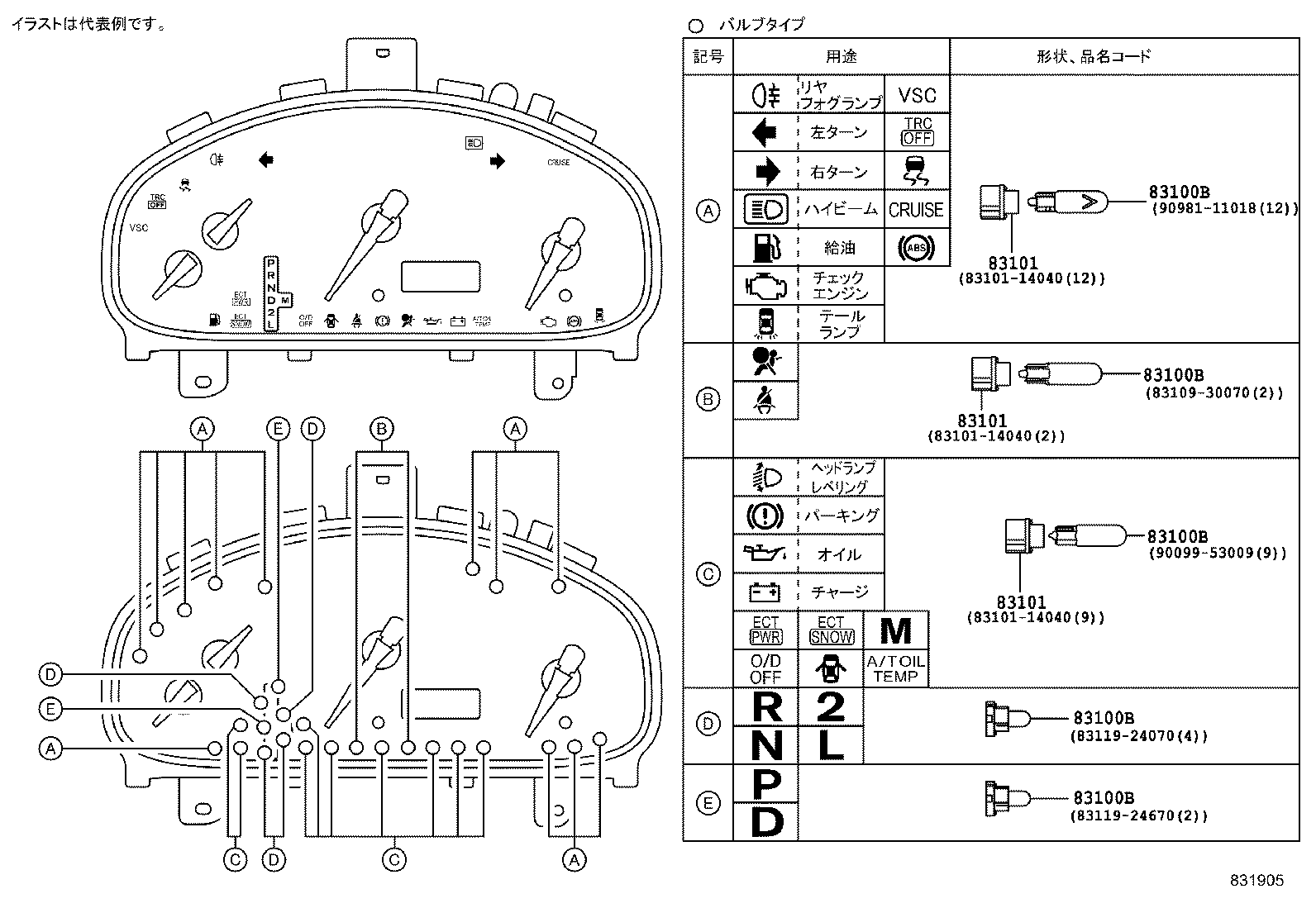

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83247 | Plate, Meter Circuit |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83291 | Computer, Combination Meter |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
