Toyota Harrier
1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan
Discontinued model
Data version 2004-01
Switch & Relay & Computer
86 part groups · 10 illustrations
Part groups

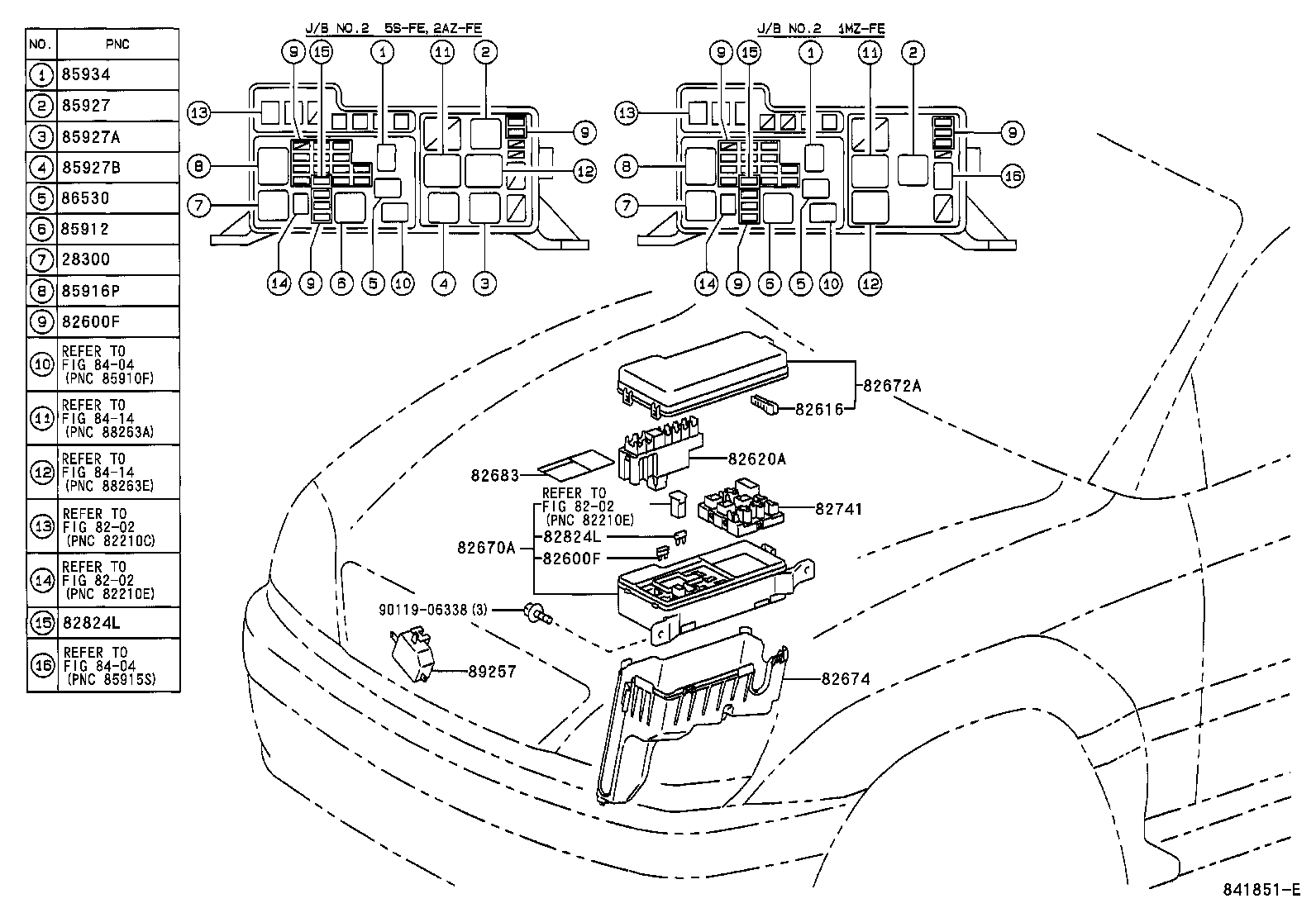

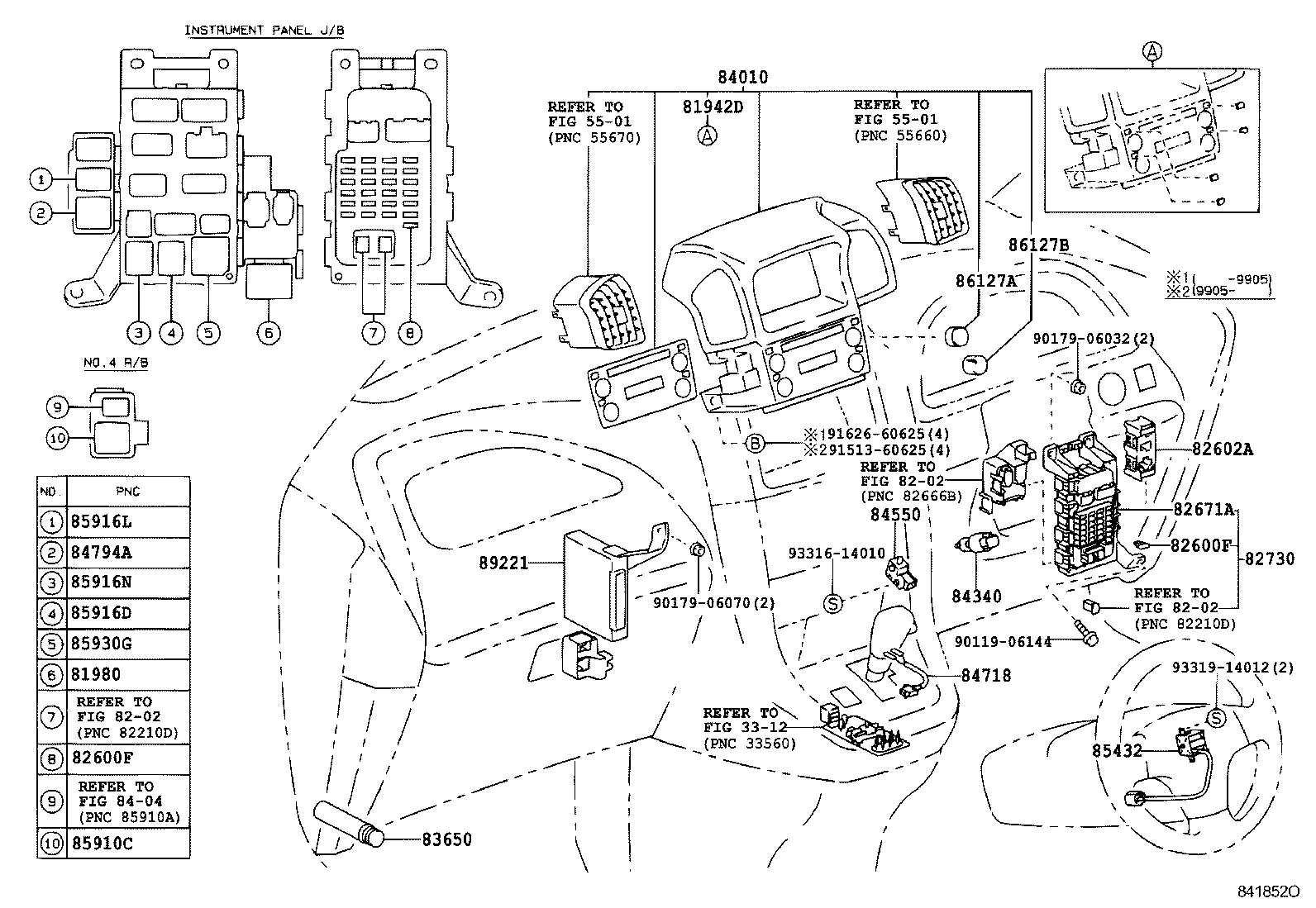

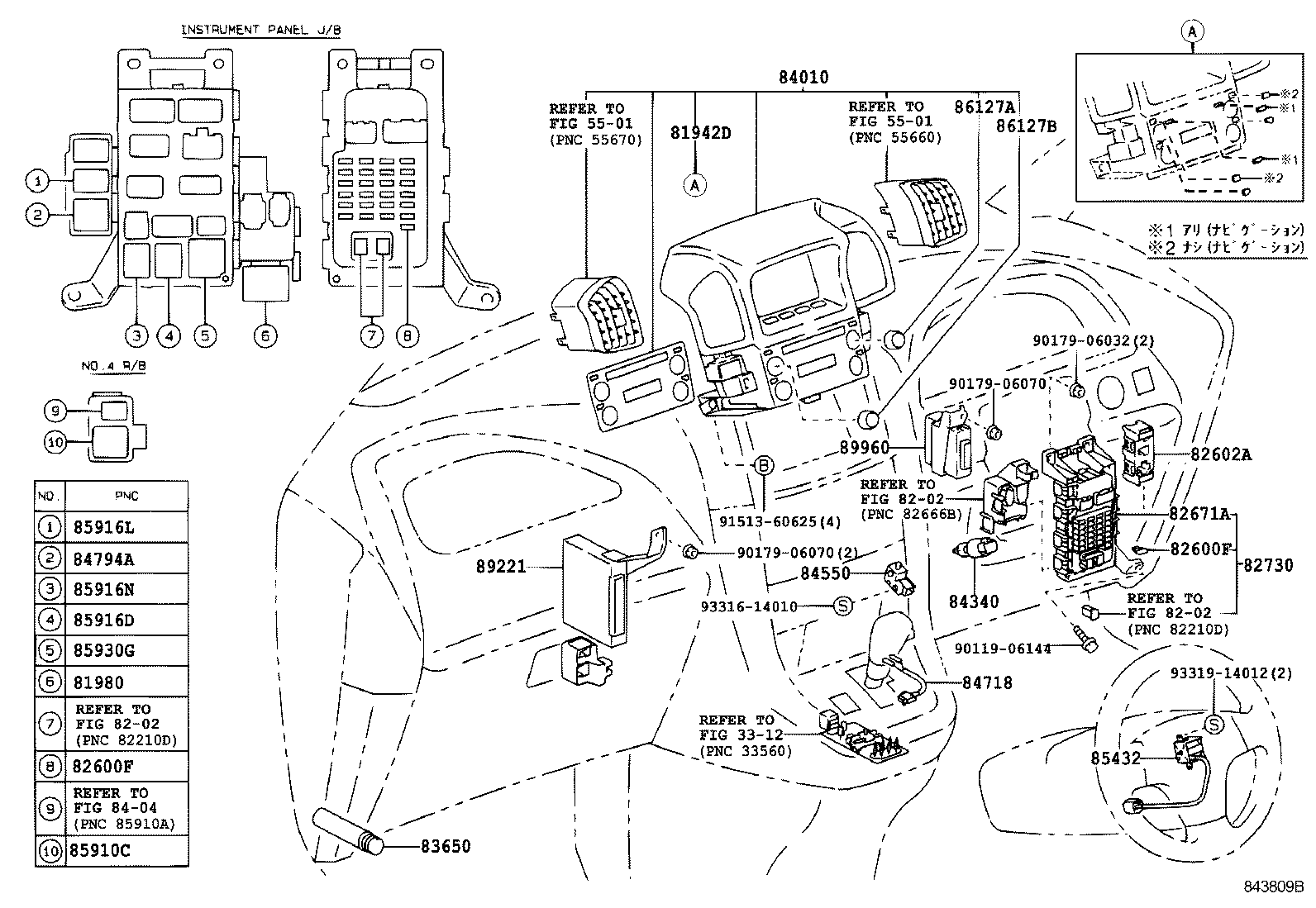

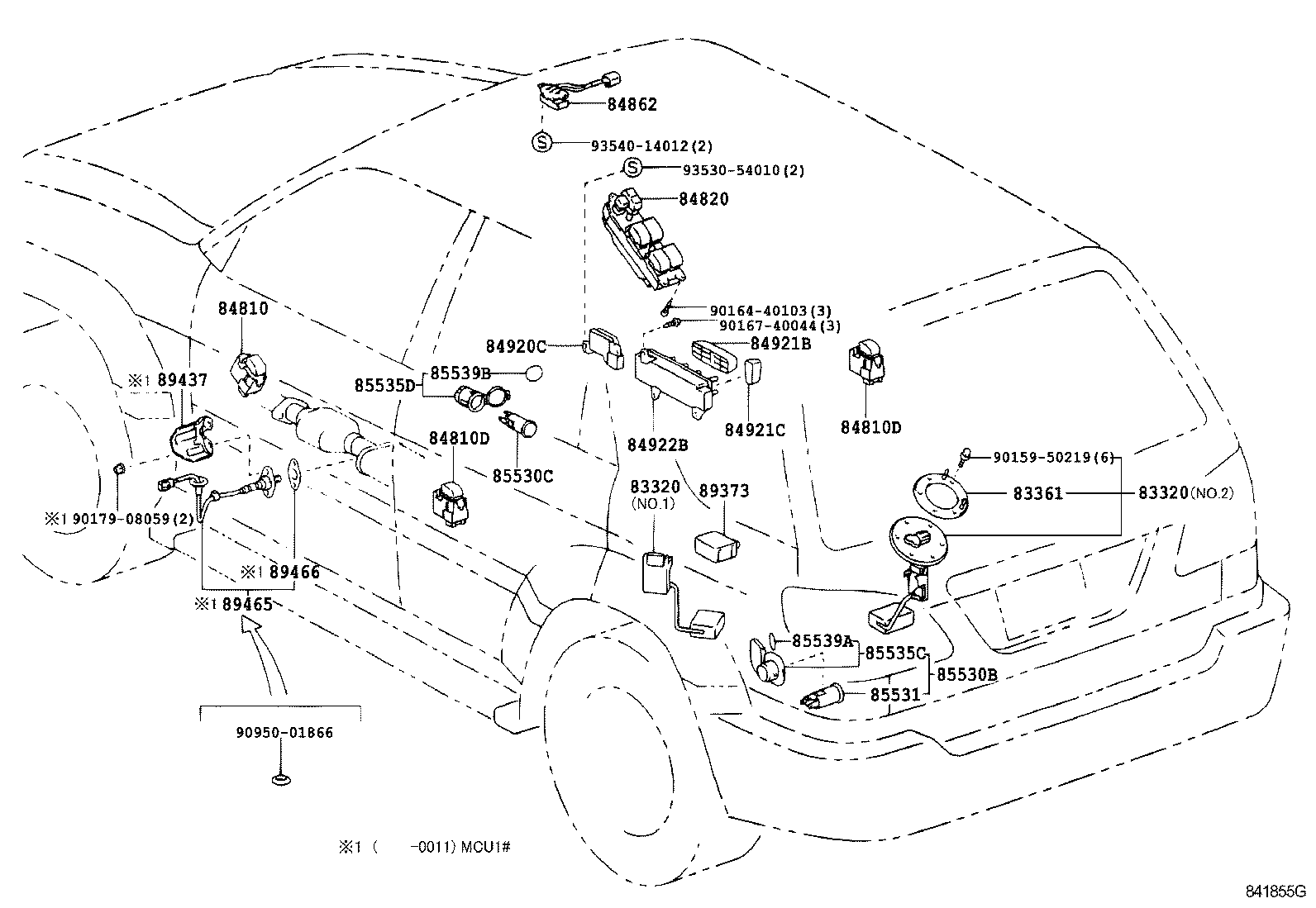

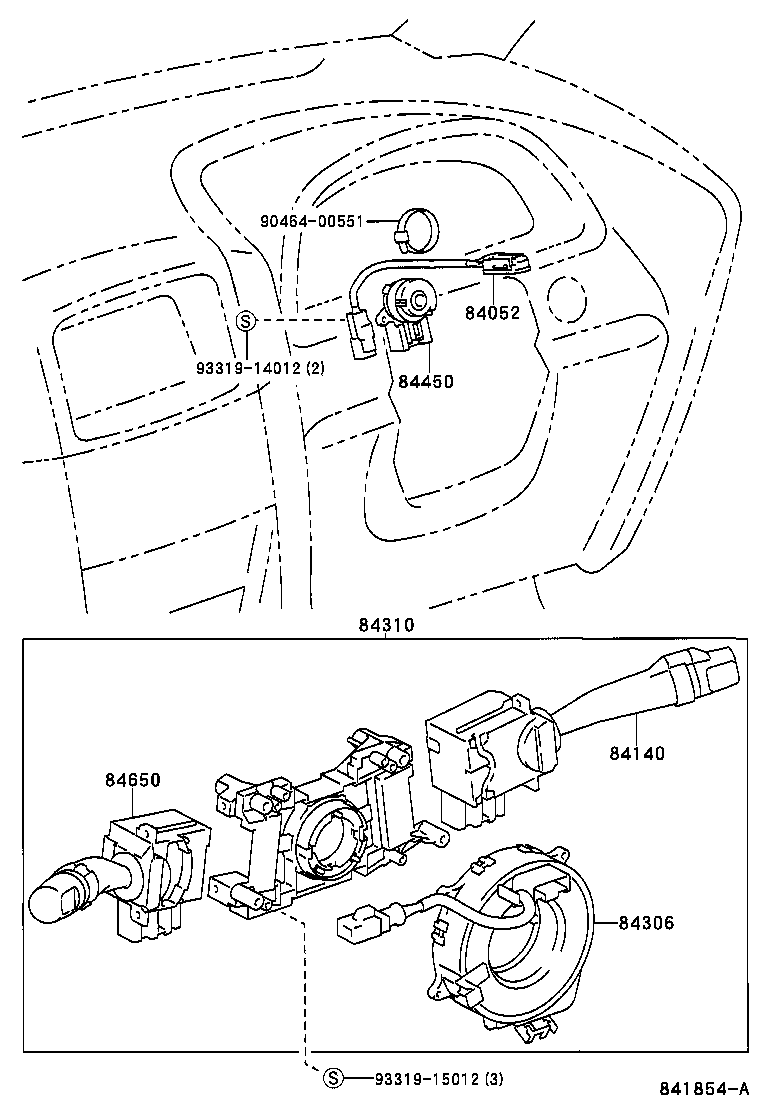

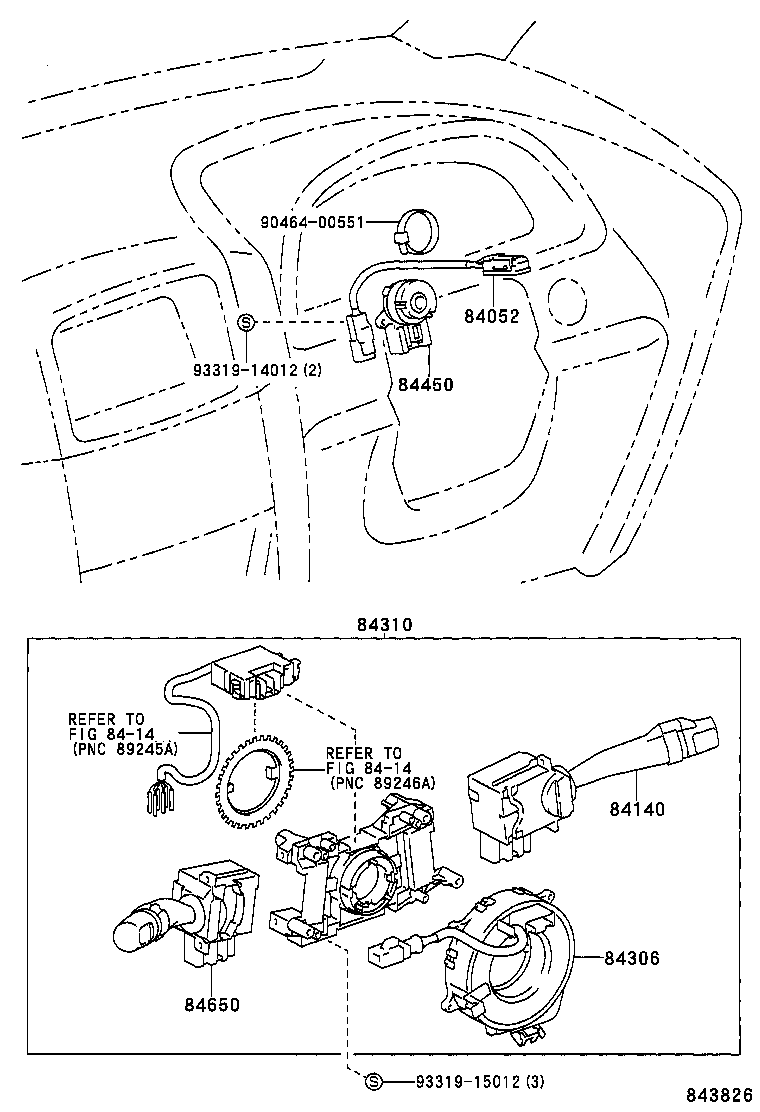

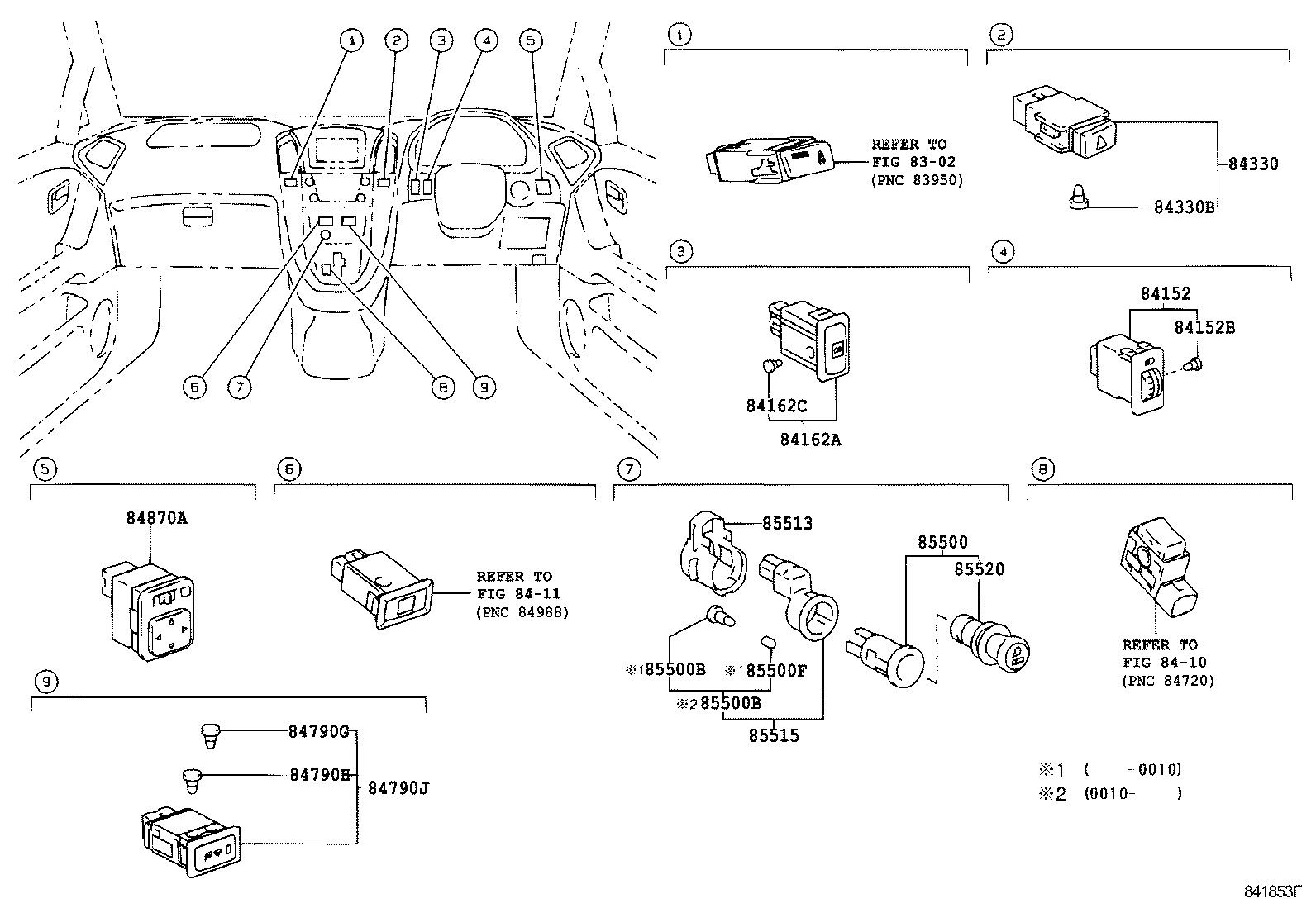

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 81942D | Sheet, Heater Control Name, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82602A | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82670A | Block Assy, Junction, NO.1 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82674 | Cover, Junction Block Lower |
| 82683 | Plate, Fuse Block Caution |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84010 | Switch Assy, Center Cluster Integration |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84718 | Switch, Transmission Shift Main |
| 84790G | Bulb(FOR WINDSHIELD DEFOGGER SWITCH) |
| 84790H | Bulb(FOR WINDSHIELD DEFOGGER SWITCH) NO.2 |
| 84790J | Switch Assy, Mirror Heater & Windshield Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84920C | Switch Assy, Power Seat Front, RH |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84921C | Knob, Power Seat Switch, RH |
| 84922B | Switch, Front Power Seat, RH |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530C | Socket Assy, Power Outlet, Center |
| 85531 | Socket, Power Outlet |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535D | Cover, Power Outlet Socket, Center |
| 85539A | Label, Power Outlet Notice, Rear |
| 85539B | Label, Power Outlet Notice, Center |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 86127A | Knob,Radio Receiver, NO.1 |
| 86127B | Knob,Radio Receiver, NO.2 |
| 86530 | Relay Assy, Horn |
| 89221 | Computer, Multiplex Network Body |
| 89257 | Computer, Cooling Fan |
| 89373 | Sensor, Lamp Failure Indicator |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89467B | Sensor, Air Fuel Ratio |
| 89615 | Sensor, Knock Control |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
