Factory parts data · Europe

Toyota Harrier

1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure 860604A

860604A 1997-12 → 2000-11

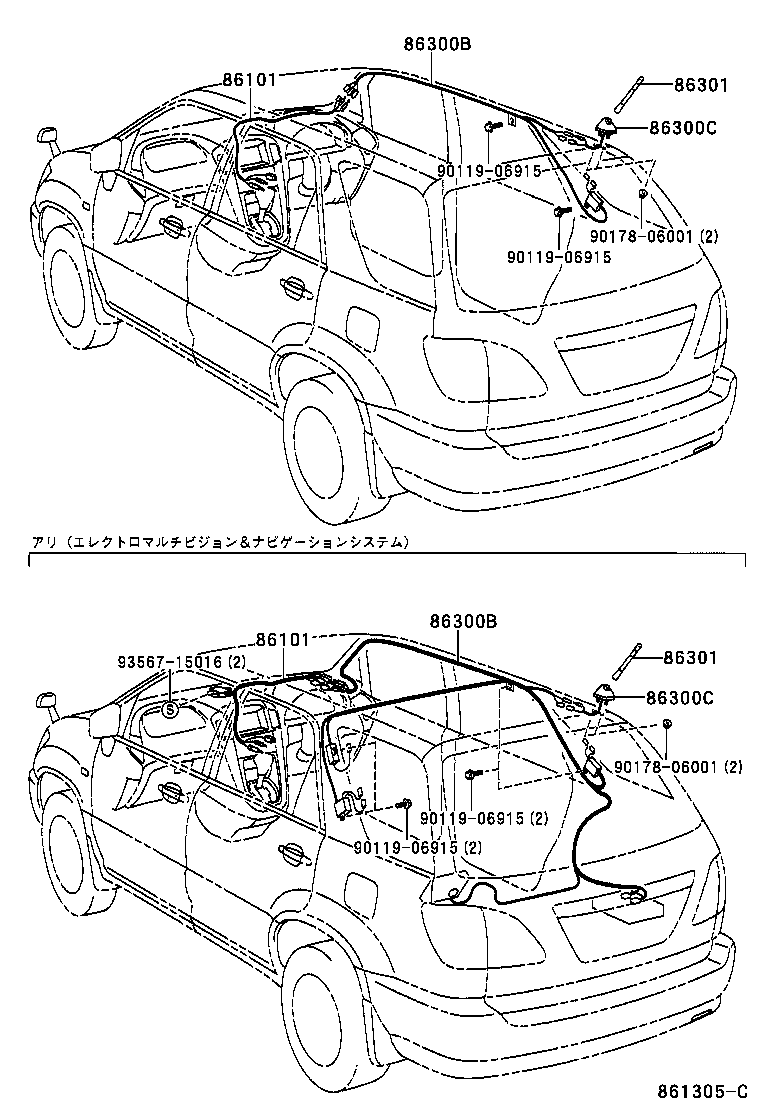

Figure 861305C

861305C 2000-11 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86300B	Antenna Assy, Amplifier, NO.1
86300C	Antenna Assy, Amplifier, NO.2
86301	Pole Sub-assy, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
