Toyota Harrier
1997-12 → 2003-02 · chassis ACU1#,MCU1#,SXU1# · catalogue 521110 · Japan
Discontinued model
Data version 2004-01
Telephone & Mayday
9 part groups · 2 illustrations
Part groups

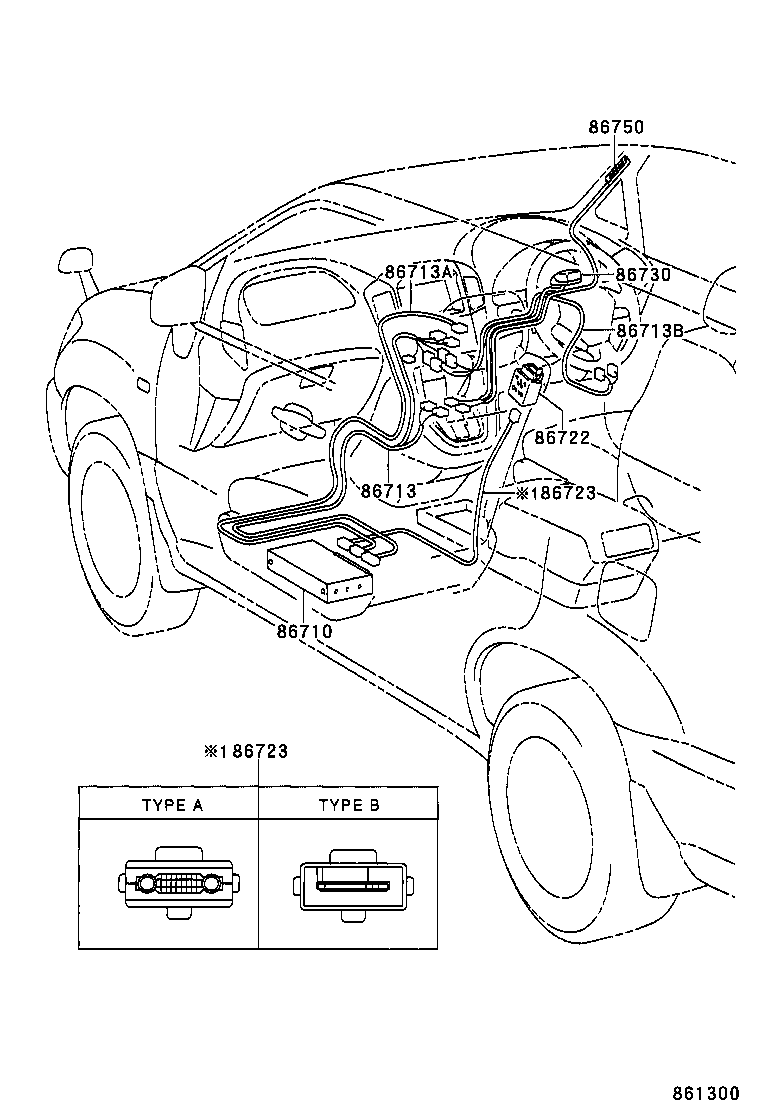

| PNC | Description |
|---|---|
| 86710 | Computer Assy, Telephone |
| 86713 | Wire, Telephone Computer |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86713B | Wire, Telephone Computer, (TO FRAM W/H) |
| 86722 | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86750 | Switch Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
