Heating & Air Conditioning - Cooler Piping

12 part groups · 3 illustrations

Illustrations

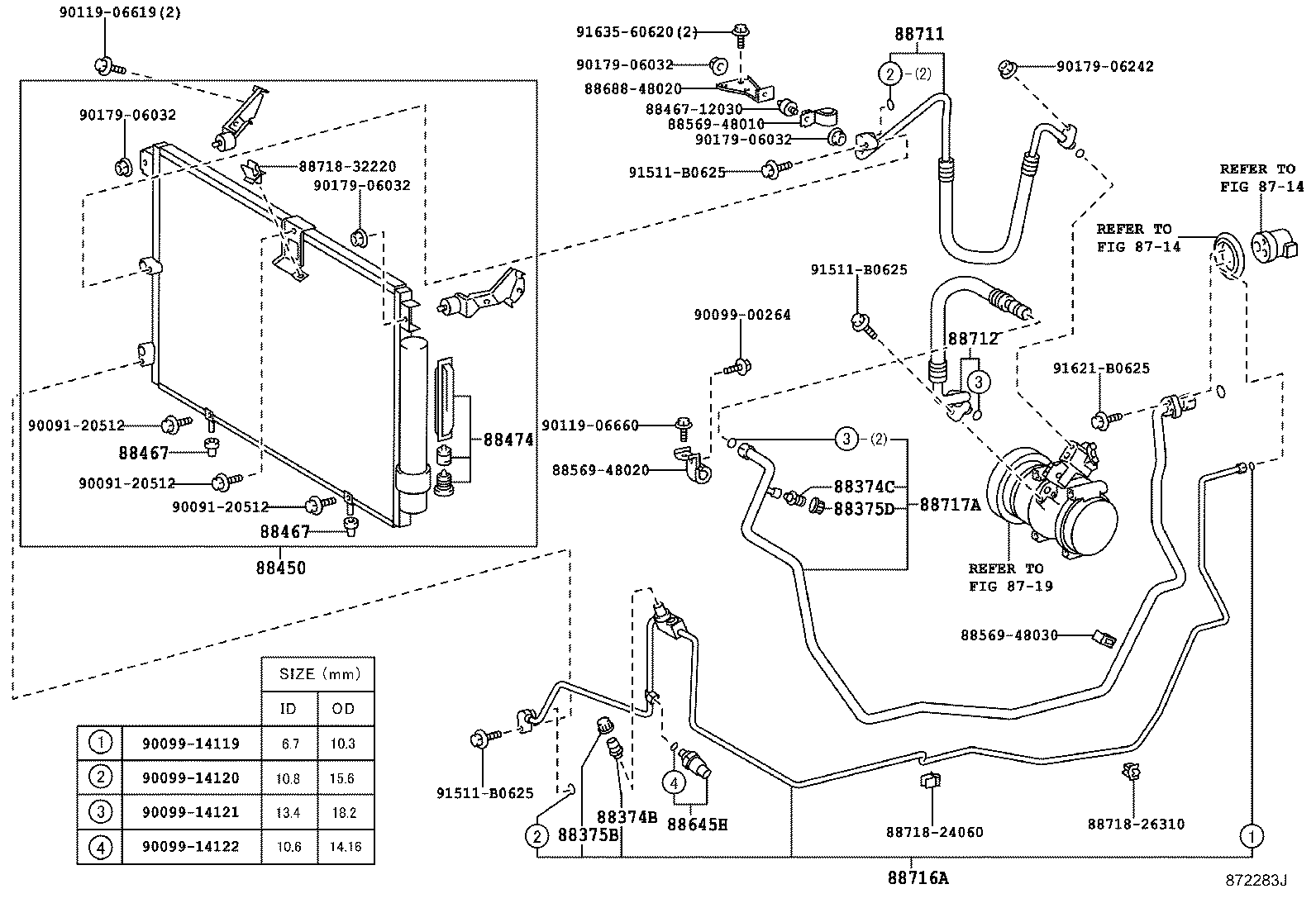

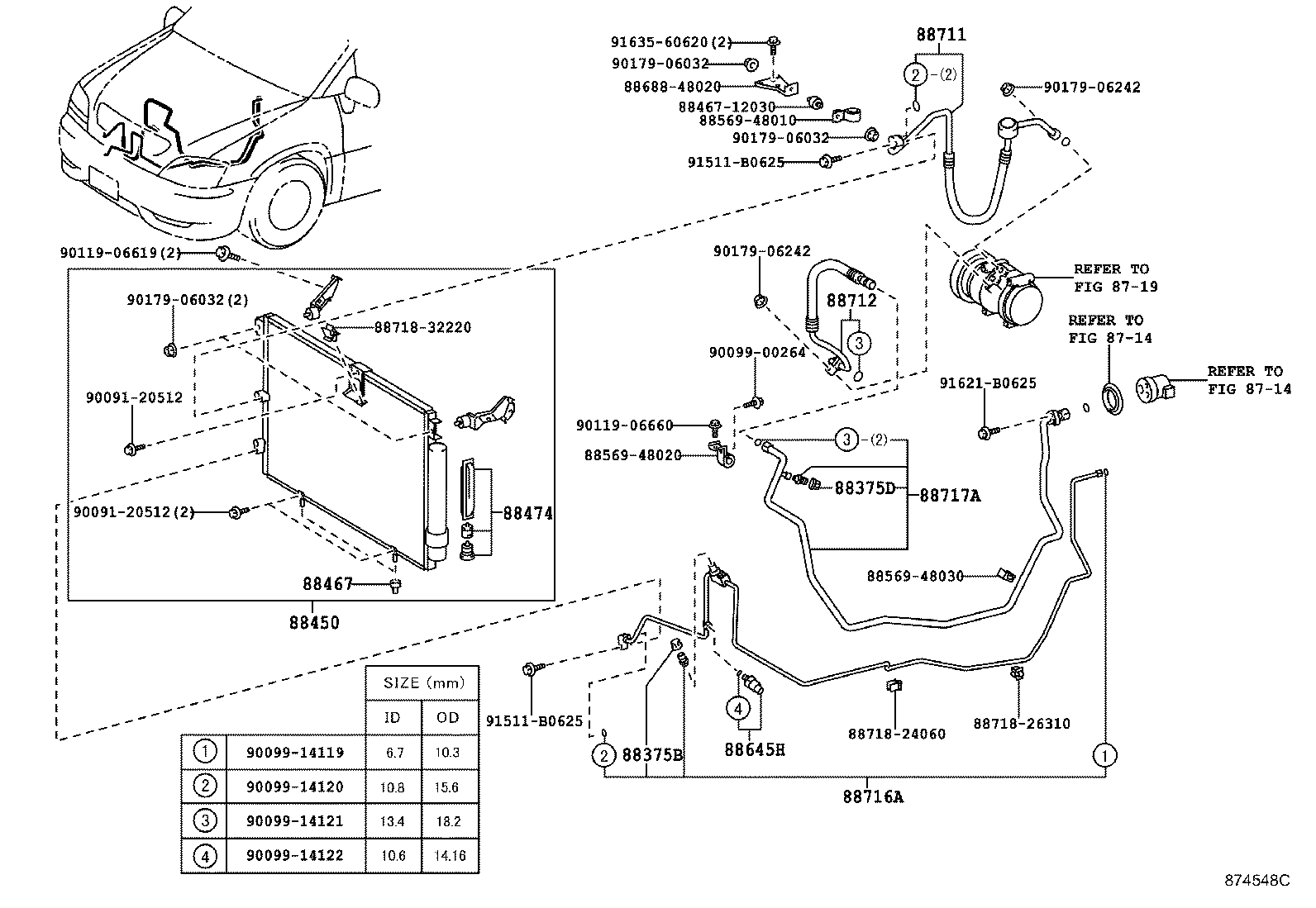

Figure 872284G 872284G 1997-12 → 2000-11 Figure 872283J 872283J 1997-12 → — Figure 874548C 874548C 2000-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
