Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

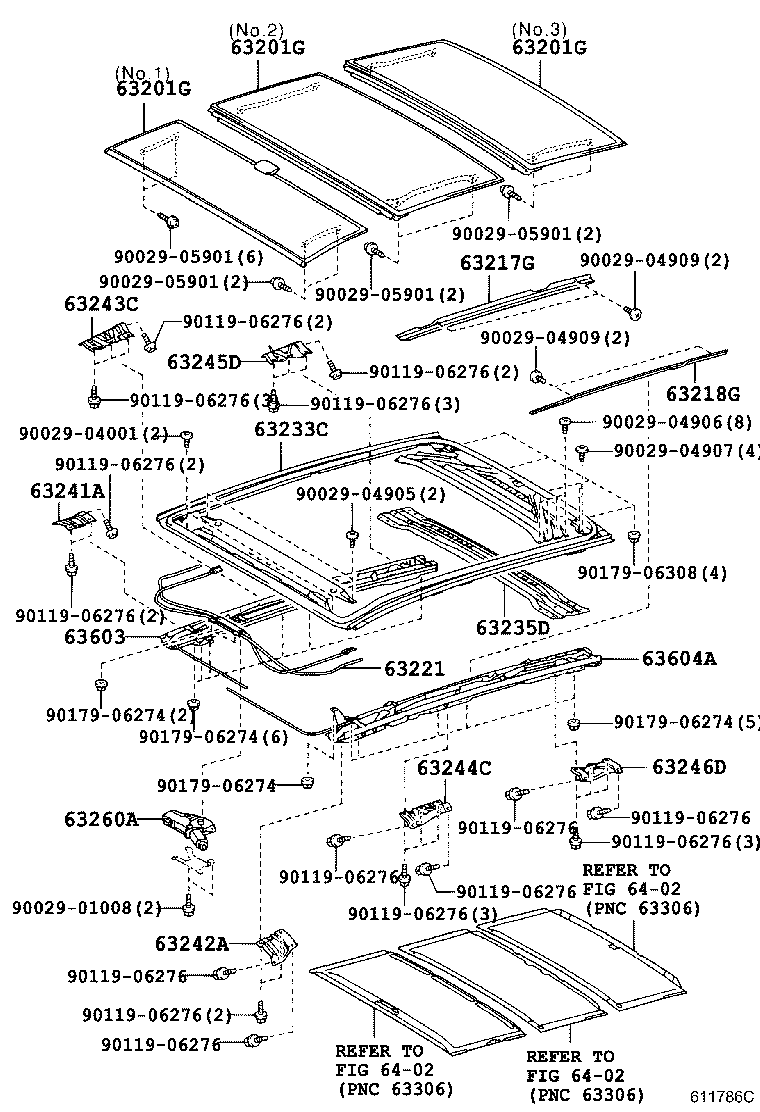

Exploded illustration 611786C 63201G — GLASS SUB-ASSY, SLIDING ROOF (9 parts) 63201G — GLASS SUB-ASSY, SLIDING ROOF (9 parts) 9002905901 — not listed in this catalogue 9002905901 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (3 parts) 9011906276 — not listed in this catalogue 9002905901 — not listed in this catalogue 9002905901 — not listed in this catalogue 9002904909 — not listed in this catalogue 9002904909 — not listed in this catalogue 9002904906 — not listed in this catalogue 9002904907 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 9017906308 — not listed in this catalogue 63604A — RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH (3 parts) 9017906274 — not listed in this catalogue 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (3 parts) 63235D — FRAME, SLIDING ROOF HOUSING, CENTER (3 parts) 9002904905 — not listed in this catalogue 63221 — CASING, SLIDING ROOF CABLE GUIDE (3 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (3 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63603 — RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH (3 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (3 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (4 parts) 9002901008 — not listed in this catalogue 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (3 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63233C — PANEL, SLIDING ROOF HOUSING (3 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (3 parts) 9002904001 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (9 parts)
611786C · 17 callouts, 34 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-48070 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥74,600
63201-48080 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥124,000
63201-48090 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥105,000
63201-48070 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU3# ¥74,600
63201-48070 note Glass Sub-assy, Sliding Roof
2006-01 → —
ACU3# ¥74,600
63201-48080 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU3# ¥124,000
63201-48080 note Glass Sub-assy, Sliding Roof
2006-01 → —
ACU3# ¥124,000
63201-48090 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU3# ¥105,000
63201-48090 note Glass Sub-assy, Sliding Roof
2006-01 → —
ACU3# ¥105,000
63217G — Garnish, Sliding Roof Side, RH
63217-48020 note Garnish, Sliding Roof Side, RH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥2,210
63217-48020 note Garnish, Sliding Roof Side, RH
2006-01 → 2008-12 ended
GSU3# ¥2,210
63217-48020 note Garnish, Sliding Roof Side, RH
2006-01 → —
ACU3# ¥2,210
63218G — Garnish, Sliding Roof Side, LH
63218-48020 note Garnish, Sliding Roof Side, LH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥2,210
63218-48020 note Garnish, Sliding Roof Side, LH
2006-01 → —
ACU3# ¥2,210
63218-48020 note Garnish, Sliding Roof Side, LH
2006-01 → 2008-12 ended
GSU3# ¥2,210
63221 — Casing, Sliding Roof Cable Guide
63221-48020 note Casing, Sliding Roof Cable Guide
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥14,600
63221-48020 note Casing, Sliding Roof Cable Guide
2006-01 → 2008-12 ended
GSU3# ¥14,600
63221-48020 note Casing, Sliding Roof Cable Guide
2006-01 → —
ACU3# ¥14,600
63233C — Panel, Sliding Roof Housing
63233-48040 note Panel, Sliding Roof Housing
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥23,300
63233-48040 note Panel, Sliding Roof Housing
2006-01 → 2008-12 ended
GSU3# ¥23,300
63233-48040 note Panel, Sliding Roof Housing
2006-01 → —
ACU3# ¥23,300
63235D — Frame, Sliding Roof Housing, Center
63235-48030 note Frame, Sliding Roof Housing, Center
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥5,100
63235-48030 note Frame, Sliding Roof Housing, Center
2006-01 → 2008-12 ended
GSU3# ¥5,100
63235-48030 note Frame, Sliding Roof Housing, Center
2006-01 → —
ACU3# ¥5,100
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-48030 note Bracket, Sliding Roof Housing Front Mounting, RH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥610
63241-48030 note Bracket, Sliding Roof Housing Front Mounting, RH
2006-01 → —
ACU3# ¥610
63241-48030 note Bracket, Sliding Roof Housing Front Mounting, RH
2006-01 → 2008-12 ended
GSU3# ¥610
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-48010 note Bracket, Sliding Roof Housing Front Mounting, LH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥610
63242-48010 note Bracket, Sliding Roof Housing Front Mounting, LH
2006-01 → 2008-12 ended
GSU3# ¥610
63242-48010 note Bracket, Sliding Roof Housing Front Mounting, LH
2006-01 → —
ACU3# ¥610
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-48030 note Bracket, Sliding Roof Housing Center Mounting, RH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥680
63243-48030 note Bracket, Sliding Roof Housing Center Mounting, RH
2006-01 → 2008-12 ended
GSU3# ¥680
63243-48030 note Bracket, Sliding Roof Housing Center Mounting, RH
2006-01 → —
ACU3# ¥680
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-48010 note Bracket, Sliding Roof Housing Center Mounting, LH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥680
63244-48010 note Bracket, Sliding Roof Housing Center Mounting, LH
2006-01 → 2008-12 ended
GSU3# ¥680
63244-48010 note Bracket, Sliding Roof Housing Center Mounting, LH
2006-01 → —
ACU3# ¥680
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-48020 note Bracket, Sliding Roof Housing Rear Mounting, RH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥680
63245-48020 note Bracket, Sliding Roof Housing Rear Mounting, RH
2006-01 → 2008-12 ended
GSU3# ¥680
63245-48020 note Bracket, Sliding Roof Housing Rear Mounting, RH
2006-01 → —
ACU3# ¥680
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-48010 note Bracket, Sliding Roof Housing Rear Mounting, LH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥680
63246-48010 note Bracket, Sliding Roof Housing Rear Mounting, LH
2006-01 → 2008-12 ended
GSU3# ¥680
63246-48010 note Bracket, Sliding Roof Housing Rear Mounting, LH
2006-01 → —
ACU3# ¥680
63260A — Gear Sub-assy, Sliding Roof Drive
63260-48070 note Gear Sub-assy, Sliding Roof Drive
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥47,100
63260-48070 note Gear Sub-assy, Sliding Roof Drive
2006-01 → 2006-12 ended
ACU3#,GSU3# ¥47,100
63260-48071 note Gear Sub-assy, Sliding Roof Drive
2007-01 → 2008-12 ended
GSU3# ¥47,000
63260-48071 note Gear Sub-assy, Sliding Roof Drive
2007-01 → —
ACU3# ¥47,000
63603 — Rail Sub-assy, Sliding Roof Drive, RH
63603-48040 note Rail Sub-assy, Sliding Roof Drive, RH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥27,800
63603-48040 note Rail Sub-assy, Sliding Roof Drive, RH
2006-01 → 2008-12 ended
GSU3# ¥27,800
63603-48040 note Rail Sub-assy, Sliding Roof Drive, RH
2006-01 → —
ACU3# ¥27,800
63604A — Rail Sub-assy, Sliding Roof Drive, LH
63604-48040 note Rail Sub-assy, Sliding Roof Drive, LH
2003-02 → 2006-01 ended
ACU3#,MCU3# ¥27,800
63604-48040 note Rail Sub-assy, Sliding Roof Drive, LH
2006-01 → 2008-12 ended
GSU3# ¥27,800
63604-48040 note Rail Sub-assy, Sliding Roof Drive, LH
2006-01 → —
ACU3# ¥27,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
