Timing Gear Cover & Rear End Plate

15 part groups · 3 illustrations

Illustrations

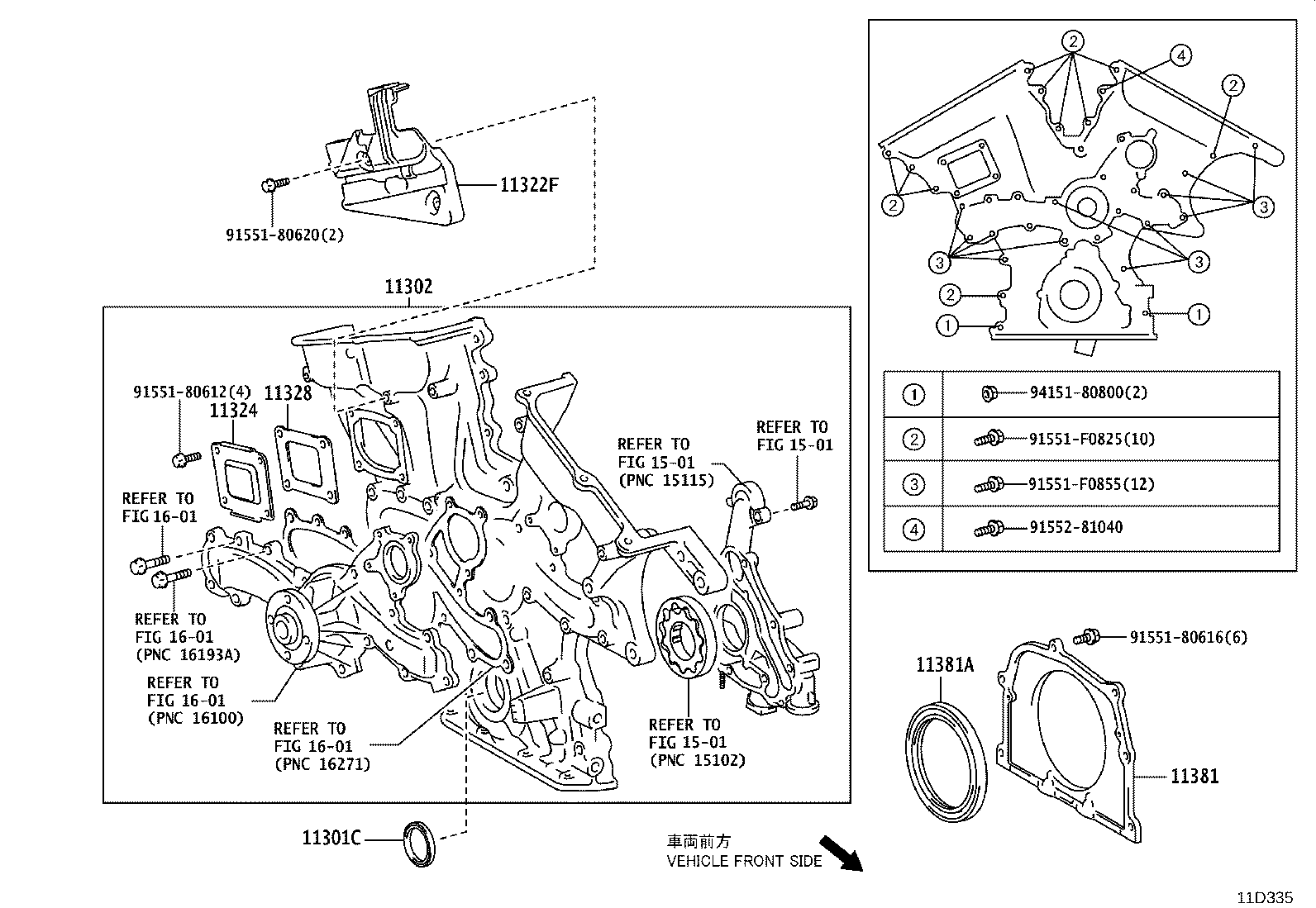

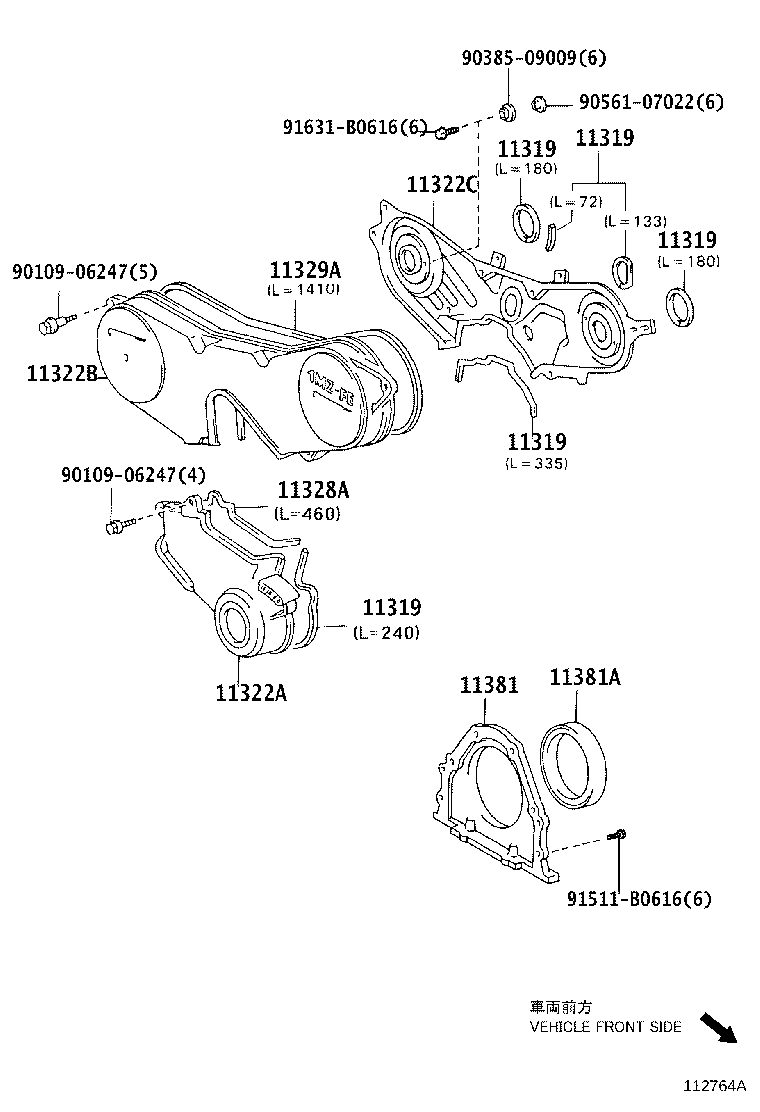

Figure 112780E 112780E 2003-02 → — Figure 11D335 11D335 2006-01 → 2008-12 Figure 112764A 112764A 2003-02 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11319 Gasket, Timing Belt Cover, NO.3
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
