Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 3 illustrations

Illustrations

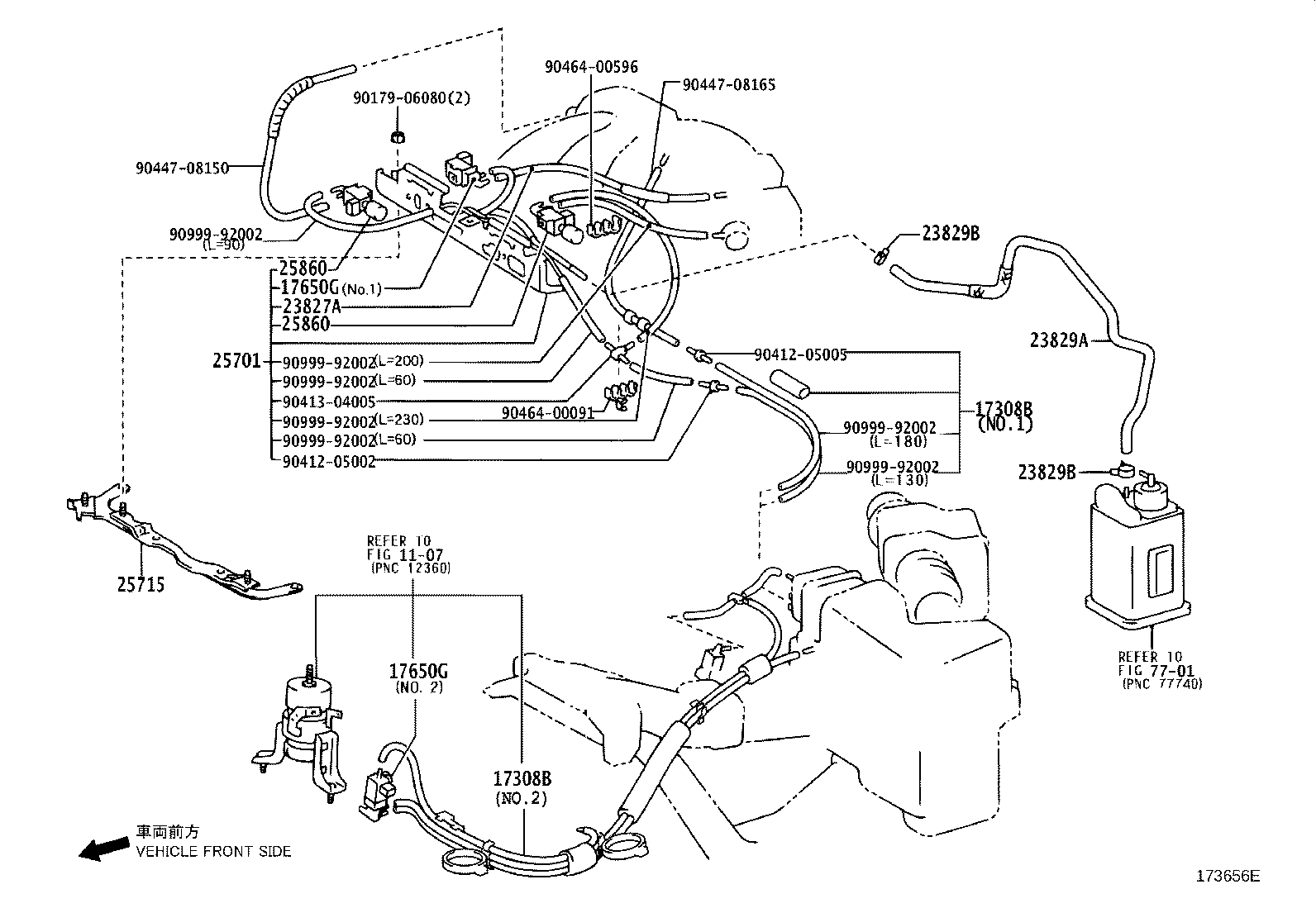

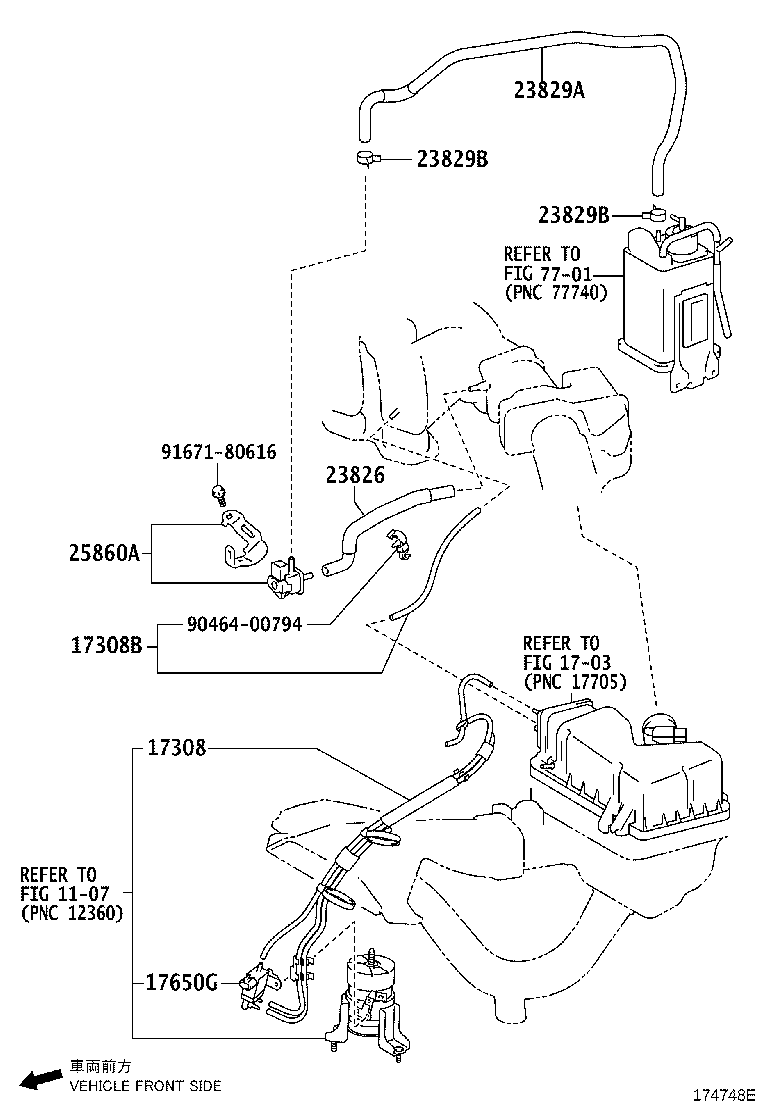

Figure 173667A 173667A 2003-02 → — Figure 174748E 174748E 2006-01 → 2008-12 Figure 173656E 173656E 2003-02 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25701 Valve Set, Emission Control
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
