Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

9 part groups · 3 illustrations

Illustrations

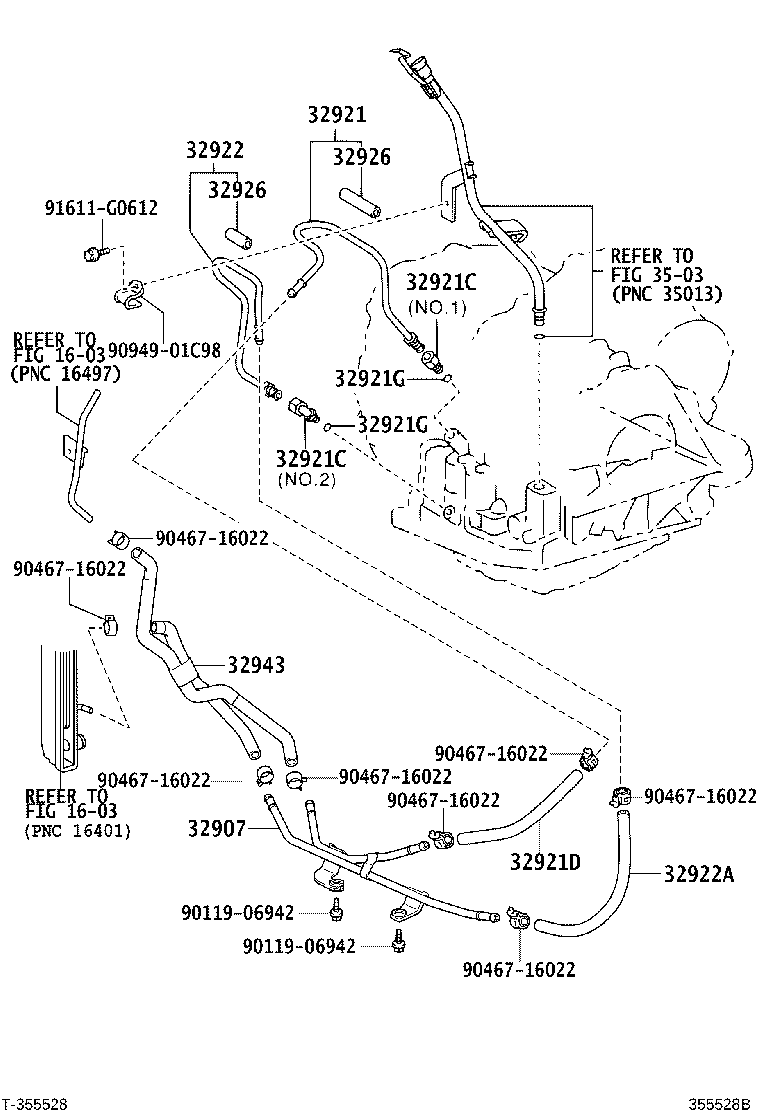

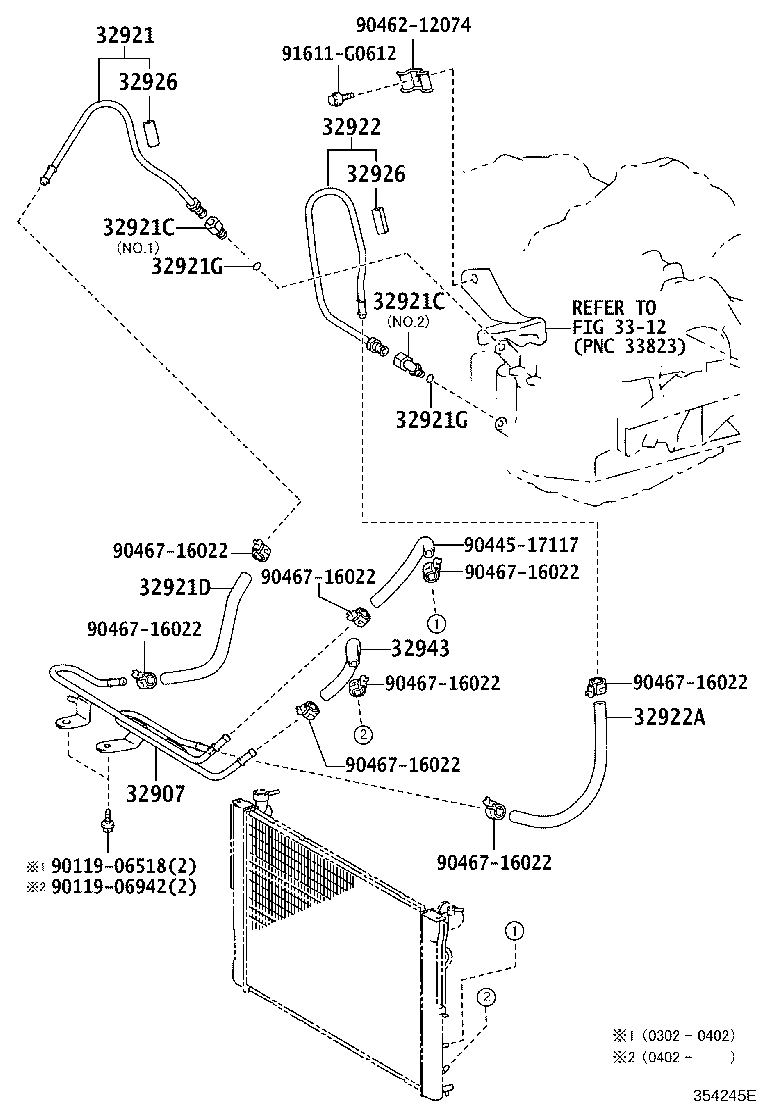

Figure 354244C 354244C 2003-02 → 2006-01 Figure 354245E 354245E 2003-02 → — Figure 355528B 355528B 2006-01 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32926 Cushion, Oil Cooler Tube(ATM)
32943 Hose, Transmission Oil Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
