Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

16 part groups · 2 illustrations

Illustrations

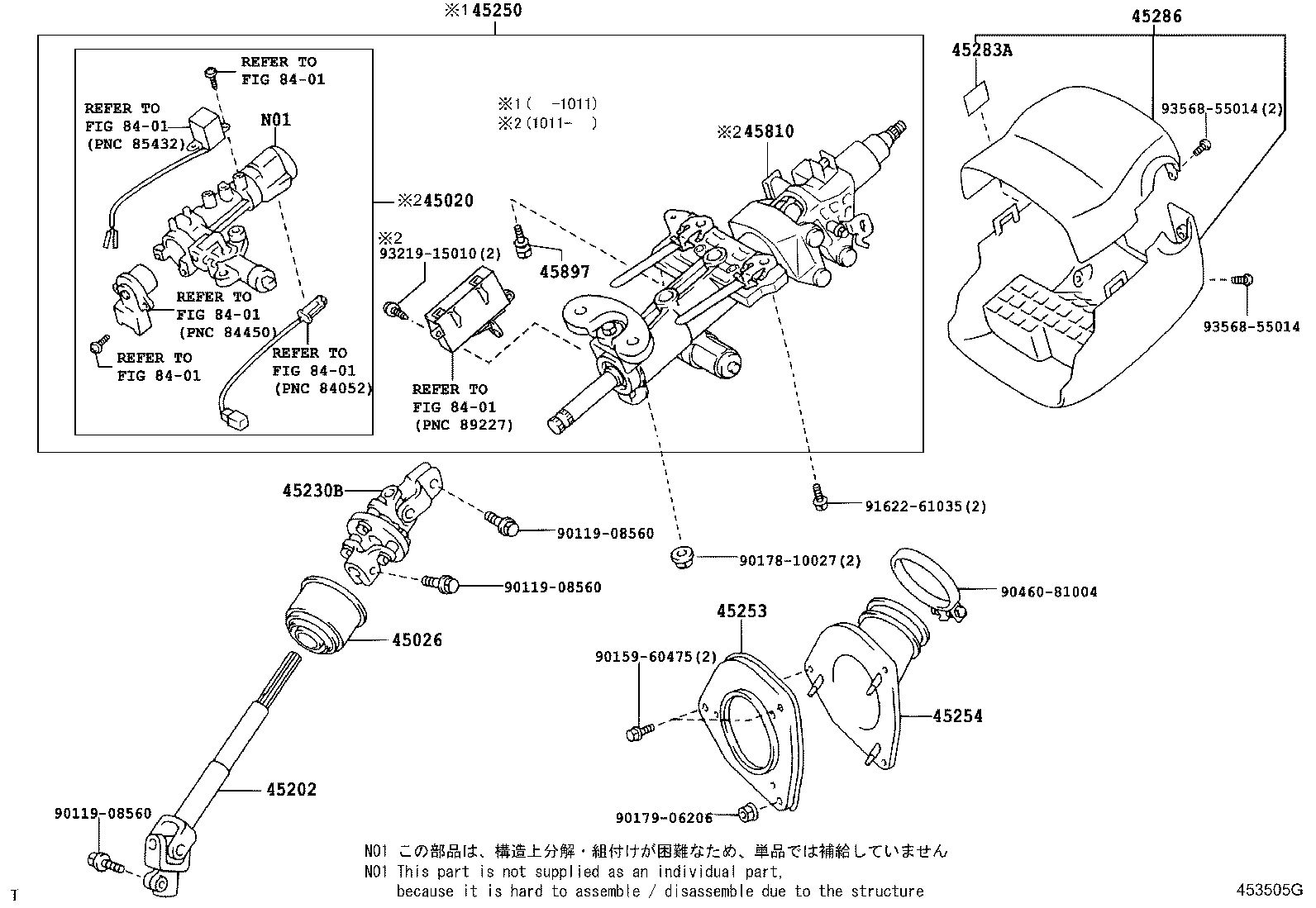

Figure 453504C 453504C 2003-02 → — Figure 453505G 453505G 2003-02 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45210 Shaft Assy, Steering Main
45230B Joint Assy, Steering Shaft Universal
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45289C Cover, Steering Column, Lwr NO.2
45810 Gear Assy, Tilt Steering, W/Motor
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
