Toyota Harrier
2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan
Supported model
Data version 2012-07

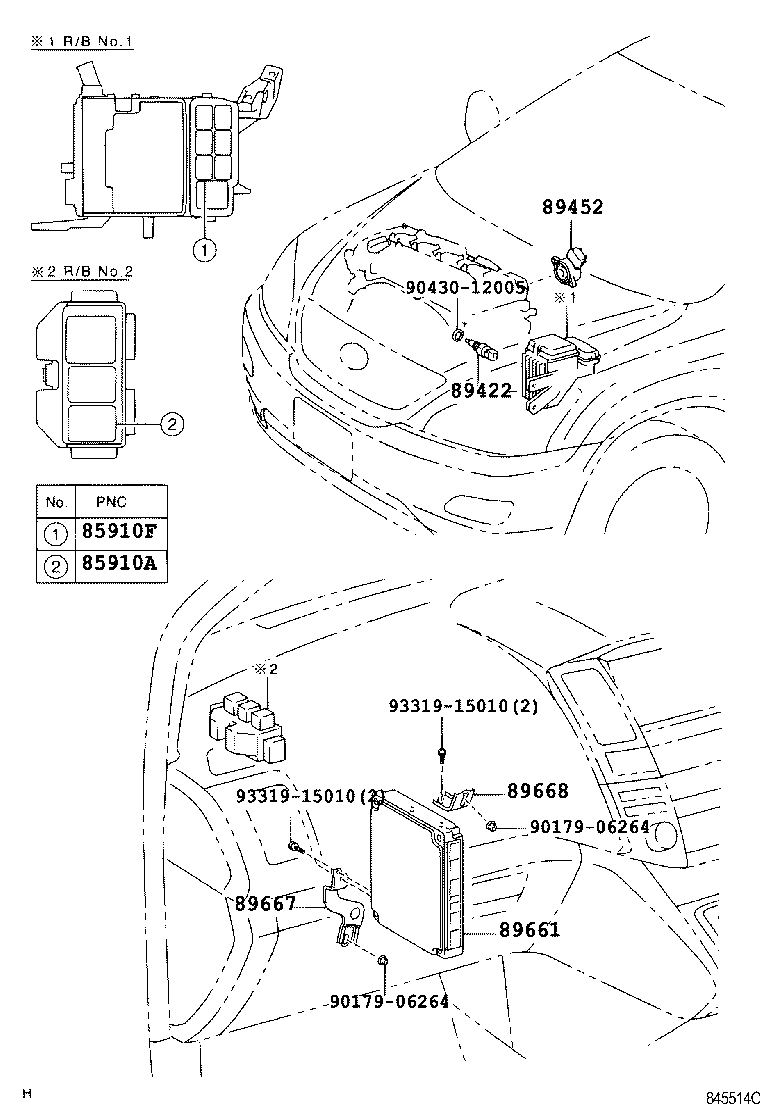

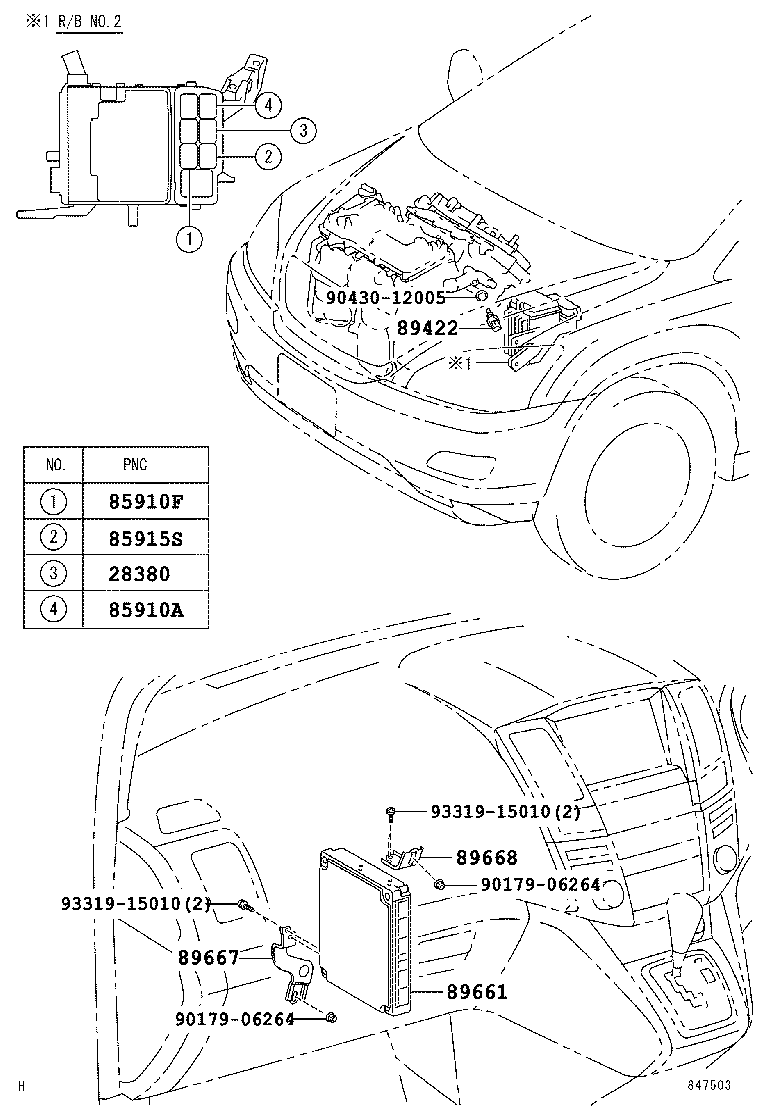

Electronic Fuel Injection System
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
