Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

16 part groups · 2 illustrations

Illustrations

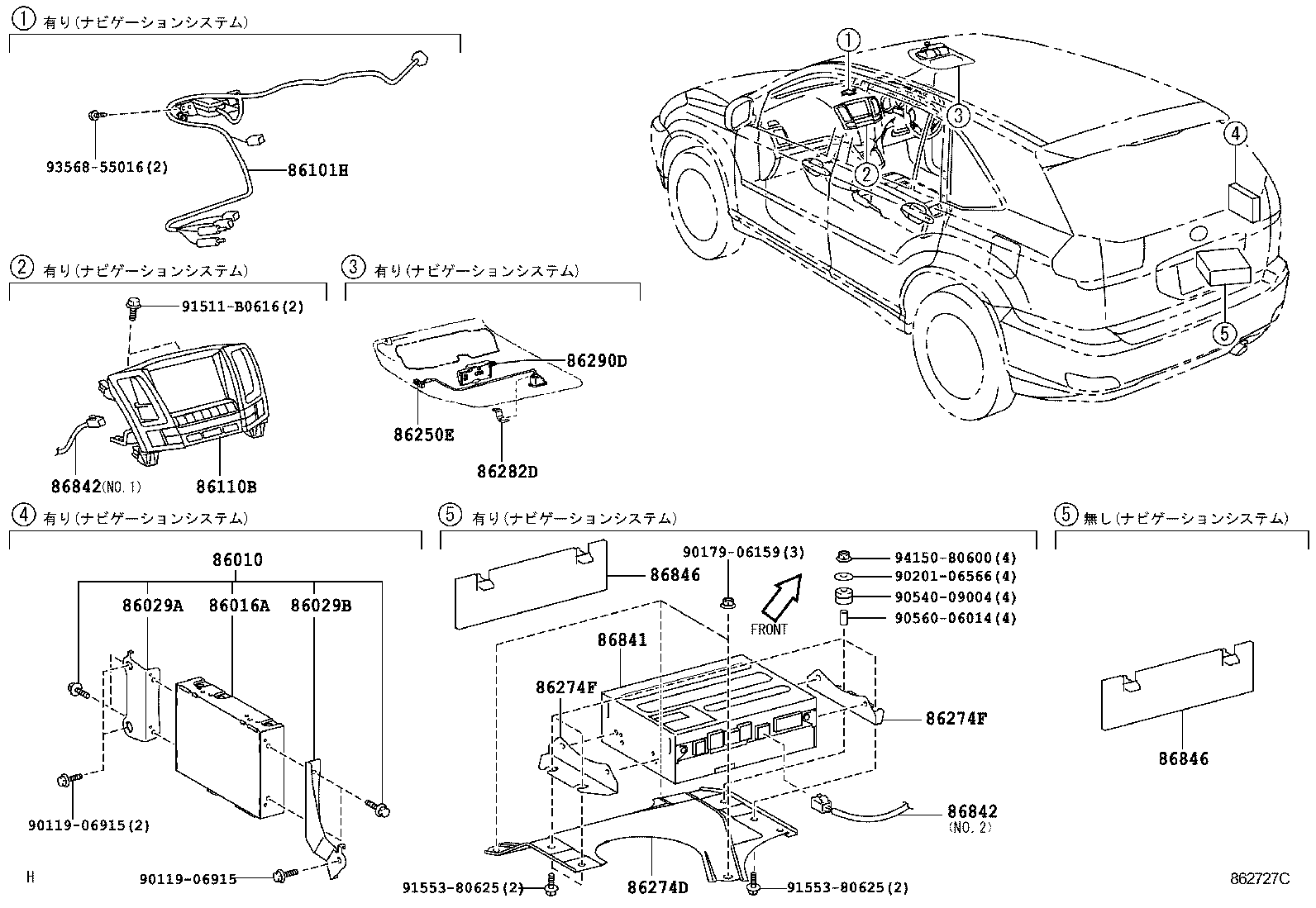

Figure 861903E 861903E 2003-02 → 2006-01 Figure 862727C 862727C 2006-01 → —

Part groups

PNCDescription
86010 Tuner Assy, Television
86016A Parts Set, Television Tuner
86029A Bracket Set, Television, NO.1
86029B Bracket Set, Television, NO.2
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86282D Bracket, Microphone
86290D Amplifier Assy, Microphone
86792A Controller, Television Camera
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86846 Plate, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
