Heating & Air Conditioning - Cooler Piping

8 part groups · 3 illustrations

Illustrations

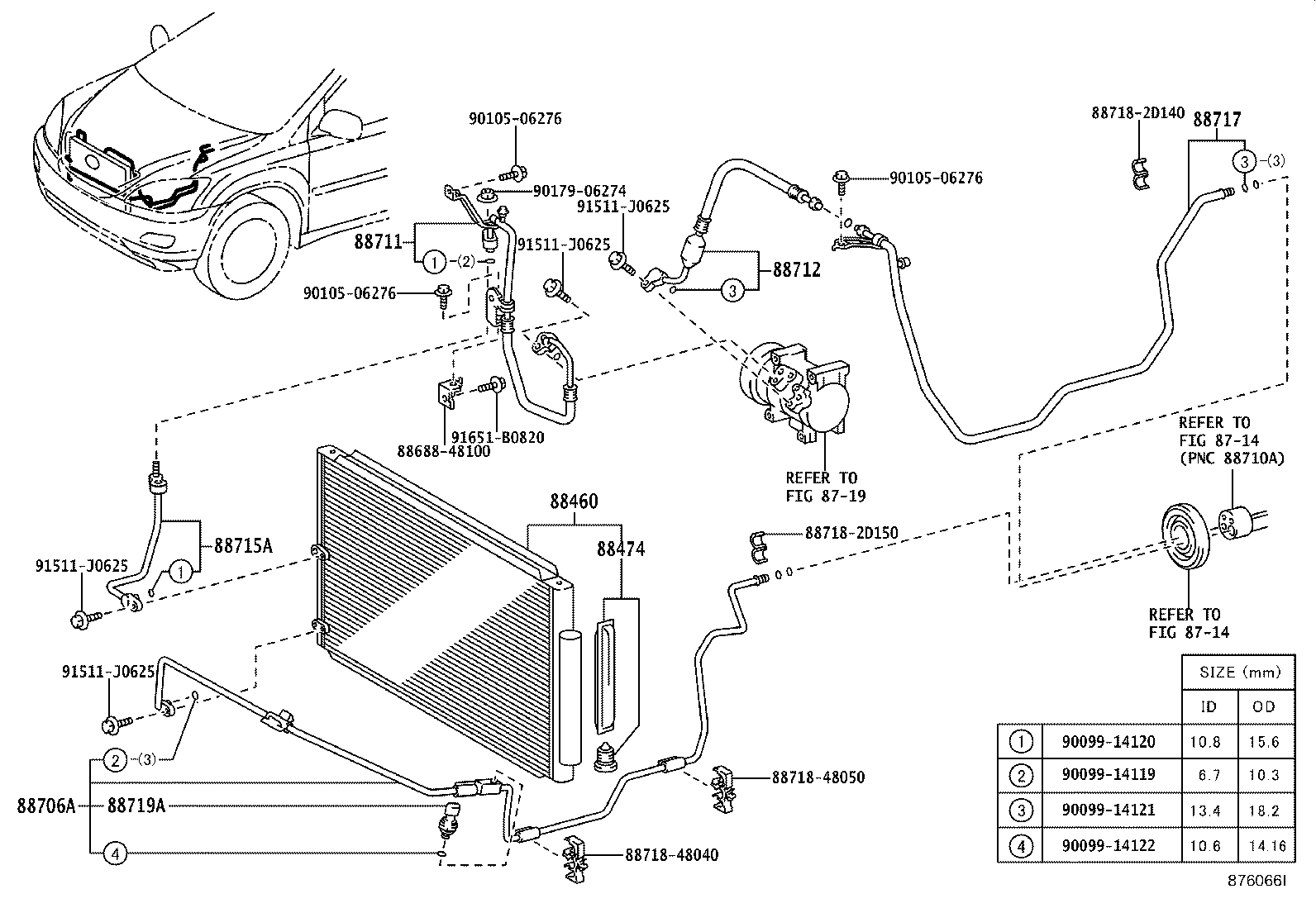

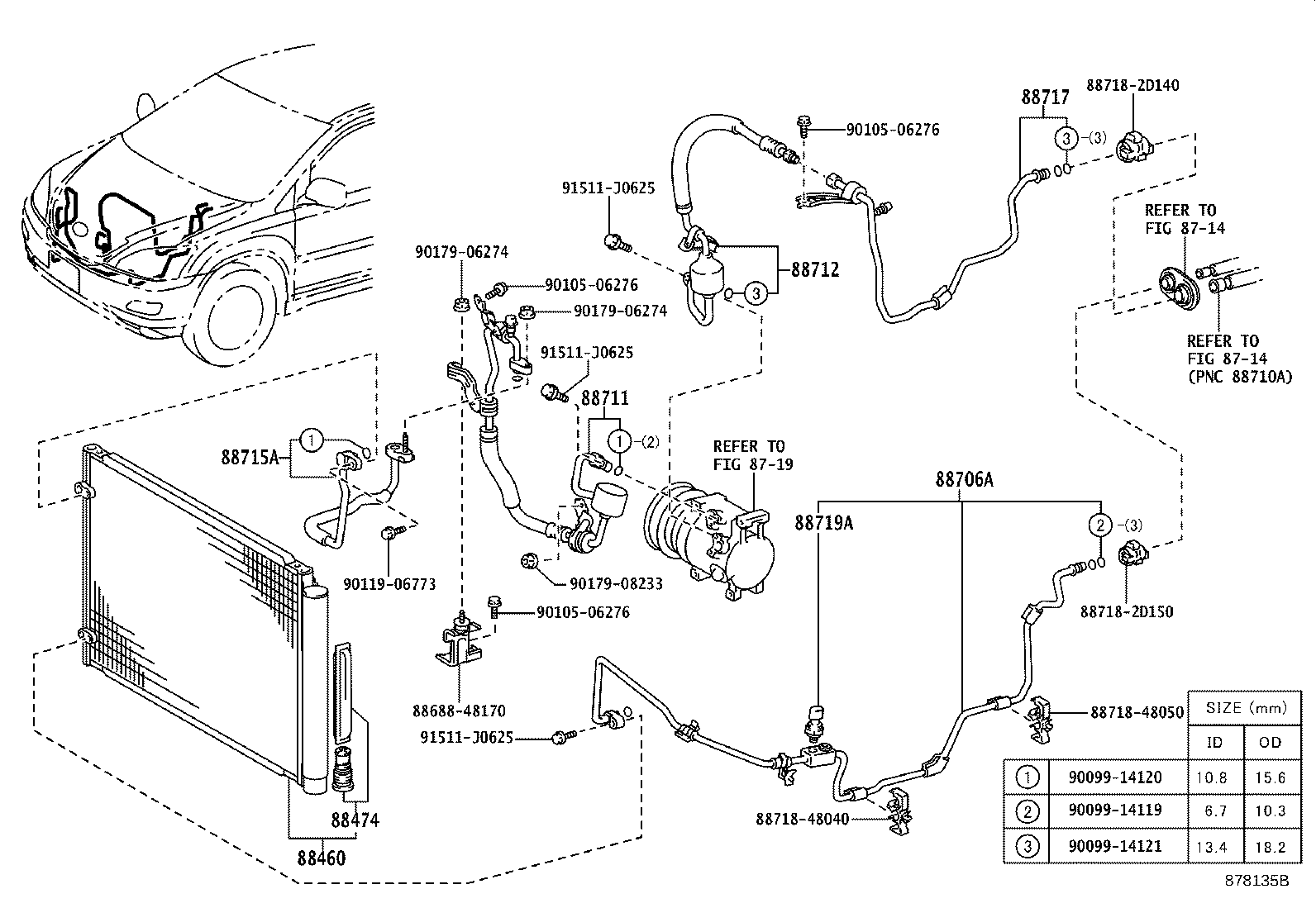

Figure 876134I 876134I 2003-02 → 2006-01 Figure 876066I 876066I 2003-02 → — Figure 878135B 878135B 2006-01 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88717 Pipe, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
