Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL1#,GYL1# · catalogue 521130 · Japan

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

28 part groups · 3 illustrations

Illustrations

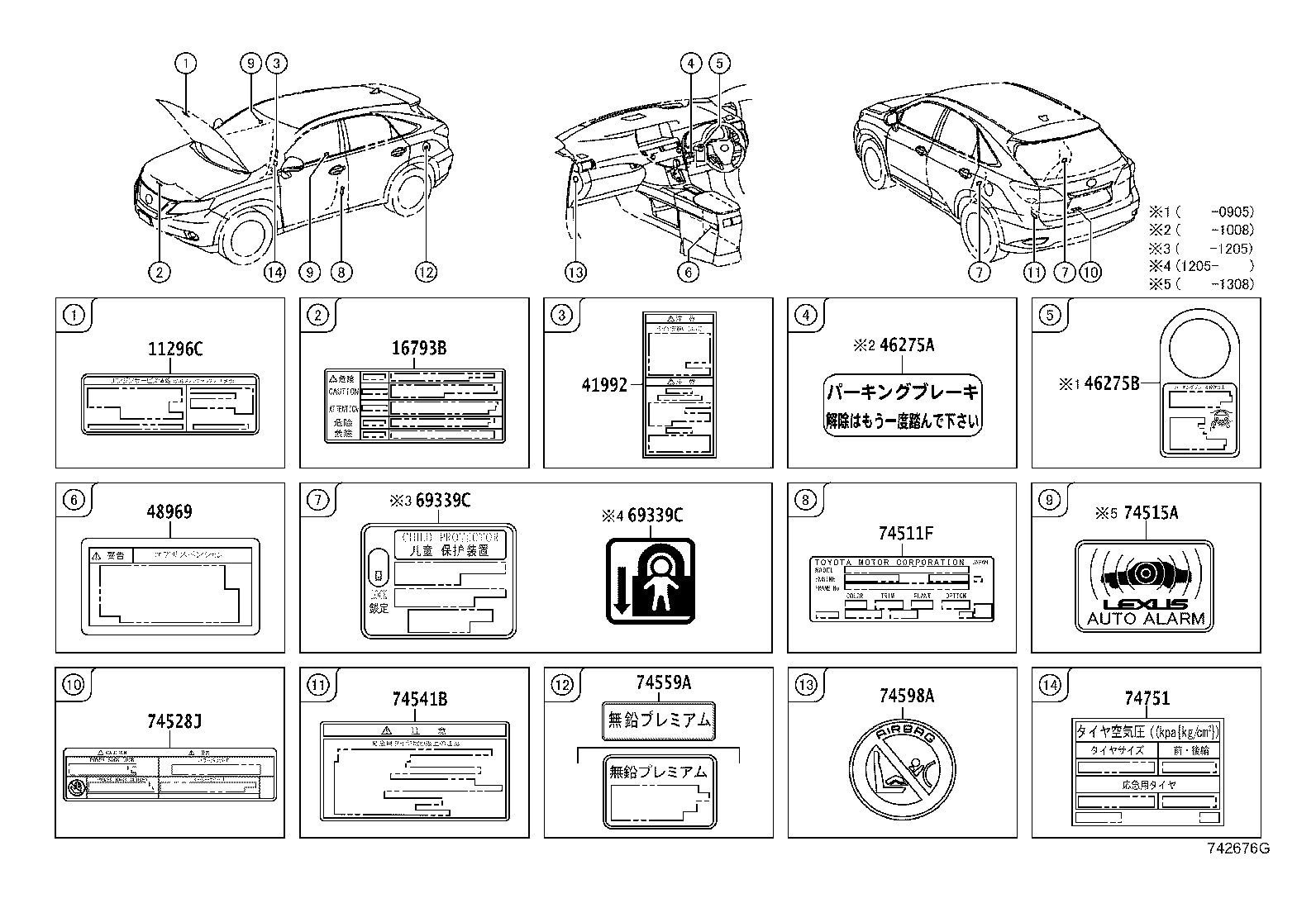

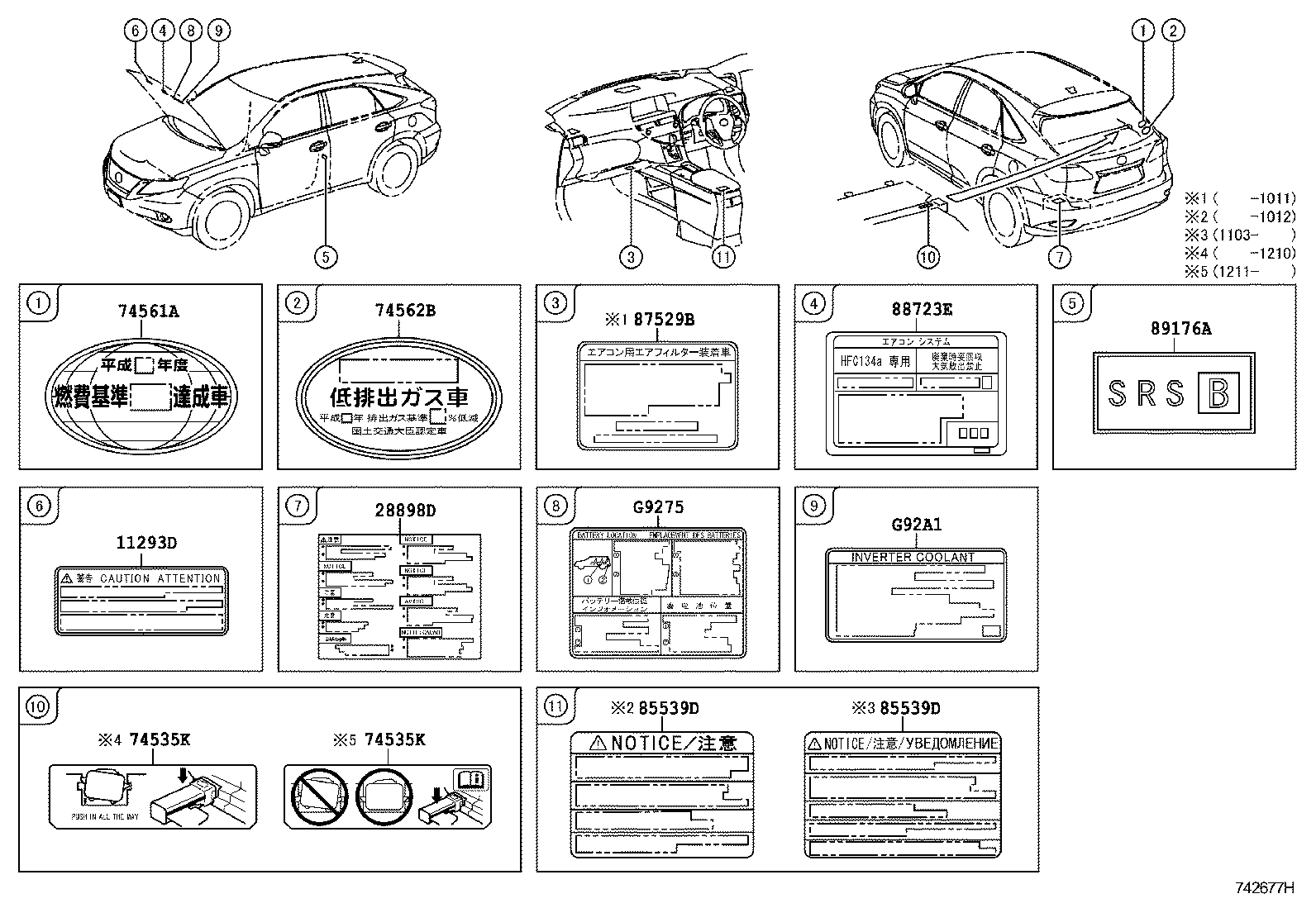

Figure 746039A 746039A 2008-12 → — Figure 742676G 742676G 2008-12 → — Figure 742677H 742677H 2008-12 → —

Part groups

PNCDescription
11286B Plate, Engine Specification
11293D Label, Engine Caution
11296C Label, Engine Service Information
16448A Plate, Radiator Caution
16793B Label, Cooling Fan Information
16793E Label, Cooling Fan Caution
28898D Label, Battery Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
48969 Label, Jack UP Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74528J Label, Power Back Door Caution
74535K Label, Tonneau Cover Caution
74541B Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
85539D Label, Power Outlet Notice
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
