Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL1#,GYL1# · catalogue 521130 · Japan

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 3 illustrations

Illustrations

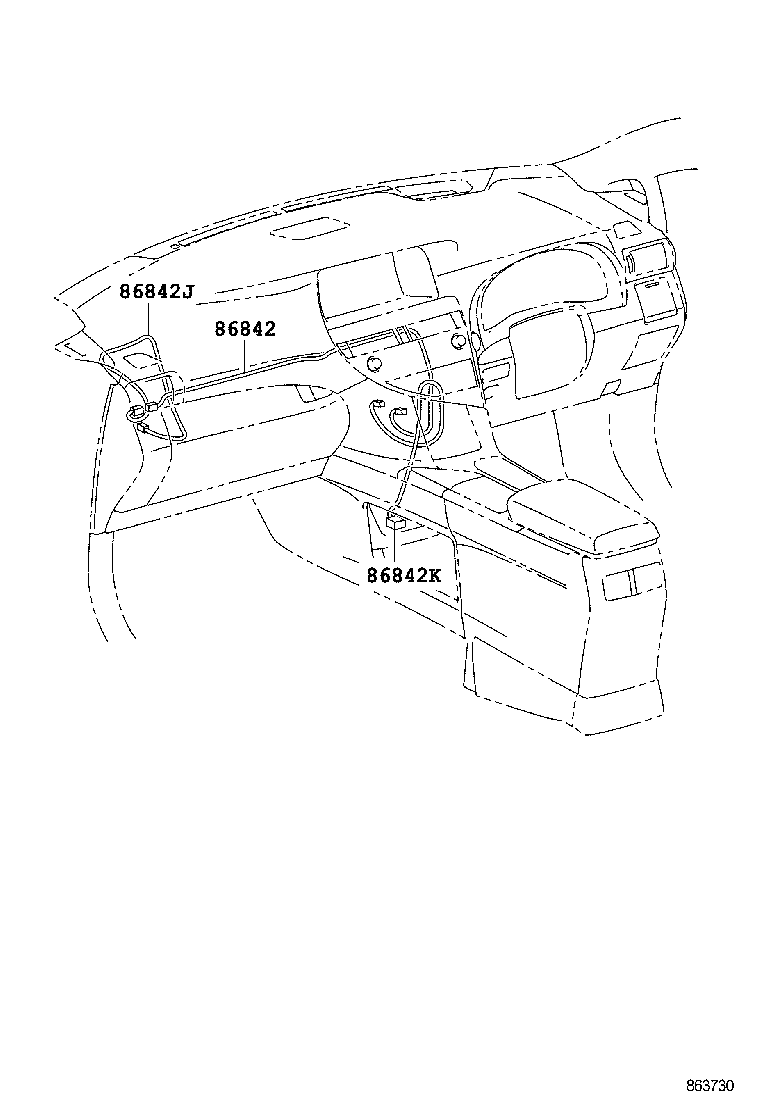

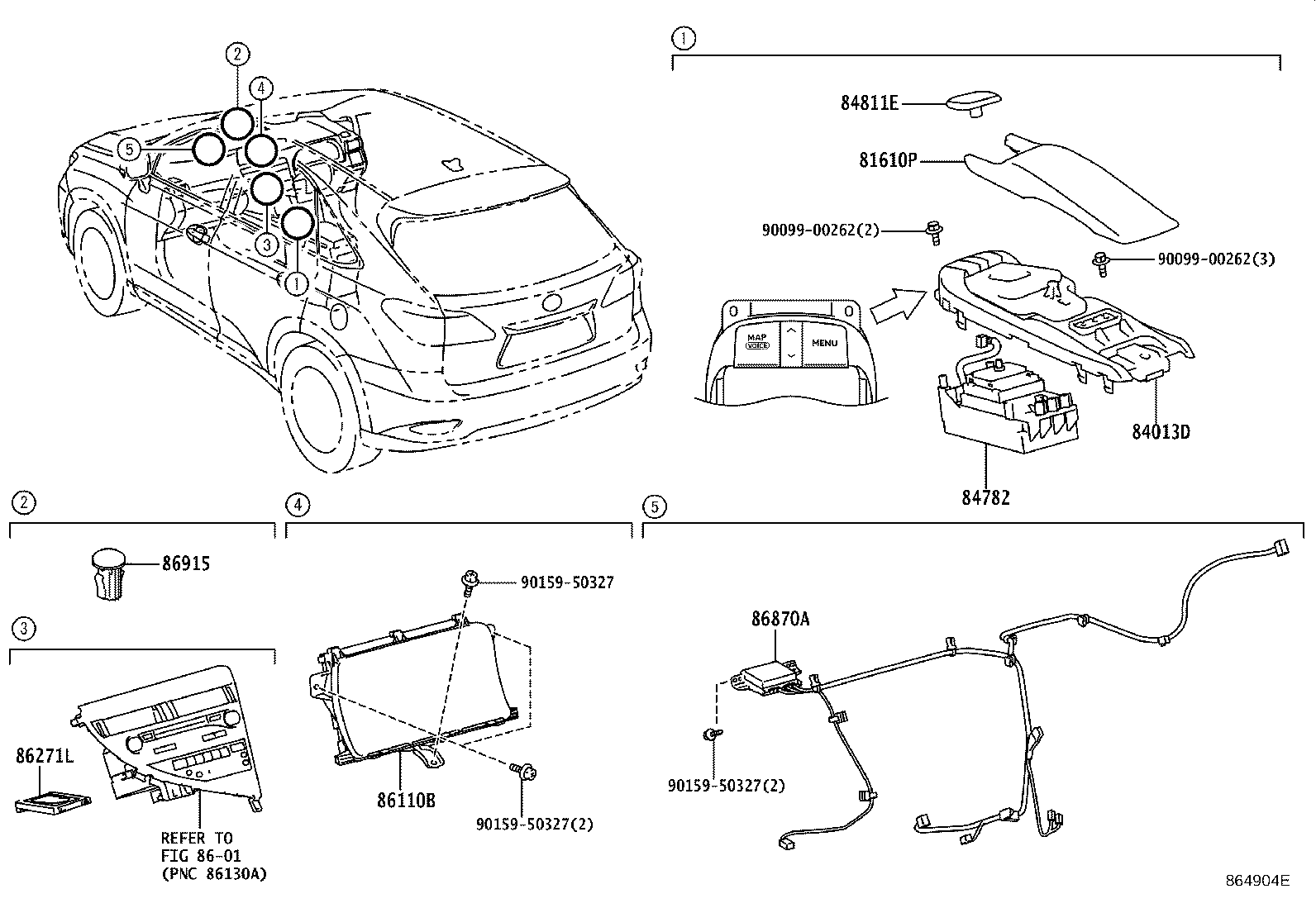

Figure 863745D 863745D 2008-12 → 2012-03 Figure 863730 863730 2008-12 → 2012-03 Figure 864904E 864904E 2012-03 → —

Part groups

PNCDescription
81610P Cover Assy, RH
84013D Panel Sub-assy, Integration
84782 Board, Remote Operation
84811E Knob, Switch
86110B Multi-display Assy
86271L Hard Disc
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86842K Wire, Navigation, NO.3
86870A Antenna Assy, Gps & Vics
86915 Transceiver, Optical Beacon
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
