Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 614856H 6402 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (4 parts) 63201G — GLASS SUB-ASSY, SLIDING ROOF (4 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (2 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (2 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63241B — BRACKET, SLIDING ROOF HOUSING, NO.1 (2 parts) 63241B — BRACKET, SLIDING ROOF HOUSING, NO.1 (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (3 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (3 parts) 63514A — WIRE, CONNECTOR (2 parts) 9002901006 — not listed in this catalogue 9002901006 — not listed in this catalogue 9002901008 — not listed in this catalogue 9002901008 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9015950336 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 63236 — CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE (2 parts) 63236 — CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE (2 parts) 63236 — CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE (2 parts) 63236 — CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63247E — HOSE, SLIDING ROOF DRAIN, REAR RH (2 parts) 63248E — HOSE, SLIDING ROOF DRAIN, REAR LH (2 parts) 63249E — HOSE, SLIDING ROOF DRAIN (2 parts) 63249F — HOSE, SLIDING ROOF DRAIN (2 parts) 9048026020 — not listed in this catalogue 9048026020 — not listed in this catalogue 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63251J — WEATHERSTRIP, SLIDING ROOF, NO.2 (2 parts)

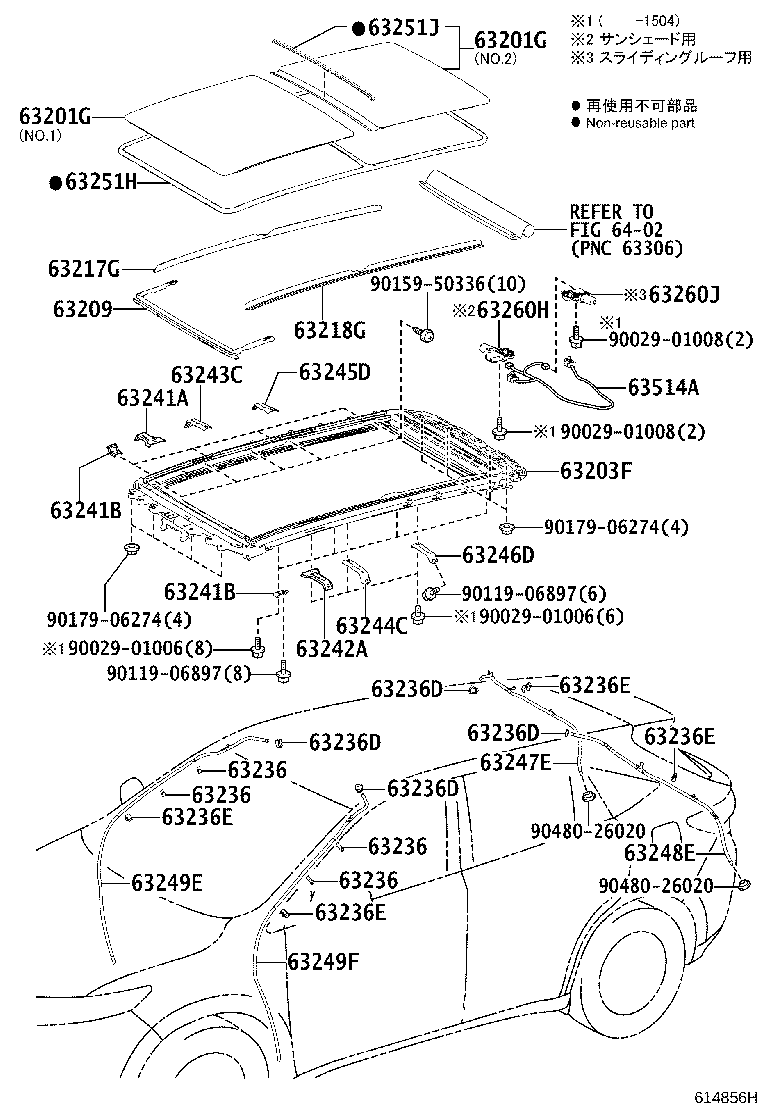

614856H · 35 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-48180 note Glass Sub-assy, Sliding Roof
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥104,000
63201-48190 note Glass Sub-assy, Sliding Roof
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥94,100
63201-48180 note Glass Sub-assy, Sliding Roof
2017-05 → —
ASU6#,AVU65,ZSU6# ¥104,000
63201-48190 note Glass Sub-assy, Sliding Roof
2017-05 → —
ASU6#,AVU65,ZSU6# ¥94,100
63203F — Housing Sub-assy, Sliding Roof
63203-48160 note Housing Sub-assy, Sliding Roof
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥93,200
63203-48160 note Housing Sub-assy, Sliding Roof
2017-05 → —
ASU6#,AVU65,ZSU6# ¥93,200
63209 — Panel Sub-assy, Roof Wind Deflector
63209-48100 note Panel Sub-assy, Roof Wind Deflector
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥12,500
63209-48100 note Panel Sub-assy, Roof Wind Deflector
2017-05 → —
ASU6#,AVU65,ZSU6# ¥12,500
63217G — Garnish, Sliding Roof Side, RH
63217-48050 note Garnish, Sliding Roof Side, RH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥2,630
63217-48050 note Garnish, Sliding Roof Side, RH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥2,630
63218G — Garnish, Sliding Roof Side, LH
63218-48050 note Garnish, Sliding Roof Side, LH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥2,630
63218-48050 note Garnish, Sliding Roof Side, LH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥2,630
63236 — Clamp, Sliding Roof OR Removable Roof Drain Hose
63236-30010 note Clamp, Sliding Roof OR Removable Roof Drain Hose
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥110
63236-30010 note Clamp, Sliding Roof OR Removable Roof Drain Hose
2017-05 → —
ASU6#,AVU65,ZSU6# ¥110
63236D — Clamp, Sliding Roof Drain Hose
63236-33030 note Clamp, Sliding Roof Drain Hose
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥80
63236-33030 note Clamp, Sliding Roof Drain Hose
2017-05 → —
ASU6#,AVU65,ZSU6# ¥80
63236E — Clamp, Sliding Roof Drain Hose
63236-42010 note Clamp, Sliding Roof Drain Hose
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥80
63236-42010 note Clamp, Sliding Roof Drain Hose
2017-05 → —
ASU6#,AVU65,ZSU6# ¥80
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-48080 note Bracket, Sliding Roof Housing Front Mounting, RH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,190
63241-48080 note Bracket, Sliding Roof Housing Front Mounting, RH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,190
63241B — Bracket, Sliding Roof Housing, NO.1
63241-48090 note Bracket, Sliding Roof Housing, NO.1
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥480
63241-48090 note Bracket, Sliding Roof Housing, NO.1
2017-05 → —
ASU6#,AVU65,ZSU6# ¥480
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-48080 note Bracket, Sliding Roof Housing Front Mounting, LH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,190
63241-48080 note Bracket, Sliding Roof Housing Front Mounting, LH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,190
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-48070 note Bracket, Sliding Roof Housing Center Mounting, RH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,140
63243-48070 note Bracket, Sliding Roof Housing Center Mounting, RH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,140
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63243-48070 note Bracket, Sliding Roof Housing Center Mounting, LH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,140
63243-48070 note Bracket, Sliding Roof Housing Center Mounting, LH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,140
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-48050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,040
63245-48050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,040
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63245-48050 note Bracket, Sliding Roof Housing Rear Mounting, LH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,040
63245-48050 note Bracket, Sliding Roof Housing Rear Mounting, LH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,040
63247E — Hose, Sliding Roof Drain, Rear RH
63247-48110 note Hose, Sliding Roof Drain, Rear RH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥2,140
63247-48110 note Hose, Sliding Roof Drain, Rear RH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥2,140
63248E — Hose, Sliding Roof Drain, Rear LH
63248-48030 note Hose, Sliding Roof Drain, Rear LH
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥2,120
63248-48030 note Hose, Sliding Roof Drain, Rear LH
2017-05 → —
ASU6#,AVU65,ZSU6# ¥2,120
63249E — Hose, Sliding Roof Drain
63249-48070 note Hose, Sliding Roof Drain
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,220
63249-48070 note Hose, Sliding Roof Drain
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,220
63249F — Hose, Sliding Roof Drain
63249-48080 note Hose, Sliding Roof Drain
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥1,220
63249-48080 note Hose, Sliding Roof Drain
2017-05 → —
ASU6#,AVU65,ZSU6# ¥1,220
63251H — Weatherstrip, Sliding Roof
63251-48060 note Weatherstrip, Sliding Roof
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥8,900
63251-48060 note Weatherstrip, Sliding Roof
2017-05 → 2017-11 ended
ASU6#,AVU65,ZSU6# ¥8,900
63251-48061 note Weatherstrip, Sliding Roof
2017-12 → 2020-05 ended
ASU6#,AVU65,ZSU6# ¥8,900
63251J — Weatherstrip, Sliding Roof, NO.2
63251-48090 note Weatherstrip, Sliding Roof, NO.2
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥12,800
63251-48090 note Weatherstrip, Sliding Roof, NO.2
2017-05 → 2020-05 ended
ASU6#,AVU65,ZSU6# ¥12,800
63260H — Gear Assy, Sliding Roof Drive
63260-48180 note Gear Assy, Sliding Roof Drive
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥39,100
63260-48181 note Gear Assy, Sliding Roof Drive
2017-05 → —
ASU6#,AVU65,ZSU6# ¥39,000
63260J — Gear Assy, Sliding Roof Drive
63260-48170 note Gear Assy, Sliding Roof Drive
2013-12 → 2015-03 ended
AVU65,ZSU6# ¥47,000
63260-48171 note Gear Assy, Sliding Roof Drive
2015-04 → 2017-05 ended
AVU65,ZSU6# ¥39,000
63260-48171 note Gear Assy, Sliding Roof Drive
2017-05 → —
ASU6#,AVU65,ZSU6# ¥39,000
63514A — Wire, Connector
63514-48010 note Wire, Connector
2013-12 → 2017-05 ended
AVU65,ZSU6# ¥3,540
63514-48010 note Wire, Connector
2017-05 → —
ASU6#,AVU65,ZSU6# ¥3,540
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
