Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

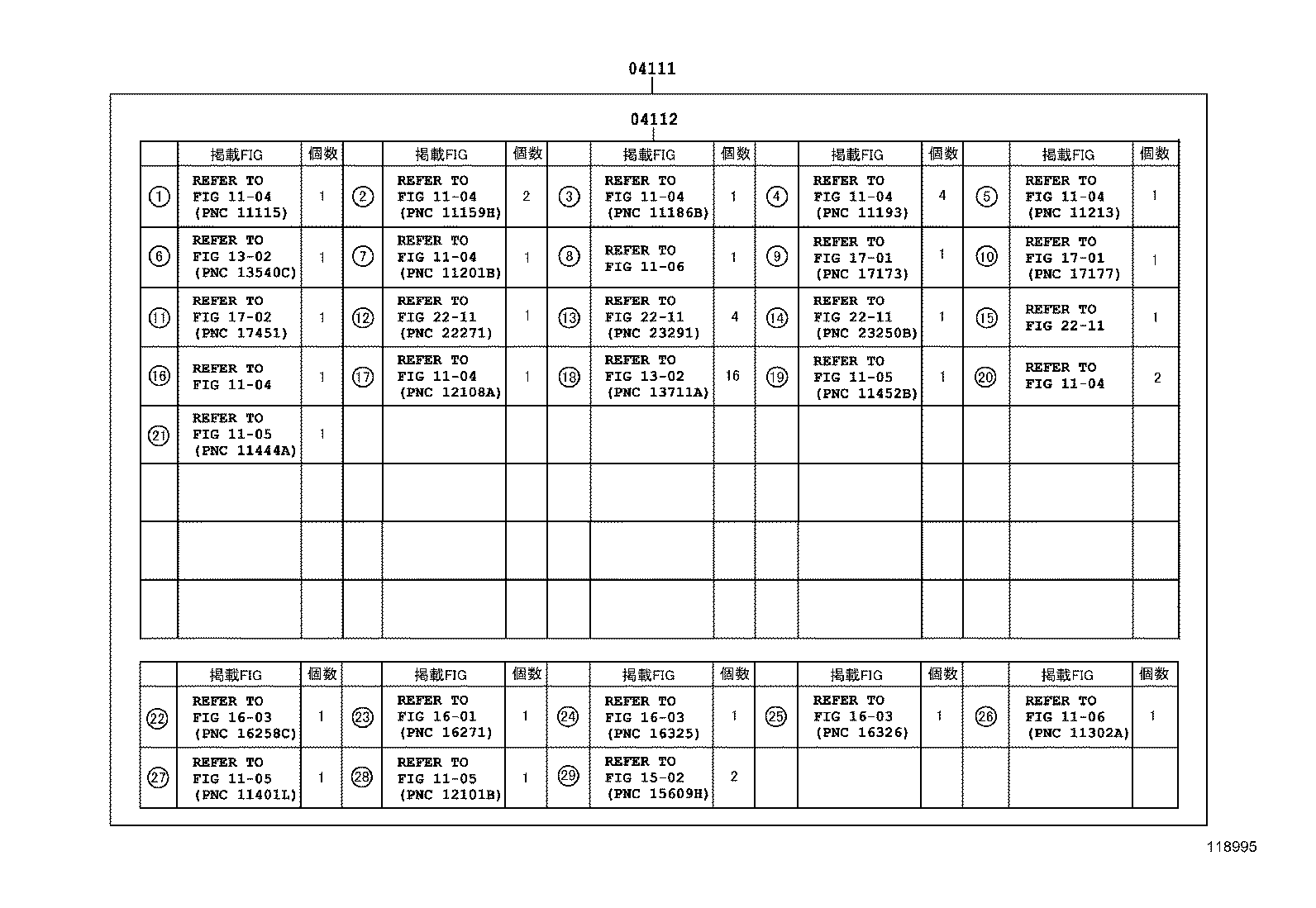

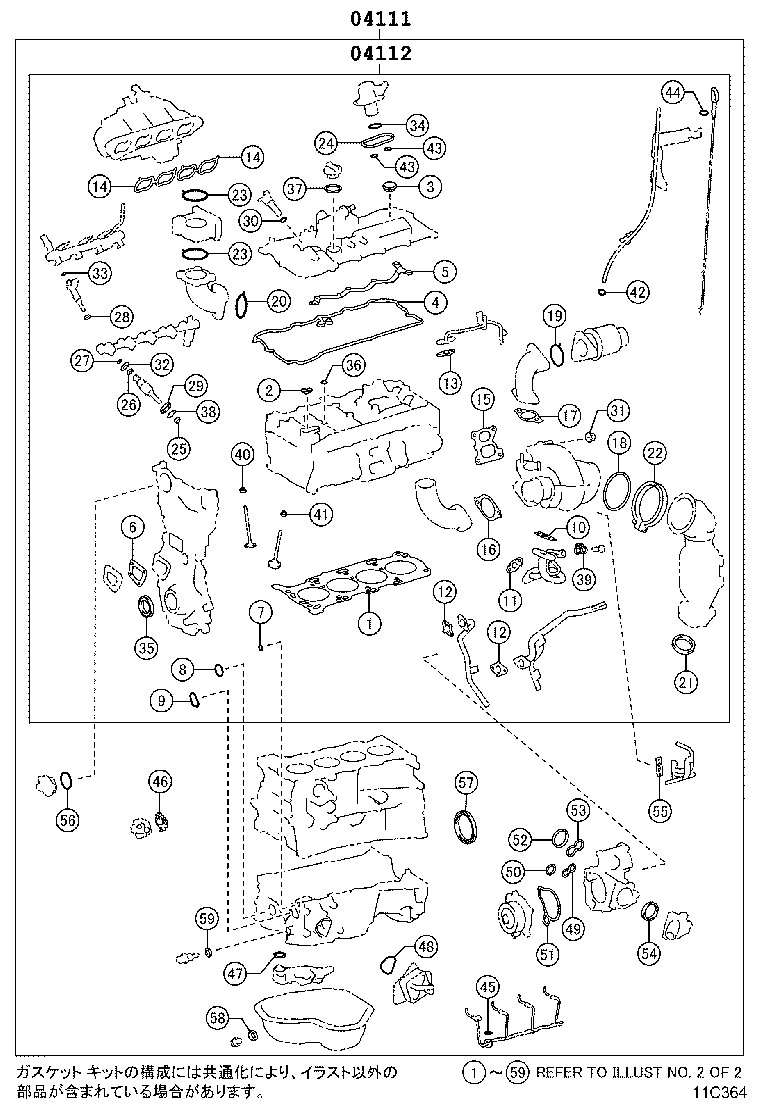

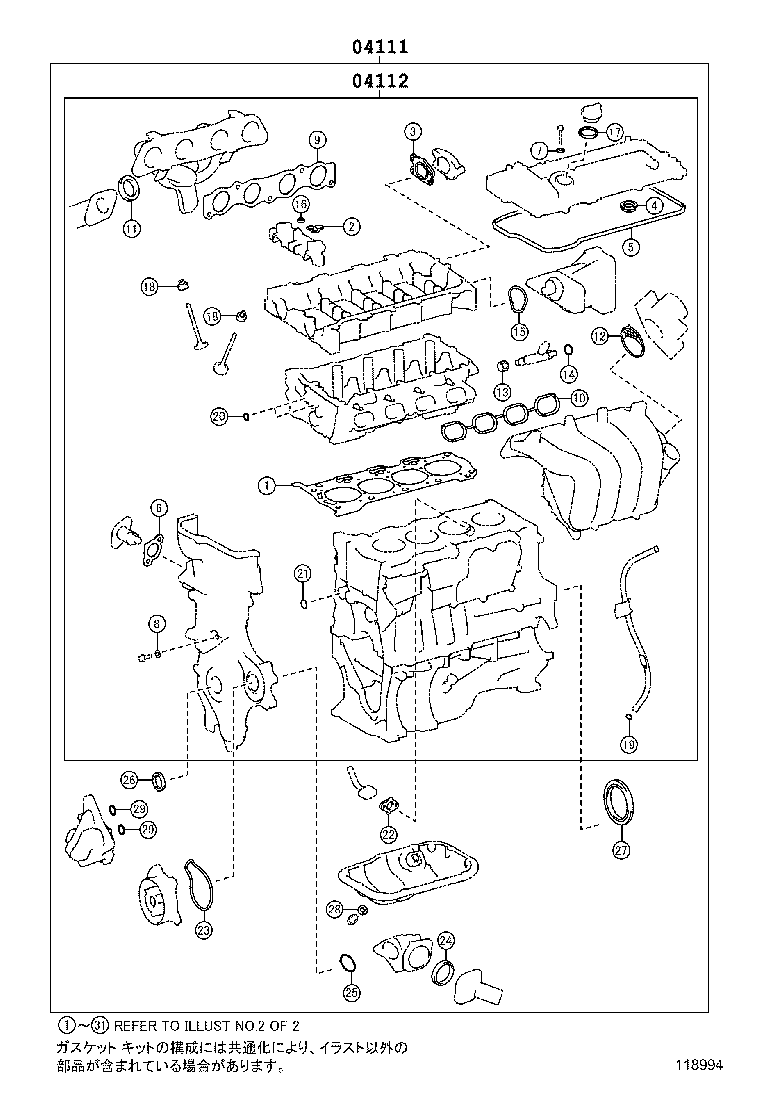

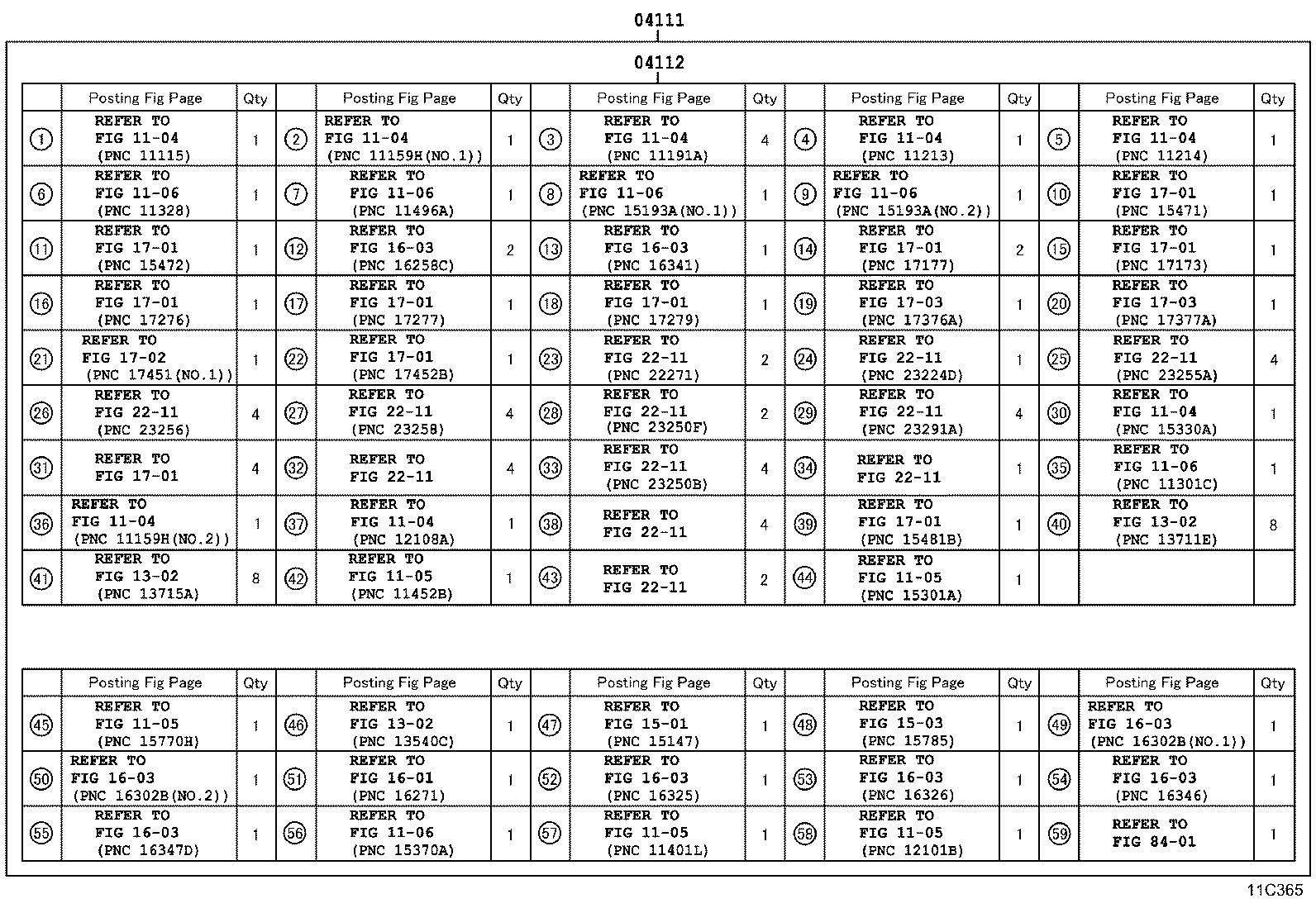

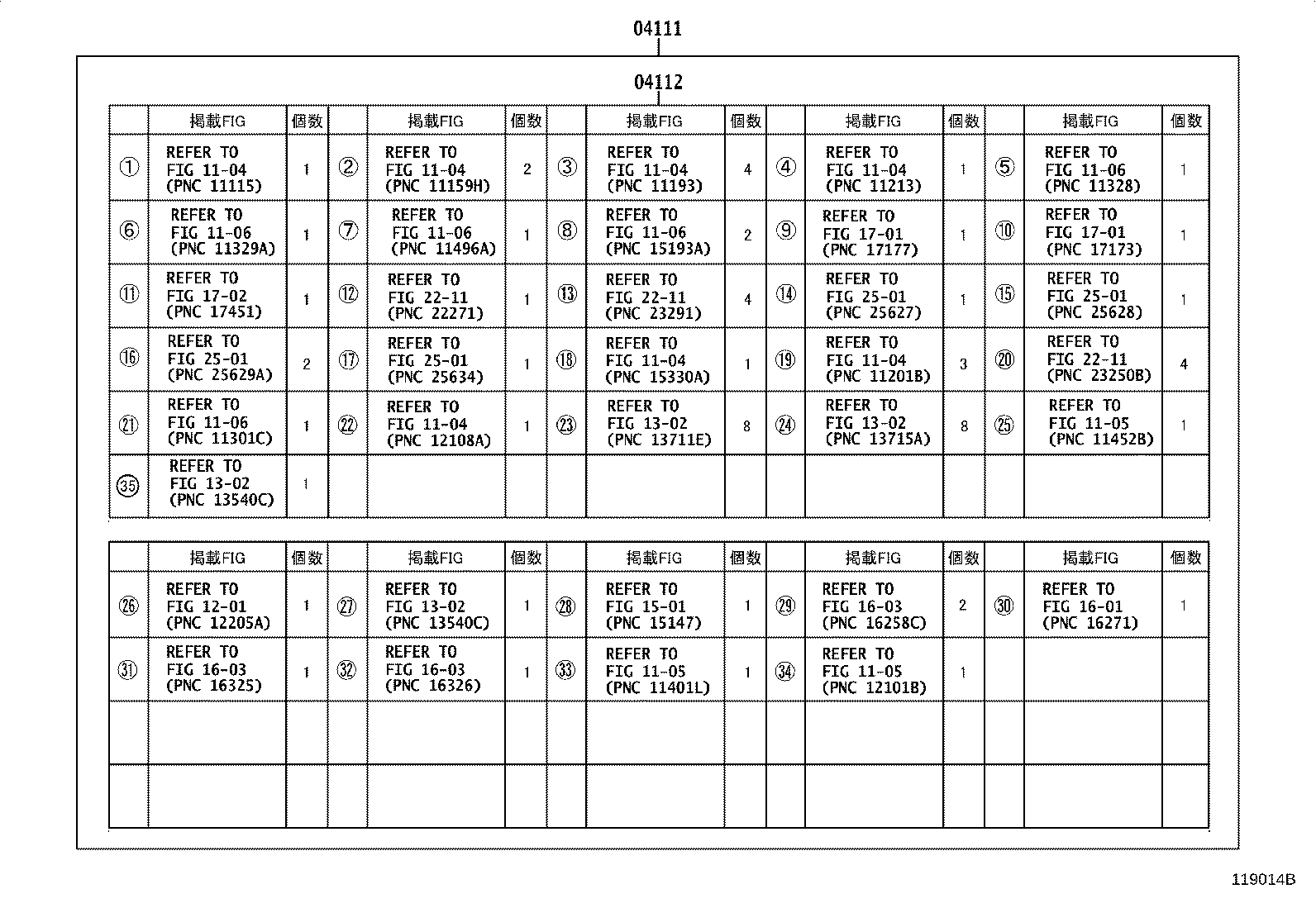

Figure 119013B 119013B 2014-01 → — Figure 119014B 119014B 2014-01 → — Figure 11C364 11C364 2017-05 → — Figure 11C365 11C365 2017-05 → — Figure 118994 118994 2013-12 → — Figure 118995 118995 2013-12 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
