Toyota Harrier/Hybrid
2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan
Supported model
Data version 2020-06

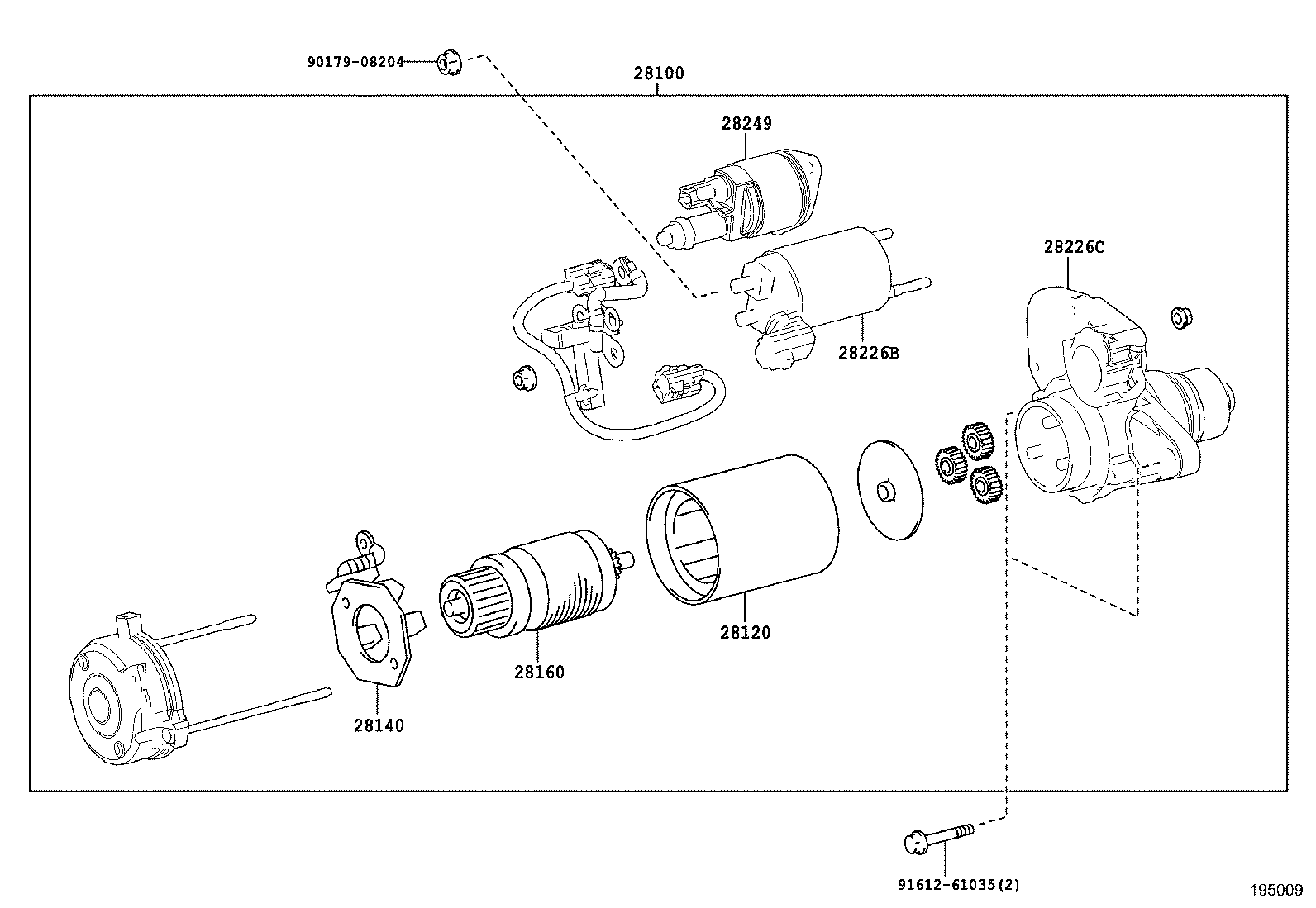

Starter
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |
| 28226C | Starter Kit, Repair Service, NO.2 |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
