Toyota Harrier/Hybrid
2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan
Supported model
Data version 2020-06
Parking Brake & Cable

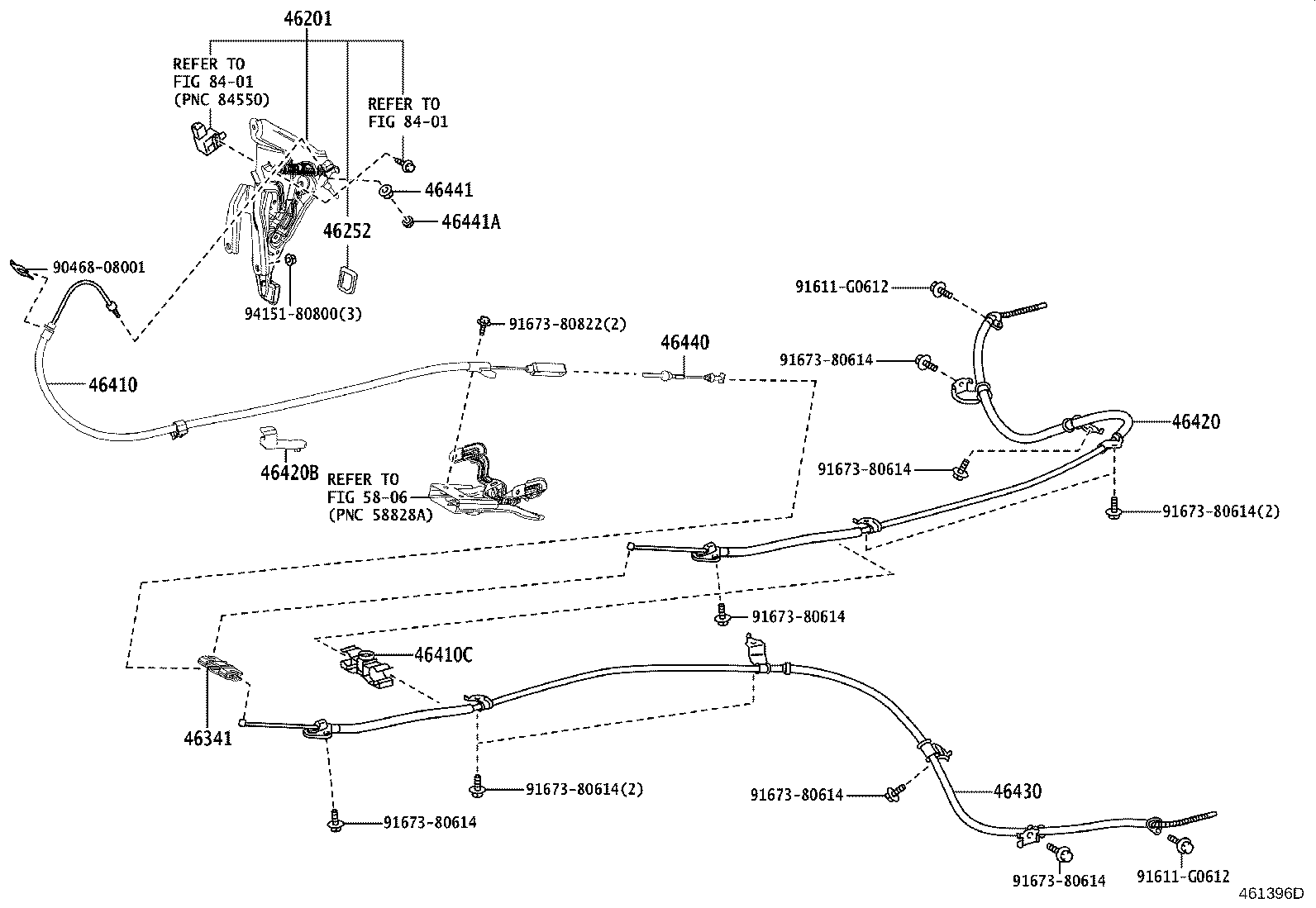

32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201 | Pedal Sub-assy, Parking Brake |
| 46252 | Pad, Parking Pedal |
| 46310A | Actuator Assy, Parking Brake, RH |
| 46310B | Actuator Assy, Parking Brake, LH |
| 46310C | Seal(FOR PARKING BRAKE ACTUATOR) |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410C | Clamp(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46440 | Cable Assy, Parking Brake, NO.4 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46453A | Bracket, Cable Support, NO.3 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
