Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

15 part groups · 2 illustrations

Illustrations

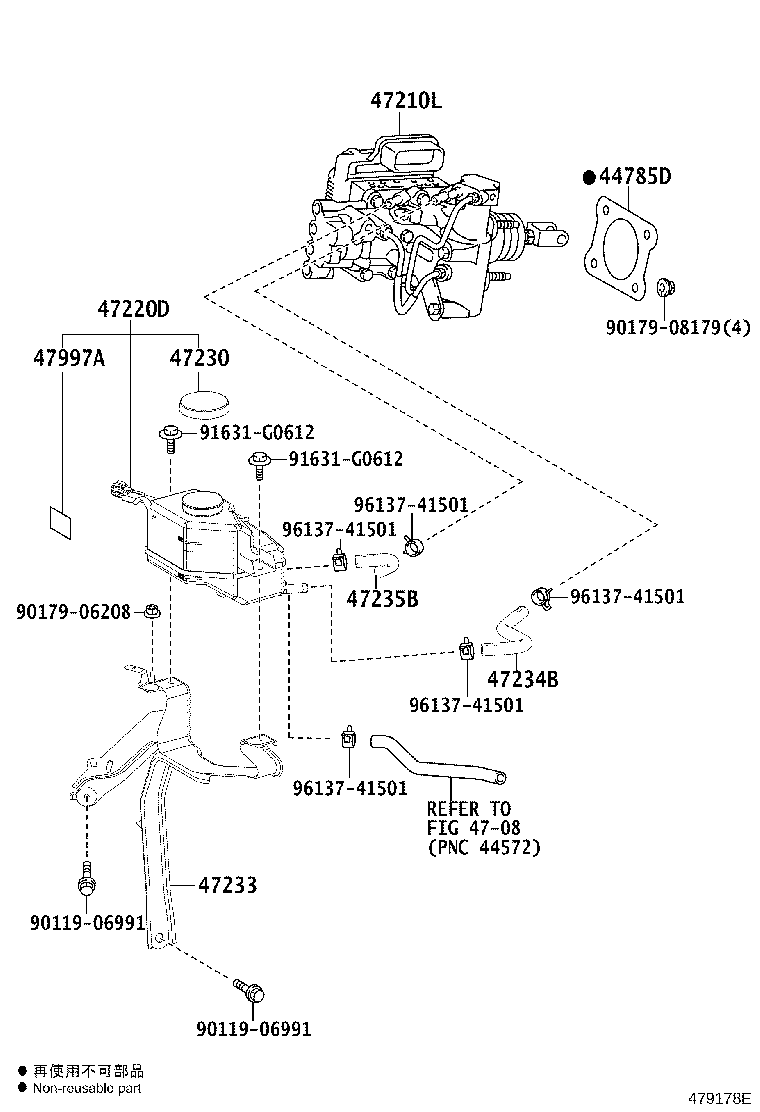

Figure 479177C 479177C 2013-12 → — Figure 479178E 479178E 2014-01 → —

Part groups

PNCDescription
44785D Gasket, Brake Master Cylinder
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47202 Reservoir Sub-assy, Brake Master Cylinder
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
