Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

57 part groups · 10 illustrations

Illustrations

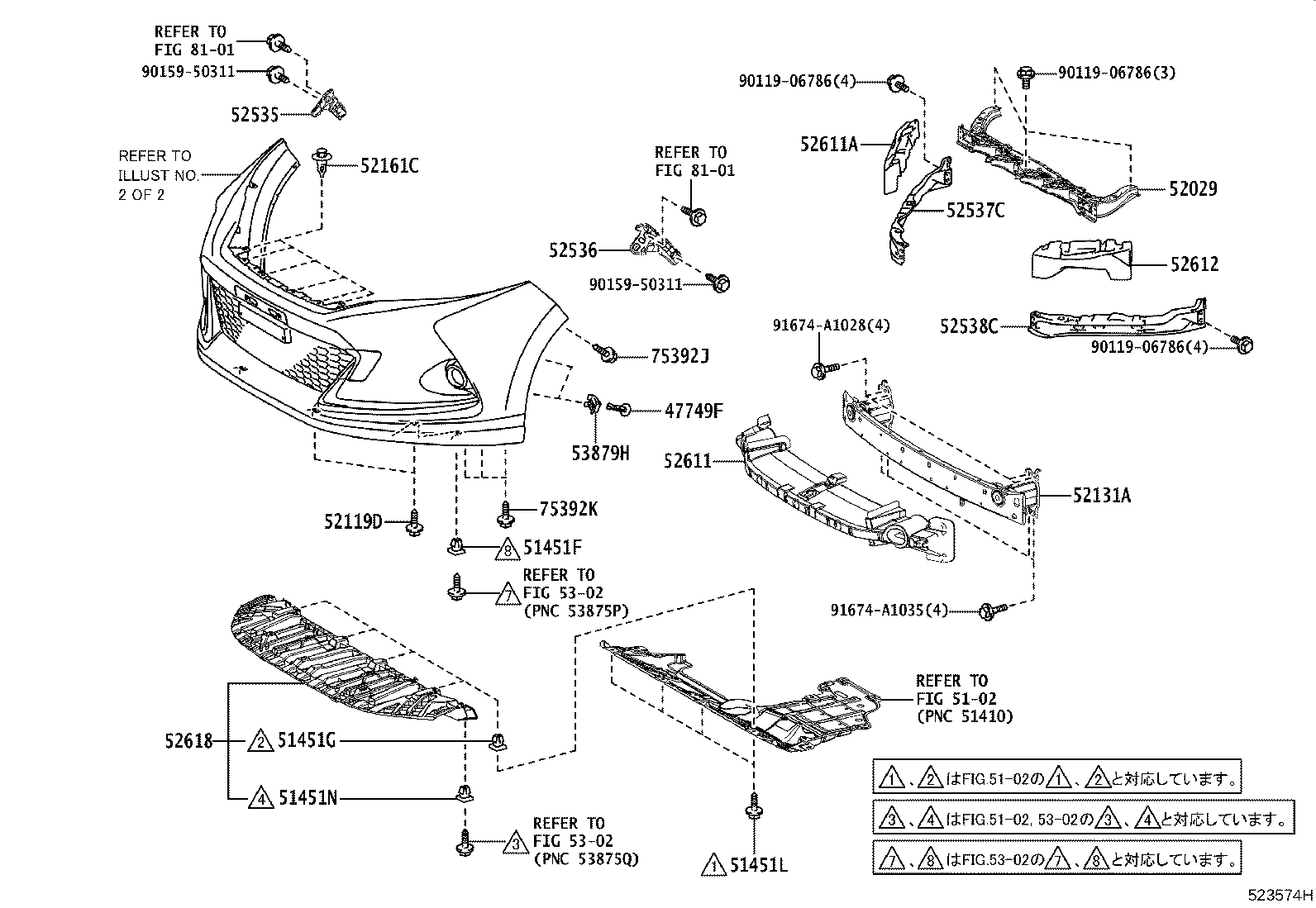

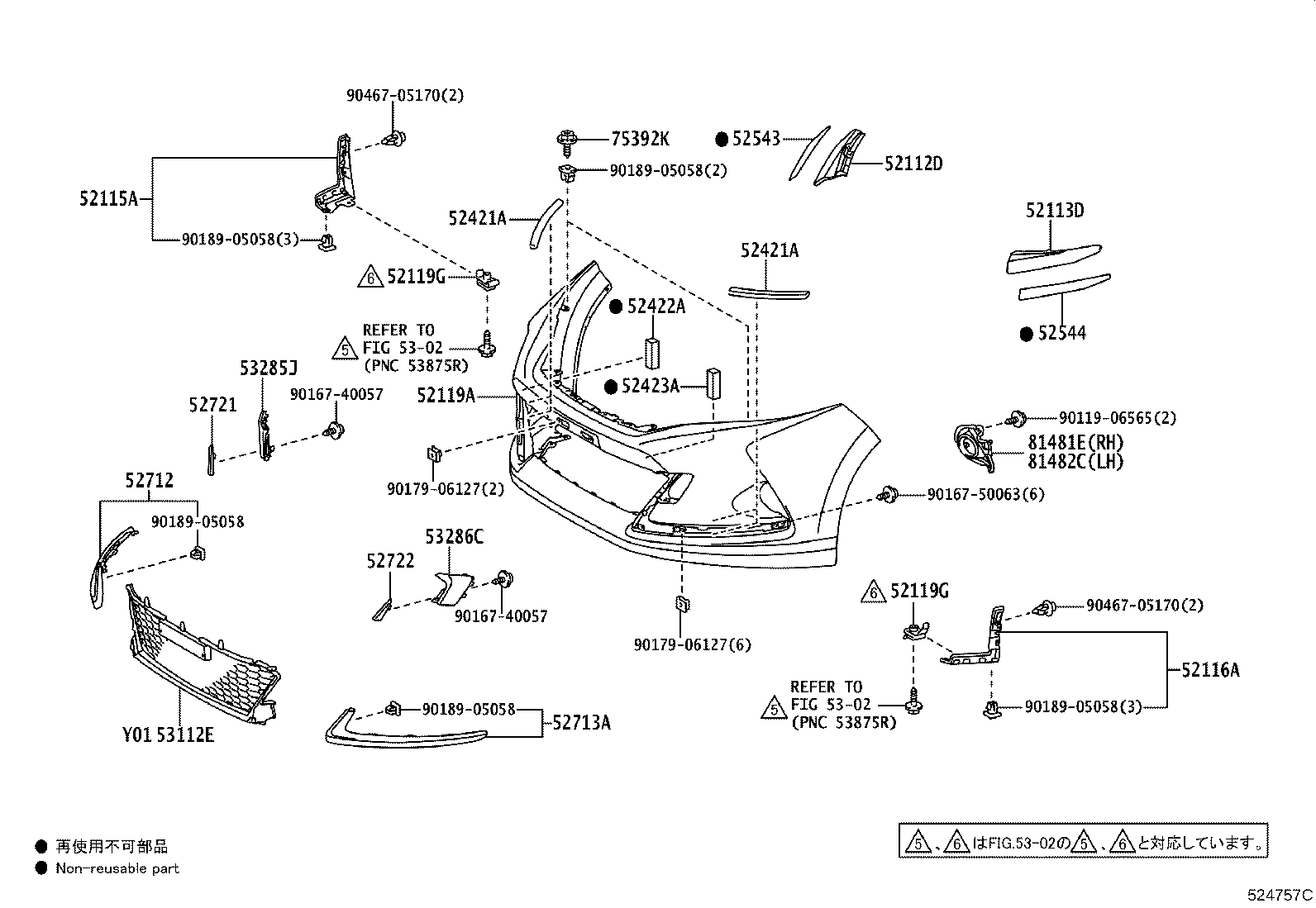

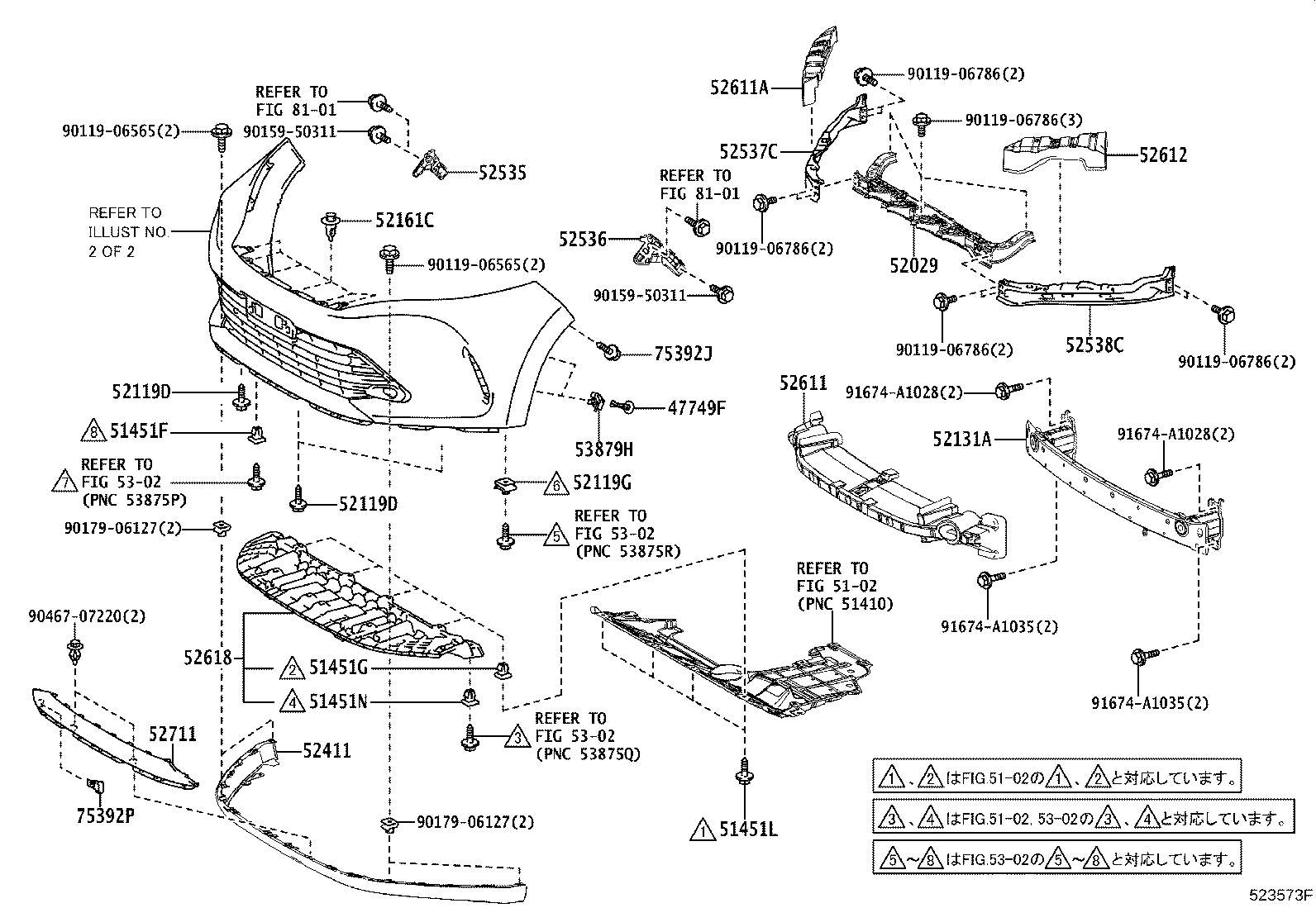

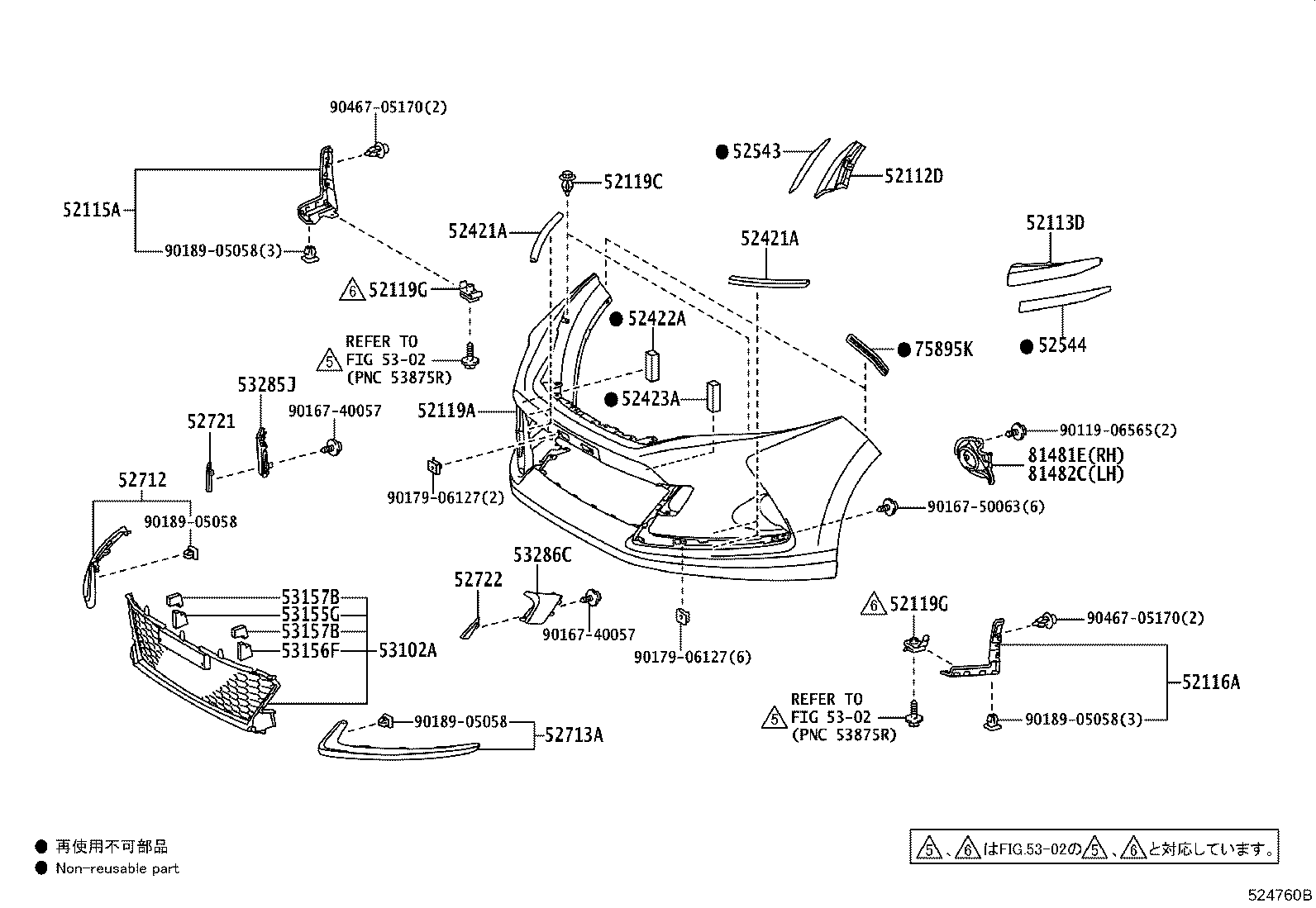

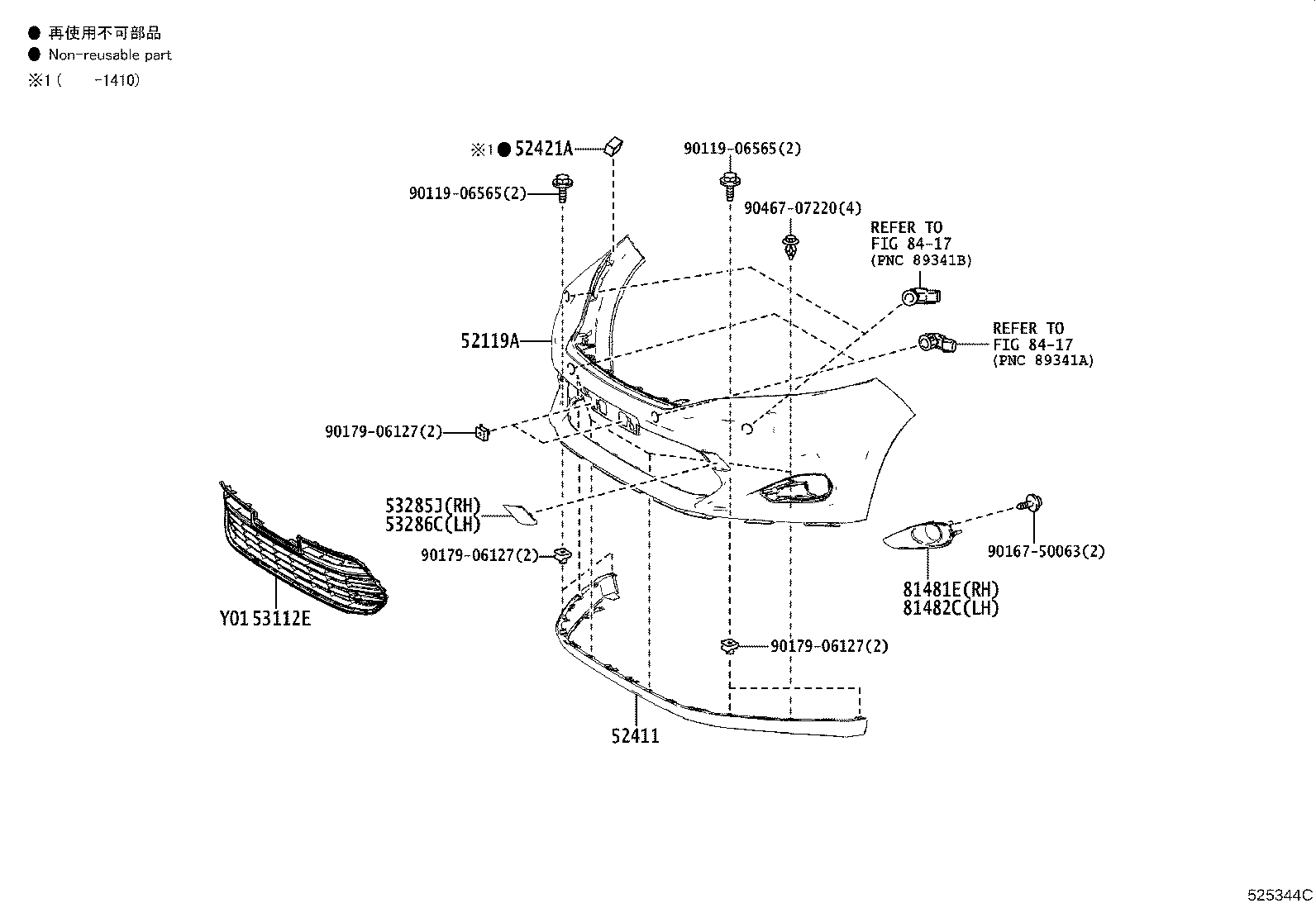

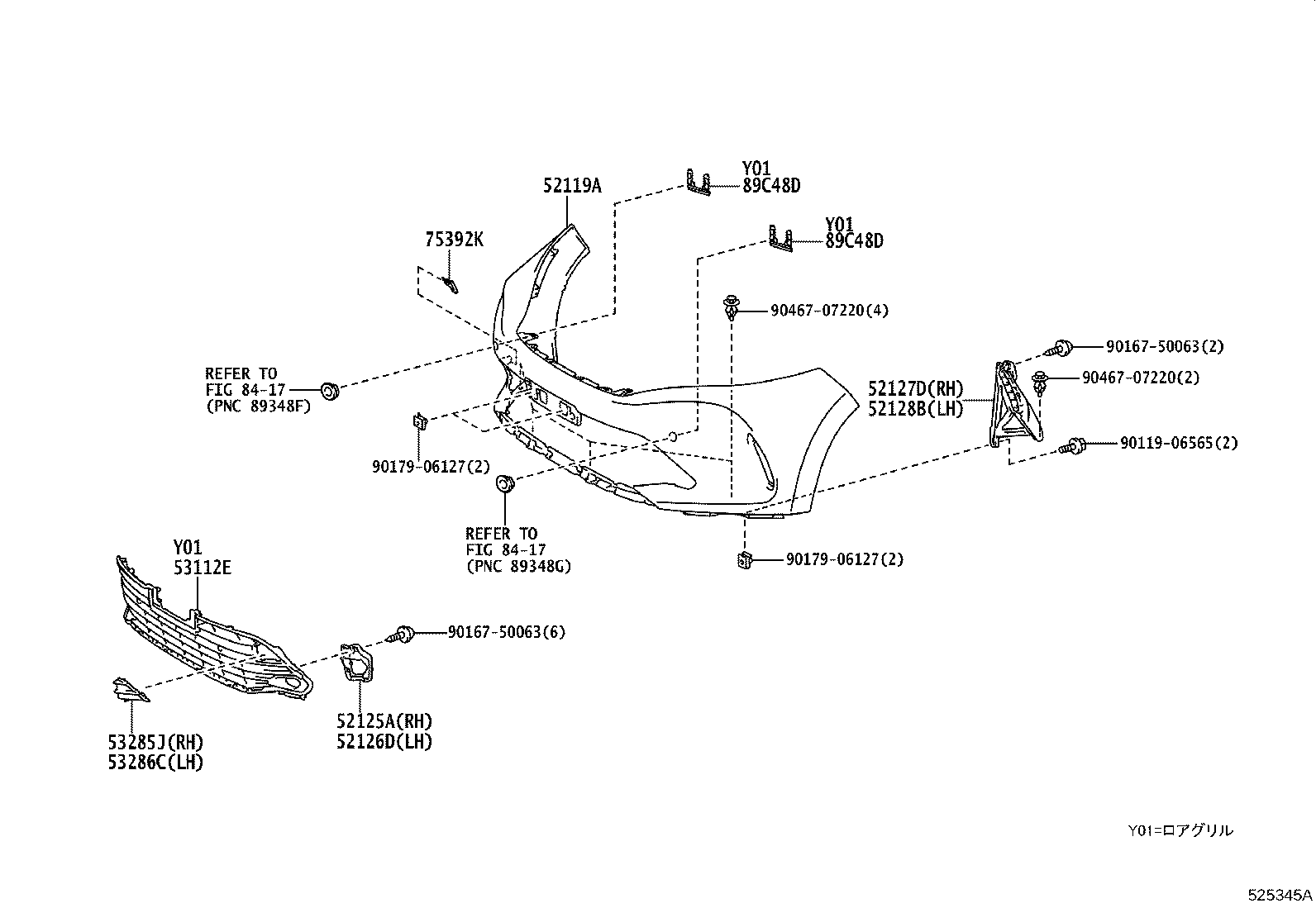

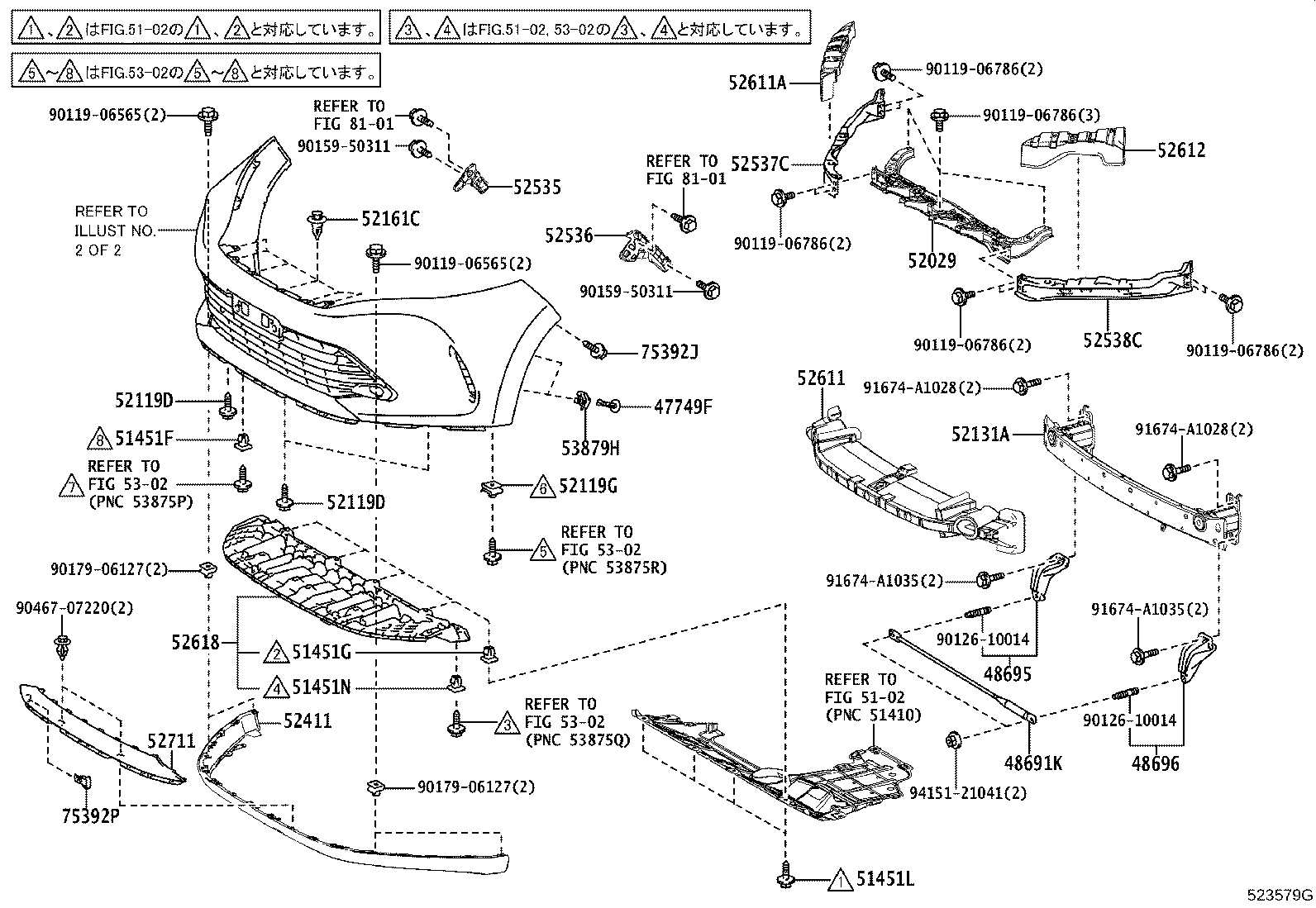

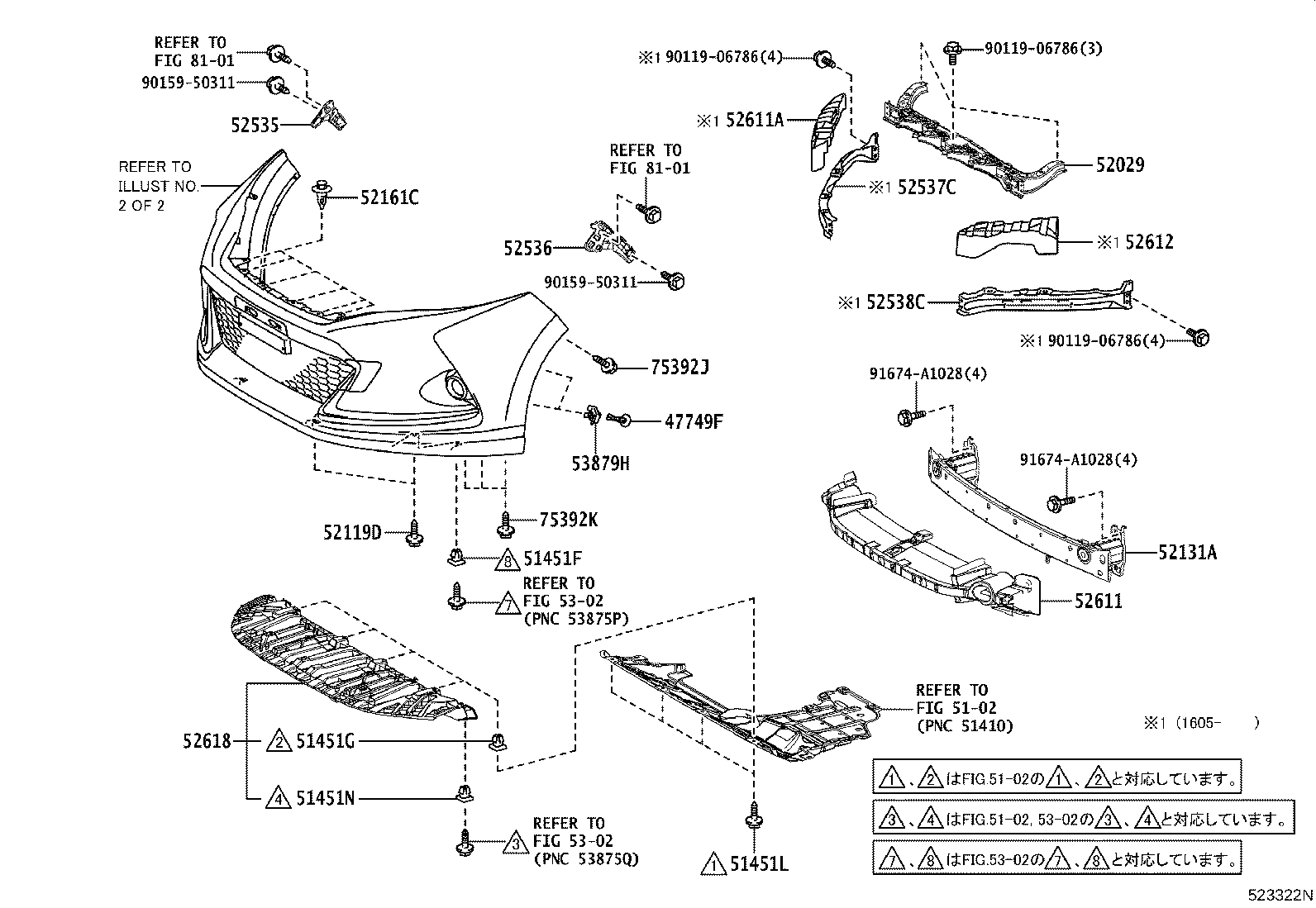

Figure 522916N 522916N 2013-12 → 2017-05 Figure 525344C 525344C 2013-12 → 2017-05 Figure 523322N 523322N 2015-01 → 2017-05 Figure 524757C 524757C 2015-01 → 2017-05 Figure 523579G 523579G 2017-05 → — Figure 525345A 525345A 2017-05 → — Figure 523573F 523573F 2017-05 → — Figure 525346A 525346A 2017-05 → — Figure 523574H 523574H 2017-08 → — Figure 524760B 524760B 2017-08 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
48691K Damper, Suspension Tower
48695 Bracket, Tower Bar, RH
48696 Bracket, Tower Bar, LH
51451F Grommet, NO.1
51451G Grommet, NO.2
51451L Bolt, NO.1
51451N Grommet, NO.3
52029 Reinforcement Sub-assy, Front Bumper, Upper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52119G Clip, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52411 Guard, Front Bumper
52421A Pad, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53155G Seal, Radiator Grille
53156F Seal, Radiator Grille, NO.2
53157B Seal, Radiator Grille, NO.3
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
75392P Retainer, Outside Moulding, NO.3
75895K Tape, Moulding, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
