Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 5 illustrations

Illustrations

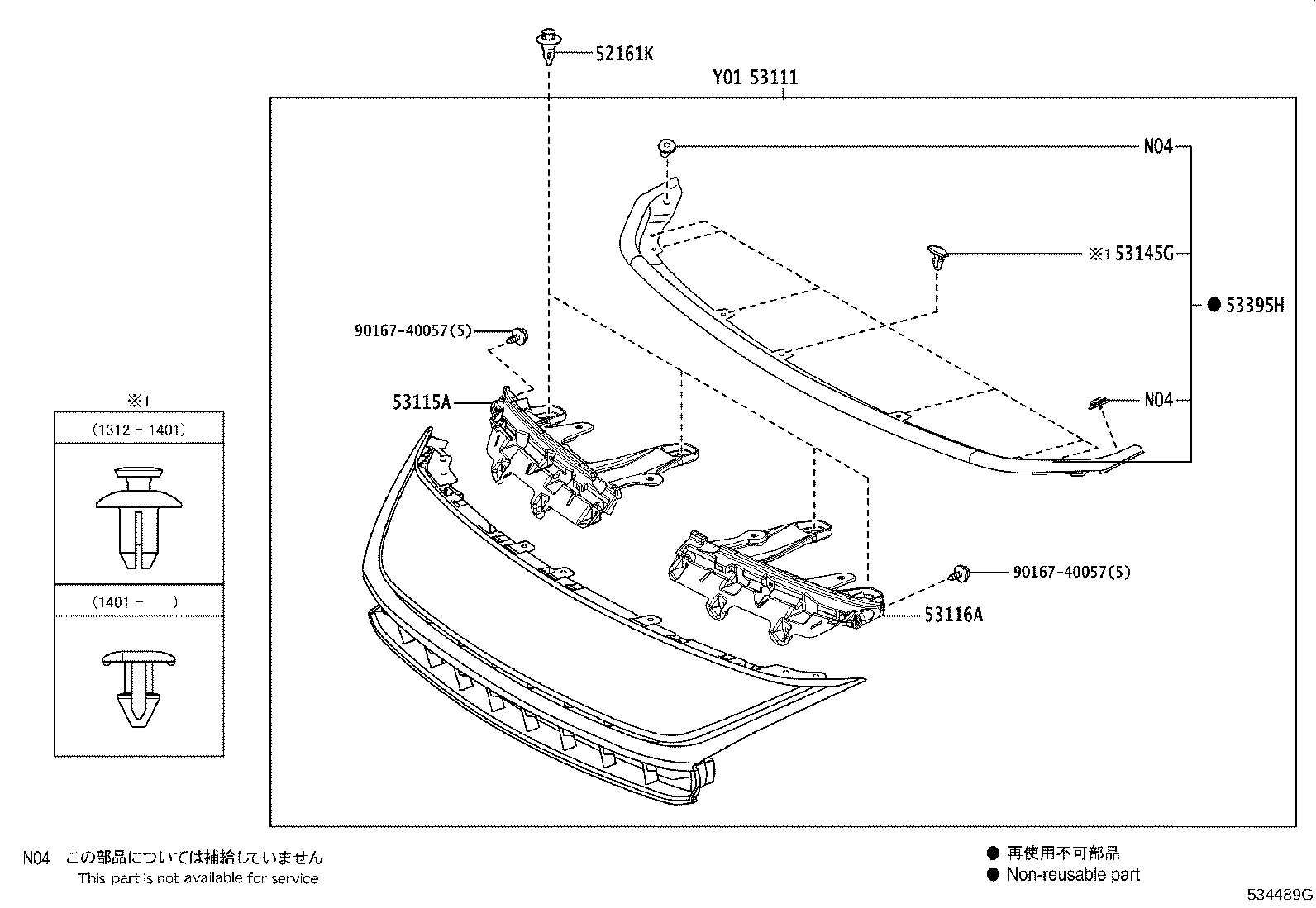

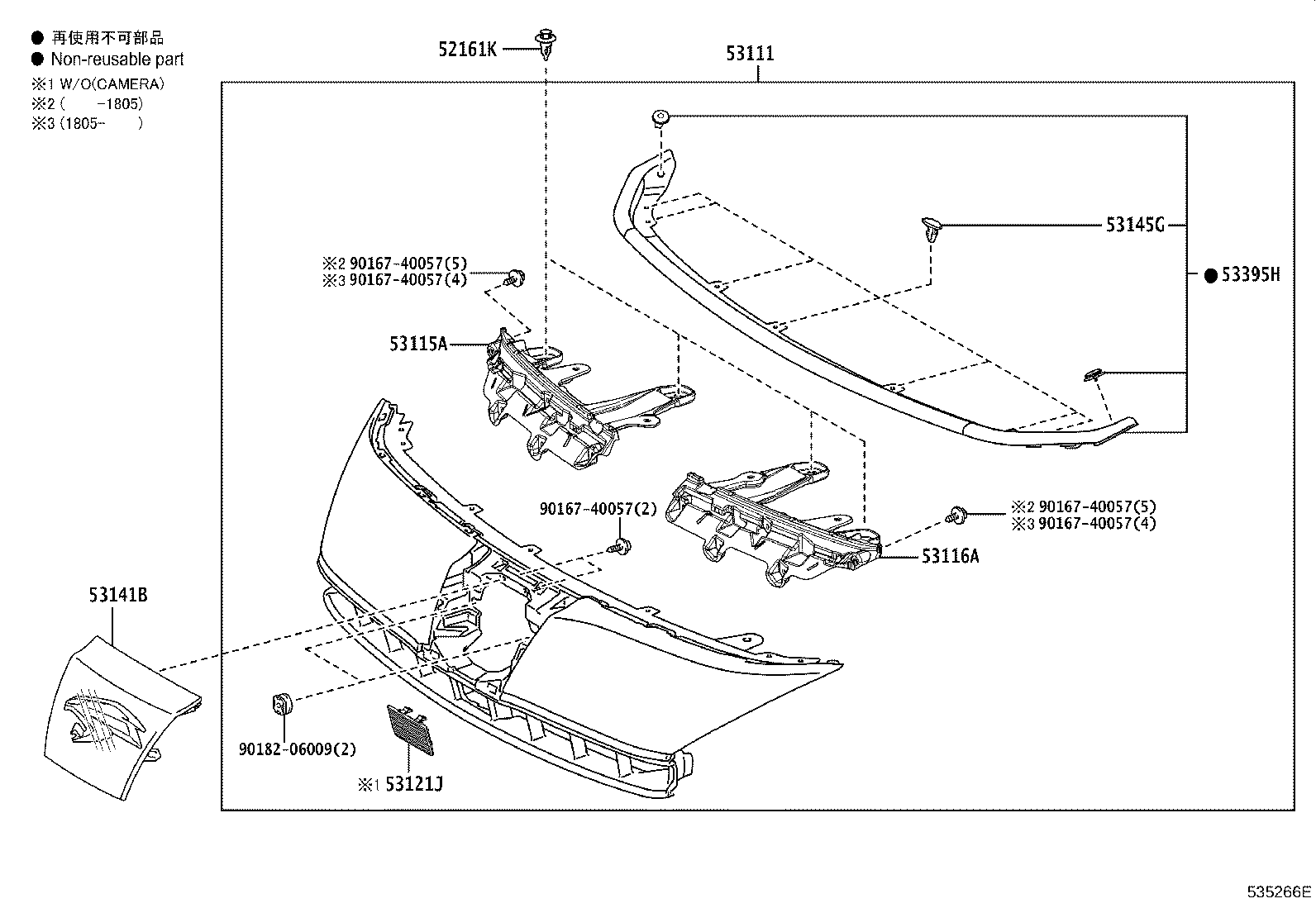

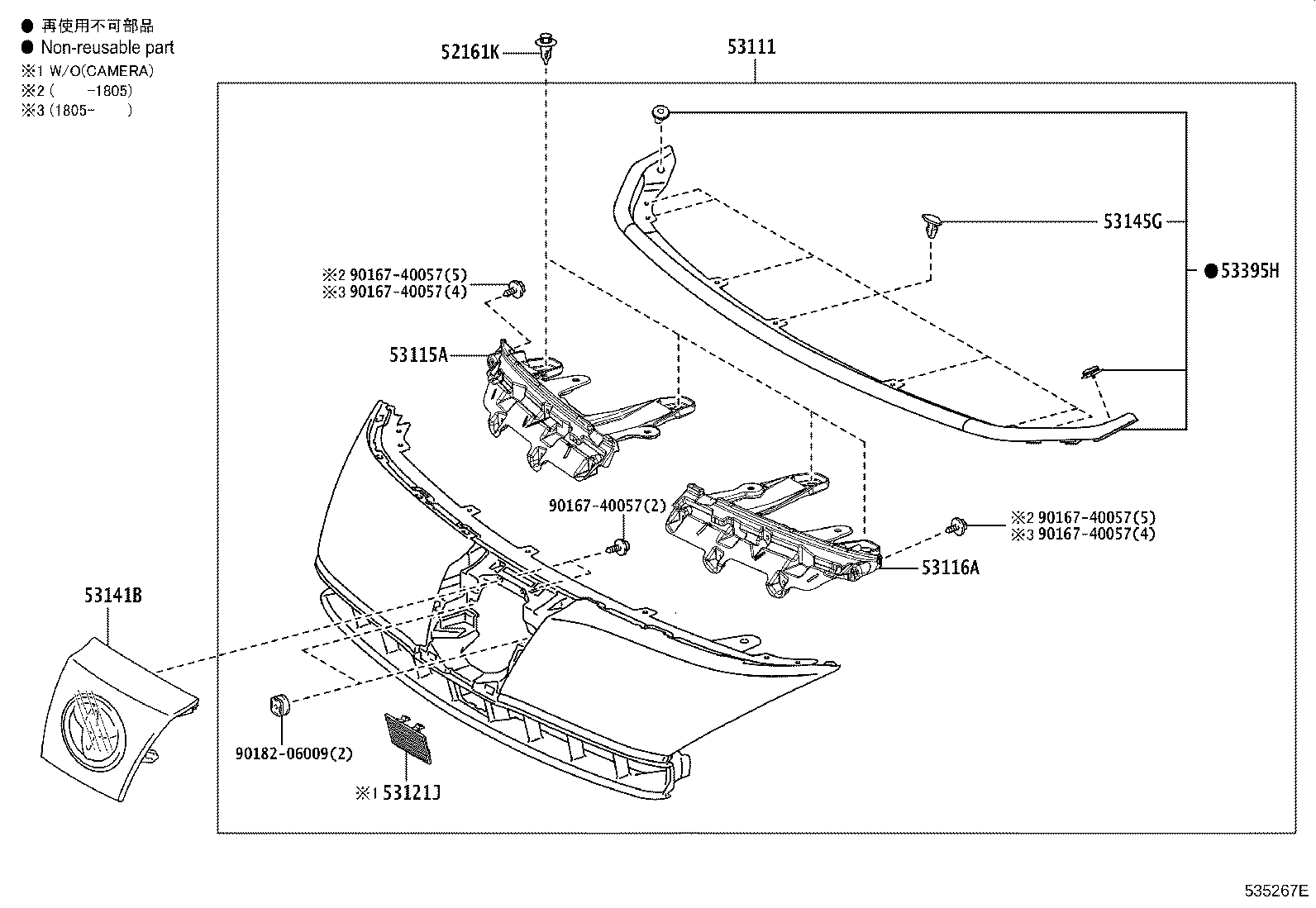

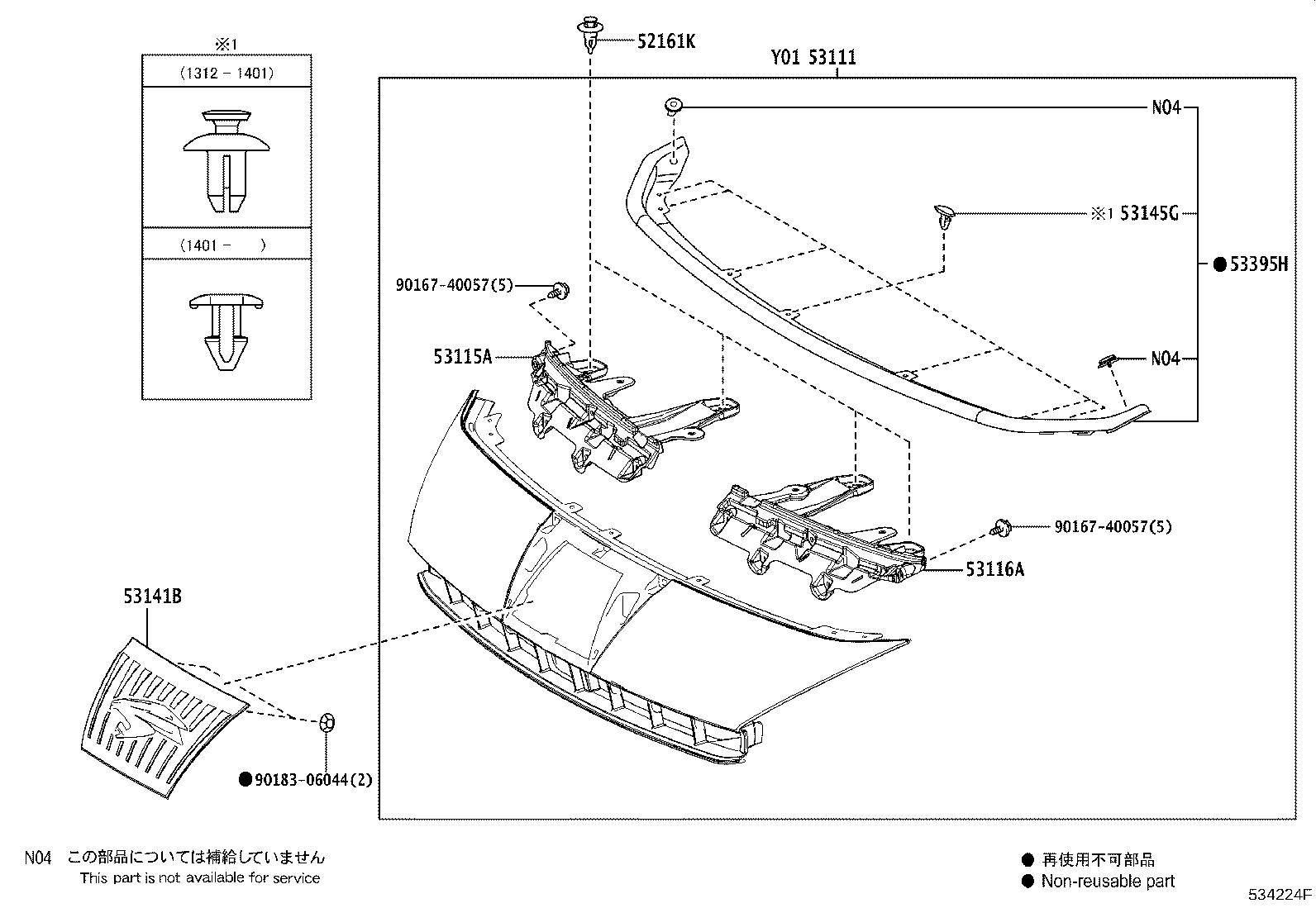

Figure 534223H 534223H 2013-12 → 2017-05 Figure 534224G 534224G 2013-12 → 2017-05 Figure 534489G 534489G 2015-01 → 2017-05 Figure 535266E 535266E 2017-05 → — Figure 535267E 535267E 2017-08 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53111 Grille, Radiator
53115A Bracket, Radiator Grille, RH
53116A Bracket, Radiator Grille, LH
53121J Moulding, Radiator Grille, NO.1
53141B Garnish, Radiator Grille, NO.1
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
