Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

9 part groups · 2 illustrations

Illustrations

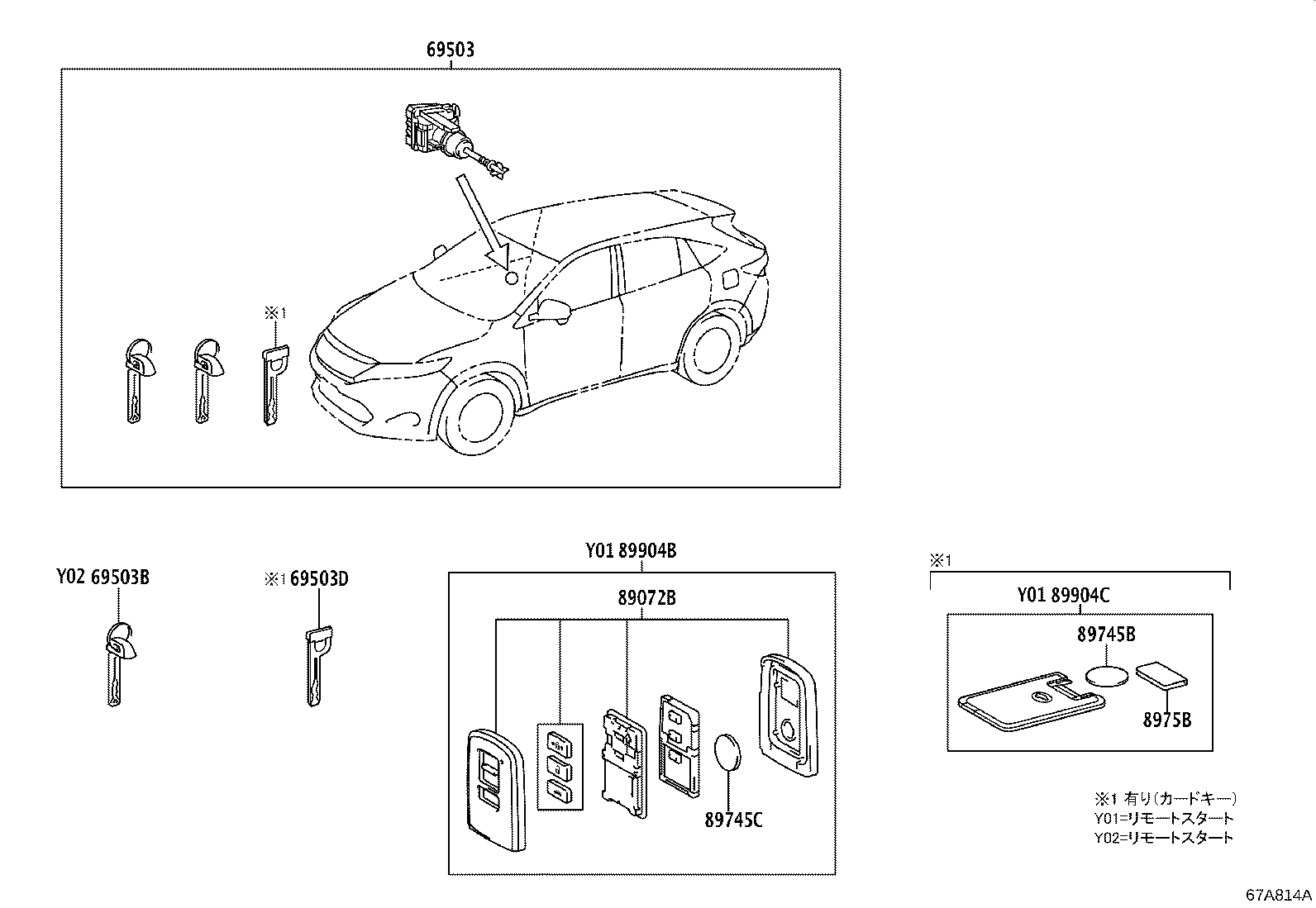

Figure 67A813A 67A813A 2013-12 → 2017-05 Figure 67A814A 67A814A 2017-05 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503B Key, Cut
69503D Key, Cut(CARD KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745B Battery, Transmitter(CARD KEY)
89745C Battery, Transmitter
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
89904C Transmitter Sub-assy, Electrical Key(CARD KEY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
