Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

122 part groups · 14 illustrations

Illustrations

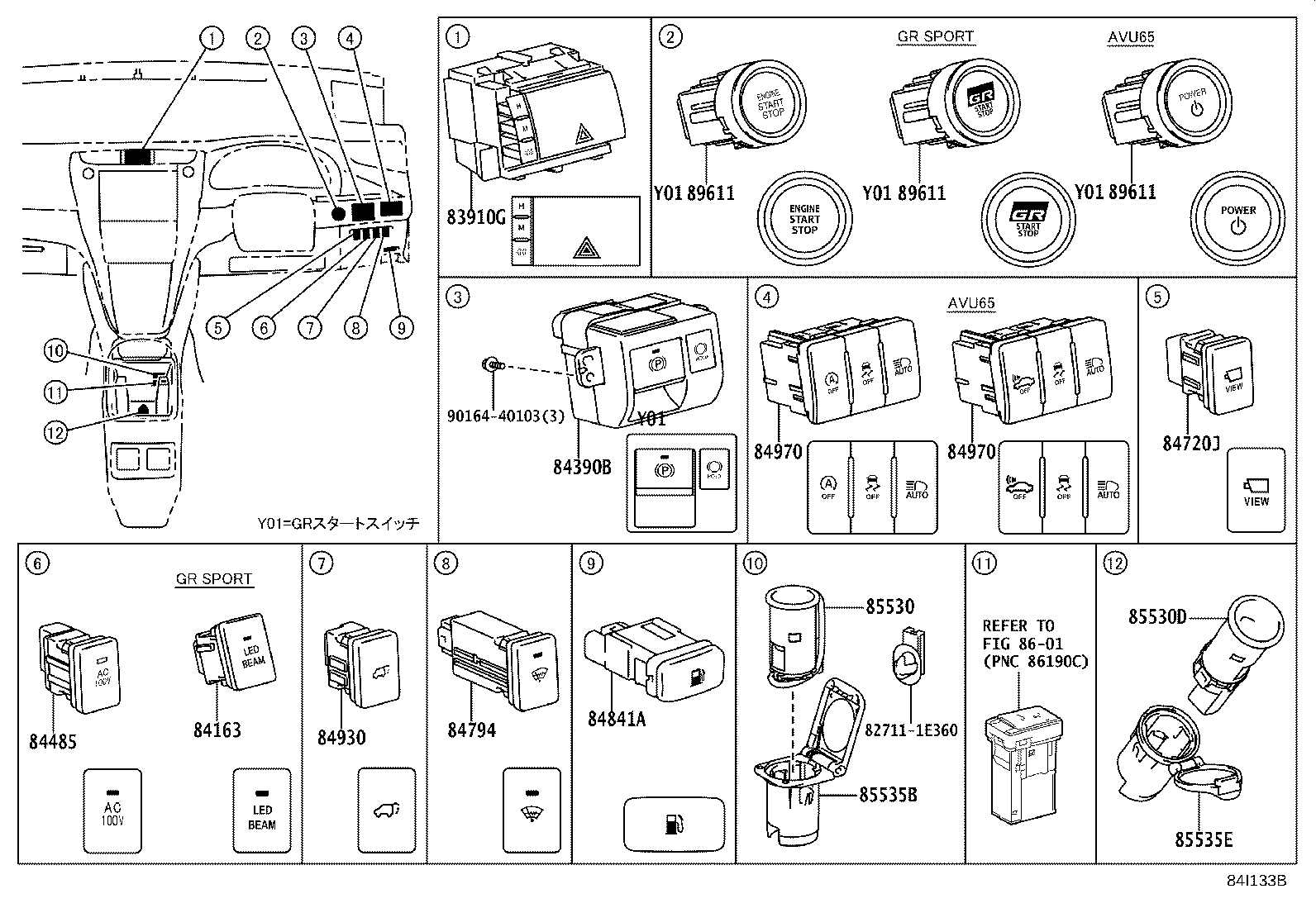

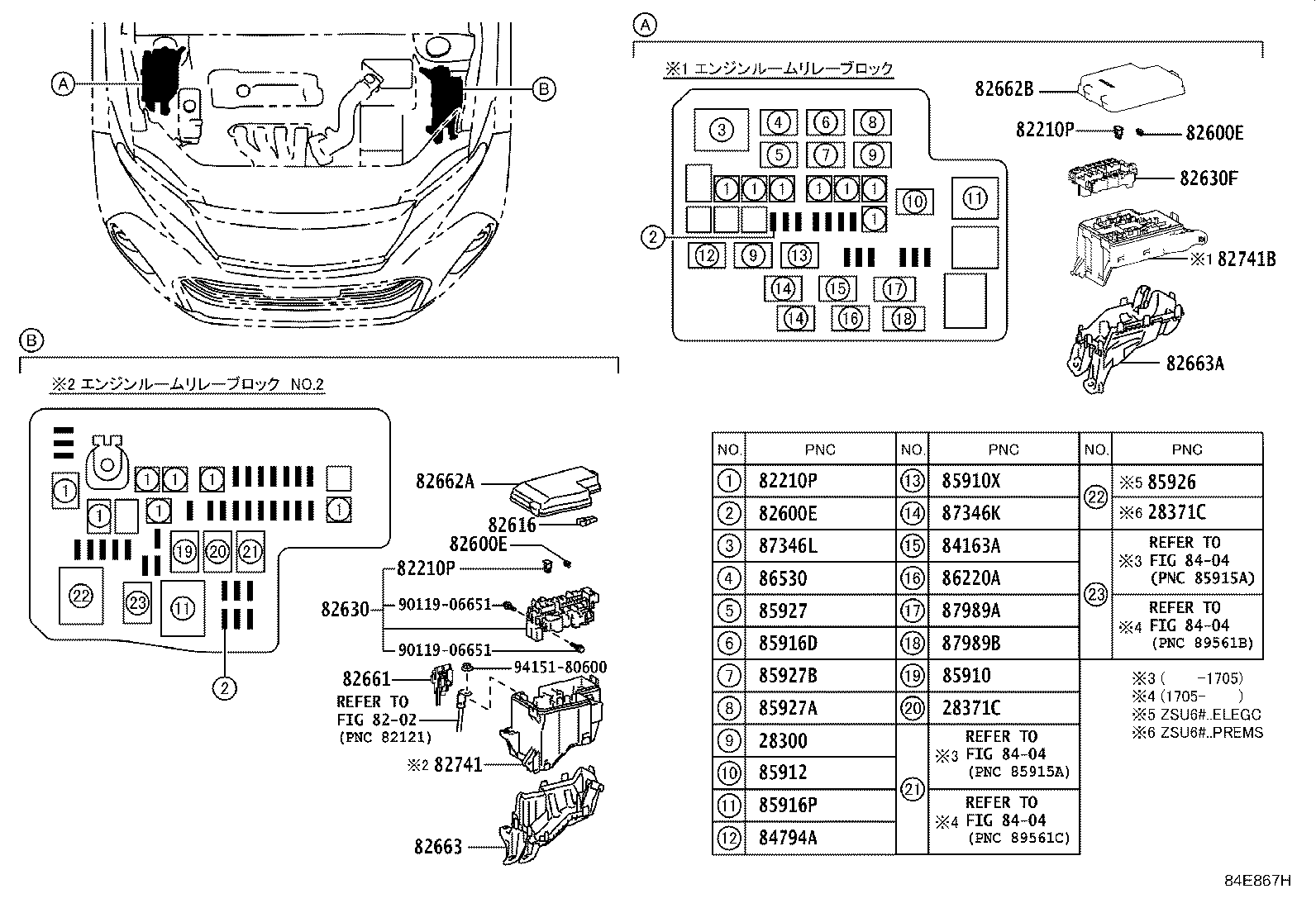

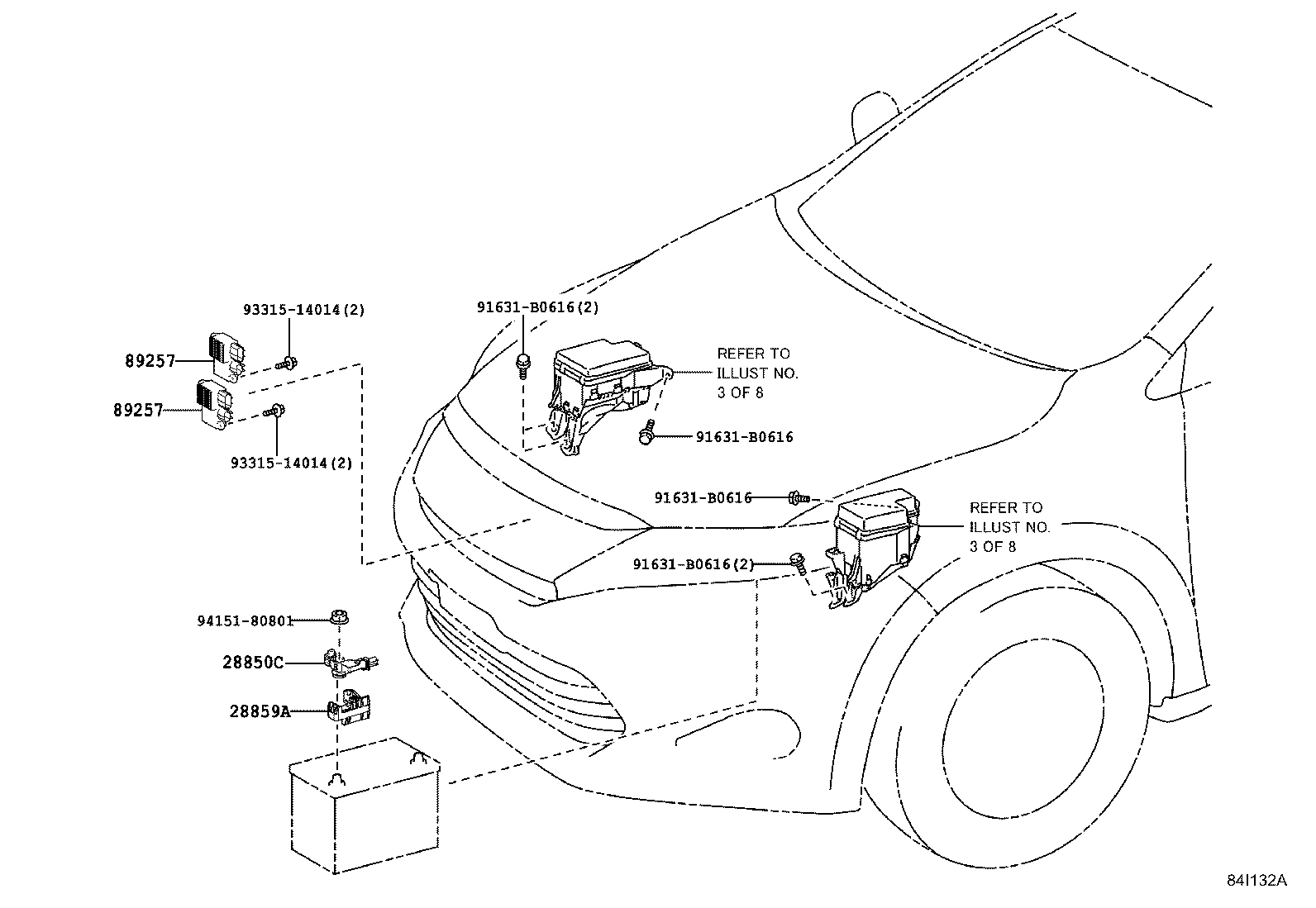

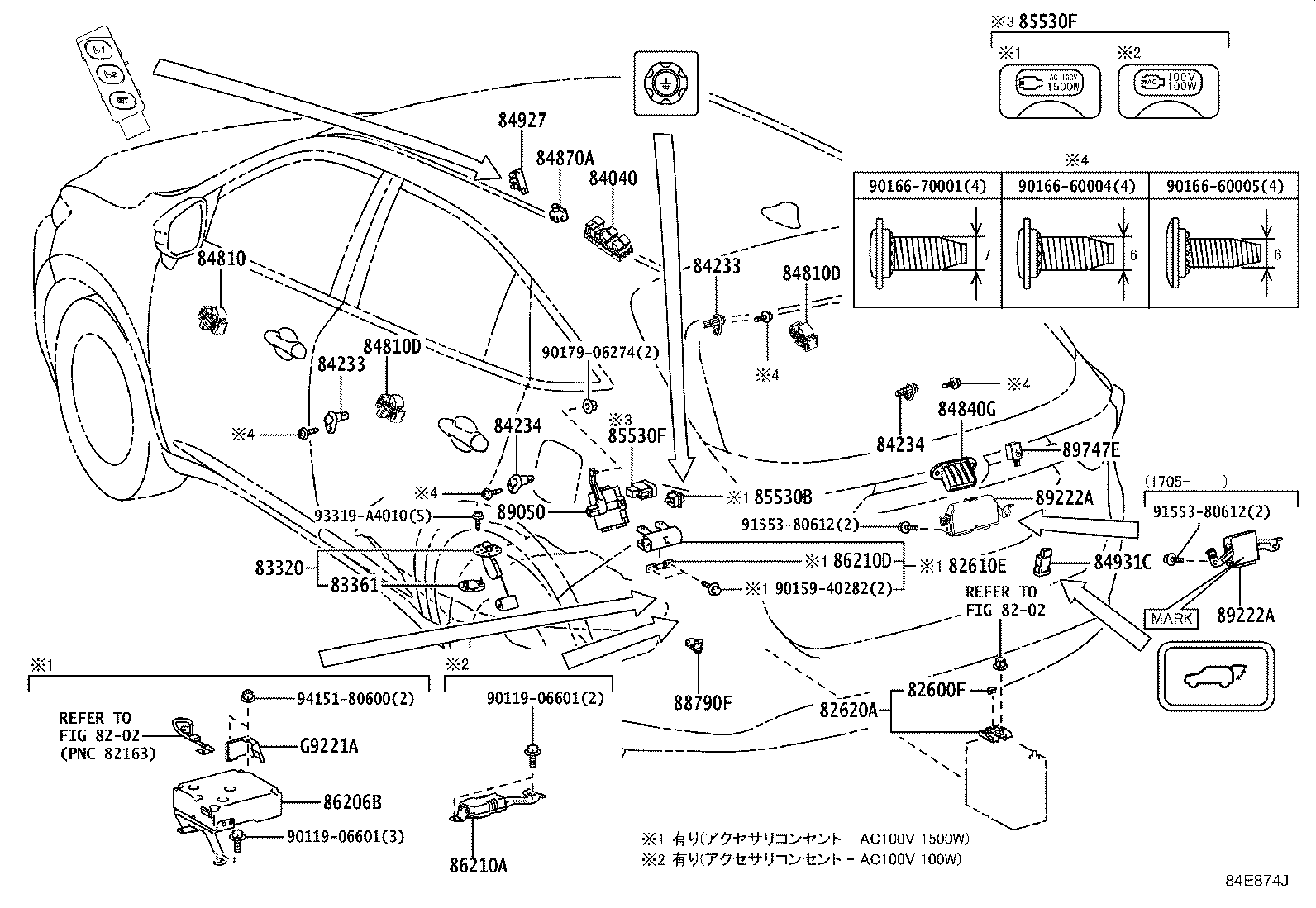

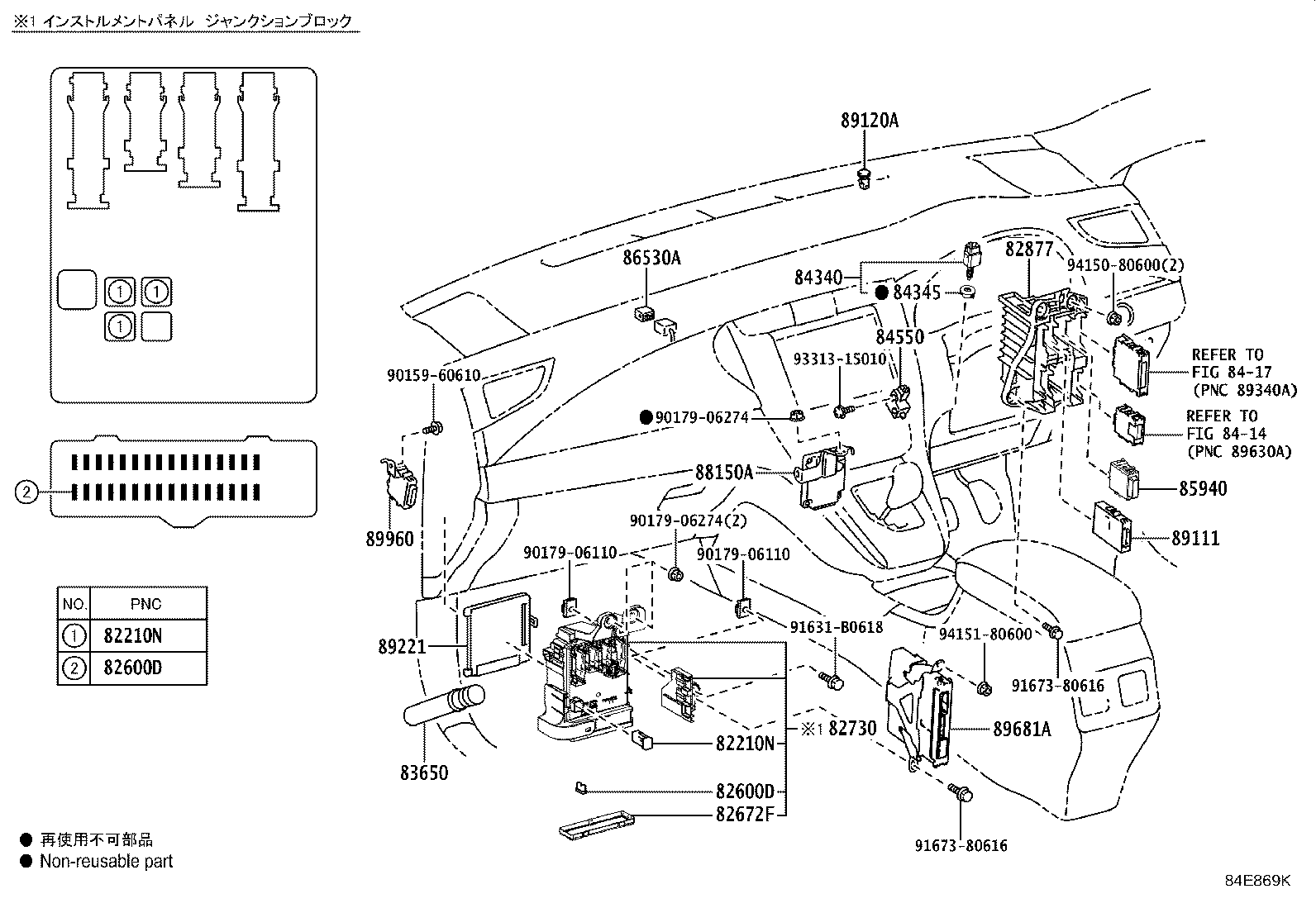

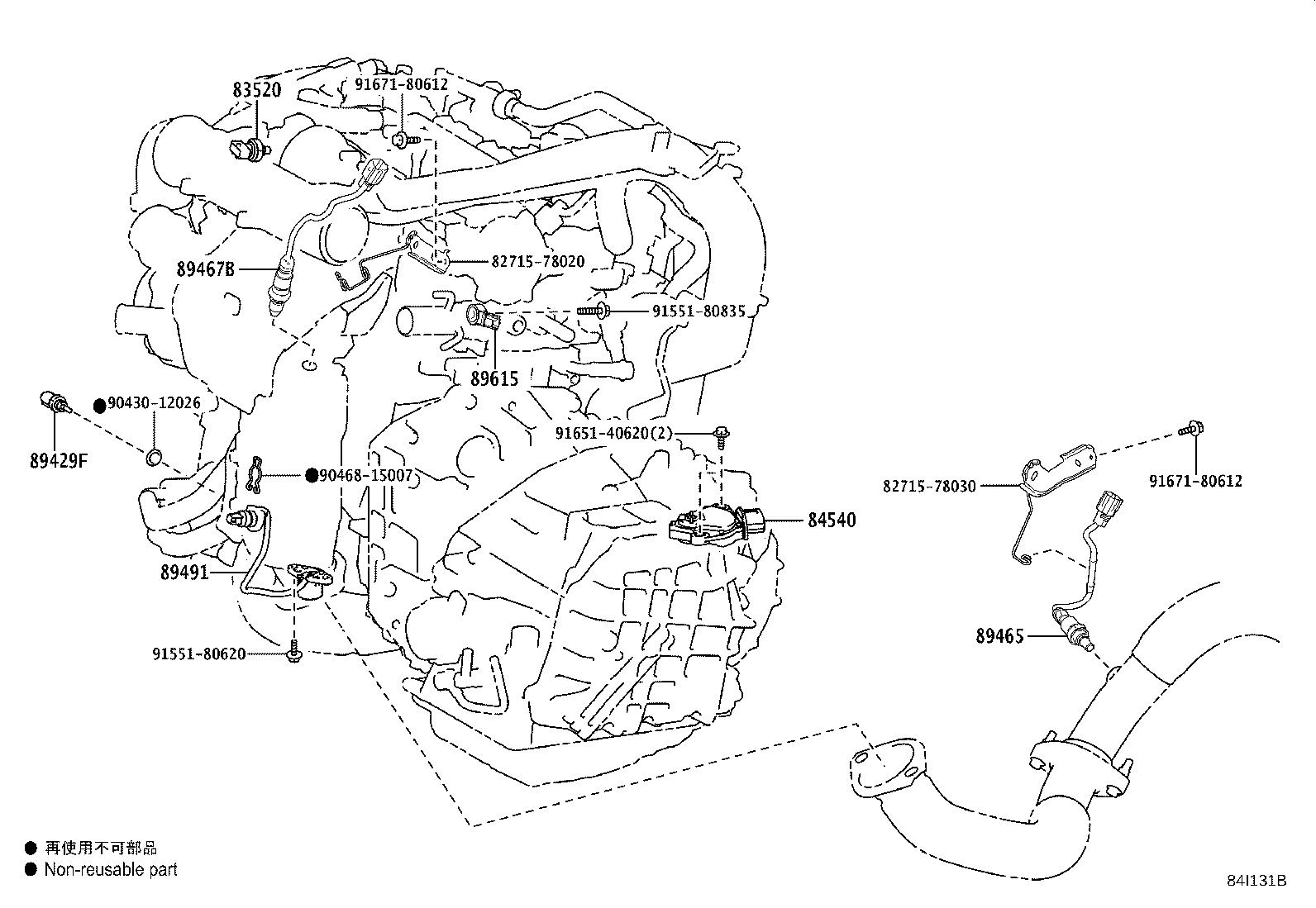

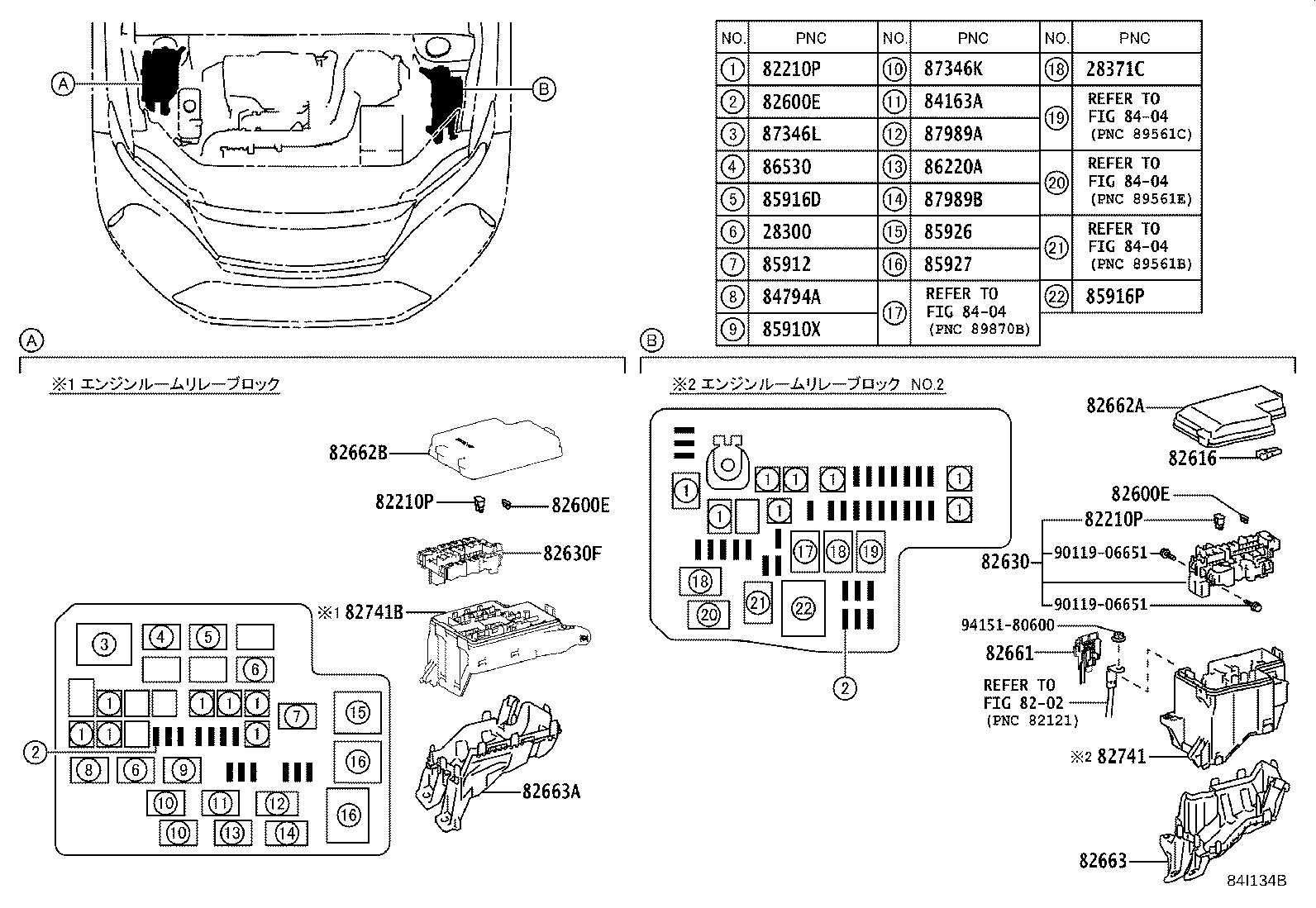

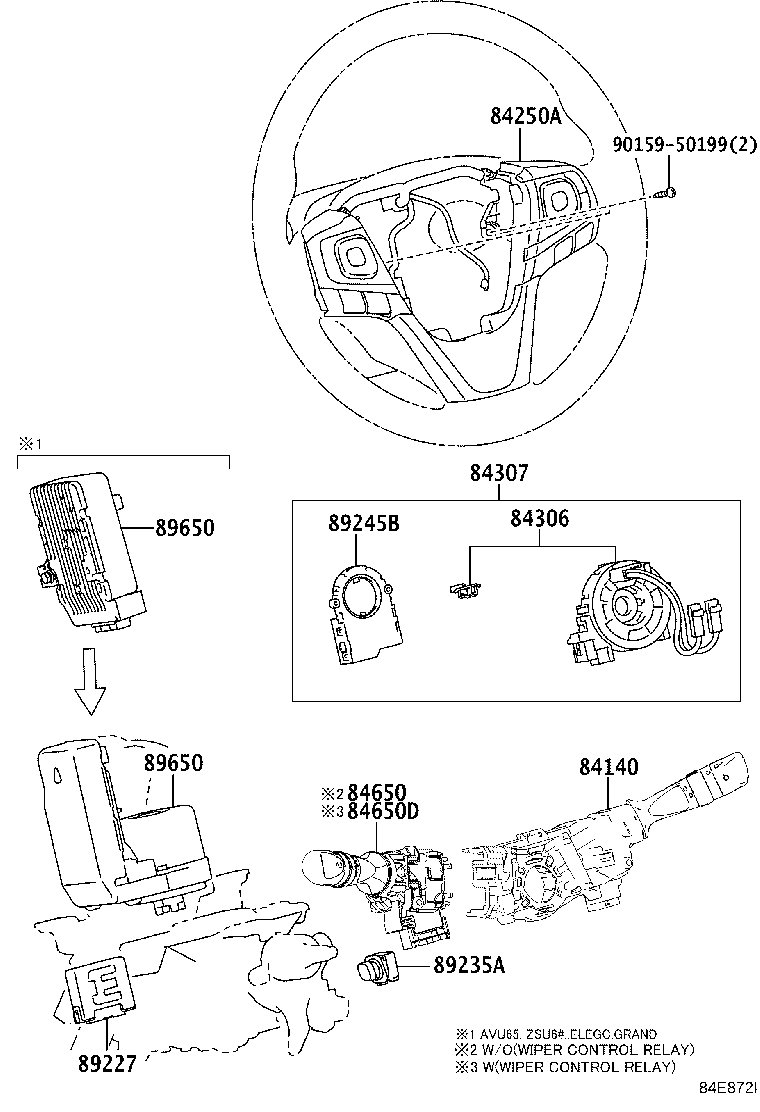

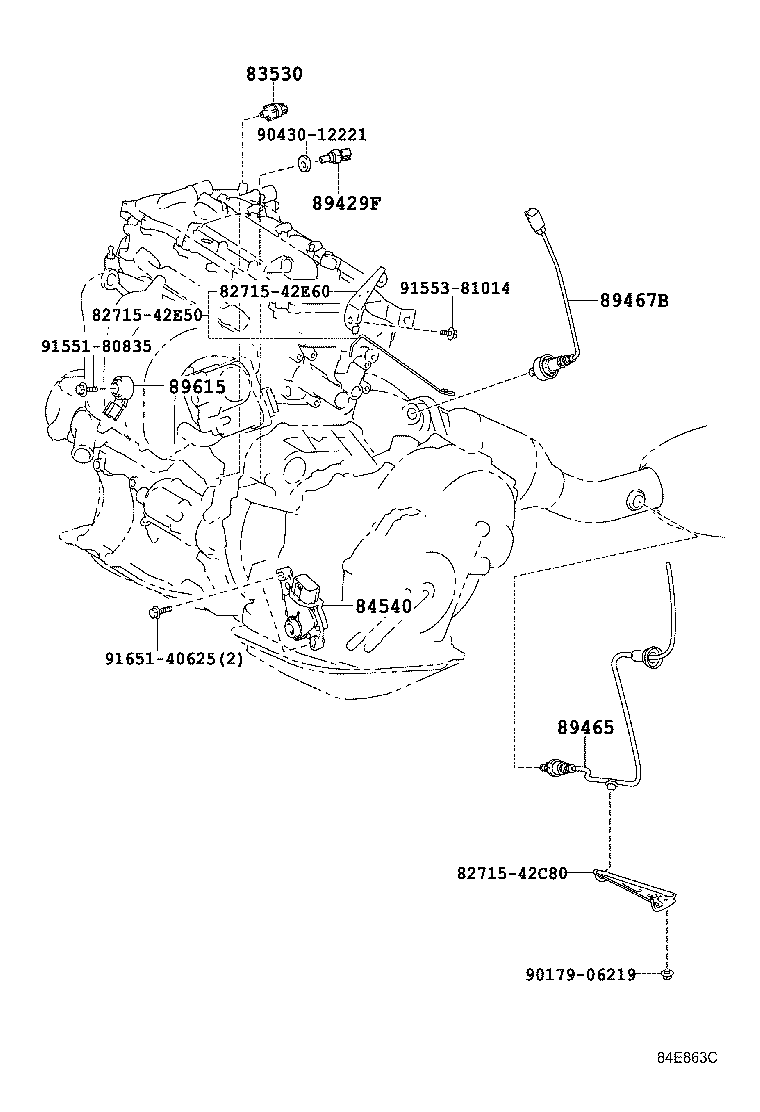

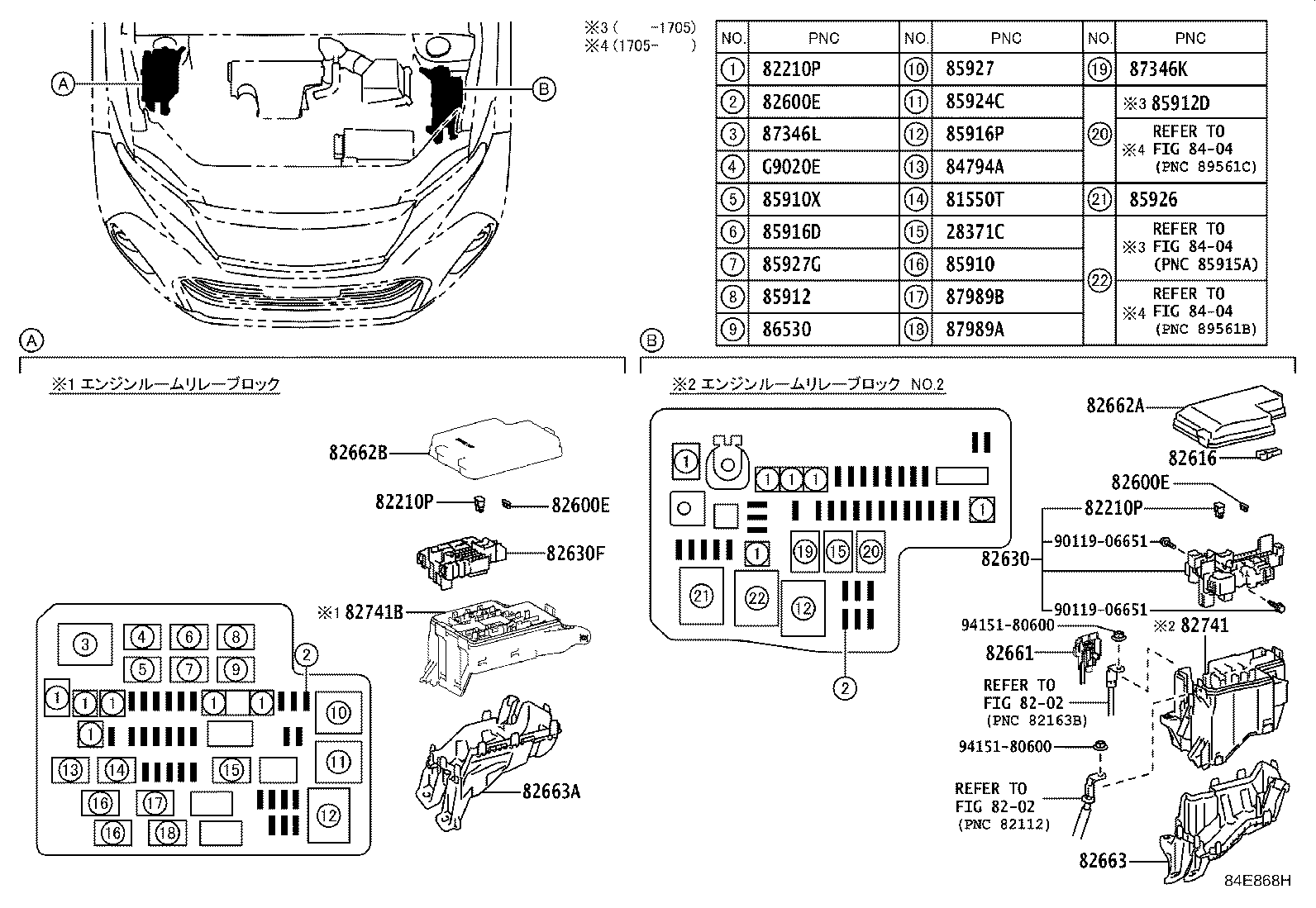

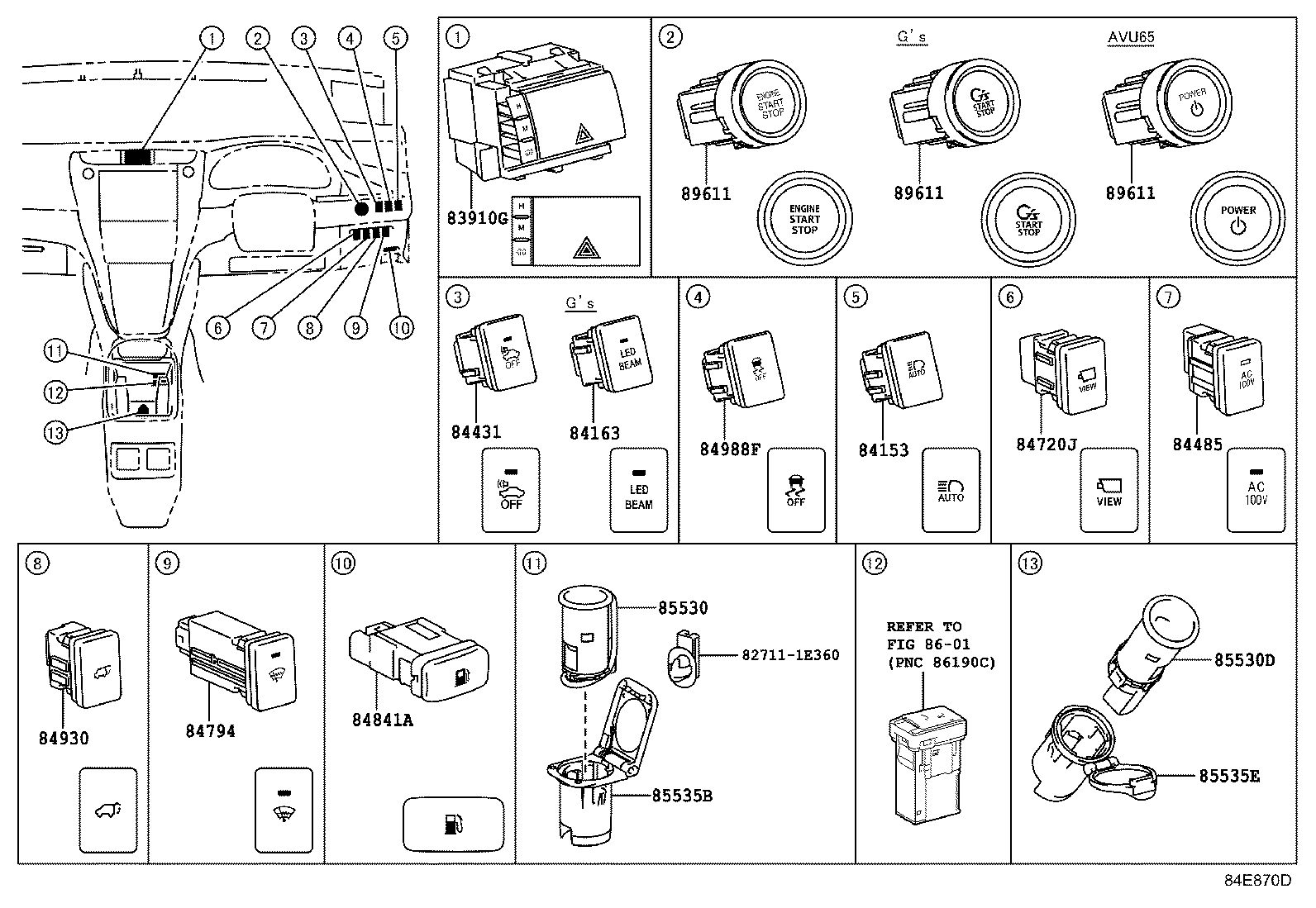

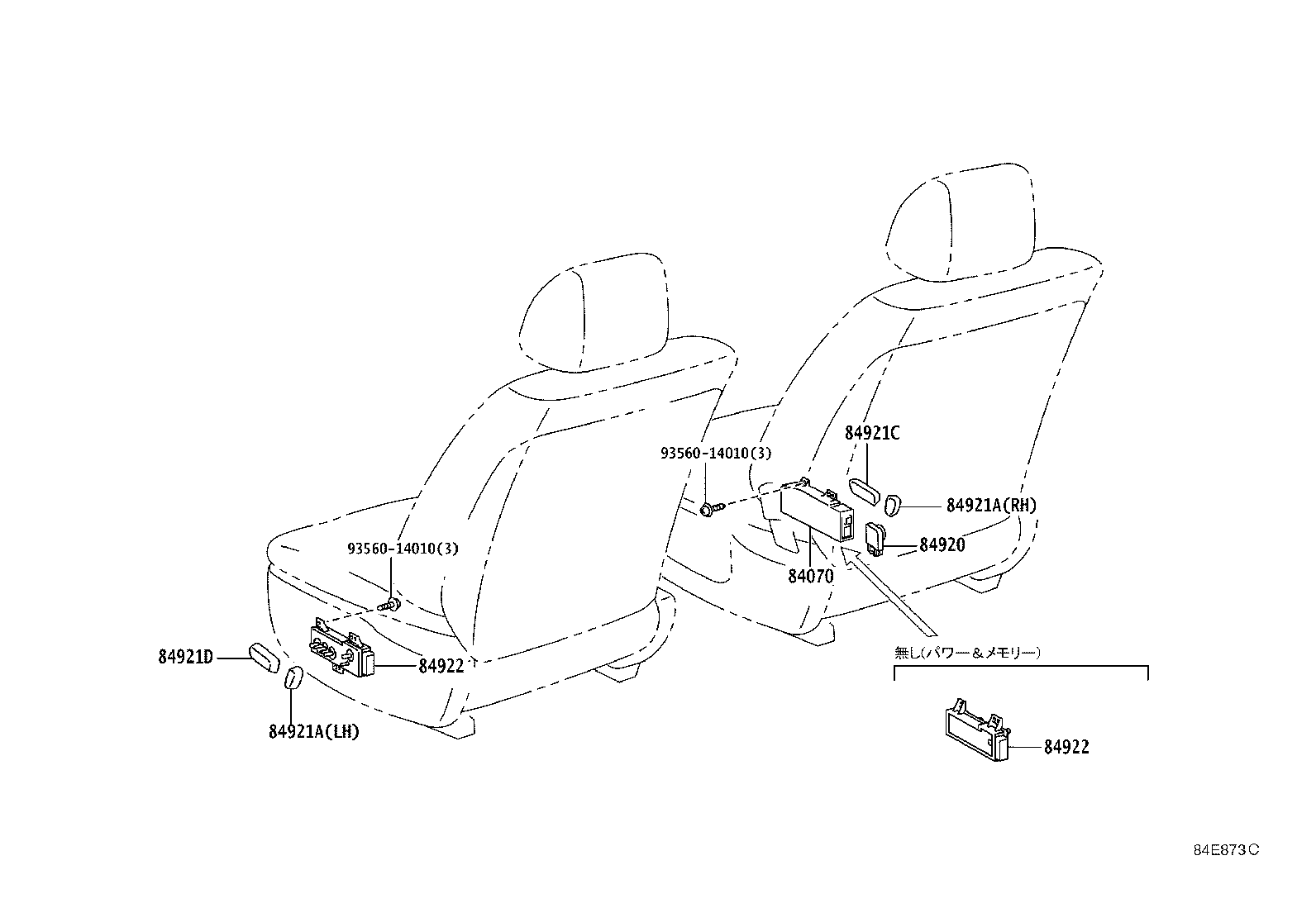

Figure 84E864A 84E864A 2013-12 → — Figure 84E863C 84E863C 2013-12 → — Figure 84I131B 84I131B 2017-05 → — Figure 84E866A 84E866A 2013-12 → — Figure 84I132A 84I132A 2017-05 → — Figure 84E868H 84E868H 2013-12 → — Figure 84E867H 84E867H 2013-12 → — Figure 84I134B 84I134B 2017-05 → — Figure 84E869K 84E869K 2013-12 → — Figure 84E870D 84E870D 2013-12 → 2017-05 Figure 84I133B 84I133B 2017-05 → — Figure 84E872I 84E872I 2013-12 → — Figure 84E873C 84E873C 2013-12 → — Figure 84E874J 84E874J 2013-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28850 Sensor Assy, Battery Current
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610E Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630F Holder, Fuse
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672F Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83910G Clock Assy
84040 Master Switch Assy,Multiplex Network
84070 Computer & Switch Assy, Position Control
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84163 Switch, Light Emitting Diode Illumination
84163A Relay, Light Emitting Diode Illumination
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84431 Switch, Vehicle Approaching Speaker
84485 Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84922 Switch, Front Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84970 Switch Assy, Combination
84988F Switch, Traction Control
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530F Socket Assy, Power Outlet, Rear NO.2
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85910 Relay Assy, Circuit Opening
85910X Relay, Heater Mirror
85912 Relay, Defogger
85912D Relay
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85927G Relay, Air Conditioner Water Pump
85940 Relay Assy, Windshield Wiper
86206B Inverter Sub-assy, Voltage
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
86530A Relay, Horn
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
87989A Relay, Mirror NO.1
87989B Relay, Mirror NO.2
88150A Computer Assy, Driving Support
88790F Thermistor Assy
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89491 Sensor, Engine Oil Level
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89747E Buzzer, Power Back Door Warning
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
G9221A Cover, Inverter, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
