Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 3 illustrations

Illustrations

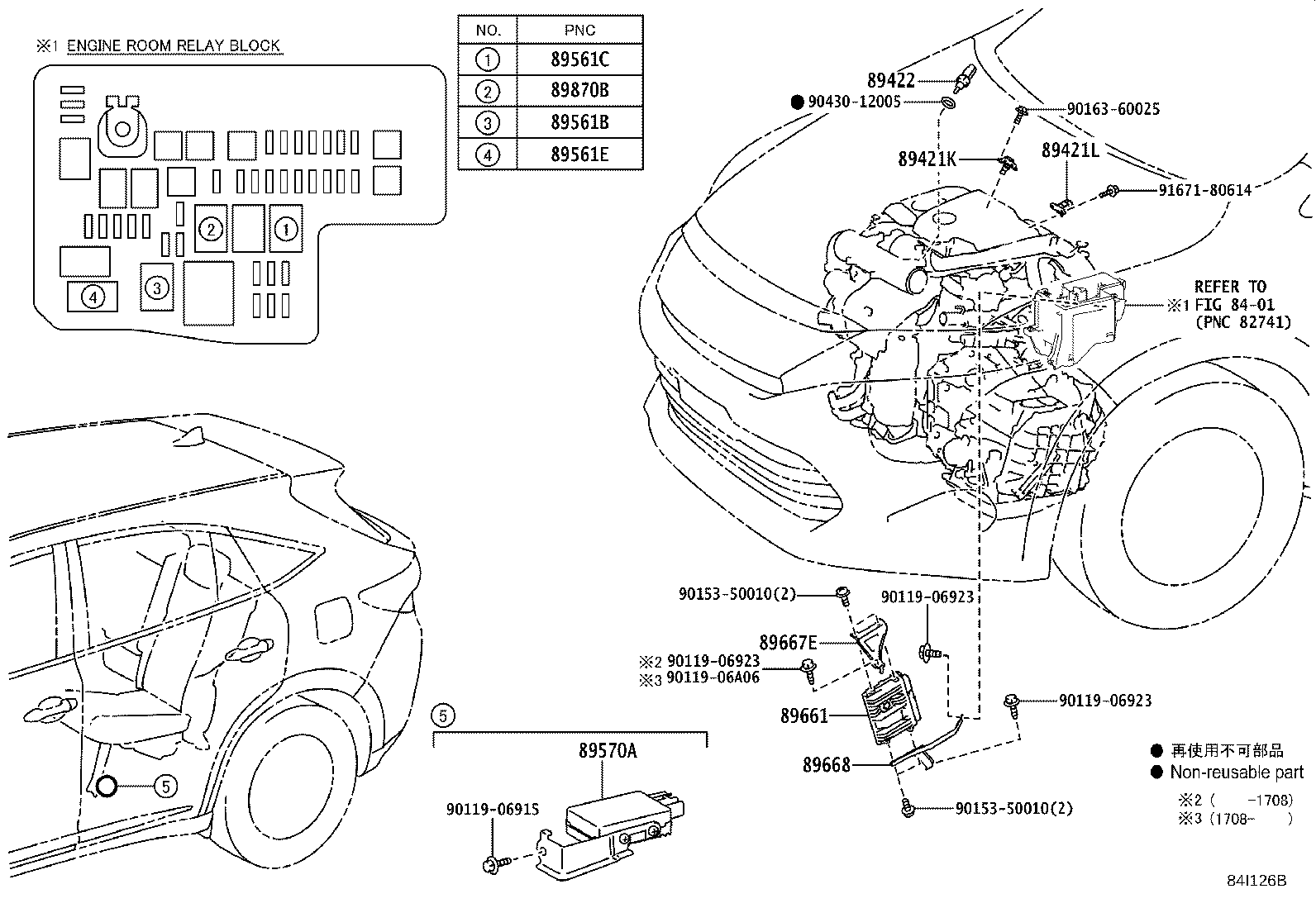

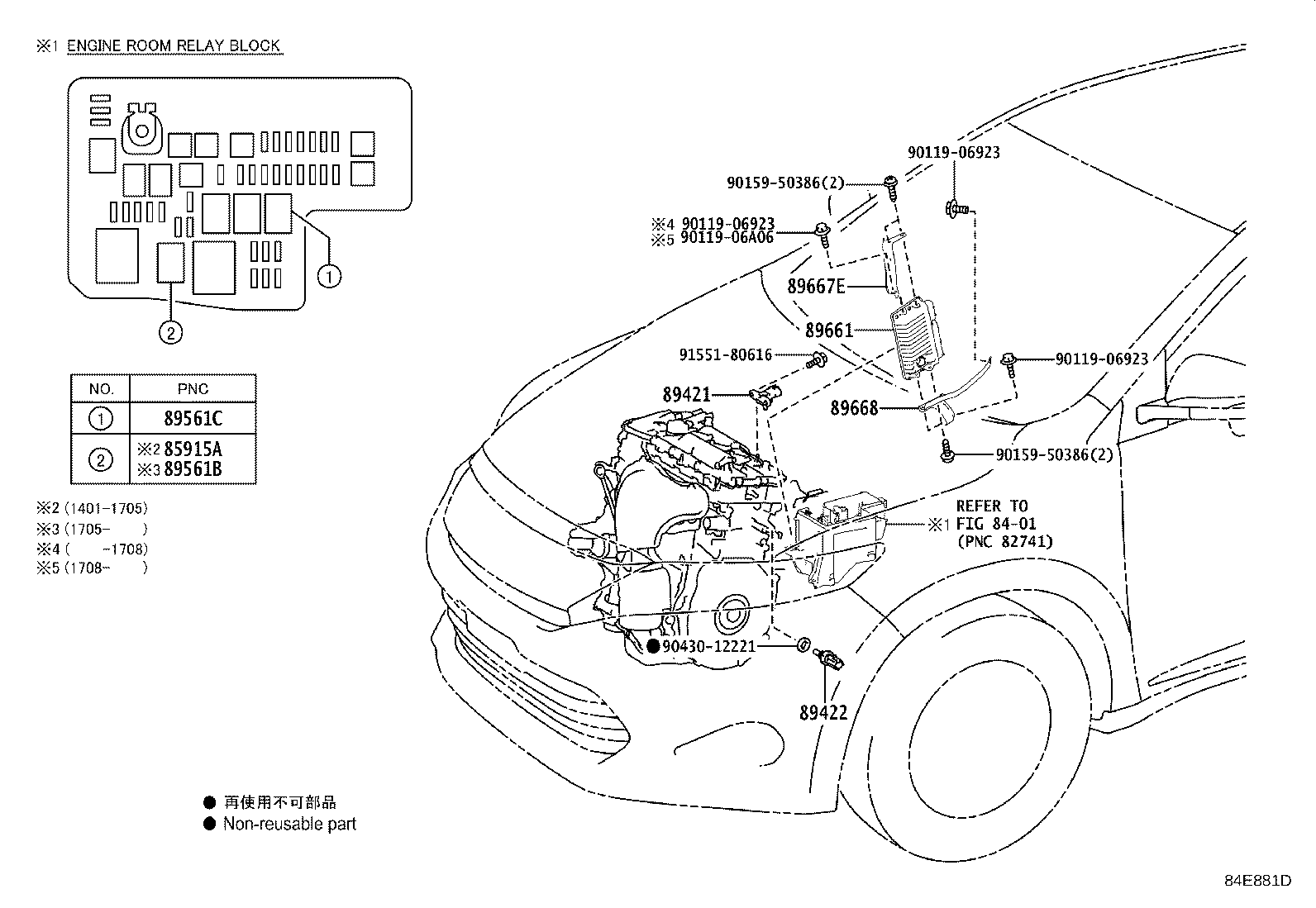

Figure 84E880D 84E880D 2013-12 → — Figure 84E881D 84E881D 2013-12 → — Figure 84I126B 84I126B 2017-05 → —

Part groups

PNCDescription
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89561E Relay, Electronic Fuel Injection Main, NO.3
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89870B Relay, Electronic Driver Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
