Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

16 part groups · 2 illustrations

Illustrations

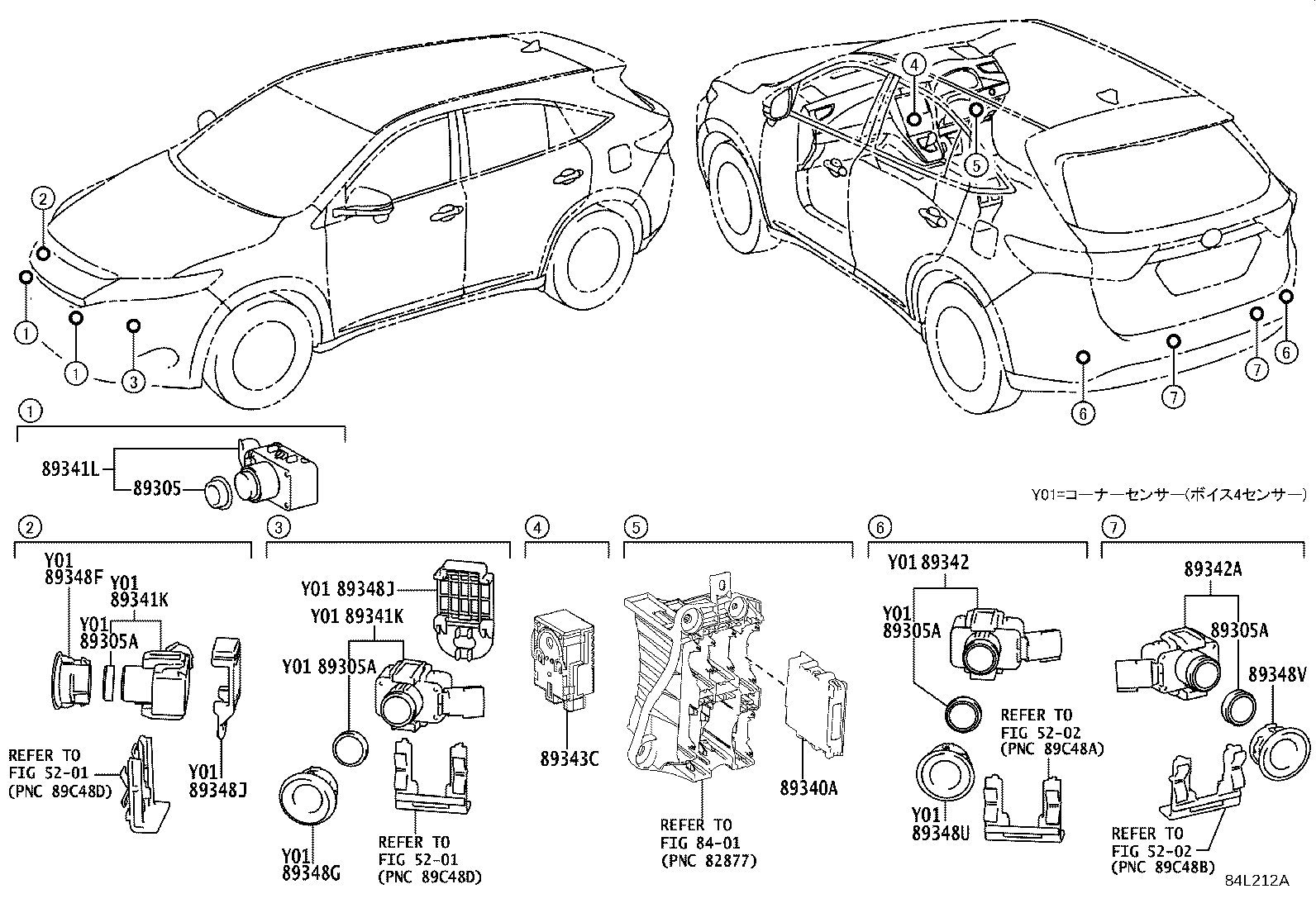

Figure 84E899C 84E899C 2013-12 → 2017-05 Figure 84L212A 84L212A 2017-05 → —

Part groups

PNCDescription
89305 Cushion Set, Ultrasonic Sensor
89305A Cushion Set, Ultrasonic Sensor, NO.2
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348F Bezel, Ultrasonic Sensor, NO.1
89348G Bezel, Ultrasonic Sensor, NO.2
89348J Clip, Ultrasonic Sensor
89348U Bezel, Ultrasonic Sensor, Rear Corner
89348V Bezel, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
