Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

15 part groups · 2 illustrations

Illustrations

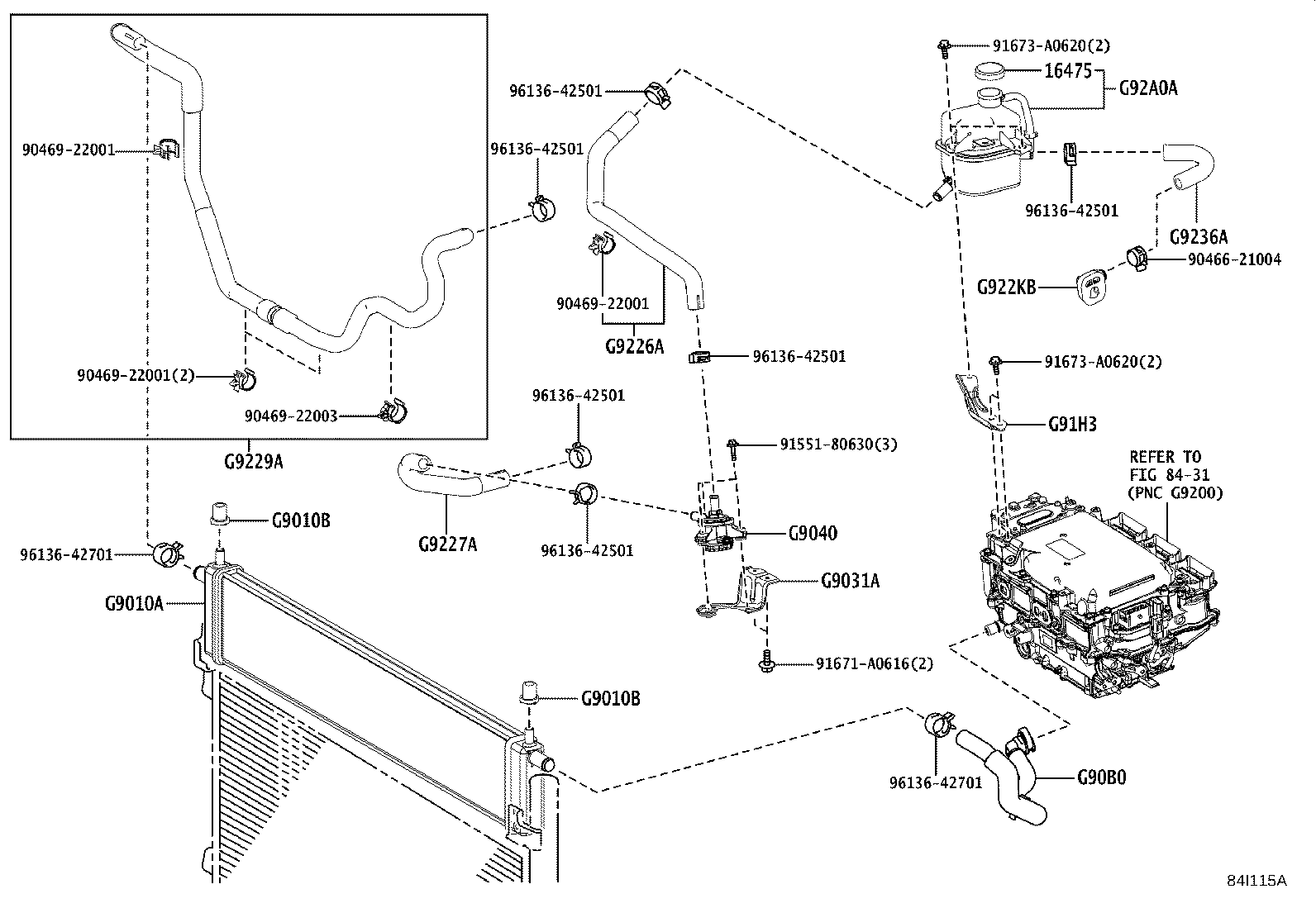

Figure 84E852B 84E852B 2013-12 → 2017-05 Figure 84I115A 84I115A 2017-05 → —

Part groups

PNCDescription
16475 Cap, Reserve Tank
G9010A Radiator Assy
G9010B Cushion, Inverter Radiator
G9031A Bracket Sub-assy, HV Water Pump
G9040 Inverter Water Pump Assy(W/MOTOR)
G90B0 Hose Assy, Inverter Cooling, NO.2
G91H3 Bracket, Inverter Reserve Tank, NO.2
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
G9229A Hose, Inverter Cooling, NO.5
G922K Connector, Hybrid Water Hose
G922KB Connector, Hybrid Water Hose, NO.2
G9236A Hose, Inverter Cooling, NO.6
G92A0A Tank Assy, Inverter Reserve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
