Toyota Harrier/Hybrid
2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan
Supported model
Data version 2020-06
Radio Receiver & Amplifier & Condenser
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

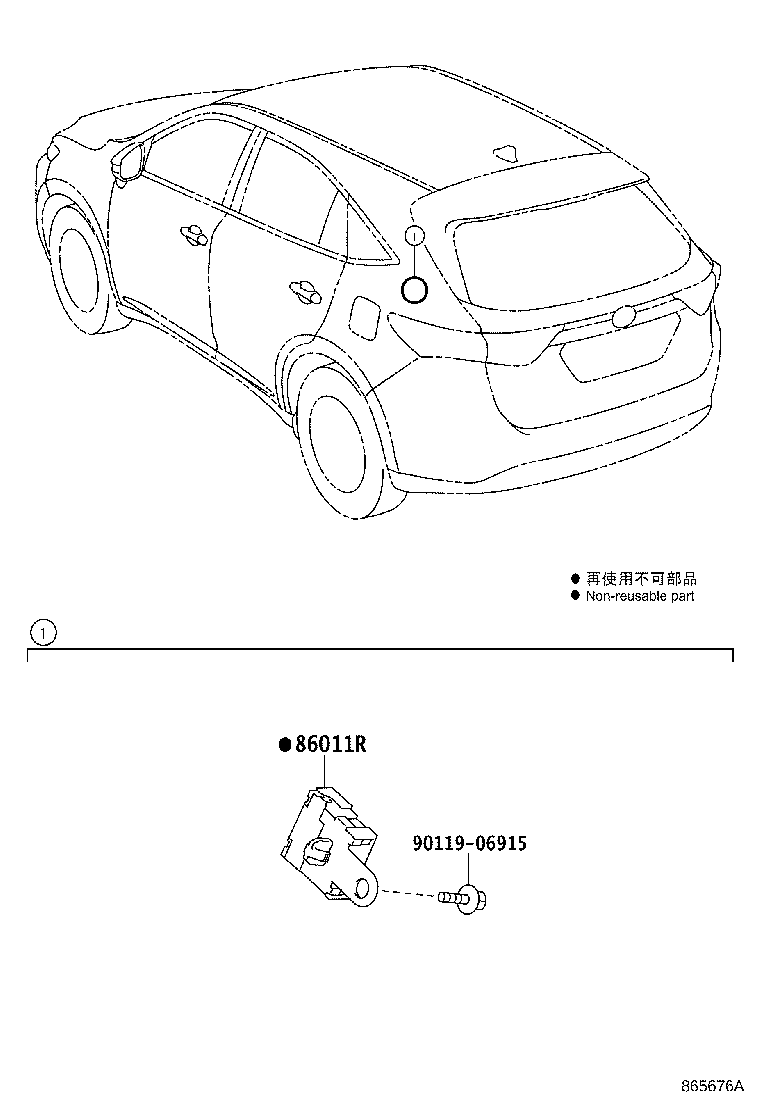

| 86011R | Condenser, Radio Setting |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86723C | Wire, Mobilephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
