Toyota Harrier/Hybrid

2013-12 → 2020-05 · chassis ASU6#,AVU65,ZSU6# · catalogue 521140 · Japan

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

12 part groups · 3 illustrations

Illustrations

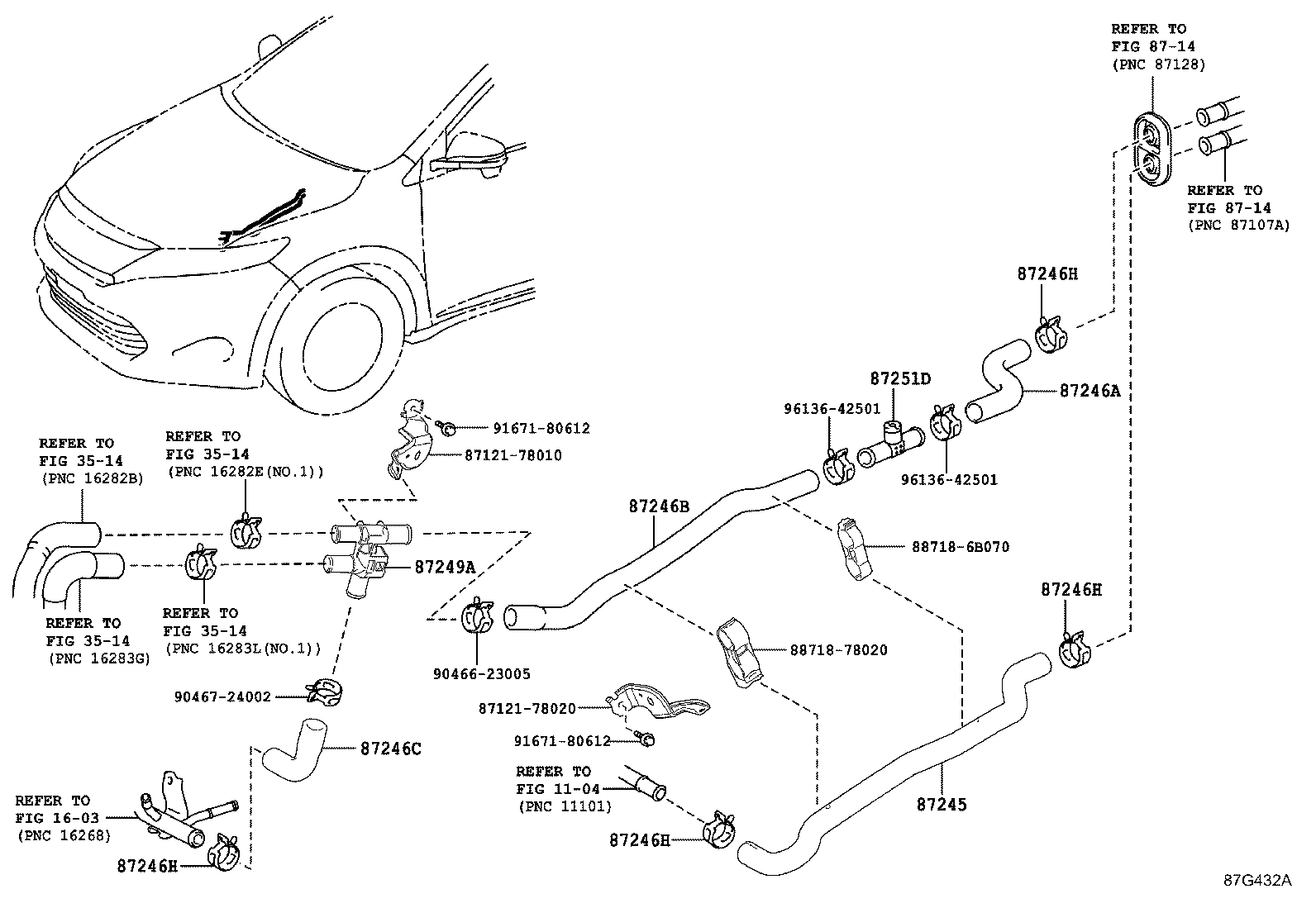

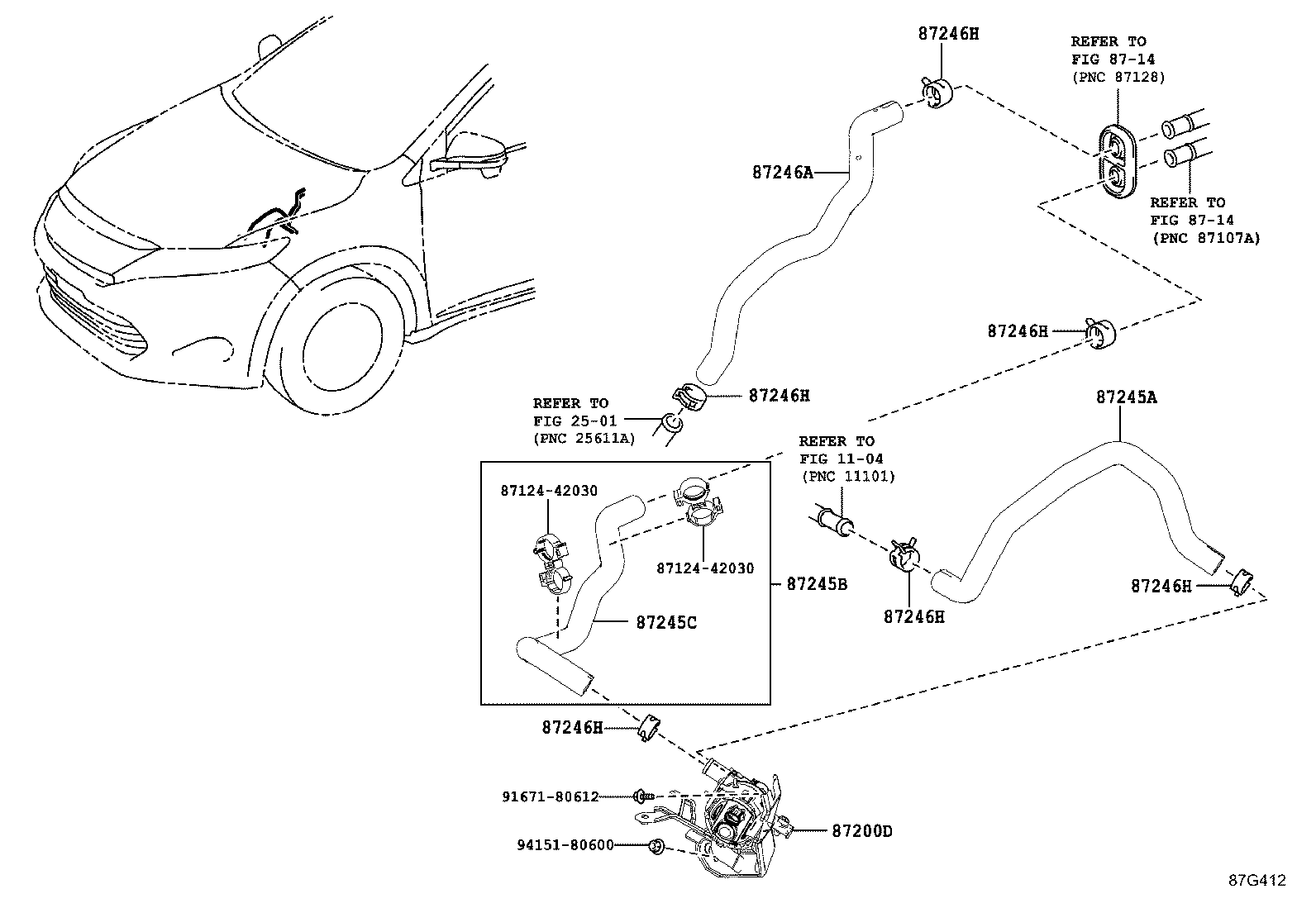

Figure 87G410 87G410 2013-12 → — Figure 87G412 87G412 2013-12 → — Figure 87G432A 87G432A 2017-05 → —

Part groups

PNCDescription
87200D Accessory Assy, Heater
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
