Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GYL2# · catalogue 521150 · Japan
Supported model
Data version 2023-09
Vacuum Piping

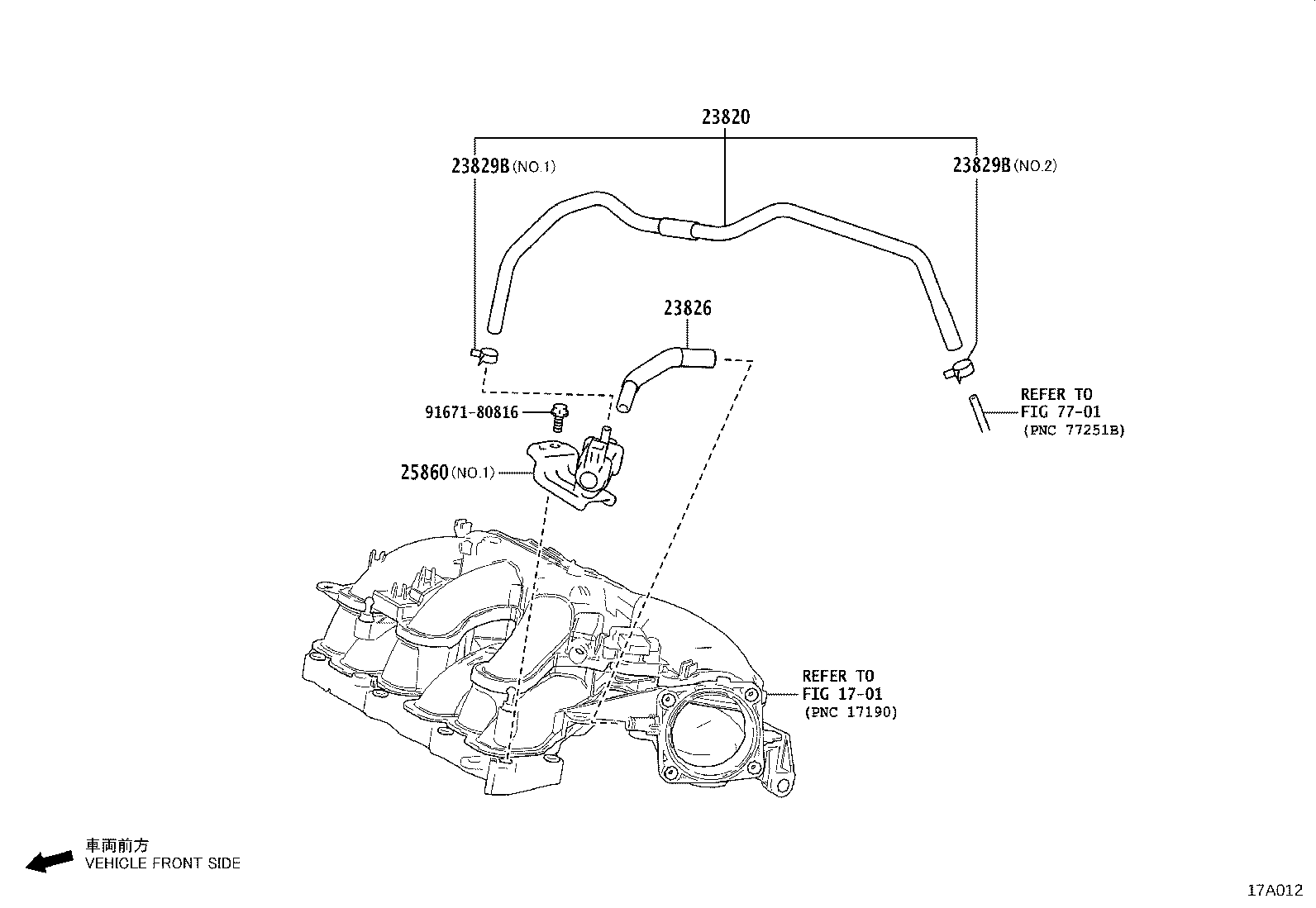

24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17340 | Hose Assy, Vacuum Switching Valve |
| 17342K | Clip(FOR VACUUM HOSE) |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23211K | Bracket |
| 23285A | Valve, Check, NO.1 |
| 23286A | Valve, Check, NO.2 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827E | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23830 | Hose Assy, Fuel Vapor Feed, NO.2 |
| 25719 | Tank, Vacuum Surge |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25780 | Hose Assy, Vacuum Transmitting, NO.3 |
| 25790 | Hose Assy, Vacuum Transmitting, NO.4 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
