Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GYL2# · catalogue 521150 · Japan
Supported model
Data version 2023-09

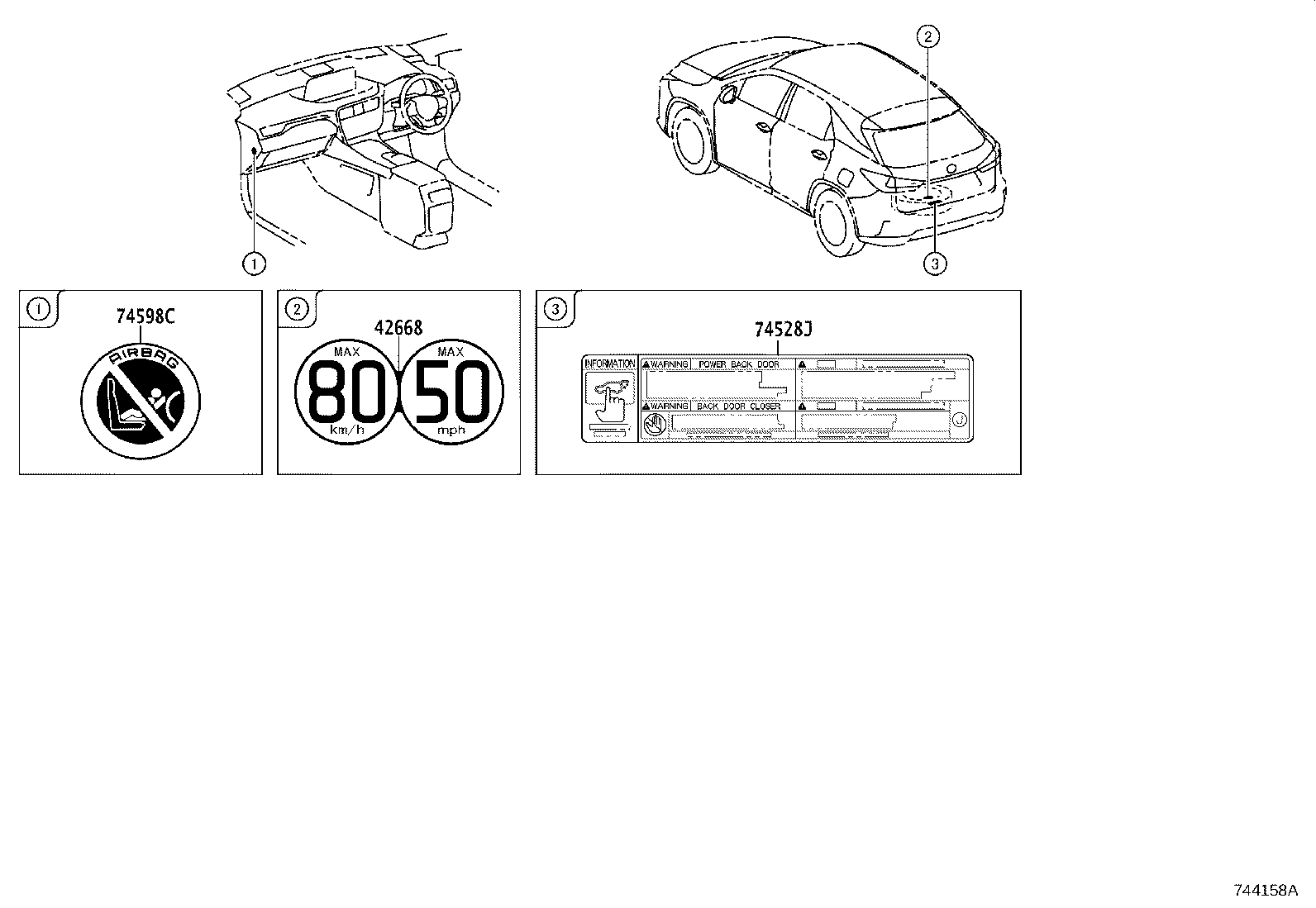

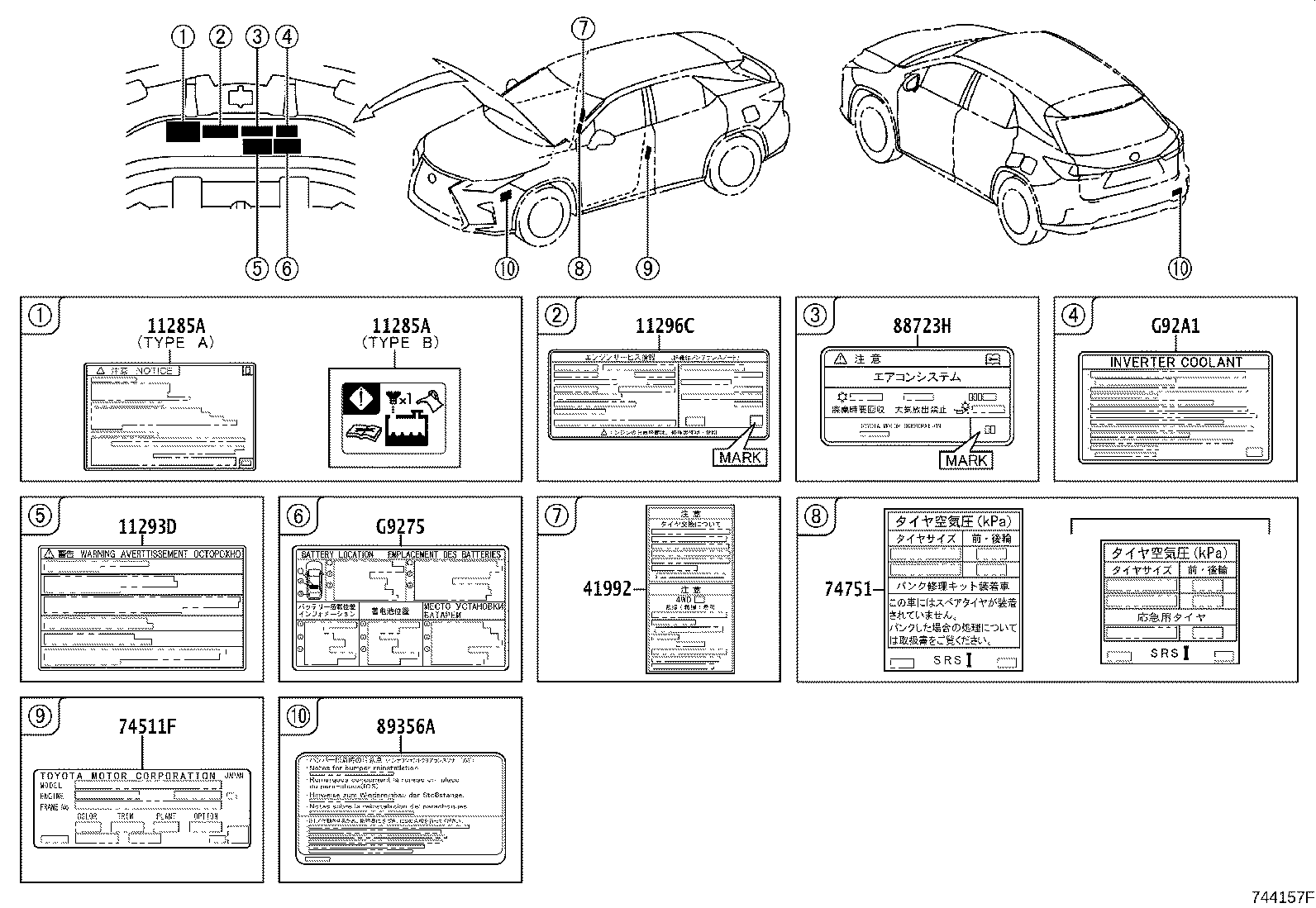

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11285K | Label, Coolant System Information |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 28897B | Label, Battery Caution, NO.1 |
| 41992 | Label, Differential Notice |
| 42668 | Label, Compact Spare Tire Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528J | Label, Power Back Door Caution |
| 74559A | Plate, Fuel Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
