Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GYL2# · catalogue 521150 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

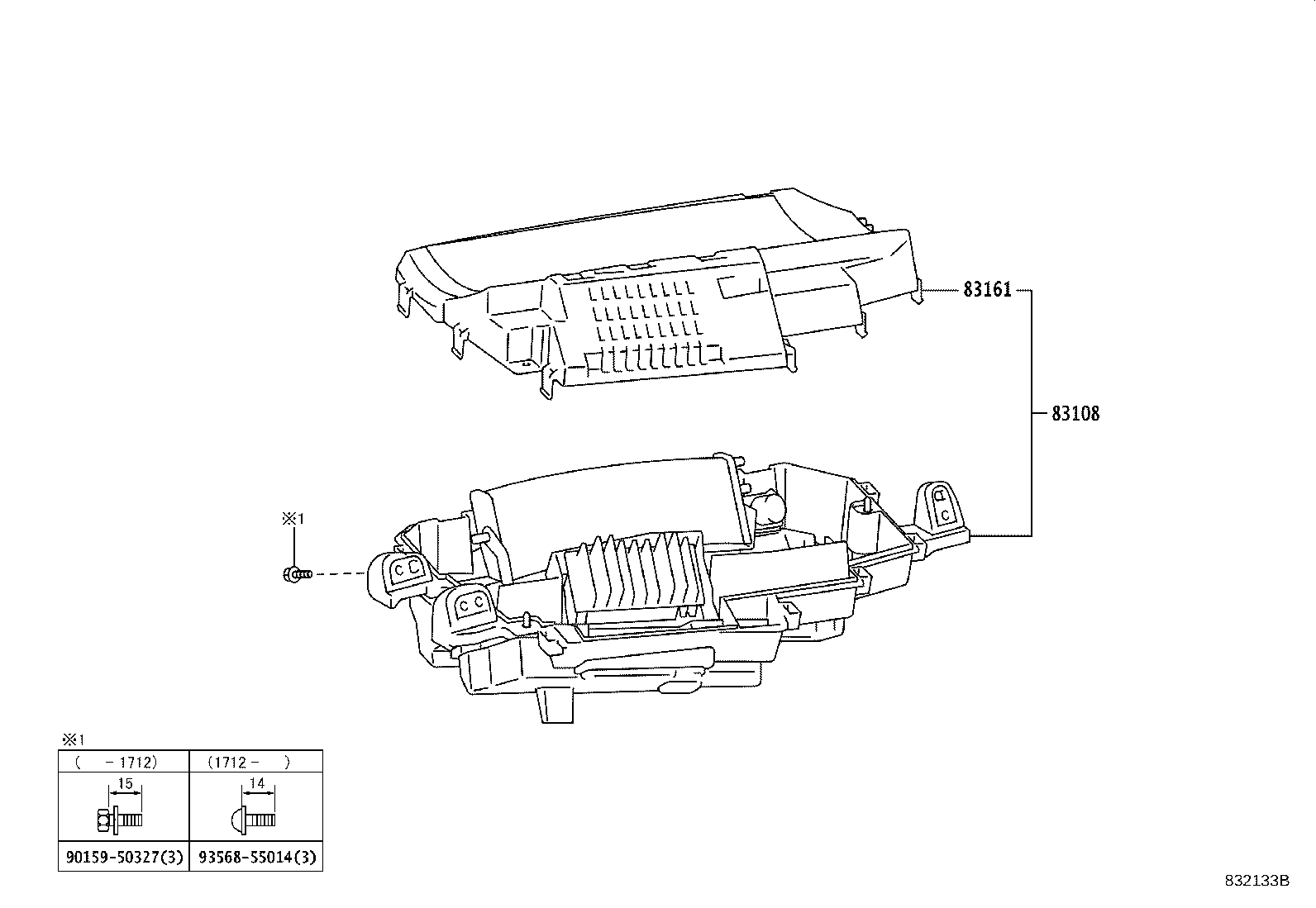

Figure 832102A 832102A 2015-09 → — Figure 832133B 832133B 2015-09 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100G Glass, Combination Meter
83108 Mirror Sub-assy, Meter
83161 Case, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
