Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GYL2# · catalogue 521150 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

4 part groups · 4 illustrations

Illustrations

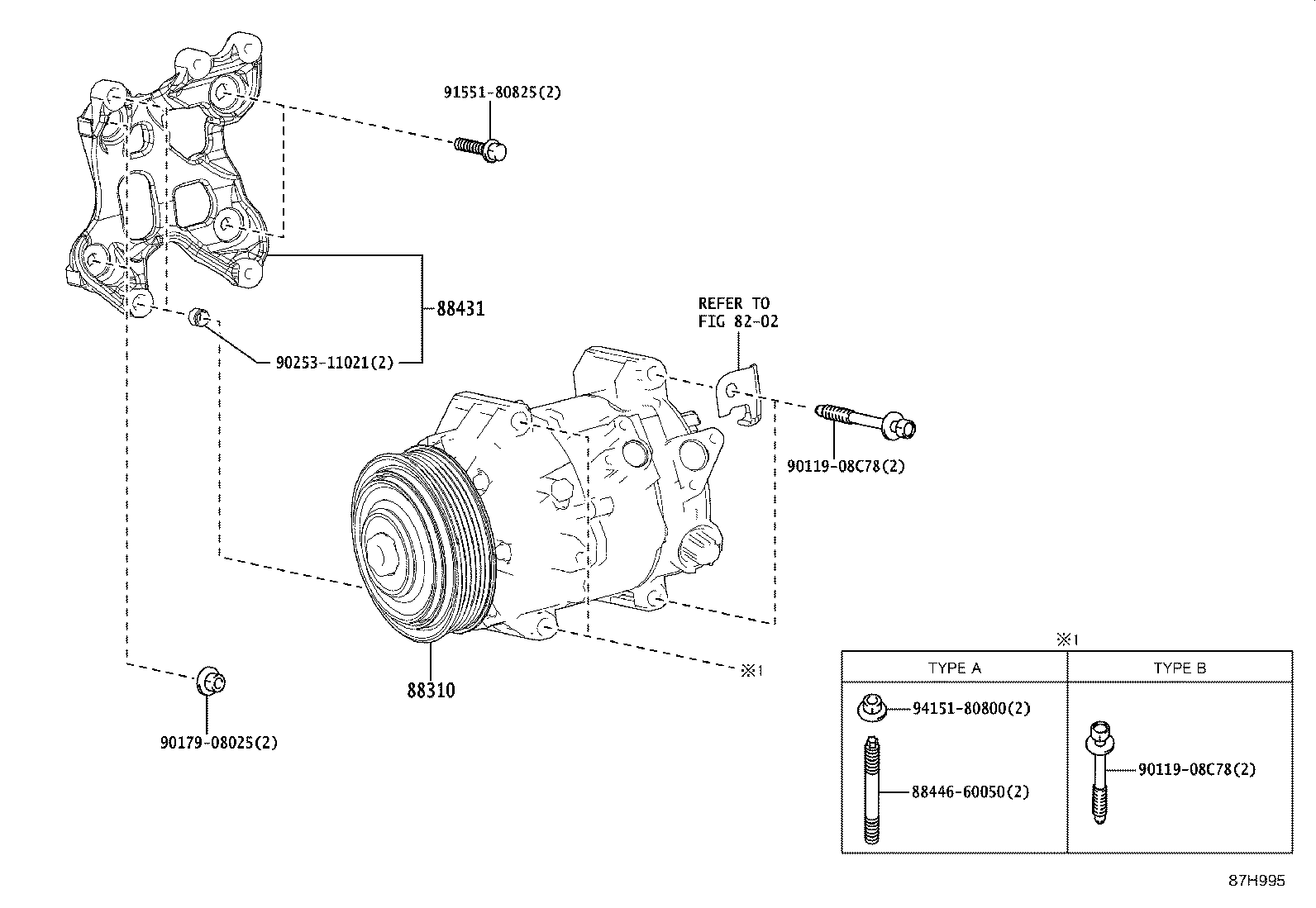

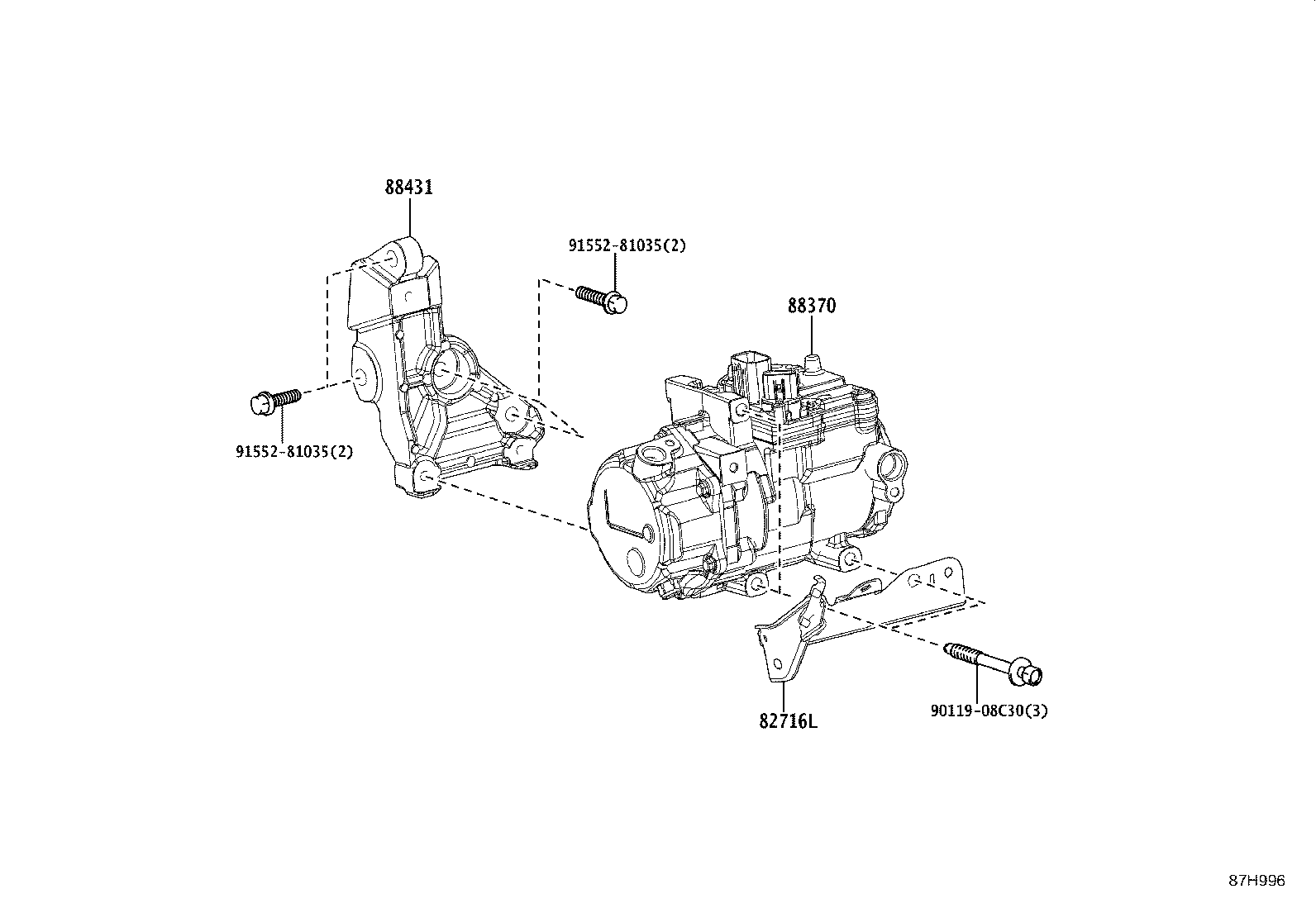

Figure 87F307 87F307 2015-09 → 2019-08 Figure 87H995 87H995 2019-08 → — Figure 87F309A 87F309A 2015-10 → 2019-08 Figure 87H996 87H996 2019-08 → —

Part groups

PNCDescription
82716L Bracket, Wiring Harness Clamp
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
88431 Bracket, Compressor Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
