Water Pump

3 part groups · 2 illustrations

Illustrations

Figure 168776A

168776A 2022-11 → —

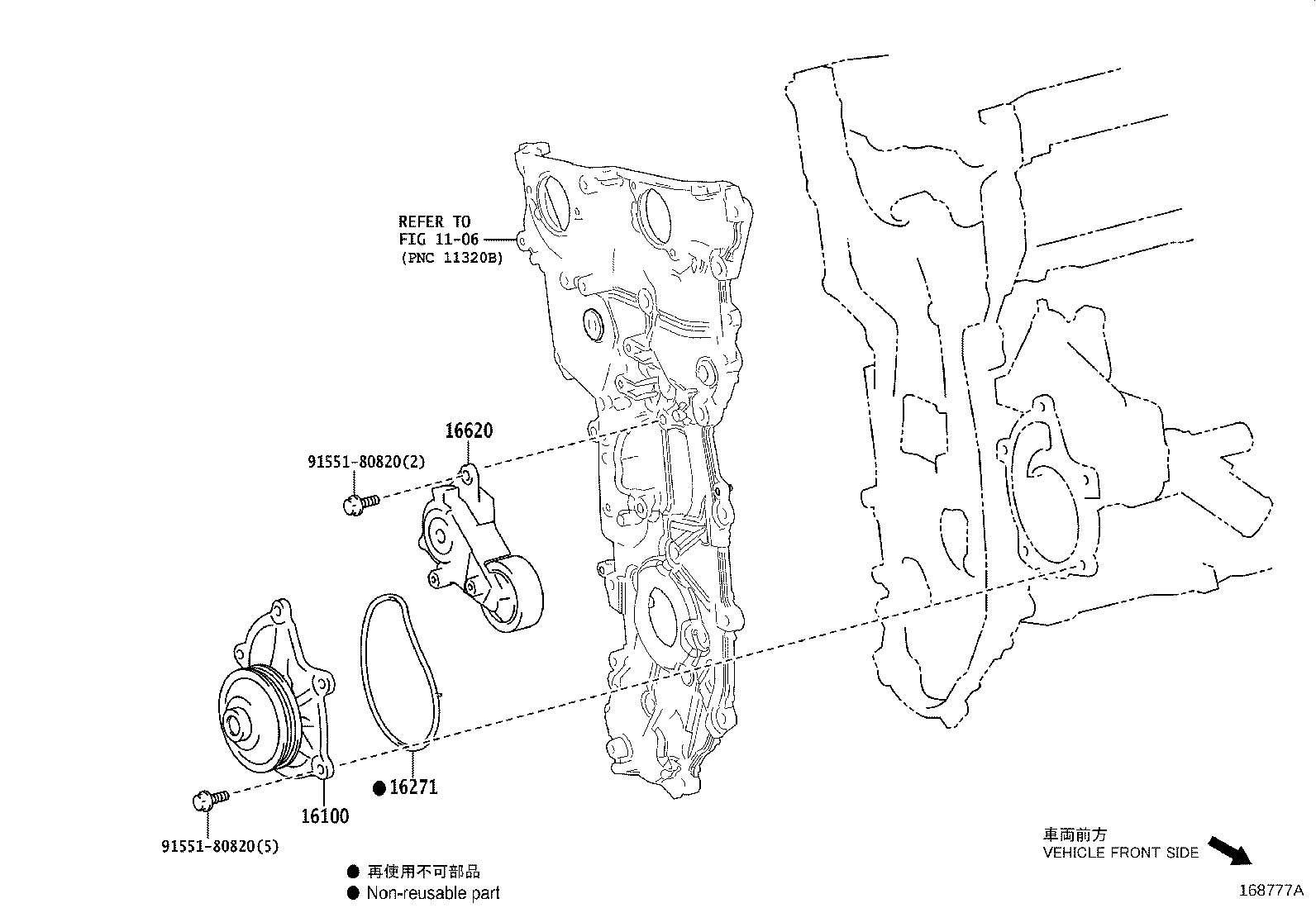

Figure 168777A

168777A 2022-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
