Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

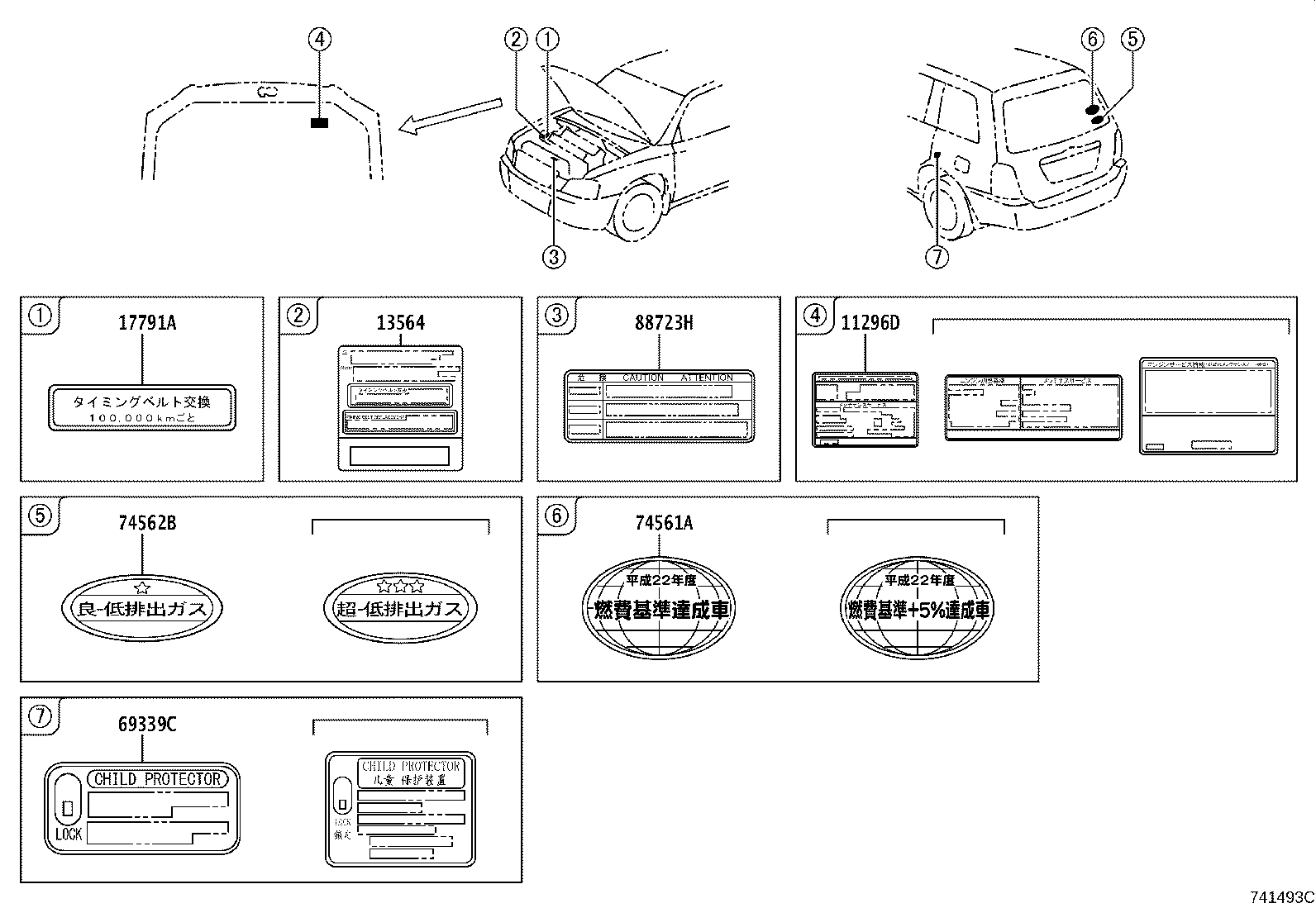

15 parts on this figure

Part number	Description	Fitment	Price
11296D — Label, Engine Service Information
11296-20051	Label, Engine Service Information 2003-08 → 2006-03 ended	1MZFE MCU2#	¥430
11296-20052	Label, Engine Service Information 2006-04 → 2007-05 ended	1MZFE MCU2#	¥430
11296-28012	Label, Engine Service Information 2003-08 → 2007-05 ended	2AZFE ACU2#	¥360
13564 — Label, Timing Belt Replacement Information
13564-10010	Label, Timing Belt Replacement Information 2000-11 → 2003-08 ended	MCU2#	¥380
13564-10010	Label, Timing Belt Replacement Information 2003-08 → —	MCU2#	¥380
17791A — Label, Maintenance Information
17791-74040	Label, Maintenance Information 2003-08 → 2007-05 ended	1MZFE MCU2#	¥390
69339C — Label, Child Protector Information
69339-12010	Label, Child Protector Information 2000-11 → 2003-08 ended	ACU2#,MCU2#	¥120
69339-12010	Label, Child Protector Information 2003-08 → 2006-12 ended	ACU2#,MCU2#	¥120
69339-48010	Label, Child Protector Information 2007-01 → —	ACU2#,MCU2#	¥230
74561A — Label, Fuel Consumption Information
74561-52010	Label, Fuel Consumption Information 2004-03 → —	ACU25,MCU25	¥310
74561-52020	Label, Fuel Consumption Information 2004-03 → —	ACU20	¥310
74562B — Label, Emission Information
74562-40040	Label, Emission Information 2000-11 → 2003-08 ended	ACU2#,MCU2#	¥250
74562-12610	Label, Emission Information 2004-02 → —	ACU2#,MCU2#	¥290
74562-40050	Label, Emission Information 2003-08 → 2004-02 ended	ACU2#,MCU2#	¥250
88723H — Label, Cooler Service Caution
88723-20081	Label, Cooler Service Caution 2003-08 → 2007-05 ended	ACU2#,MCU2#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
