Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10

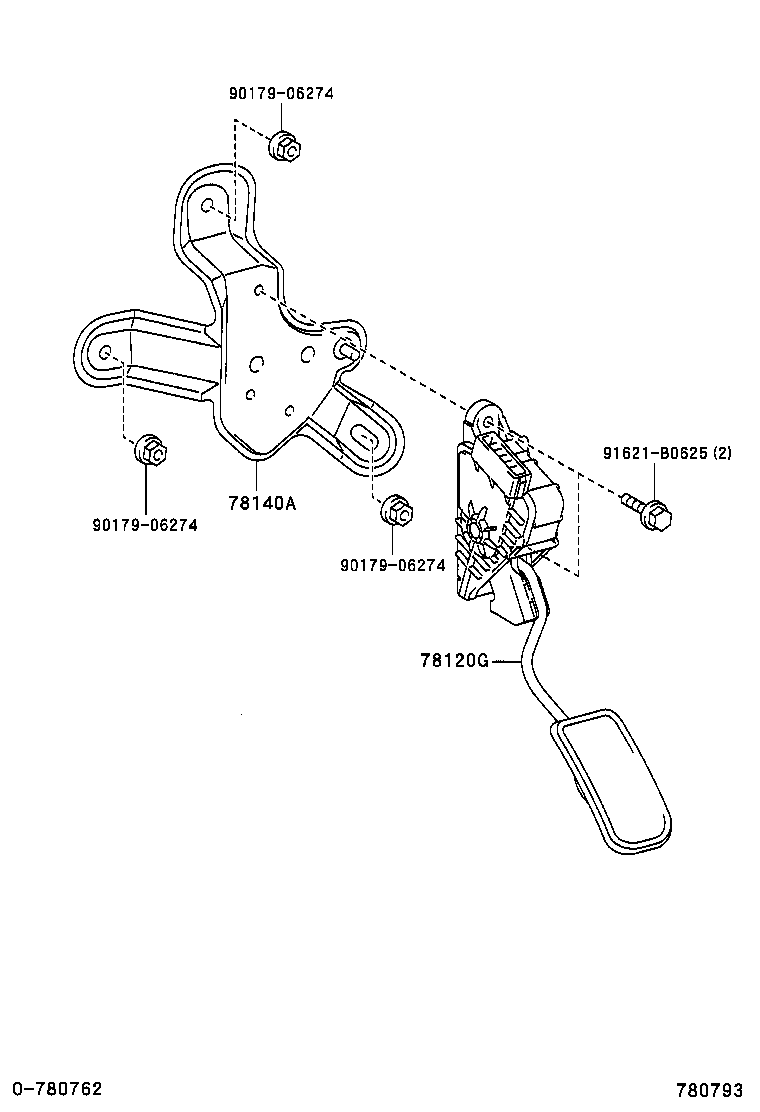

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78120G — Rod Assy, Accelerator Pedal | ||||
| 78120-48060 |
Rod Assy, Accelerator Pedal
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | ¥3,050 | |
| 78120-48070 |
Rod Assy, Accelerator Pedal
2003-08 → —
|
MCU2# | ¥27,300 | |
| 78120-48080 |
Rod Assy, Accelerator Pedal
2003-08 → —
|
ACU2# | ¥3,670 | |
| 78140A — Bracket, Accelerator Control Rod | ||||
| 78140-48010 |
Bracket, Accelerator Control Rod
2003-08 → —
|
ACU2#,MCU2# | ¥2,340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
