Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

19 part groups · 3 illustrations

Illustrations

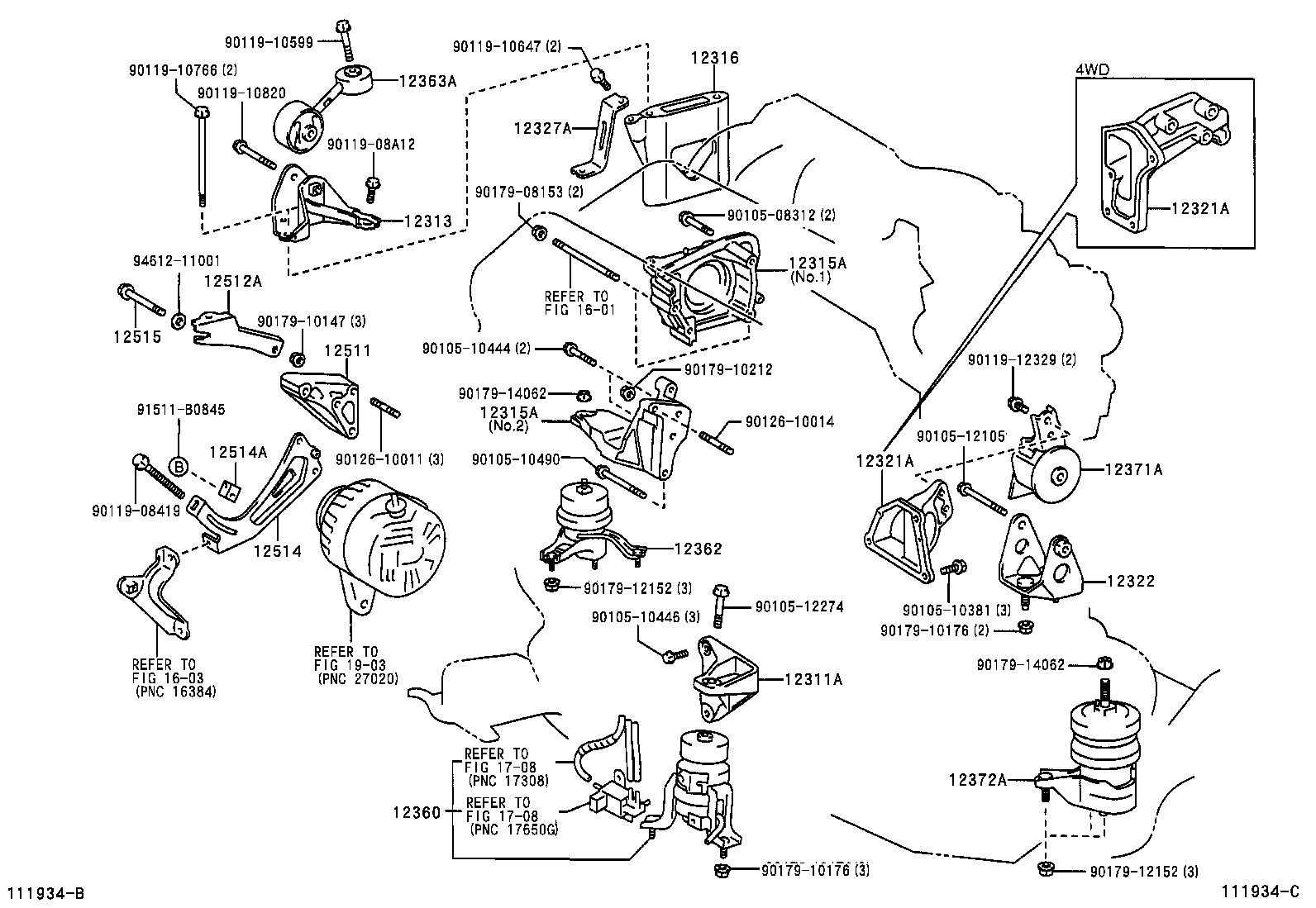

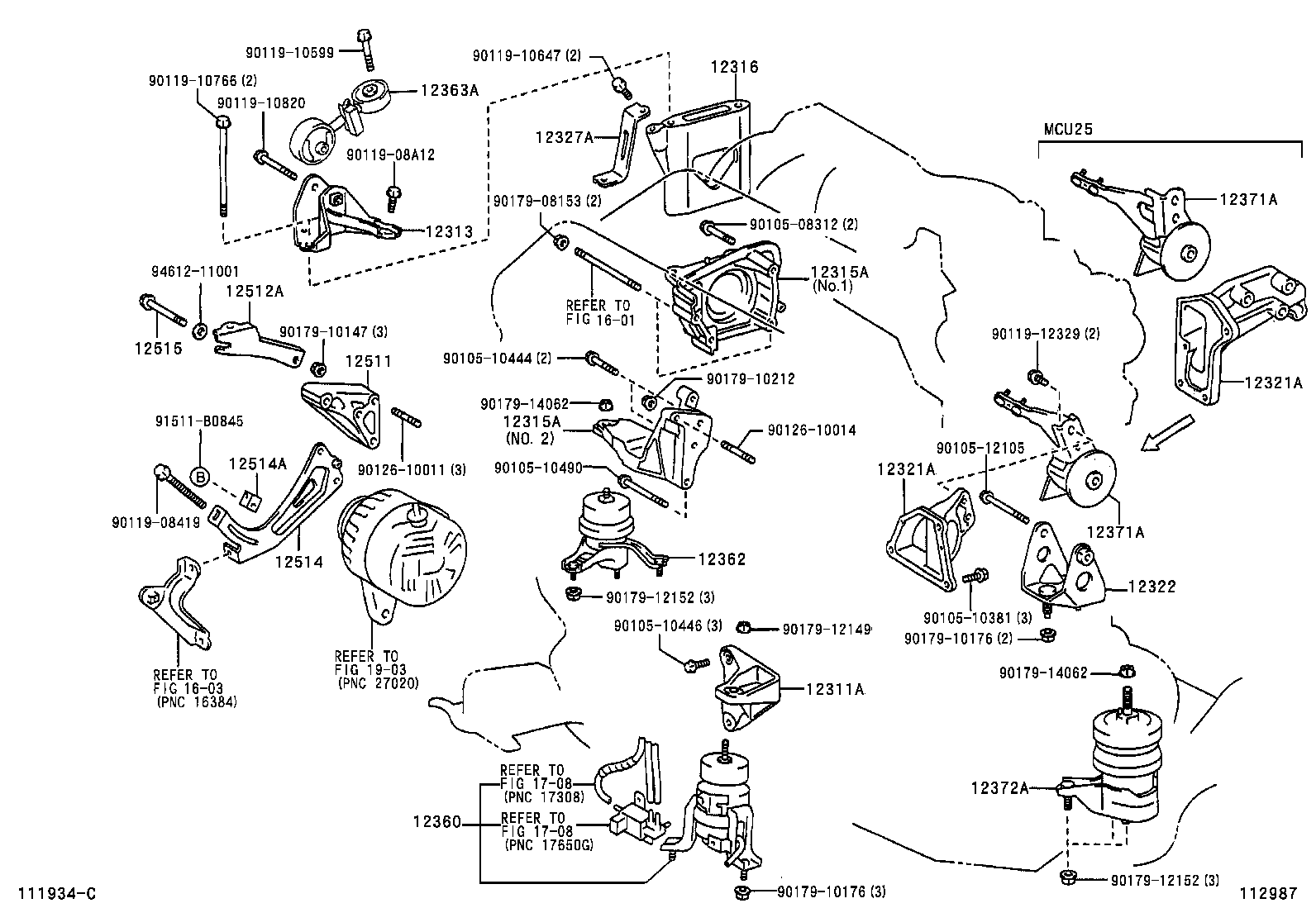

Figure 111928C 111928C 2000-11 → — Figure 111934C 111934C 2000-11 → 2003-08 Figure 112987 112987 2003-08 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12327A Stay, Engine Mounting, NO.2 RH
12351 Damper, Engine Mounting
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12515 Bolt, Alternator Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
