Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10
Fuel Injection System

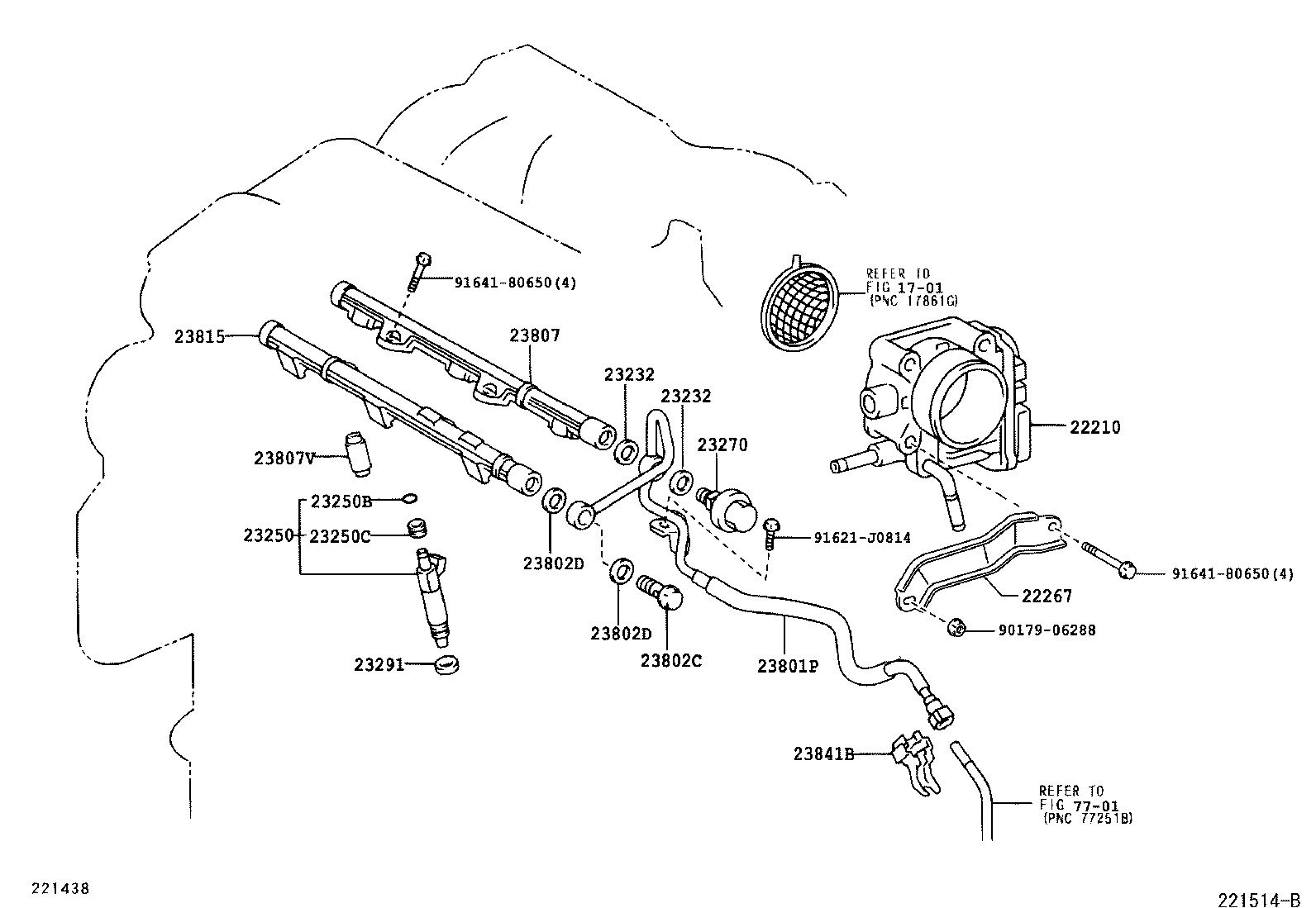

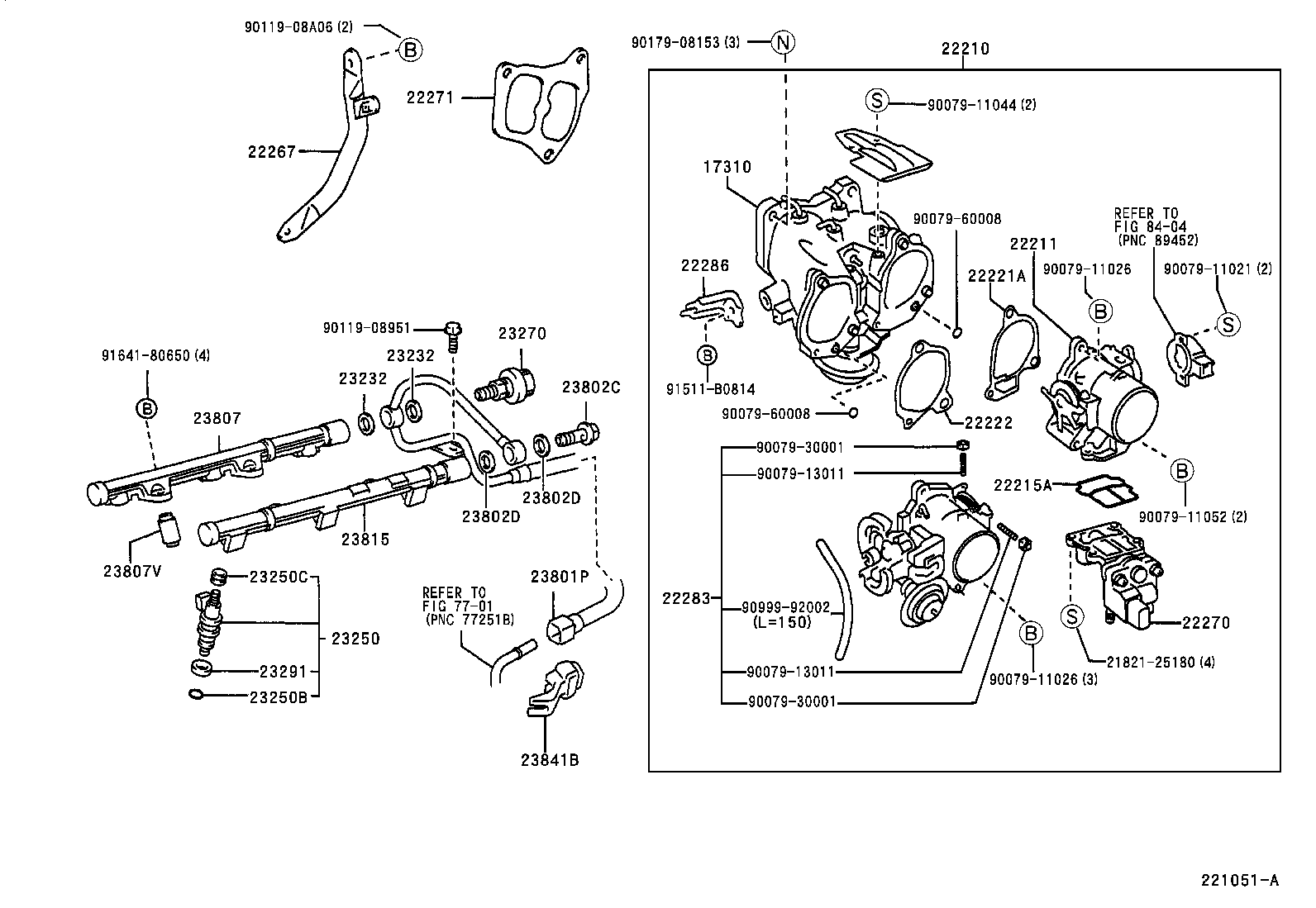

37 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17310 | Valve Assy, Intake Air Control, NO.1 |
| 22210 | Body Assy, Throttle |
| 22211 | Body, Throttle |
| 22215A | Gasket, Idle Speed Control Valve |
| 22221A | Gasket, Intake Air Control Valve, NO.1 |
| 22222 | Gasket, Intake Air Control Valve, NO.2 |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 22283 | Body, Throttle, NO.2 |
| 22286 | Bracket, Throttle Body |
| 23020A | Regulator Assy, Fuel Pressure W/Jet Pump |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23225 | Spacer, Fuel Pump |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23232 | Gasket(FOR FUEL PUMP HOSE) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270F | Ring, O(FOR PULSATION DAMPER) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300Z | Filter, Fuel(FOR FUEL TANK) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802C | Bolt, Union(FOR FUEL PIPE NO.2) |
| 23802D | Gasket(FOR FUEL PIPE NO.2) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23815 | Pipe, Fuel Delivery, NO.2 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23849A | Support, Fuel Pipe |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
