Rear Disc Brake Caliper & Dust Cover

26 part groups · 2 illustrations

Illustrations

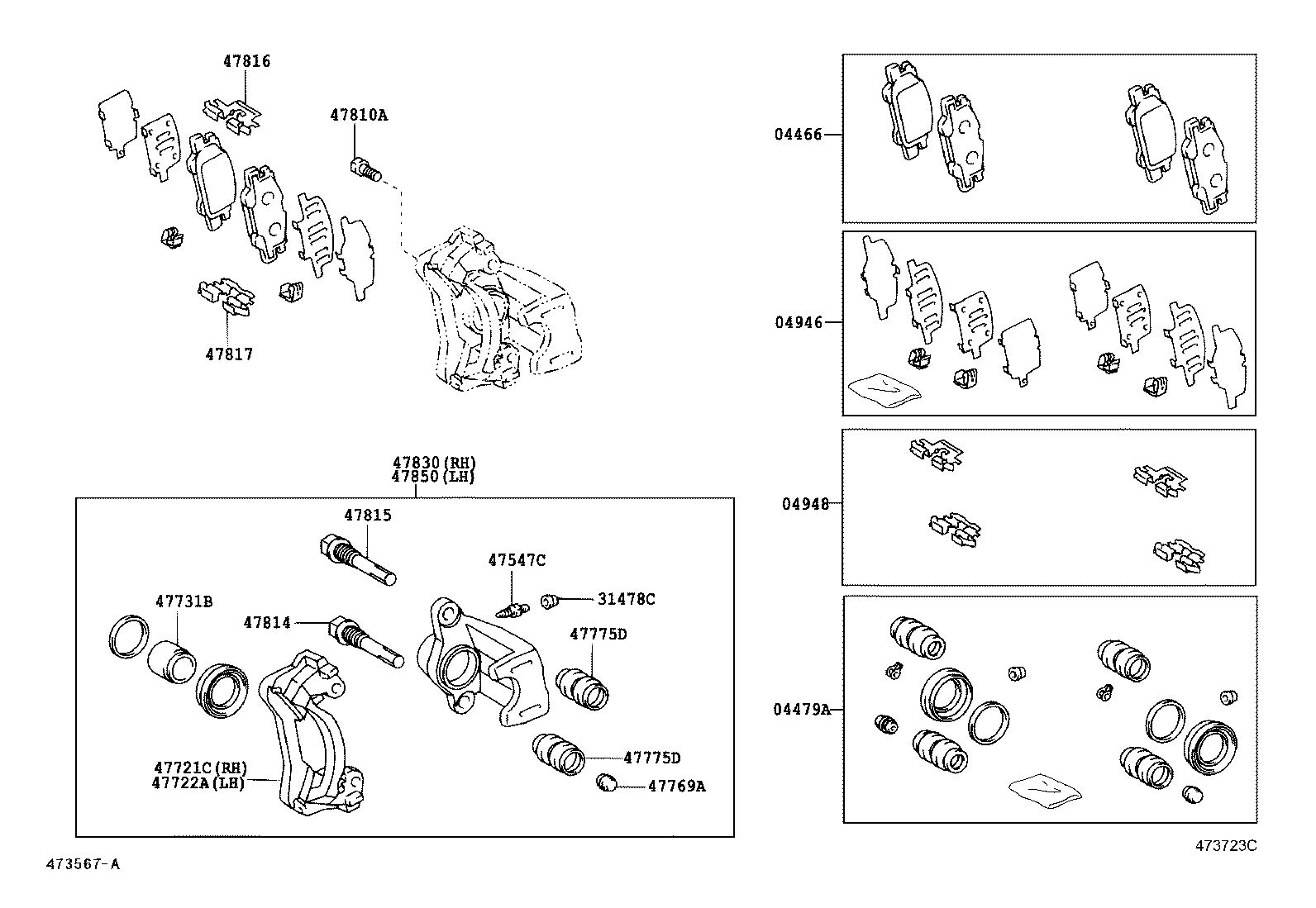

Figure 472333 472333 2000-11 → 2003-08 Figure 473723C 473723C 2003-08 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47715C Pin, Cylinder Slide(FOR REAR DISC BRAKE)
47716A Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47717A Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47731C Ring, Set(FOR REAR DISC BRAKE PISTON)
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47771A Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47779A Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47815 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47816 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47817 Plate, Pad Support. NO.2(FOR REAR DISC BRAKE)
47830 Cylinder Assy, Disc Brake, Rear RH
47850 Cylinder Assy, Disc Brake, Rear LH
