Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

7 part groups · 2 illustrations

Illustrations

Figure 581289B

581289B 2000-11 → —

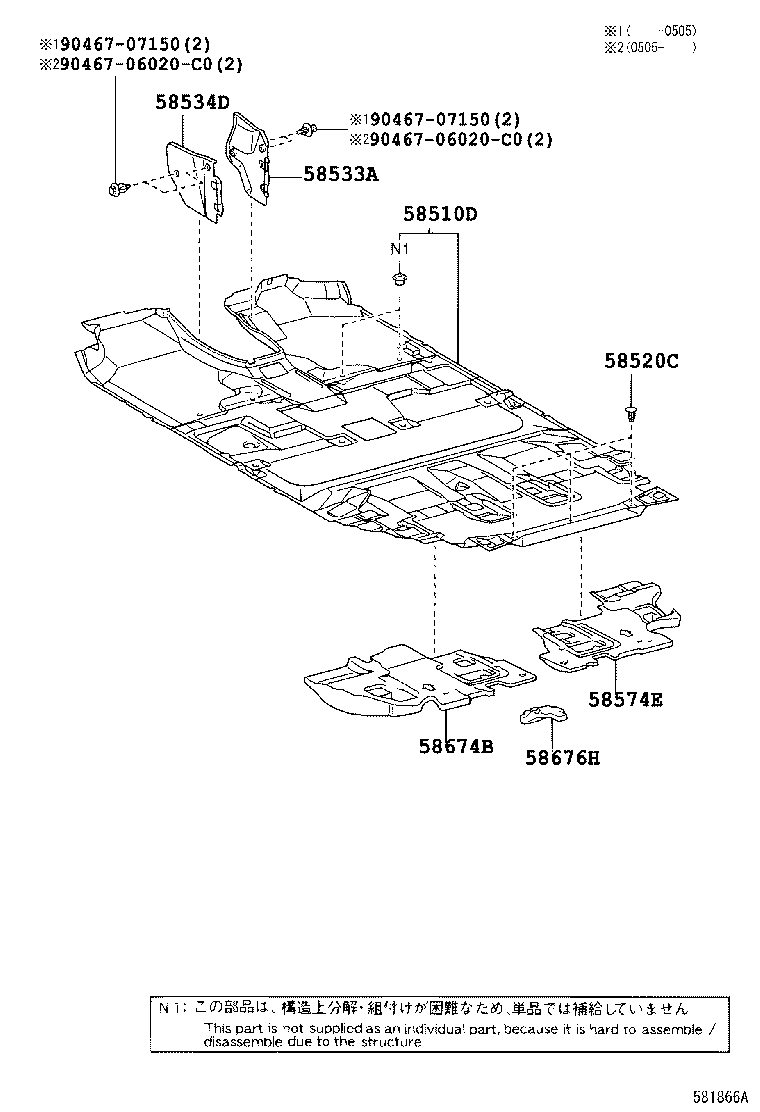

Figure 581866A

581866A 2003-08 → —

Part groups

PNC	Description
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58533A	Cover, Floor Carpet, Center RH
58534D	Cover, Floor Carpet, Center LH
58574E	Pad, Rear Floor Silencer, NO.1
58674B	Pad, Rear Floor Silencer, NO.2
58676H	Pad, Rear Floor Silencer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
