Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

85 part groups · 11 illustrations

Illustrations

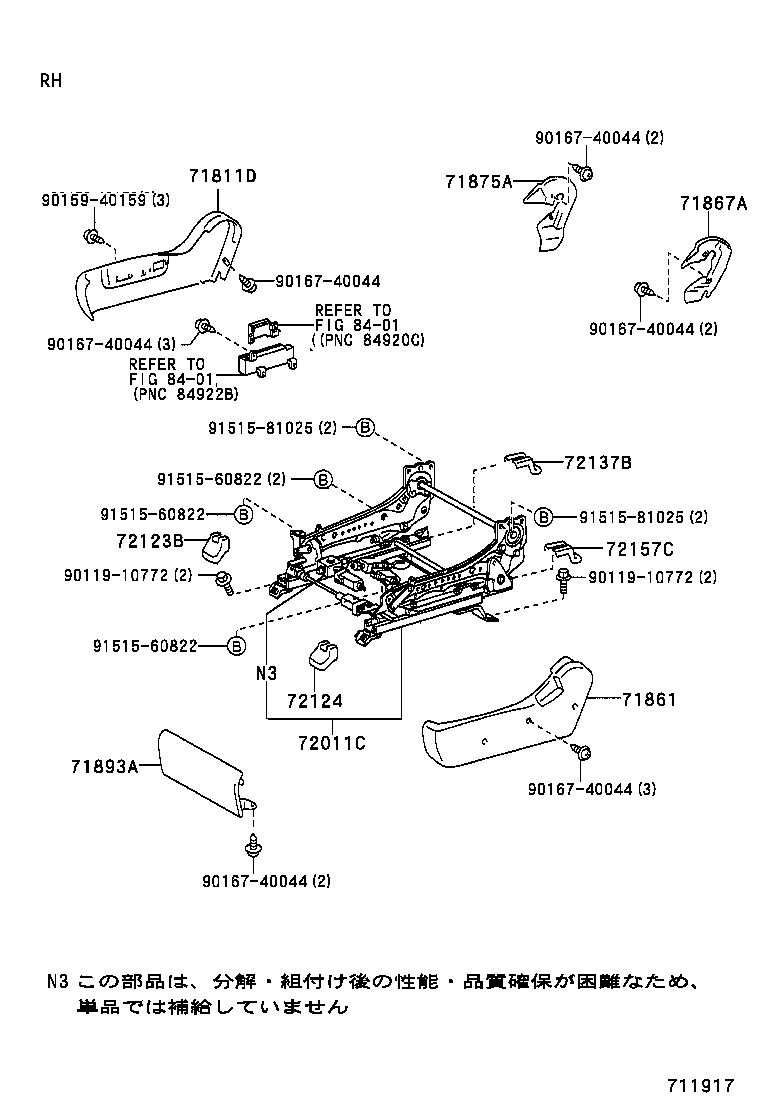

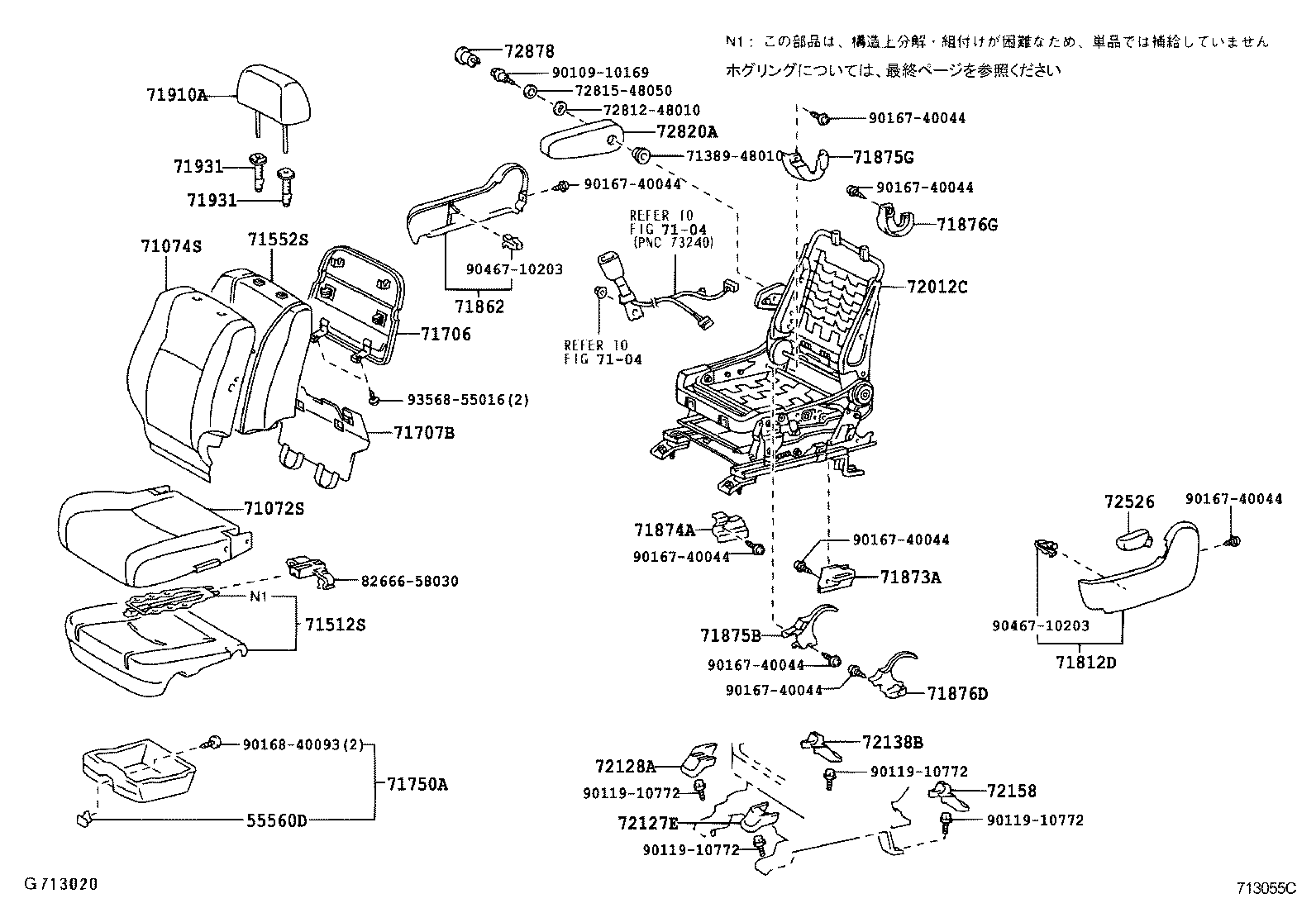

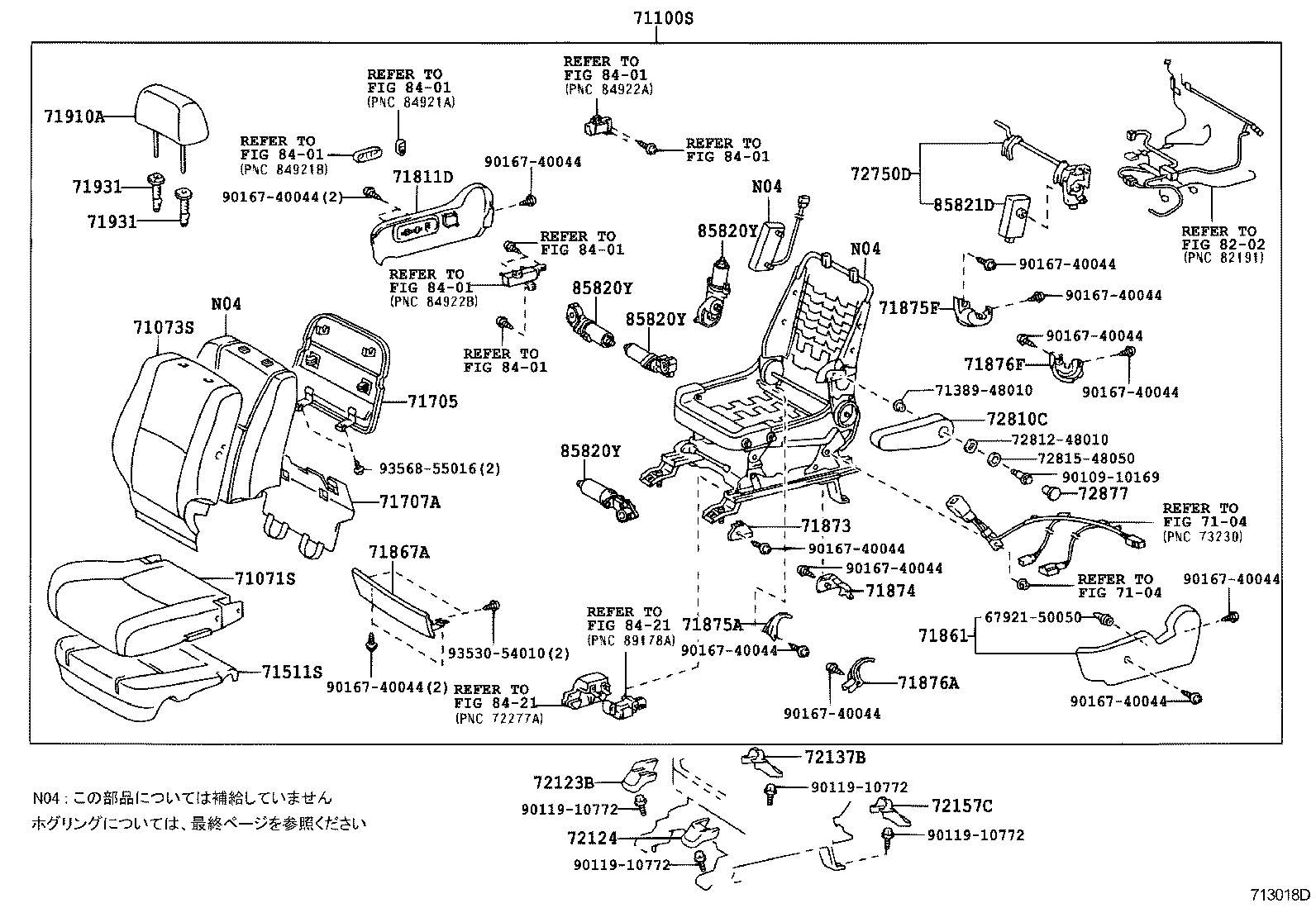

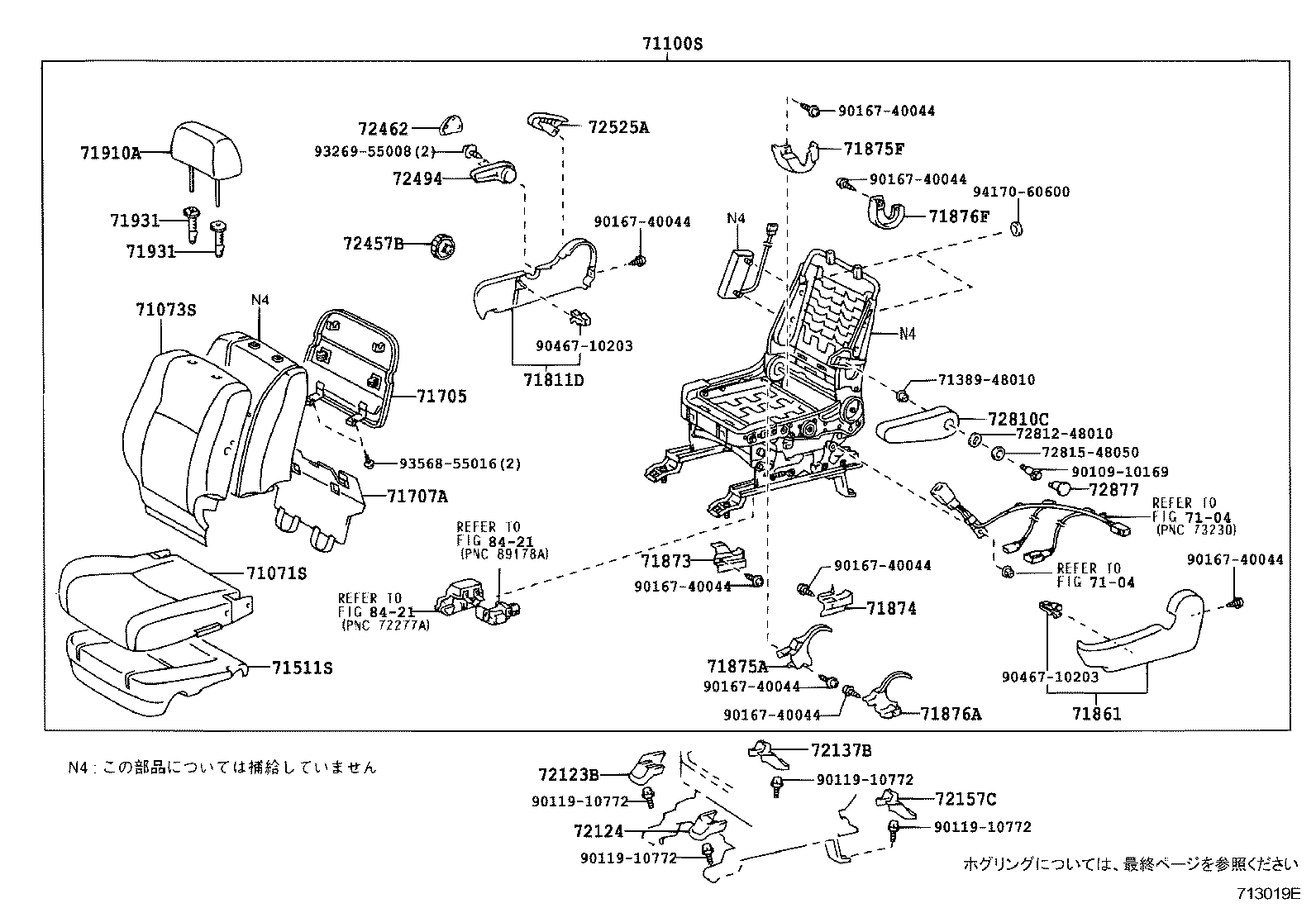

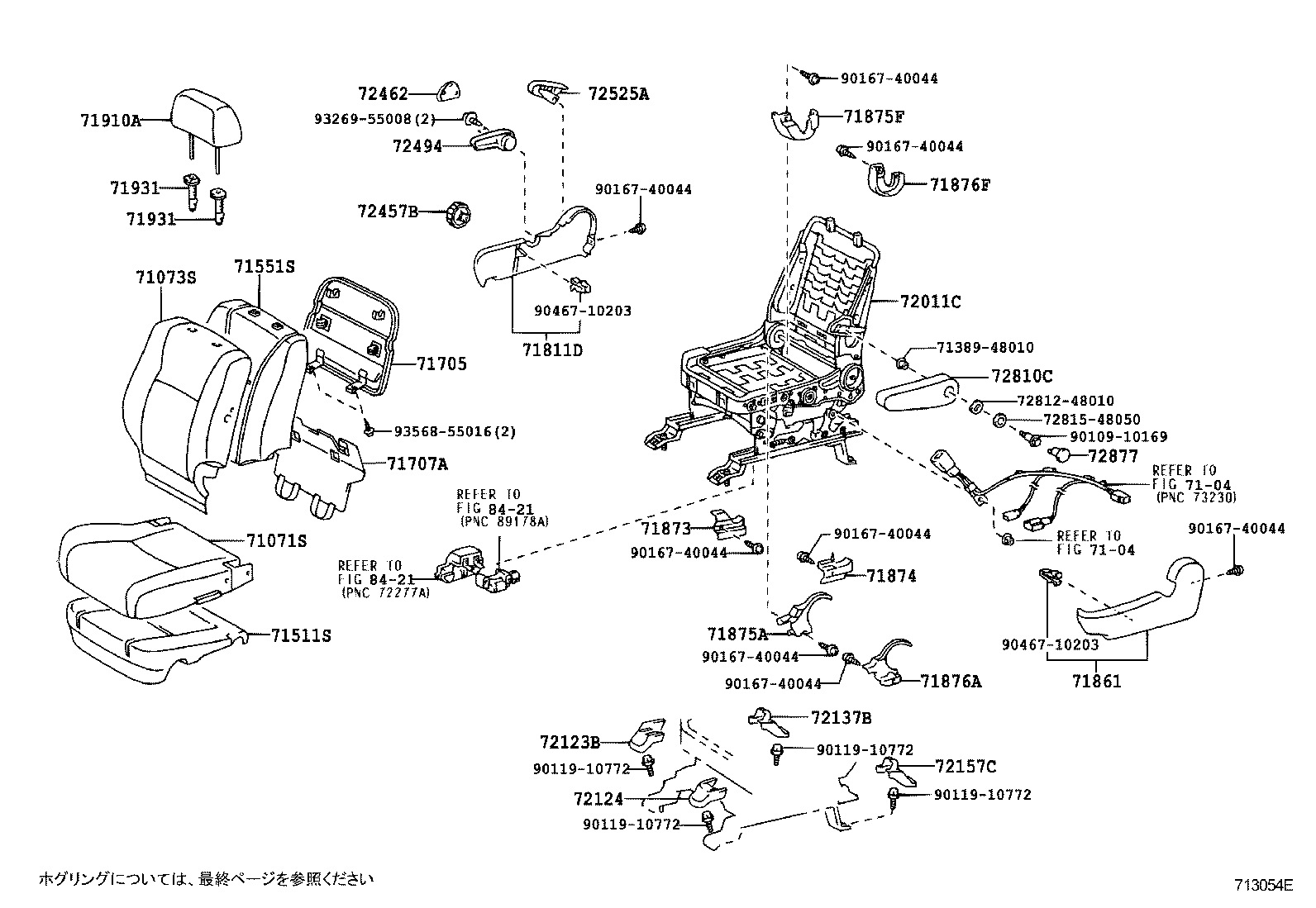

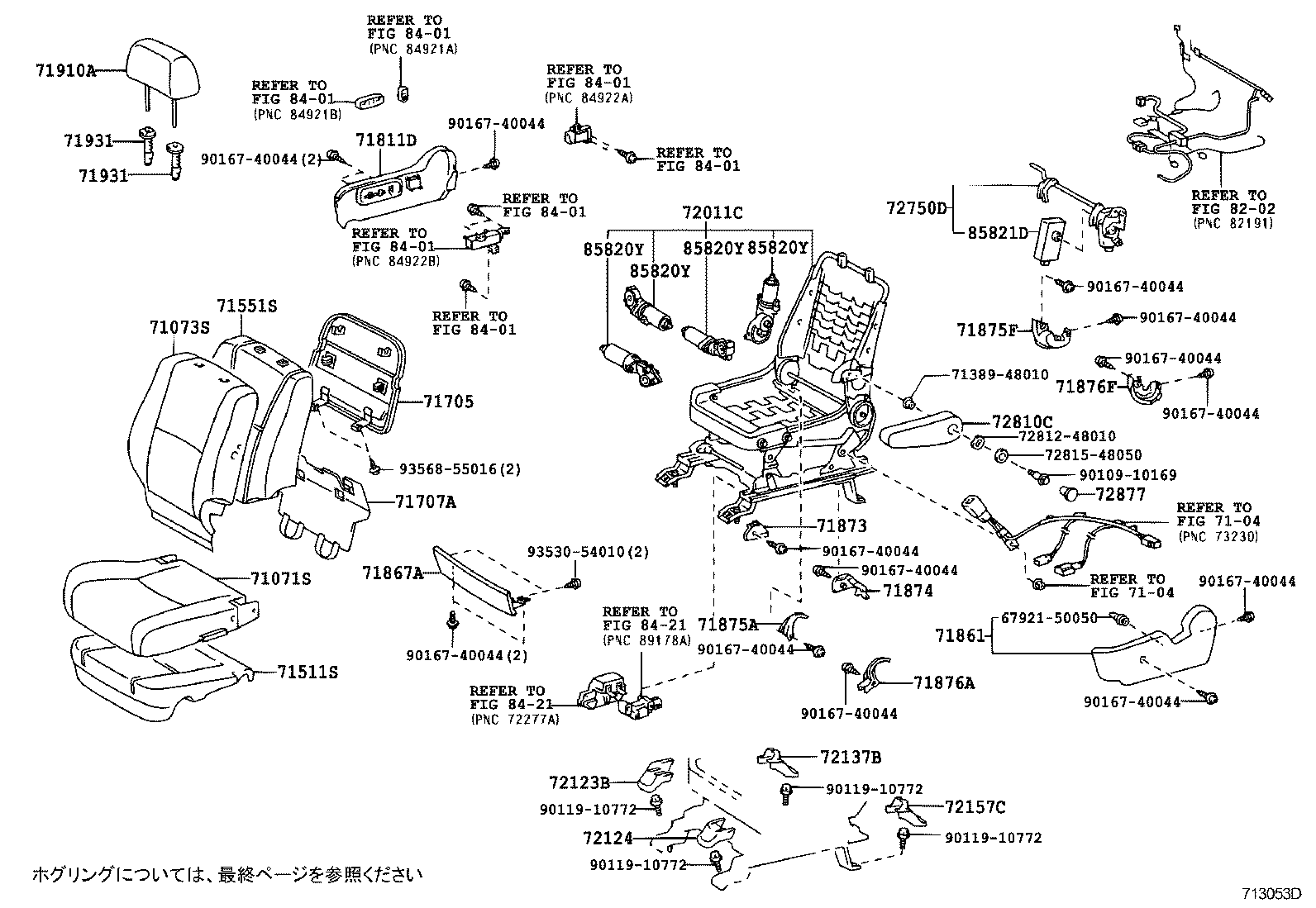

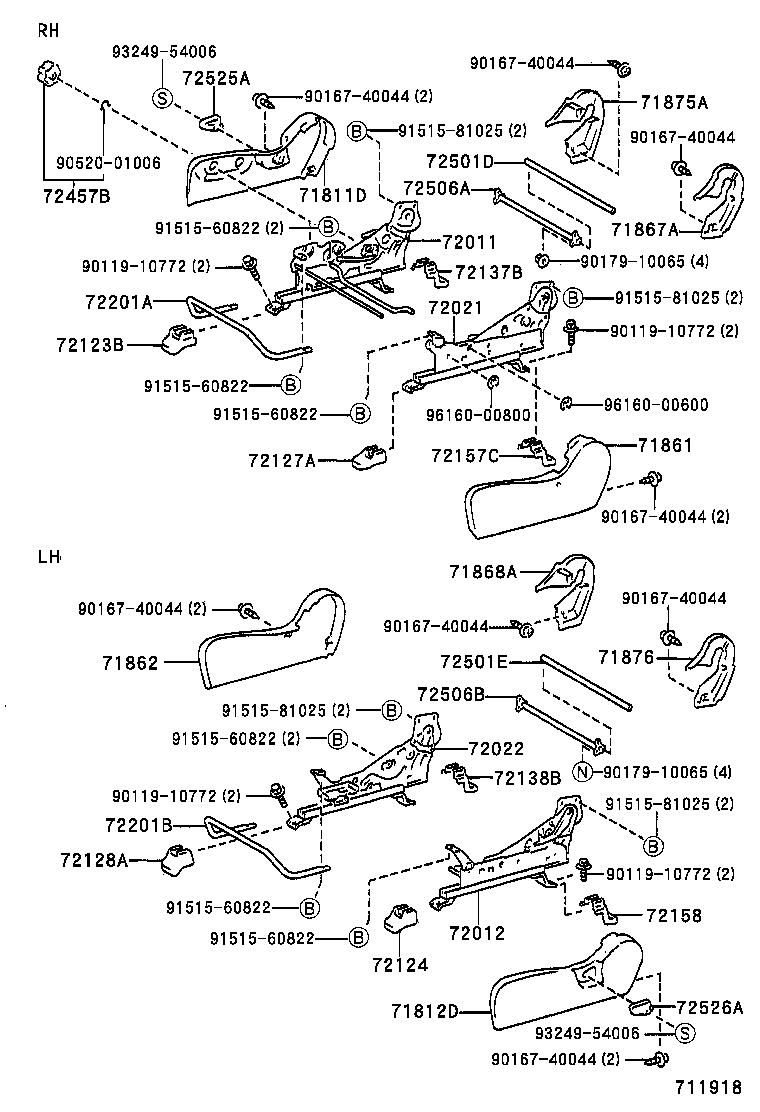

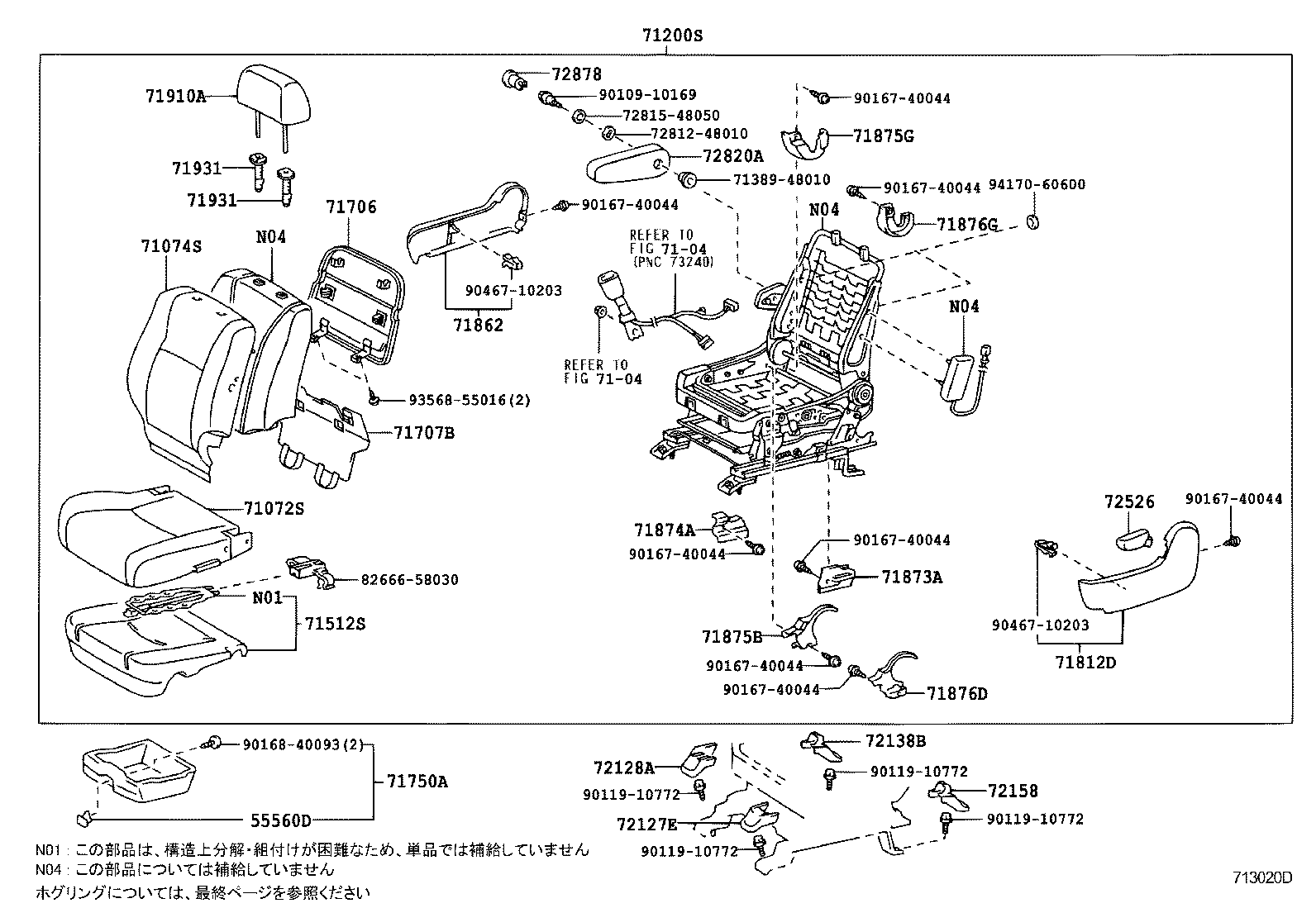

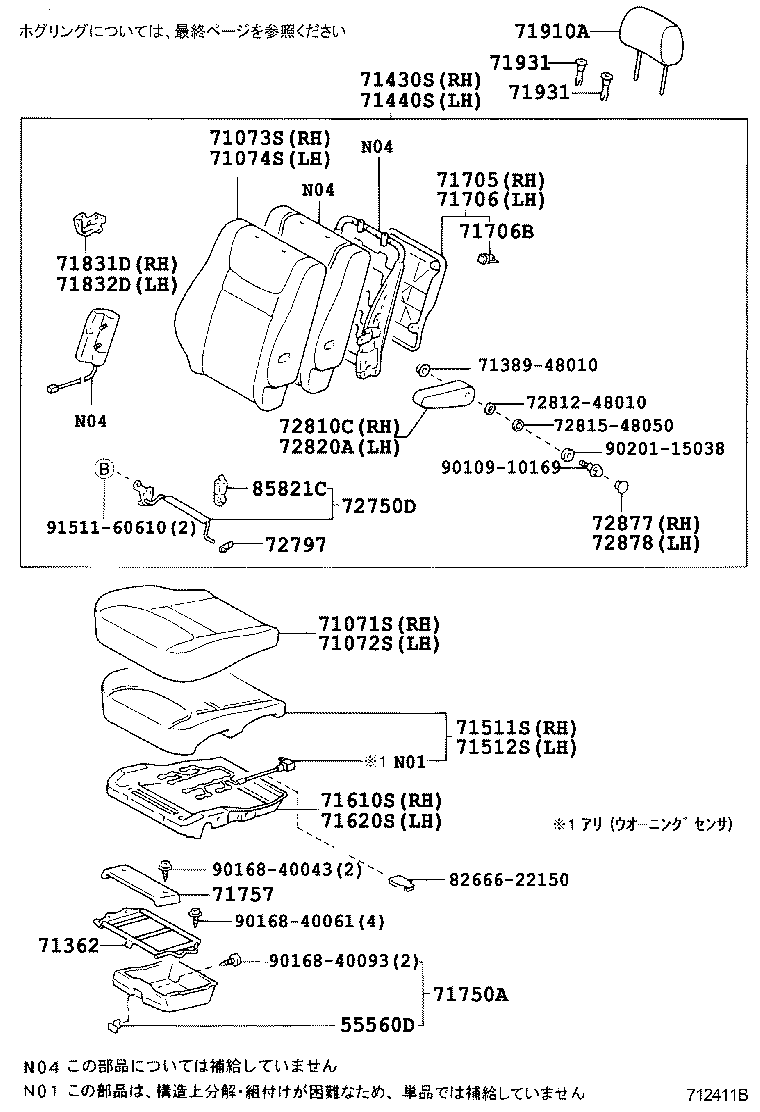

Figure 711916F 711916F 2000-11 → 2003-08 Figure 712411B 712411B 2000-11 → 2003-08 Figure 711917 711917 2000-11 → 2003-08 Figure 711918 711918 2000-11 → 2003-08 Figure 713054E 713054E 2003-08 → — Figure 713019E 713019E 2003-08 → — Figure 713053D 713053D 2003-08 → — Figure 713018D 713018D 2003-08 → — Figure 713020D 713020D 2003-08 → — Figure 713055C 713055C 2003-08 → — Figure 718165A 718165A 2000-11 → —

Part groups

PNCDescription
55560D Lock Assy, Seat Under Tray
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71362 Bracket, Front Seat Set, NO.2
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71706B Clip, Front Seatback Board
71707A Cover Sub-assy, Front Seatback Board
71707B Cover Sub-assy, Front Seatback Board
71750A Tray Assy, Front Seat Under
71757 Plate, Seat Under Tray, NO.1
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71893A Shield, Power Adjuster, Front RH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72011C Adjuster Sub-assy, Front Seat, RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72012C Adjuster Sub-assy, Front Seat, LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72123B Cover, Seat Track Bracket, Outer Front
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72128A Cover, Seat Track Bracket, Inner Front LH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157C Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72457B Knob, Vertical Seat Adjuster, RH
72462 Cover, Vertical Adjuster RH
72494 Handle, Vertical Adjusting, RH
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72506A Rod Sub-assy, Reclining Connecting, RH
72506B Rod Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
72797 Spacer, Lumbar Support
72810C Armrest Assy, Front Seat, Center
72820A Armrest Assy, Seat, LH
72877 Cover, Seat Armrest, RH
72878 Cover, Seat Armrest, LH
85820Y Motor Assy, Power Seat
85821C Motor Assy, Power Seat
85821D Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
