Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

135 part groups · 8 illustrations

Illustrations

711922H 2000-11 → 2003-08

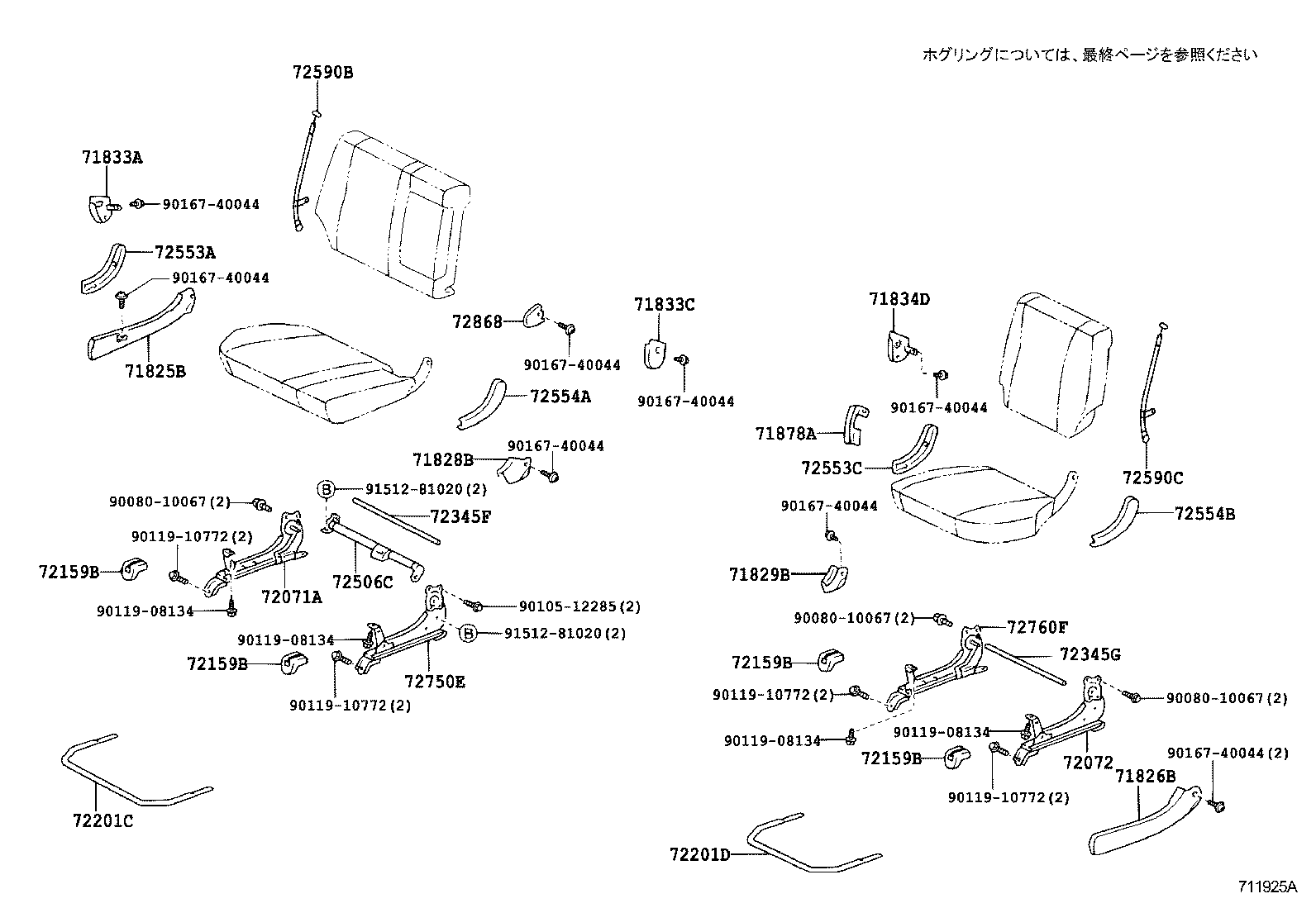

711925A 2000-11 → 2003-08

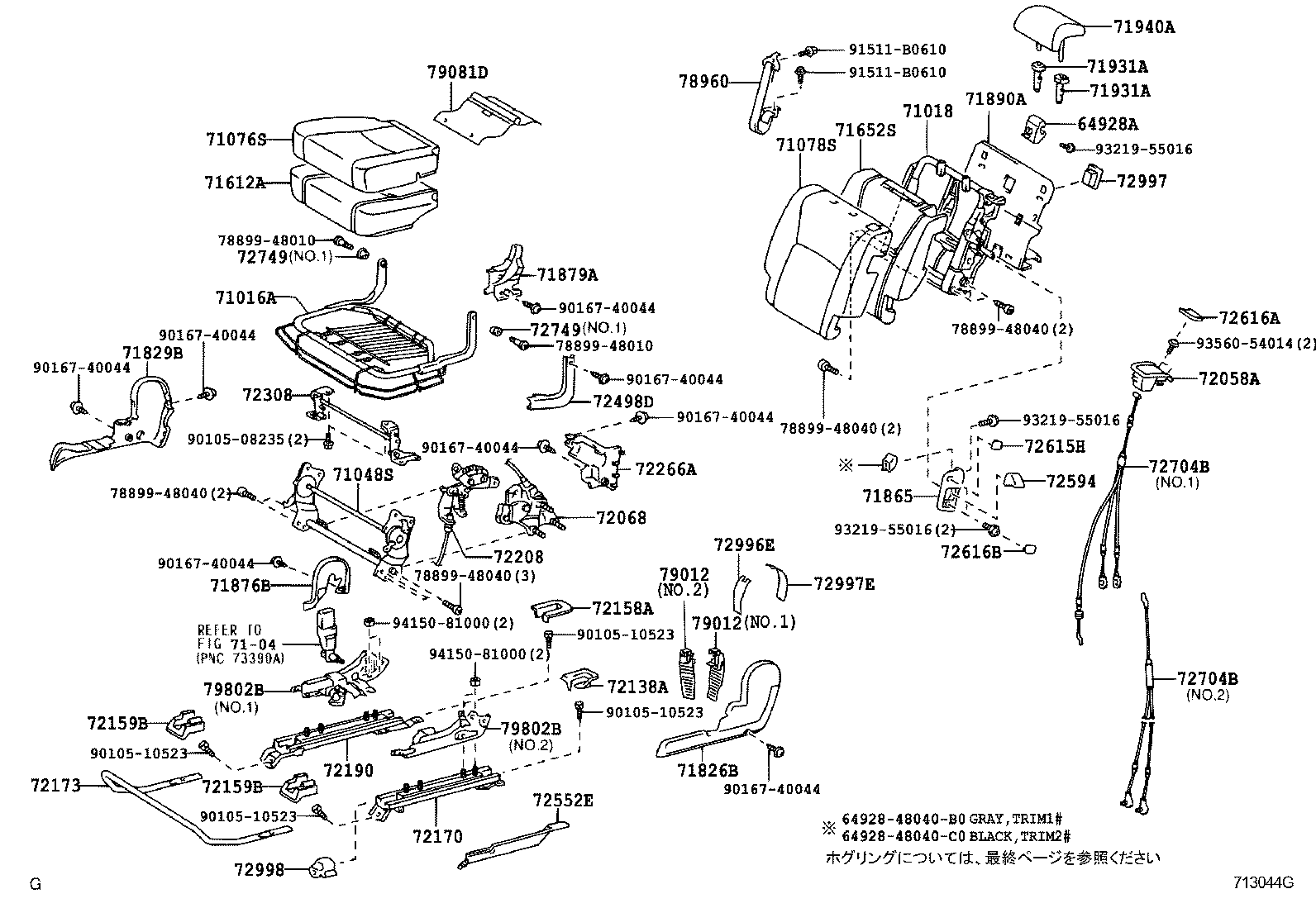

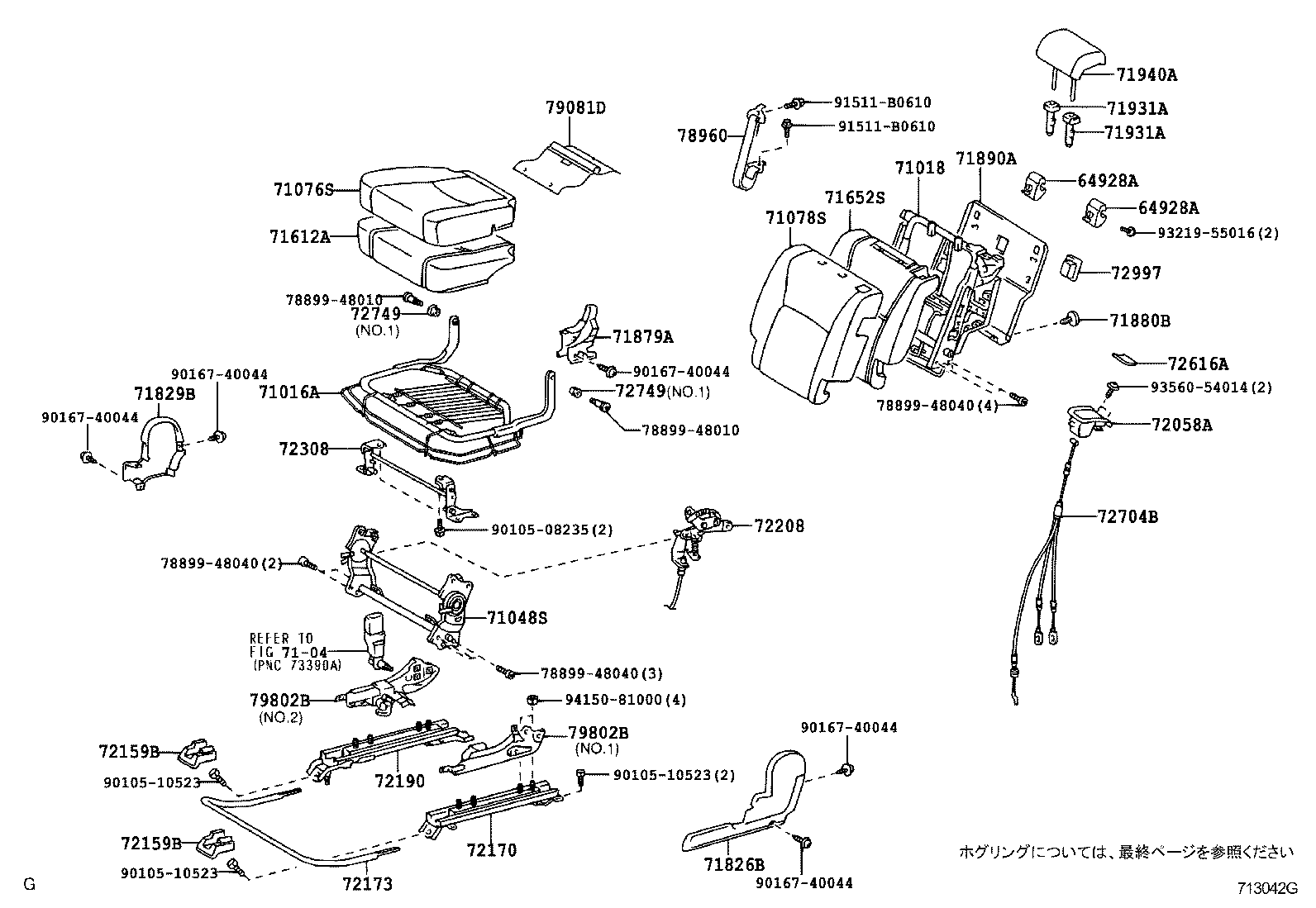

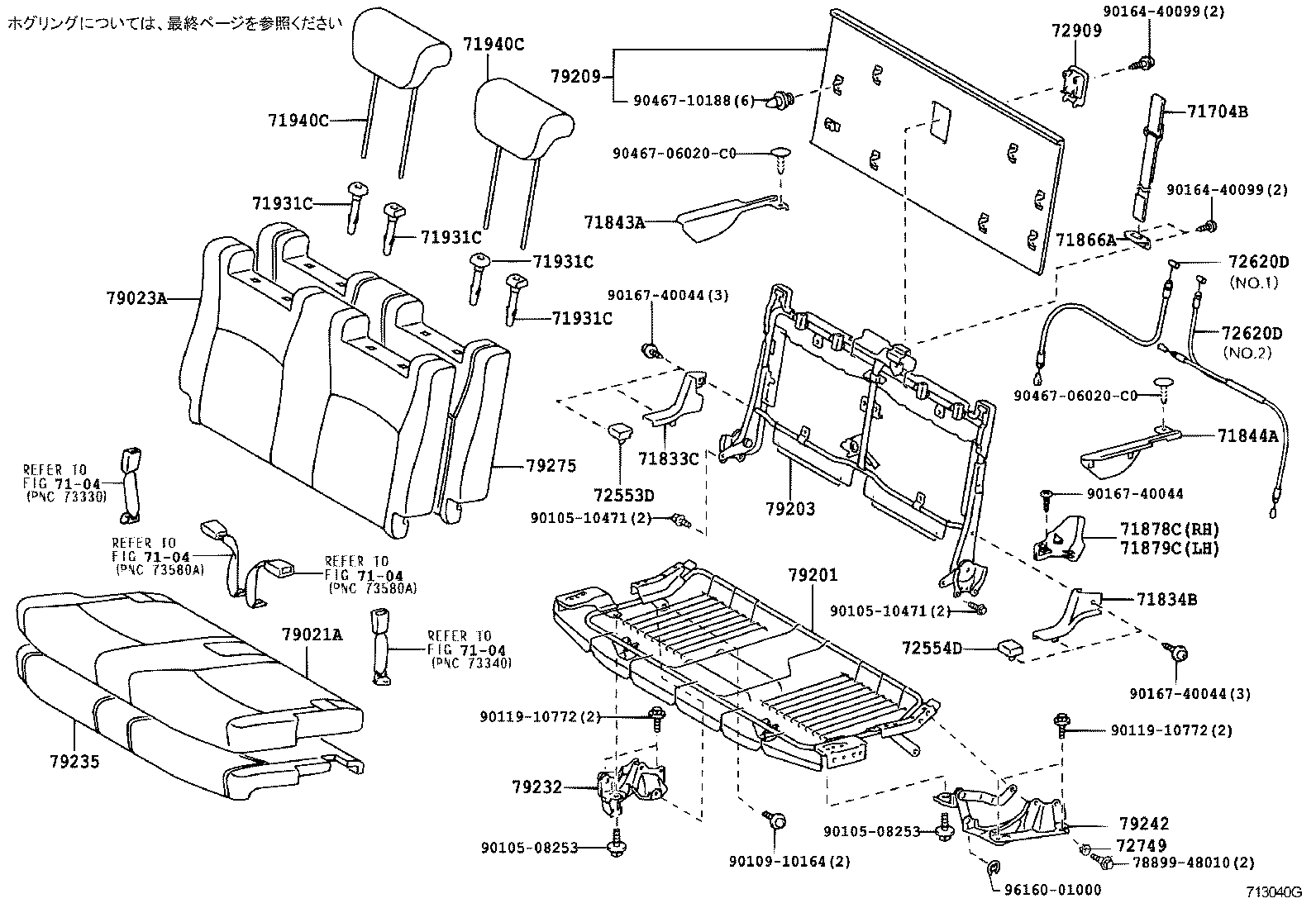

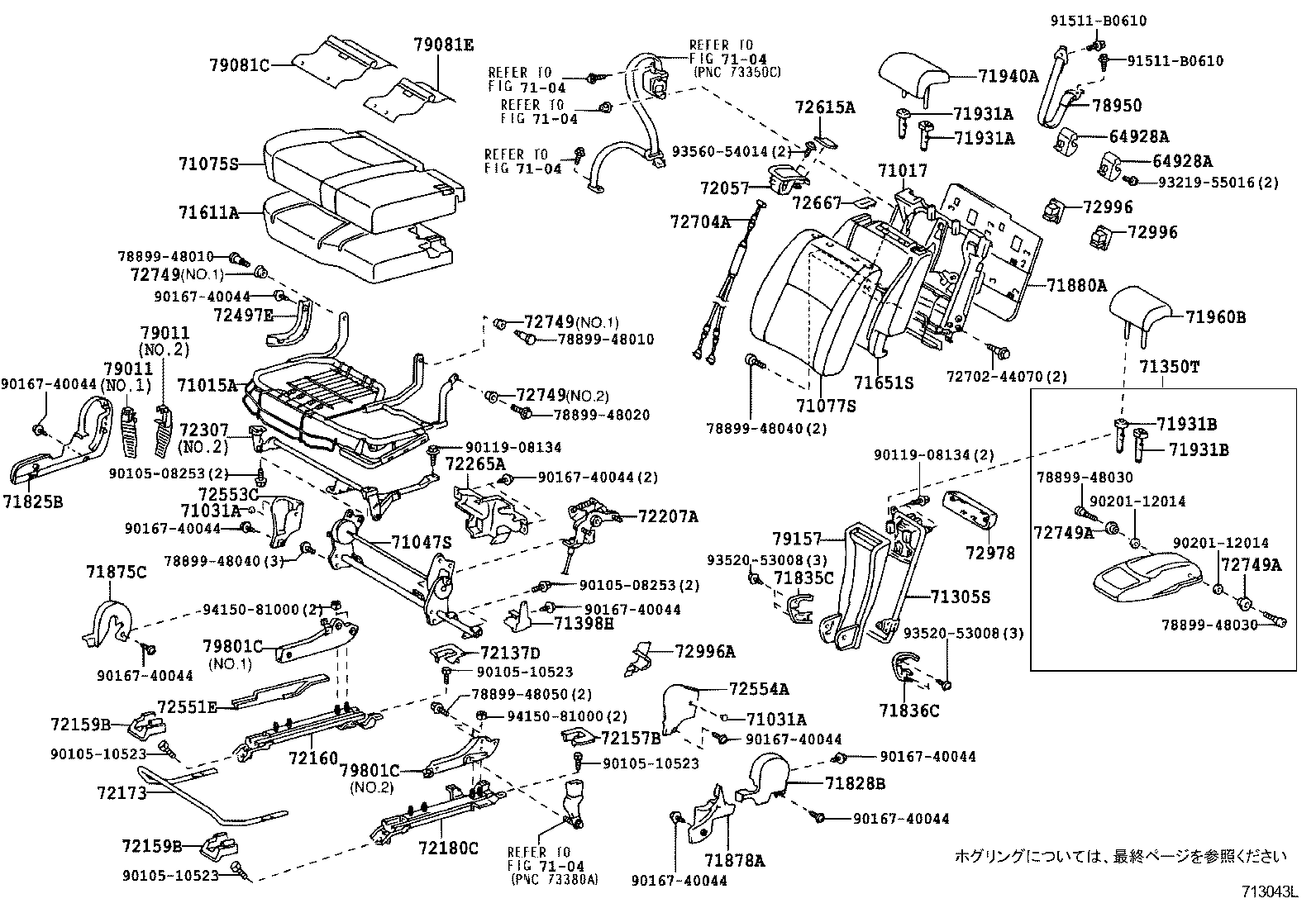

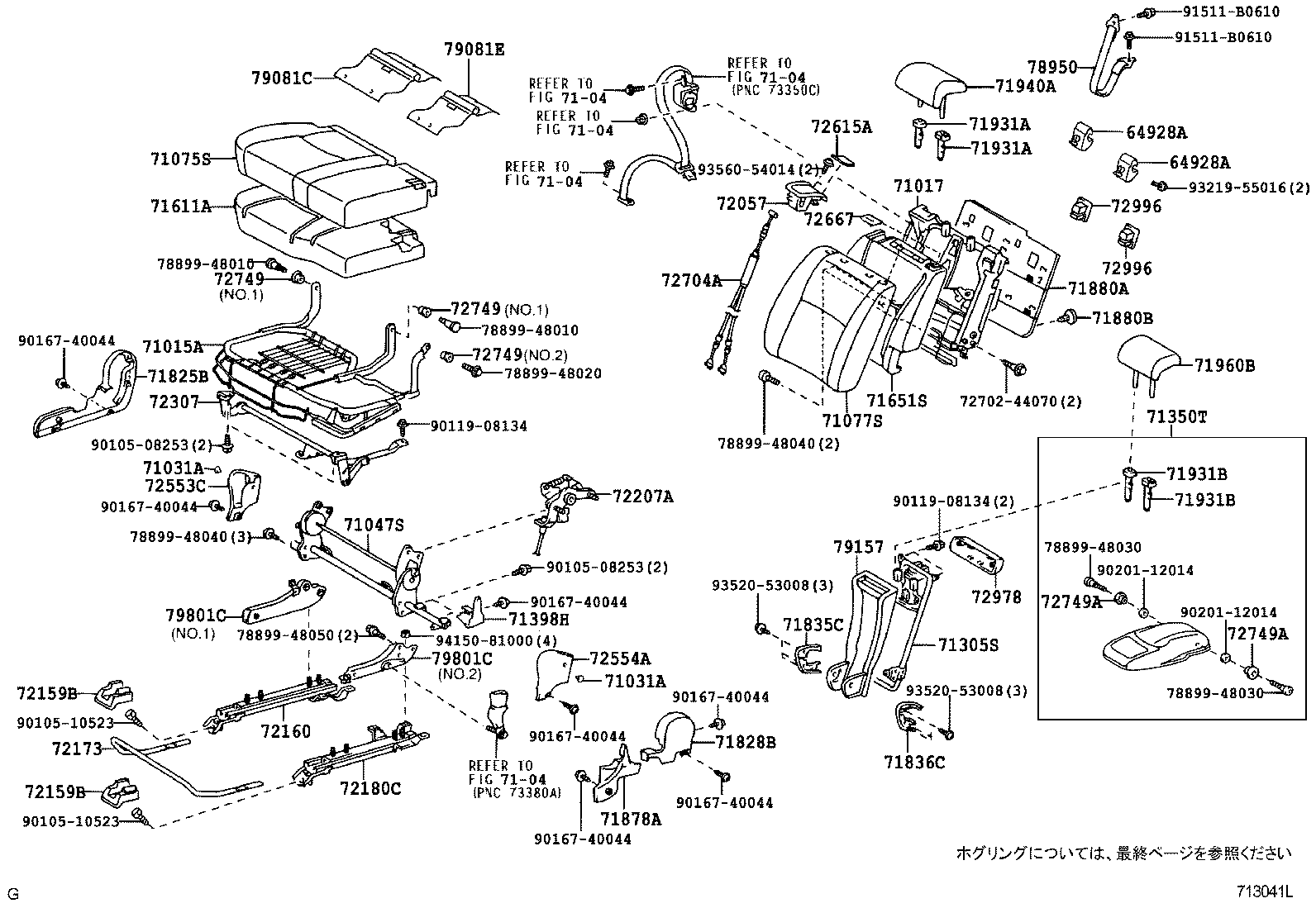

Part groups

PNC	Description
64928A	Holder, Tonneau Cover Hook
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71031A	Clip, Center Seat Cushion
71047S	Frame Sub-assy, Rear Seatback, Lower RH
71048S	Frame Sub-assy, Rear Seatback, Lower LH
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71281A	Hinge, Rear Seat Center Armrest
71305S	Frame Sub-assy, Center Seatback
71350T	Back Assy, Center Seat
71398H	Cover, Center Seat Hinge, Upper LH
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652C	Pad, Rear Seatback, B
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71667A	Pad, Rear Seatback, Center A
71704B	Band Sub-assy, Rear Side Seat, NO.2
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834D	Cover, Rear Seat Reclining, LH
71835C	Moulding, Rear Seatback, RH
71836C	Moulding, Rear Seatback, LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71865	Bezel, Rear Seat Cover, NO.1
71866A	Bezel, Rear Seat Cover, NO.2
71875C	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71878C	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71880A	Carpet Assy, Rear Seatback Board, RH
71880B	Clip(FOR REAR SEATBACK CARPET)
71890A	Carpet Assy, Rear Seatback Board, LH
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940B	Headrest Assy, Rear Seat, RH
71940C	Headrest Assy, Rear NO.1 Seat, RH
71950D	Headrest Assy, Rear Seat, LH
71960B	Headrest Assy, Rear Seat, Center
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72071A	Adjuster Sub-assy, Rear Seat Relining, RH
72072	Adjuster Sub-assy, Rear Seat Reclining, LH
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72159B	Cover, Rear Seat Track Bracket, Outer
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72173	Handle, Rear Seat Track Adjusting
72180C	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72201C	Handle Sub-assy, Seat Track, RH
72201D	Handle Sub-assy, Seat Track, LH
72207A	Plate, Seat Track Stop RH
72208	Plate, Seat Track Stop, LH
72265A	Cover, Seat Track Upper Rail, RH
72266A	Cover, Seat Track Upper Rail, LH
72307	Link Sub-assy, Reclining Control, RH
72308	Link Sub-assy, Reclining Control, LH
72345F	Pipe, Reclining Connecting, RH
72345G	Pipe, Reclining Connecting, LH
72497E	Cover, Vertical Adjuster Bracket, Outer
72498D	Cover, Vertical Adjuster Bracket, LH
72506C	Rod Sub-assy, Reclining Connecting
72551E	Cover, Reclining Hinge, RH
72552E	Cover, Reclining Hinge, LH
72553A	Protector, Reclining Cover, RH
72553C	Protector, Reclining Cover, RH
72553D	Cover, Reclining Pedal, RH
72554A	Protector, Reclining Cover, LH
72554B	Protector, Reclining Cover, LH
72554D	Cover, Reclining Pedal, LH
72590B	Cable Assy, Reclining Remote Control
72590C	Cable Assy, Reclining Remote Control
72594	Knob, Remote Control Lever, LH
72615A	Cover, Rear Seatback Lock Striker, RH
72615H	Cover, Rear Seatback Lock Striker, NO.1
72616A	Cover, Rear Seatback Lock Striker, LH
72616B	Cover, Rear Seat Lock Striker
72620D	Cable Assy, Rear NO.1 Seat Lock
72667	Bezel, Rear Seatback Lock, Upper
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72749	Spacer, Rear Seat Reclining
72749A	Spacer, Rear Seat Reclining
72750E	Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72760F	Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
72830	Armrest Assy, Rear Seat, Center
72868	Cover, Center Armrest Hinge, RH
72909	Handle 3RD Seat
72978	Cover, NO.2 Center Seatback
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
72996E	Cover, Rear Seat Shield Inner, NO.1
72997	Cover, Rear Seatback, LH
72997E	Cover, Rear Seat Shield Inner, NO.2
72998	Cover, Rear Seat Cushion, LH
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79081C	Cover, Rear Seat, NO.1
79081D	Cover, Rear Seat, NO.2
79081E	Cover, Rear Seat, NO.3
79157	Cover, NO.1 Seatback
79201	Frame Sub-assy, NO.2 Seat Cushion
79203	Frame Sub-assy, NO.2 Seatback
79209	Board Sub-assy, NO.2 Seatback
79232	Leg, Rear NO.2 Seat, RH
79235	Pad, NO.2 Seat Cushion
79242	Leg, Rear NO.2 Seat, LH
79275	Pad, NO.2 Seatback
79801C	Frame, Fold Seat Cushion, NO.2
79802B	Frame, Fold Seat Cushion, NO.1
